DTC P1554 BATTERY CURRENT SENSOR

EC-531

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

SC-5, "SPECIFIC GRAVITY CHECK"

 .

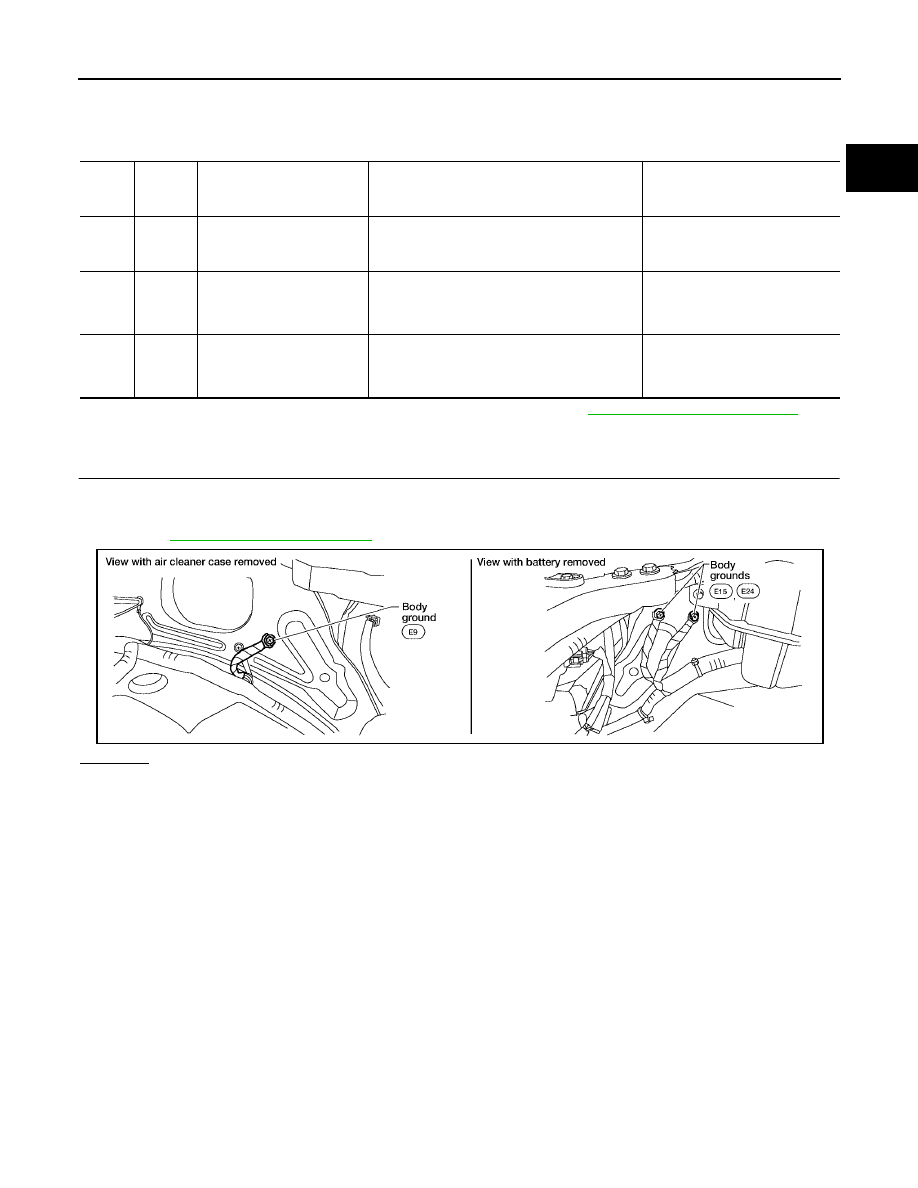

Diagnostic Procedure

UBS00KU3

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body.
Refer to

EC-151, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

49

P

Sensor power supply
(Refrigerant pressure sen-
sor/Battery current sensor)

[Ignition switch: ON]

Approximately 5V

67

B

Sensor ground

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

71

R

Battery current sensor

[Engine is running]

●

Battery: Fully charged*

●

Idle speed

Approximately 2.6 - 3.5 V

BBIA0539E

EC-532

DTC P1554 BATTERY CURRENT SENSOR

2006 Pathfinder

2.

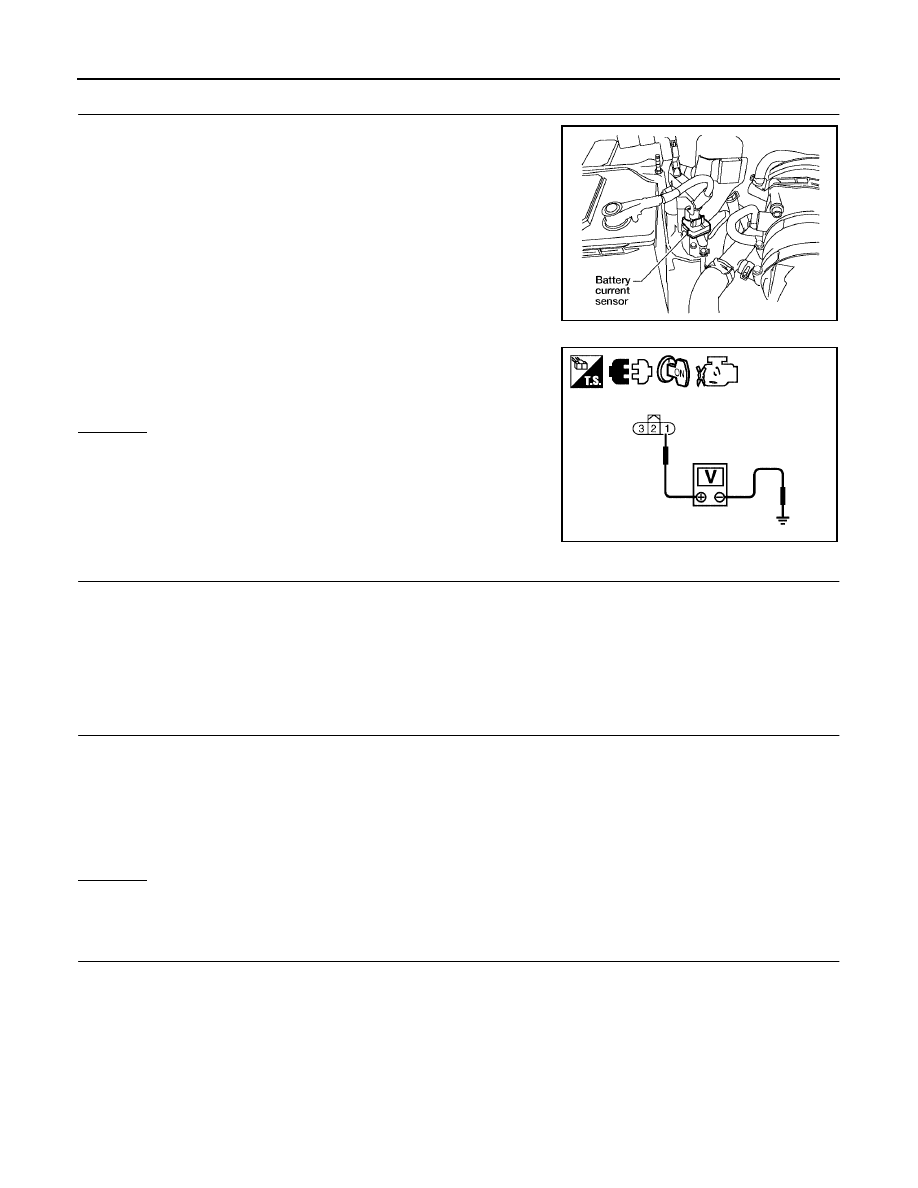

CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect battery current sensor harness connector.

2.

Turn ignition switch ON.

3.

Check voltage between battery current sensor terminal 1 and
ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E5, F14

●

Harness for open or short between battery current sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between battery current sensor terminal 2 and ECM terminal 67.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E5, F14

●

Harness for open or short between battery current sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

BBIA0582E

Voltage: Approximately 5V

PBIB2609E

Continuity should exist.

DTC P1554 BATTERY CURRENT SENSOR

EC-533

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

6.

CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E5, F14

●

Harness for open or short between battery current sensor and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK BATTERY CURRENT SENSOR

Refer to

EC-533, "Component Inspection"

 .

OK or NG

OK

>> GO TO 9.

NG

>> Replace battery negative cable assembly.

9.

CHECK INTERMITTENT INCIDENT

Refer to

EC-144, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

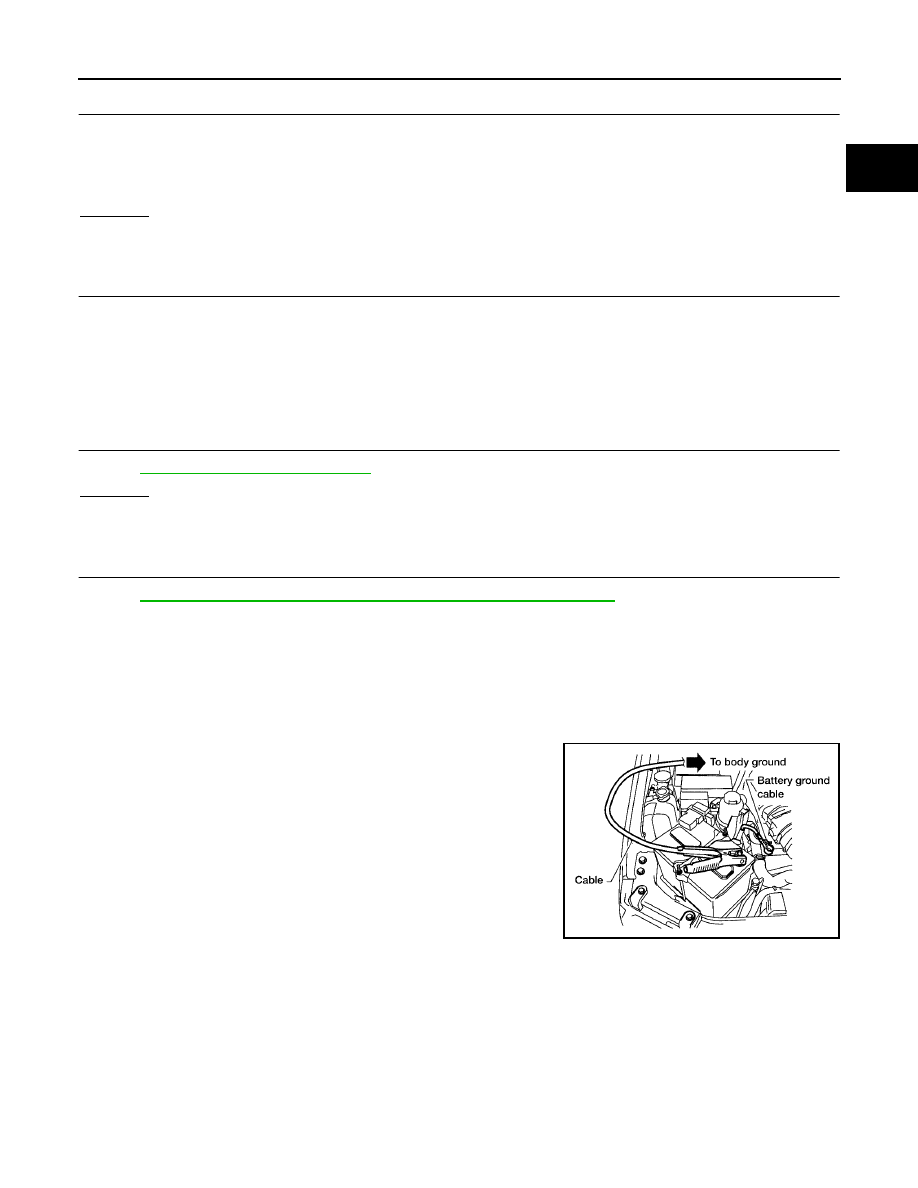

Component Inspection

UBS00KU4

BATTERY CURRENT SENSOR

1.

Reconnect harness connectors disconnected.

2.

Disconnect battery negative cable.

3.

Install jumper cable between battery negative terminal and body
ground.

4.

Turn ignition switch ON.

Continuity should exist.

BBIA0588E

EC-534

DTC P1554 BATTERY CURRENT SENSOR

2006 Pathfinder

5.

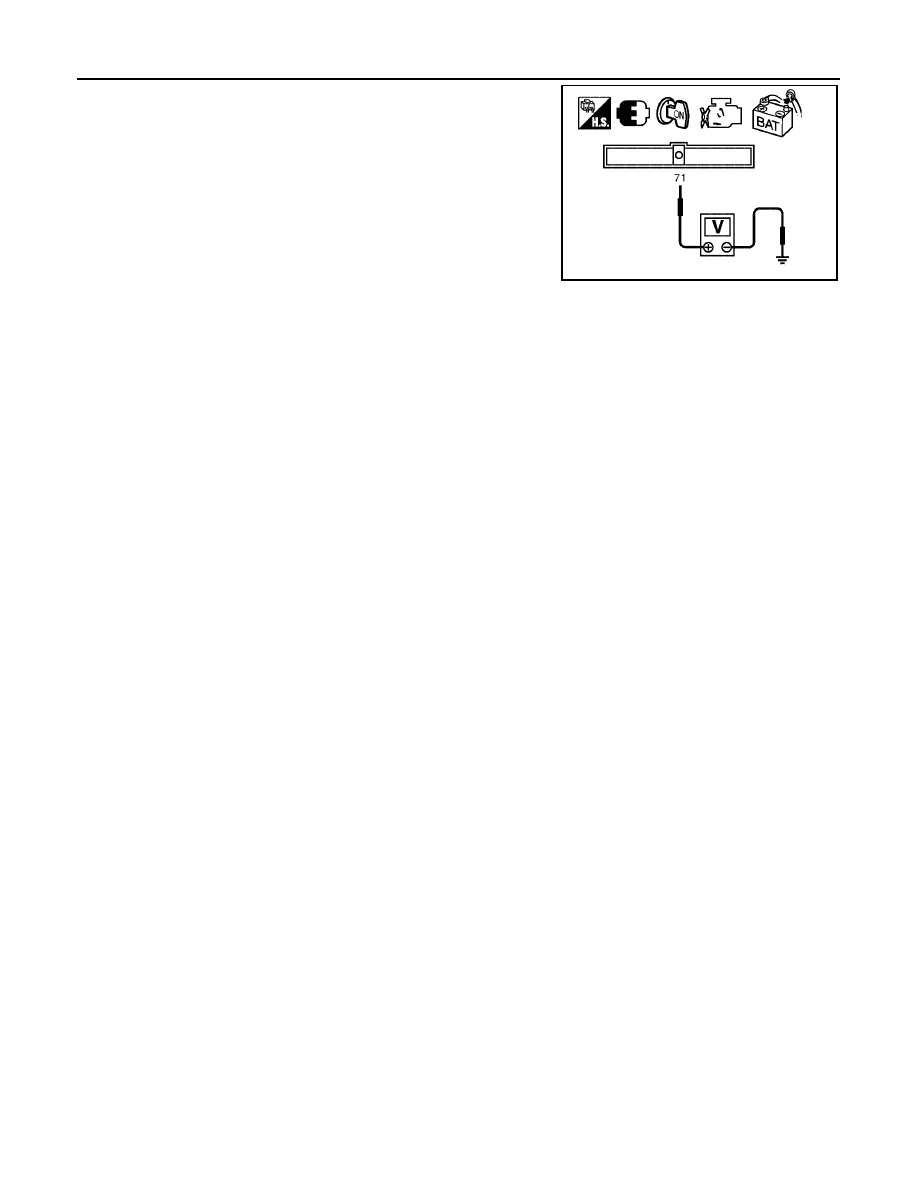

Check voltage between ECM terminal 71 (battery current sensor
signal) and ground.

6.

If NG, replace battery negative cable assembly.

Voltage: Approximately 2.5V

PBIB2617E

DTC P1564 ASCD STEERING SWITCH

EC-535

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

DTC P1564 ASCD STEERING SWITCH

PFP:25551

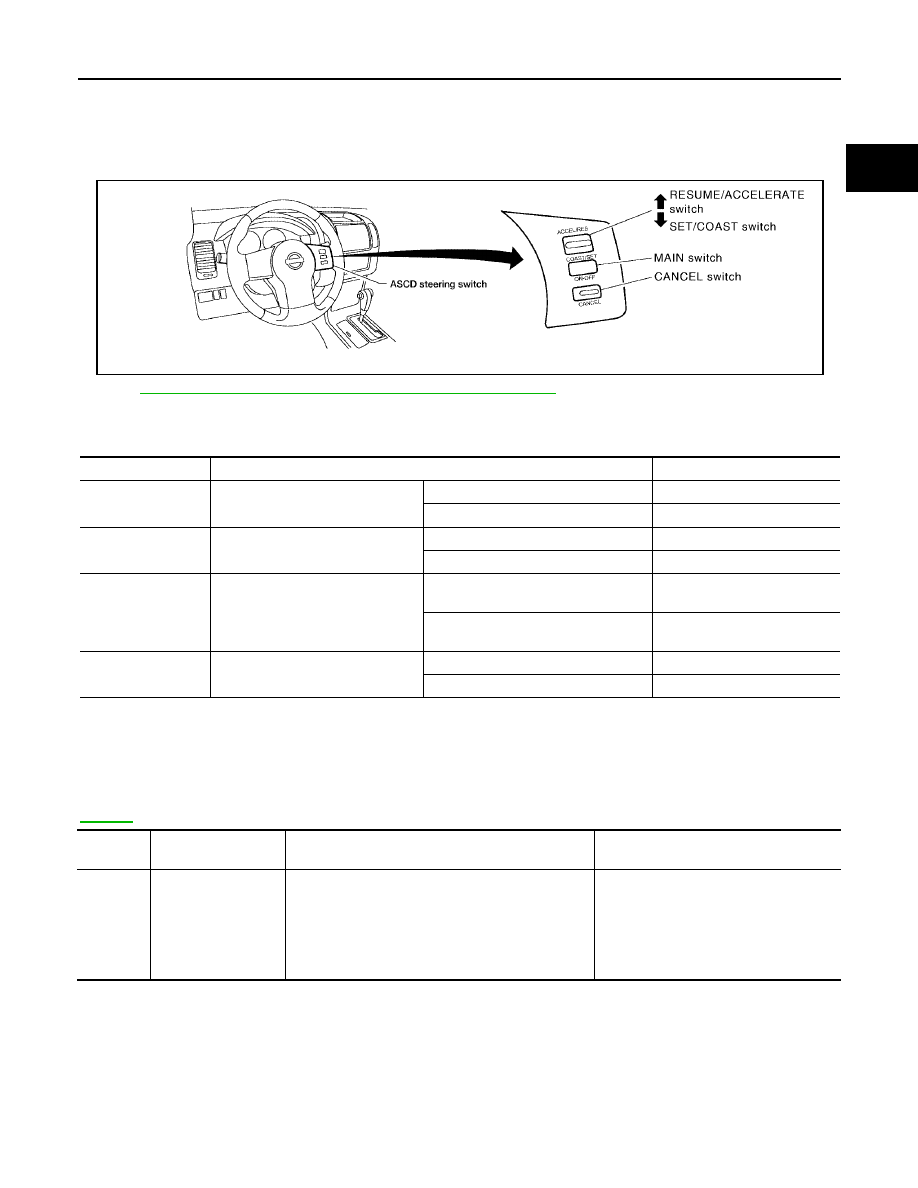

Component Description

UBS00KFV

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.

Refer to

EC-29, "AUTOMATIC SPEED CONTROL DEVICE (ASCD)"

   for the ASCD function.

CONSULT-II Reference Value in Data Monitor Mode

UBS00KFW

Specification data are reference values.

On Board Diagnosis Logic

UBS00KFX

This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.

NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to

EC-476

.

PBIB2645E

MONITOR ITEM

CONDITION

SPECIFICATION

MAIN SW

●

Ignition switch: ON

MAIN switch: Pressed

ON

MAIN switch: Released

OFF

CANCEL SW

●

Ignition switch: ON

CANCEL switch: Pressed

ON

CANCEL switch: Released

OFF

RESUME/ACC SW

●

Ignition switch: ON

RESUME/ACCELERATE switch:
Pressed

ON

RESUME/ACCELERATE switch:
Released

OFF

SET SW

●

Ignition switch: ON

SET/COAST switch: Pressed

ON

SET/COAST switch: Released

OFF

DTC No.

Trouble Diagnosis

Name

DTC Detecting Condition

Possible Cause

P1564
1564

ASCD steering
switch

●

An excessively high voltage signal from the ASCD
steering switch is sent to ECM.

●

ECM detects that input signal from the ASCD
steering switch is out of the specified range.

●

ECM detects that the ASCD steering switch is
stuck ON.

●

Harness or connectors
(The switch circuit is open or shorted.)

●

ASCD steering switch

●

ECM

EC-536

DTC P1564 ASCD STEERING SWITCH

2006 Pathfinder

DTC Confirmation Procedure

UBS00KFY

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “DATA MONITOR” mode with CONSULT-II.

3.

Wait at least 10 seconds.

4.

Press MAIN switch for at least 10 seconds, then release it and
wait at least 10 seconds.

5.

Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.

6.

Press RESUME/ACCELERATE switch for at least 10 seconds,
then release it and wait at least 10 seconds.

7.

Press SET/COAST switch for at least 10 seconds, then release
it and wait at least 10 seconds.

8.

If DTC is detected, go to

EC-538, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II” above.

SEF058Y

DTC P1564 ASCD STEERING SWITCH

EC-537

C

D

E

F

G

H

I

J

K

L

M

A

EC

2006 Pathfinder

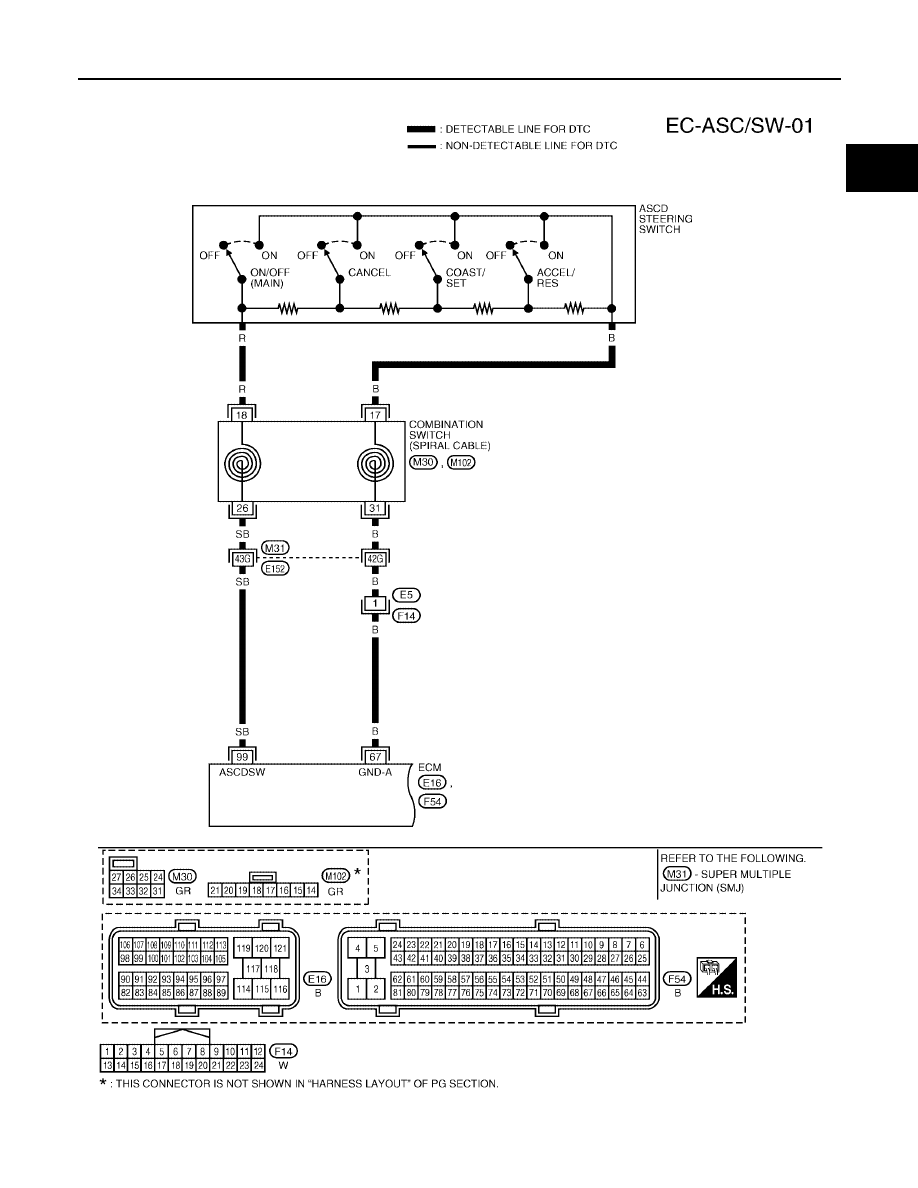

Wiring Diagram

UBS00KFZ

BBWA2372E

EC-538

DTC P1564 ASCD STEERING SWITCH

2006 Pathfinder

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

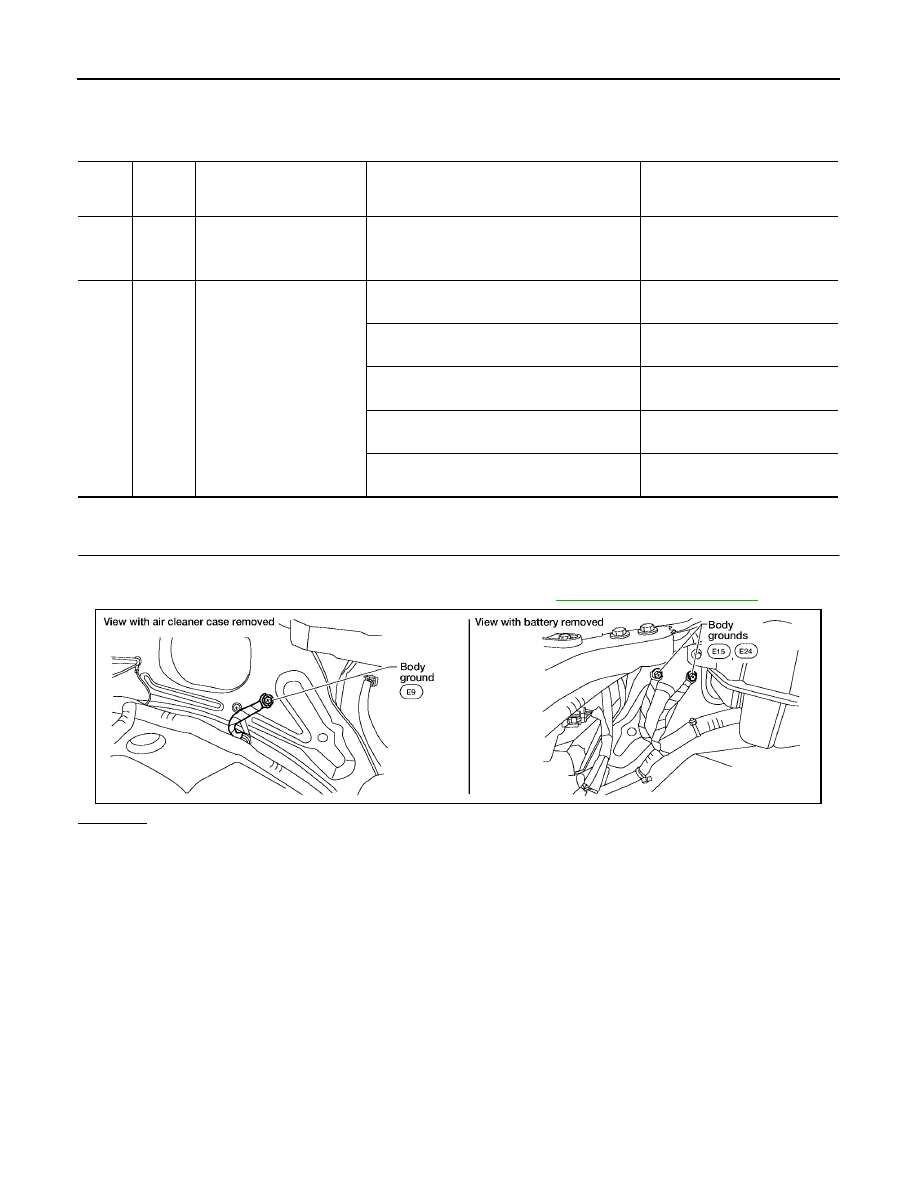

Diagnostic Procedure

UBS00KG0

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

Loosen and retighten three ground screws on the body. Refer to

EC-151, "Ground Inspection"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

67

B

Sensor ground

[Engine is running]

●

Warm-up condition

●

Idle speed

Approximately 0V

99

SB

ASCD steering switch

[Ignition switch: ON]

●

ASCD steering switch: OFF

Approximately 4V

[Ignition switch: ON]

●

MAIN switch: Pressed

Approximately 0V

[Ignition switch: ON]

●

CANCEL switch: Pressed

Approximately 1V

[Ignition switch: ON]

●

RESUME/ACCELERATE switch: Pressed

Approximately 3V

[Ignition switch: ON]

●

SET/COAST switch: Pressed

Approximately 2V
