Nissan Pathfinder (2006 year). Manual - part 114





REAR DISC BRAKE

BR-35

C

D

E

G

H

I

J

K

L

M

A

B

BR

2006 Pathfinder

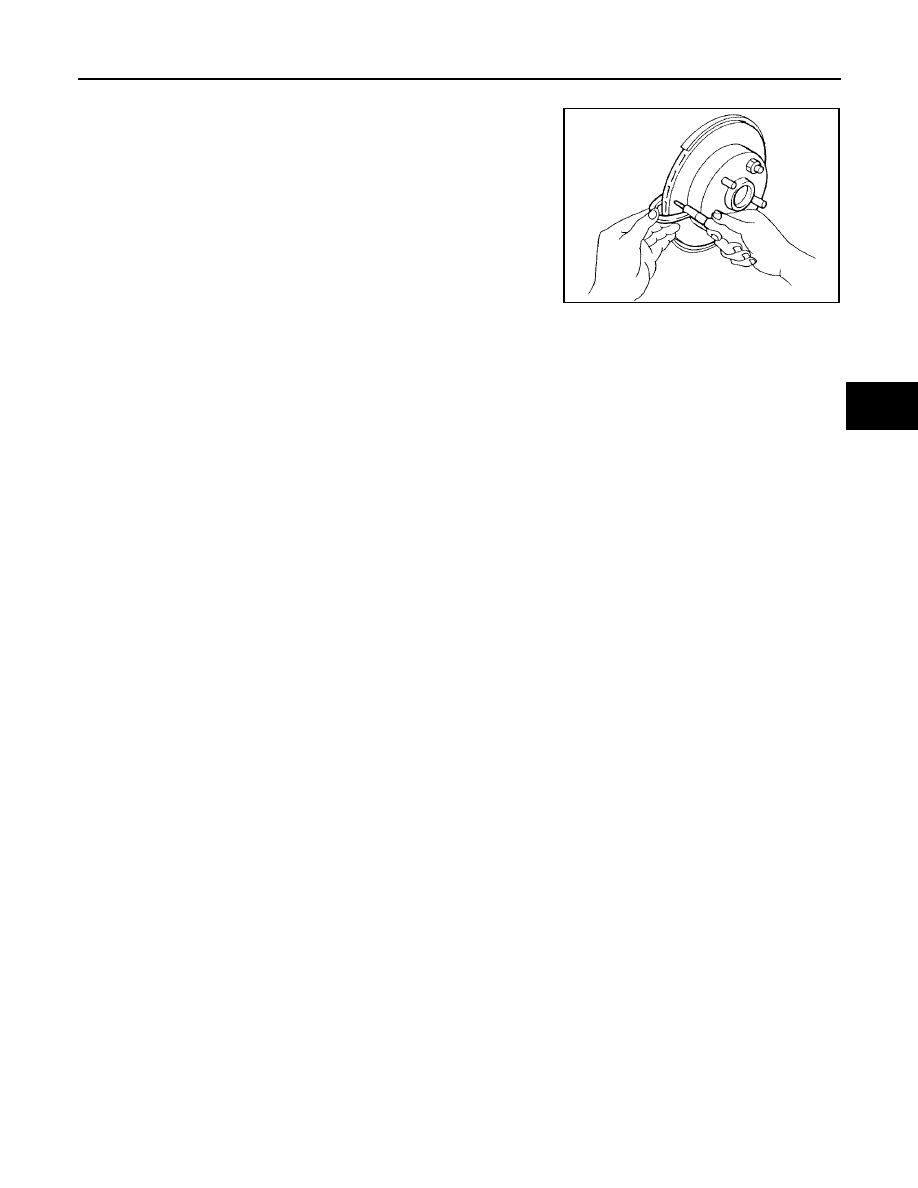

Thickness Inspection

Using a micrometer, check thickness of disc rotor. If thickness is
either at or below the wear limit, or exceeds maximum uneven wear,
replace disc rotor.

Brake Burnishing

EFS006G9

Burnish brake contact surface according to the following procedure after refinishing or replacing rotors, after
replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive the vehicle on a straight smooth road at 50 km/h (31 MPH).

2.

Use medium brake pedal/foot effort to bring the vehicle to a complete stop from 50 km/h (31 MPH). Adjust
brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.

3.

To cool brake system, drive the vehicle at 50 km/h (31 MPH) for 1 minute without stopping.

4.

Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.

Standard thickness

: 18.0 mm (0.709 in)

Wear limit

: 16.0 mm (0.630 in)

Maximum uneven wear
(measured at 8 positions)

: 0.015 mm (0.0006 in)

SBR020B

BR-36

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

EFS00644

Unit: mm (in)

Brake Pedal

EFS00645

Unit: mm (in)

Brake Booster

EFS00646

Unit: mm (in)

Front brake

Brake model

CLZ33VB

Rotor outer diameter

×

 thickness

296

×

 28 (11.654

×

 1.102)

Pad Length

×

 width

×

 thickness

111.0

×

 73.5

×

 10.0 (4.73

×

 2.894

×

 0.394)

Cylinder bore diameter (each)

46.4 (1.83)

Rear brake

Brake model

CLZ14VB

Rotor outer diameter

×

 thickness

308

×

 18 (12.126

×

 0.709)

Pad Length

×

 width

×

 thickness

83.0

×

 33.0

×

 11.0 (3.268

×

 1.299

×

 0.433)

Cylinder bore diameter

38.1 (1.50)

Control valve

Valve model

Electric brake force distribution

Brake booster

Booster model

C215T

Diaphragm diameter

215 (8.46)

Recommended brake fluid

Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRI-

CANTS"

 .

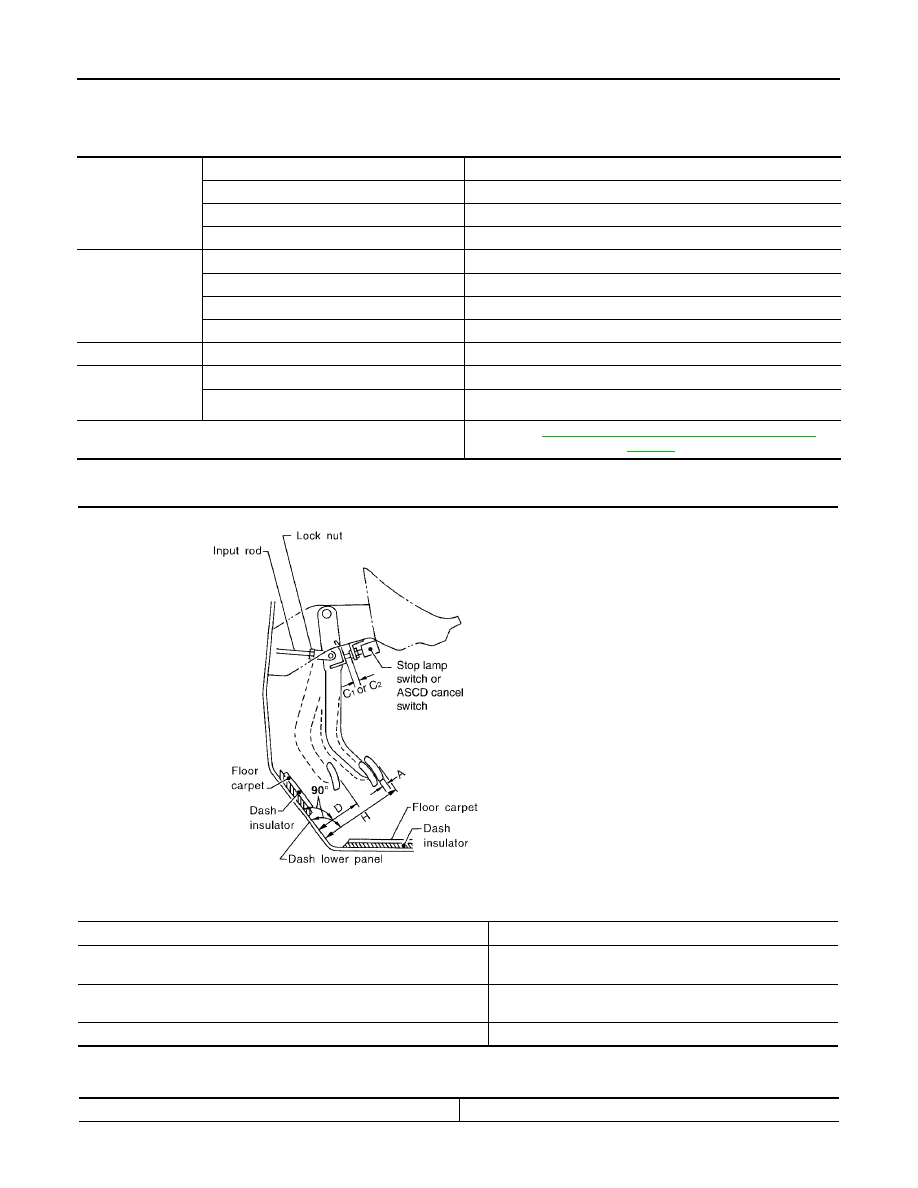

Free height "H"

182.1 - 192.1 (7.17 - 7.56)

Depressed pedal height ("D" [under a force of 490 N (50 kg, 110 lb)
with engine running]

105 - 115 (4.13 - 4.53)

Clearance between pedal stopper and threaded end of stop lamp
switch and ASCD switch "C

1

 " or “C

2

 ”

0.74 - 1.96 (0.029 - 0.077)

Pedal play "A"

3 - 11 (0.12 - 0.43)

WFIA0160E

Input rod installation standard dimension

15.6

 15.9 (0.614

 0.626)

SERVICE DATA AND SPECIFICATIONS (SDS)

BR-37

C

D

E

G

H

I

J

K

L

M

A

B

BR

2006 Pathfinder

Check Valve

EFS00647

Front Disc Brake

EFS00648

Unit: mm (in)

Rear Disc Brake

EFS00649

Unit: mm (in)

Vacuum leakage
[at vacuum of -66.7 kPa(-500 mmHg, -19.69 inHg)]

Within 1.3 kPa (10 mmHg, 0.39 inHg) of vacuum for 15 seconds

Brake model

CLZ33VB

Brake pad

Standard thickness (new)

10.0 (0.394)

Repair limit thickness

2.0 (0.079)

Disc rotor

Standard thickness (new)

28.0 (1.102)

Repair limit thickness

26.0 (1.024)

Maximum uneven wear (measured at 8 positions)

0.015 (0.0006)

Runout limit (with it attached to the vehicle)

0.05 (0.0020)

Brake model

CLZ14VB

Brake pad

Standard thickness (new)

11.0 mm (0.433 in)

Repair limit thickness

2.0 mm (0.079 in)

Disc rotor

Standard thickness (new)

18.0 mm (0.709 in)

Repair limit thickness

16.0 mm (0.630 in)

Maximum uneven wear (measured at 8 positions)

0.015 mm (0.0006 in)

Runout limit (with it attached to the vehicle)

0.07 mm (0.0028 in)

BR-38

SERVICE DATA AND SPECIFICATIONS (SDS)

2006 Pathfinder

BRC-1

BRAKE CONTROL SYSTEM

F  BRAKES

CONTENTS

C

D

E

G

H

I

J

K

L

M

SECTION

A

B

BRC

2006 Pathfinder

VDC/TCS/ABS

PRECAUTIONS .......................................................... 4

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 4
Precautions for Brake System .................................. 4
Precautions When Using CONSULT-II ..................... 4

CHECK POINTS FOR USING CONSULT-II  ......... 4

Precautions for Brake Control  .................................. 5
Precautions for CAN System  ................................... 6

PREPARATION ........................................................... 7

Special Service Tool  ................................................. 7
Commercial Service Tools ........................................ 7

SYSTEM DESCRIPTION  ............................................ 8

System Components  ................................................ 8
ABS Function  ........................................................... 9
EBD Function  ........................................................... 9
TCS Function  ........................................................... 9
VDC Function ........................................................... 9
Fail-Safe Function  .................................................... 9

ABS/EBD SYSTEM ............................................. 10
VDC/TCS SYSTEM ............................................. 10

Hydraulic Circuit Diagram  ...................................... 10

CAN COMMUNICATION  ...........................................11

System Description  .................................................11

TROUBLE DIAGNOSIS ............................................ 12

How to Perform Trouble Diagnoses for Quick and
Accurate Repair  ..................................................... 12

INTRODUCTION ................................................. 12
WORK FLOW ...................................................... 13
CLARIFY CONCERN .......................................... 14
EXAMPLE OF DIAGNOSIS SHEET  ................... 14

Component Parts and Harness Connector Location

... 15

Schematic .............................................................. 16
Wiring Diagram — VDC — ..................................... 17
Basic Inspection  ..................................................... 24

BRAKE FLUID LEVEL, FLUID LEAK, AND
BRAKE PAD INSPECTION  ................................. 24
POWER SYSTEM TERMINAL LOOSENESS
AND BATTERY INSPECTION  ............................ 24

ABS WARNING LAMP, SLIP INDICATOR LAMP
AND VDC OFF INDICATOR LAMP INSPECTION ... 24

For Fast and Accurate Diagnosis  ........................... 25

PRECAUTIONS FOR DIAGNOSIS  ..................... 25

Warning Lamp and Indicator Timing  ....................... 26
Control Unit Input/Output Signal Standard  ............. 26

REFERENCE VALUE FROM CONSULT-II  ......... 26

CONSULT-II Function (ABS)  .................................. 29

CONSULT-II BASIC OPERATION PROCEDURE

... 29

SELF-DIAGNOSIS .............................................. 30
DATA MONITOR  ................................................. 33
ACTIVE TEST  ..................................................... 36

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ........................................................................ 38

Wheel Sensor System Inspection ........................... 38
Engine System Inspection  ...................................... 39
ABS/TCS/VDC Control Unit Inspection  .................. 40
Steering Angle Sensor System ............................... 40
Yaw Rate/Side/Decel G Sensor System Inspection ... 42
Solenoid and VDC Change-Over Valve System
Inspection ............................................................... 44
Actuator Motor, Motor Relay, and Circuit Inspection

... 45

Stop Lamp Switch System Inspection  .................... 46
ABS/TCS/VDC Control Unit Power and Ground
Systems Inspection  ................................................ 47
Brake Fluid Level Switch System Inspection .......... 48
Pressure Sensor System Inspection  ...................... 49
Steering Angle Sensor Safe Mode Inspection  ........ 50
CAN Communication System Inspection ................ 51
Inspection For Self-diagnosis Result "ST ANGLE
SEN SIGNAL" ......................................................... 51
Inspection For Self-diagnosis Result "DECEL G
SEN SET"  ............................................................... 51
VDC OFF Indicator lamp Does Not Illuminate ........ 52
Component Inspection ............................................ 52

VDC OFF SWITCH  ............................................. 52

TROUBLE DIAGNOSES FOR SYMPTOMS  ............ 53

ABS Works Frequently  ........................................... 53
Unexpected Pedal Action  ....................................... 54

BRC-2

2006 Pathfinder

Long Stopping Distance .......................................... 55
ABS Does Not Work  ............................................... 55
Pedal Vibration or ABS Operation Noise  ................ 55
ABS Warning Lamp Does Not Come On When Igni-
tion Switch Is Turned On  ........................................ 56
ABS Warning Lamp Stays On When Ignition Switch
Is Turned On  ........................................................... 56
Vehicle Jerks During TCS/VDC Activation .............. 57

ON-VEHICLE SERVICE ............................................ 58

Adjustment of Steering Angle Sensor Neutral Posi-
tion .......................................................................... 58

WITH CONSULT-II  .............................................. 58
WITHOUT CONSULT-II  ....................................... 58

Calibration of Decel G Sensor  ................................ 58

WHEEL SENSORS  ................................................... 60

Removal and Installation  ........................................ 60

REMOVAL ........................................................... 60
INSTALLATION .................................................... 60

SENSOR ROTOR ...................................................... 61

Removal and Installation  ........................................ 61

FRONT ................................................................ 61
REAR ................................................................... 61

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY) ... 62

Removal and Installation  ........................................ 62

REMOVAL ........................................................... 62
INSTALLATION .................................................... 63

STEERING ANGLE SENSOR ................................... 64

Removal and Installation  ........................................ 64

G SENSOR ................................................................ 65

Removal and Installation  ........................................ 65

REMOVAL ........................................................... 65
INSTALLATION .................................................... 65

HDC/HSA/VDC/TCS/ABS

PRECAUTIONS ......................................................... 66

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................. 66
Precautions for Brake System  ................................ 66
Precautions When Using CONSULT-II  ................... 66

CHECK POINTS FOR USING CONSULT-II ........ 66

Precautions for Brake Control  ................................ 67
Precautions for CAN System  .................................. 68

PREPARATION ......................................................... 69

Special Service Tool  ............................................... 69
Commercial Service Tools  ...................................... 69

SYSTEM DESCRIPTION  .......................................... 70

System Components  .............................................. 70
ABS Function .......................................................... 71
EBD Function  ......................................................... 71
TCS Function .......................................................... 71
VDC Function  ......................................................... 71
HDC Function  ......................................................... 71
HSA Function  ......................................................... 72
Fail-Safe Function  .................................................. 72

ABS/EBD SYSTEM  ............................................. 72
HDC/HSA SYSTEM ............................................. 72

VDC/TCS SYSTEM  .............................................72

Hydraulic Circuit Diagram  .......................................73

CAN COMMUNICATION  ...........................................74

System Description  .................................................74

TROUBLE DIAGNOSIS  ............................................75

How to Perform Trouble Diagnoses for Quick and
Accurate Repair  ......................................................75

INTRODUCTION .................................................75
WORK FLOW  ......................................................76
CLARIFY CONCERN ...........................................77
EXAMPLE OF DIAGNOSIS SHEET  ....................77

Component Parts and Harness Connector Location ...78
Schematic ...............................................................79
Wiring Diagram — VDC —  .....................................80
Basic Inspection ......................................................87

BRAKE FLUID LEVEL, FLUID LEAK, AND
BRAKE PAD INSPECTION ..................................87
POWER SYSTEM TERMINAL LOOSENESS
AND BATTERY INSPECTION  .............................87
ABS WARNING LAMP, SLIP INDICATOR LAMP,
VDC OFF INDICATOR LAMP AND HDC INDI-
CATOR LAMP INSPECTION  ...............................87

For Fast and Accurate Diagnosis ............................88

PRECAUTIONS FOR DIAGNOSIS  .....................88

Warning Lamp and Indicator Timing  .......................89
Control Unit Input/Output Signal Standard  ..............89

REFERENCE VALUE FROM CONSULT-II ..........89

CONSULT-II Function (ABS) ...................................93

CONSULT-II BASIC OPERATION PROCEDURE

...93

SELF-DIAGNOSIS ...............................................94
DATA MONITOR  ..................................................97
ACTIVE TEST ....................................................100

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ......................................................................103

Wheel Sensor System Inspection  .........................103
Engine System Inspection  ....................................104
ABS/TCS/VDC Control Unit Inspection .................105
Steering Angle Sensor System  .............................105
Yaw Rate/Side/Decel G Sensor System Inspection .107
Solenoid and VDC Change-Over Valve System
Inspection ..............................................................109
Actuator Motor, Motor Relay, and Circuit Inspection .110
Stop Lamp Switch System Inspection ................... 111
ABS/TCS/VDC Control Unit Power and Ground
Systems Inspection ............................................... 112
Brake Fluid Level Switch System Inspection  ........ 113
Active Booster System Inspection  ........................ 114
Pressure Sensor System Inspection  ..................... 115
Steering Angle Sensor Safe Mode Inspection  ...... 118
CAN Communication System Inspection  .............. 118
Inspection For Self-diagnosis Result "ST ANGLE
SEN SIGNAL"  ....................................................... 119
Inspection For Self-diagnosis Result "DECEL G
SEN SET"  ............................................................. 119
VDC OFF Indicator lamp Does Not Illuminate  ...... 119
Component Inspection  ..........................................120

VDC OFF SWITCH  ............................................120
HDS SWITCH  ....................................................120

BRC-3

C

D

E

G

H

I

J

K

L

M

A

B

BRC

2006 Pathfinder

TROUBLE DIAGNOSES FOR SYMPTOMS  .......... 121

ABS Works Frequently  ......................................... 121
Unexpected Pedal Action ..................................... 122
Long Stopping Distance  ....................................... 123
ABS Does Not Work ............................................. 123
Pedal Vibration or ABS Operation Noise  ............. 123
ABS Warning Lamp Does Not Come On When Igni-
tion Switch Is Turned On  ...................................... 124
ABS Warning Lamp Stays On When Ignition Switch
Is Turned On  ........................................................ 124
Vehicle Jerks During TCS/VDC Activation  ........... 125
Stop Lamp Relay Inspection  ................................ 126
HDC Switch Inspection  ........................................ 126

ON-VEHICLE SERVICE  ......................................... 128

Adjustment of Steering Angle Sensor Neutral Posi-
tion ....................................................................... 128

WITH CONSULT-II  ............................................ 128
WITHOUT CONSULT-II  .................................... 128

Calibration of Decel G Sensor .............................. 128

WHEEL SENSORS  ................................................. 130

Removal and Installation  ...................................... 130

REMOVAL ......................................................... 130
INSTALLATION ................................................. 130

SENSOR ROTOR  ................................................... 131

Removal and Installation  ...................................... 131

FRONT .............................................................. 131
REAR ................................................................ 131

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY) . 132

Removal and Installation  ...................................... 132

REMOVAL ......................................................... 132
INSTALLATION ................................................. 133

STEERING ANGLE SENSOR  ................................ 134

Removal and Installation  ...................................... 134

G SENSOR .............................................................. 135

Removal and Installation  ...................................... 135

REMOVAL ......................................................... 135
INSTALLATION ................................................. 135

BRC-4

[VDC/TCS/ABS]

PRECAUTIONS

2006 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EFS0064H

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Brake System

EFS0064I

CAUTION:

Refer to

MA-11, "RECOMMENDED FLUIDS AND LUBRICANTS"

  for recommended brake fluid.

Never reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is
splashed on painted areas, wash it away with water immediately.

To clean or wash all parts of master cylinder and disc brake caliper, use clean brake fluid.

Never use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic
system.

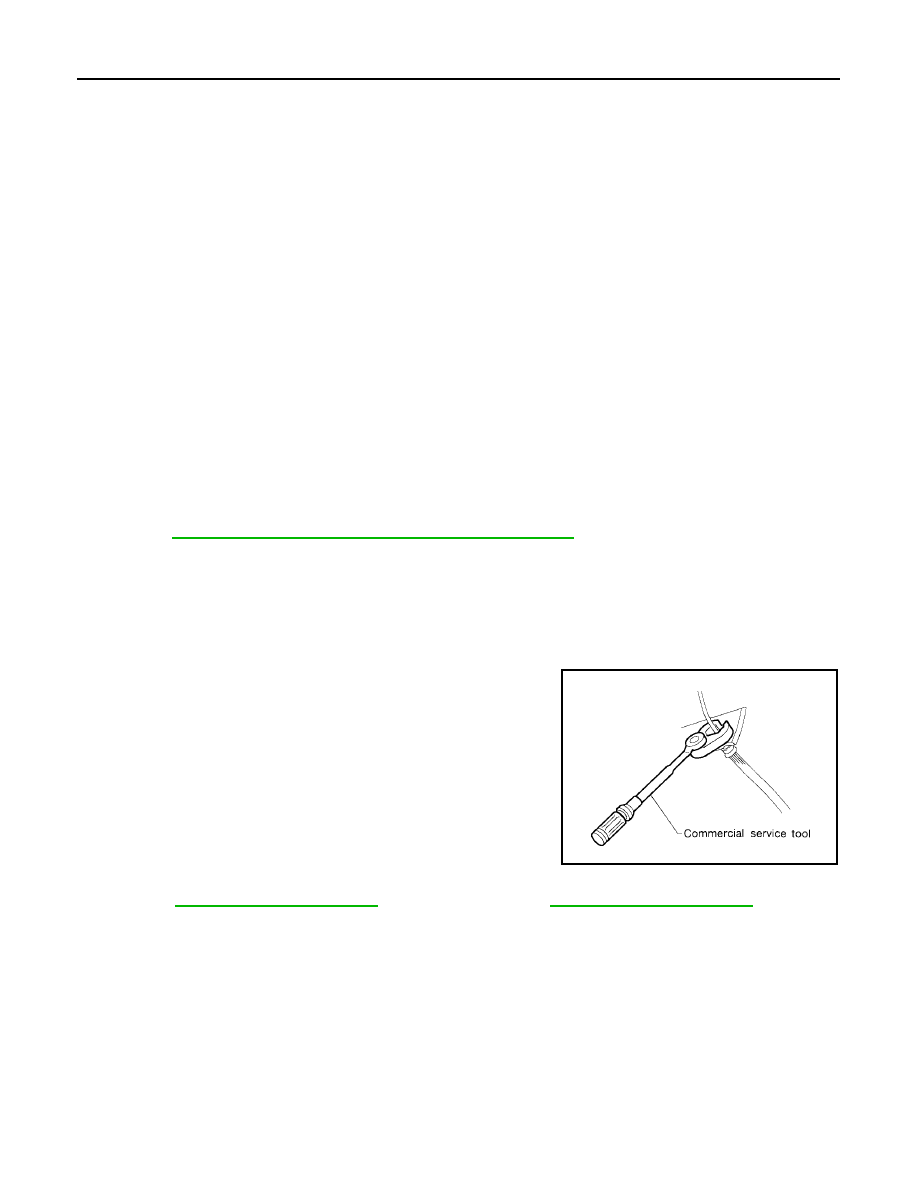

Use flare nut wrench when removing and installing brake
tube.

If a brake fluid leak is found, the part must be disassembled
without fail. Then it has to be replaced with a new one if a
defect exists.

Turn the ignition switch OFF and remove the connector of
the ABS actuator and electric unit (control unit) or the bat-
tery terminal before performing the work.

Always torque brake lines when installing.

Burnish the brake contact surfaces after refinishing or
replacing rotors, after replacing pads, or if a soft pedal
occurs at very low mileage.
Refer to

BR-29, "Brake Burnishing"

  (front disc brake) or

BR-35, "Brake Burnishing"

  (rear disc

brake).

WARNING:

Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.

Precautions When Using CONSULT-II

EFS0064J

When connecting CONSULT-II to data link connector, connect them through CONSULT-II CONVERTER.

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

CHECK POINTS FOR USING CONSULT-II

1.

Has CONSULT-II been used without connecting CONSULT-II CONVERTER on this vehicle?

If YES, GO TO 2.

SBR686C















Content      ..     112      113      114      115     ..
