TRANSFER ASSEMBLY

TF-179

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

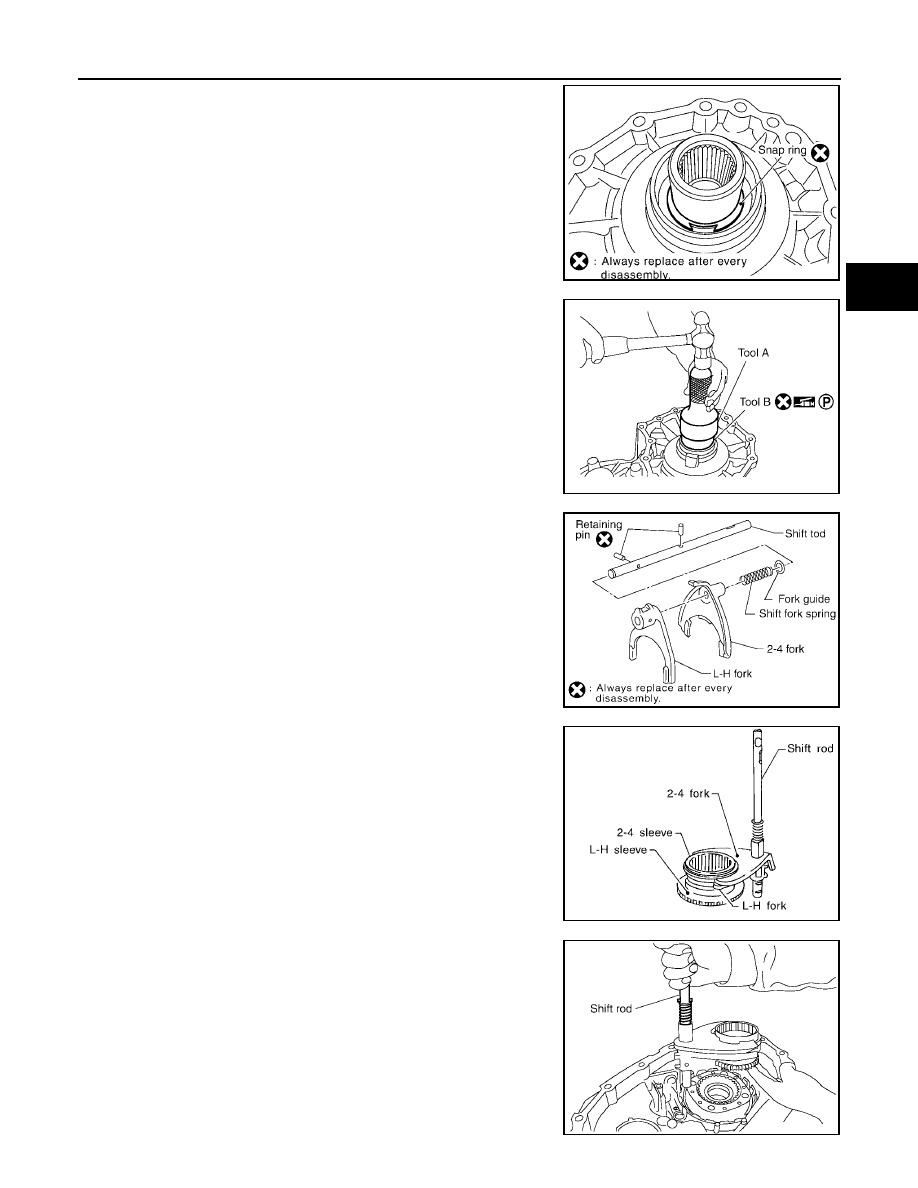

12. Install the snap ring to the sun gear assembly.

CAUTION:

Do not reuse snap ring.

13. Apply petroleum jelly to the circumference of the oil seal, and

install it to the front case, using Tools.

CAUTION:

Do not reuse oil seal.

Apply petroleum jelly to oil seal.

14. Install the fork guide, shift fork spring, 2-4 fork, and L-H fork to

the shift rod, and secure them with retaining pins.

CAUTION:

Do not reuse retaining pins.

15. Install the 2-4 sleeve and L-H sleeve to each fork.

16. Install the shift cross to the front case.

17. While aligning the L-H sleeve with the planetary carrier, install

the shift rod assembly to the front case.

SDIA2144E

Tool number

A: ST30720000 (J-25405)

B: ST33200000 (J-26082)

Dimension

: 4.0 - 4.6 mm (0.157 - 0.181 mm)

SDIA2786E

SDIA2142E

SMT992C

SDIA2140E

TF-180

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

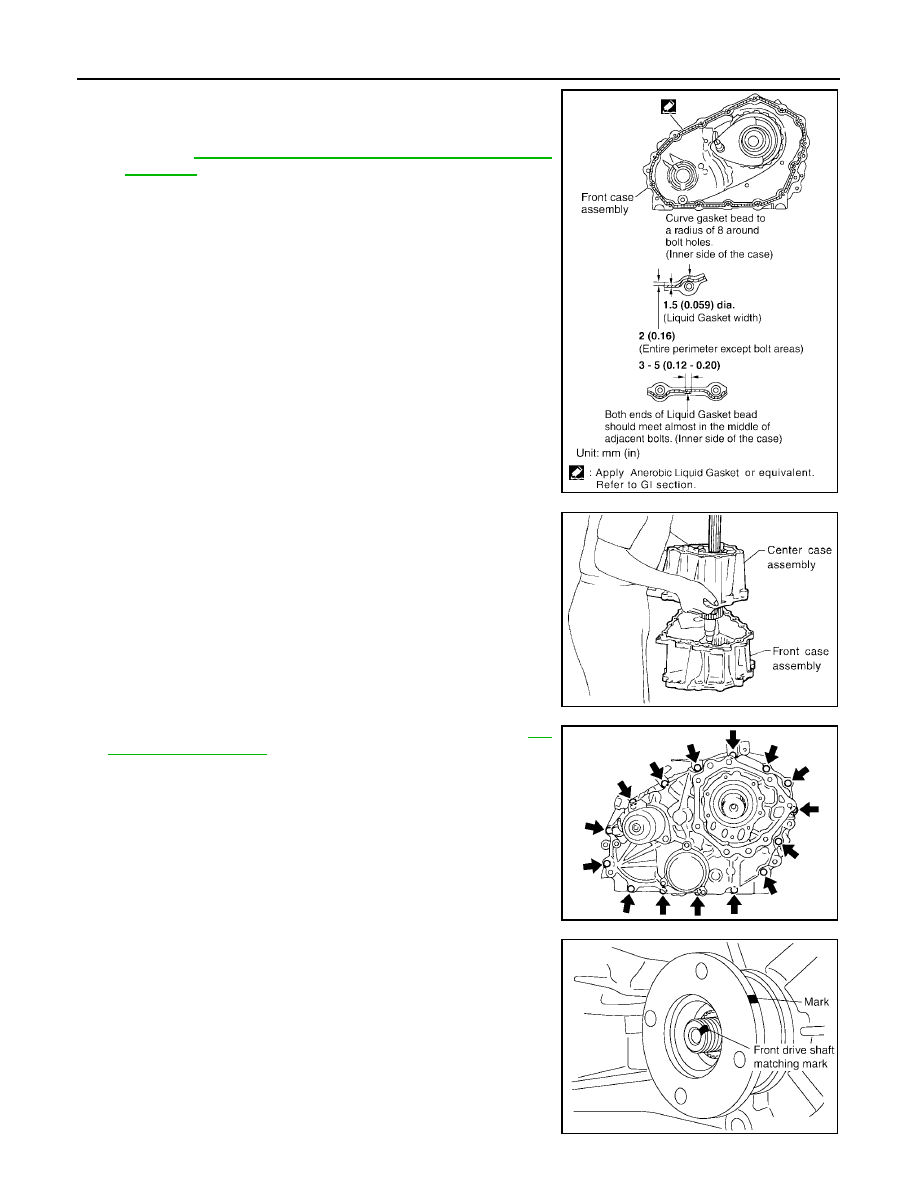

18. Apply liquid gasket to the entire center case mounting surface of

the front case assembly as shown.

Use Genuine Anaerobic Liquid Gasket or equivalent.
Refer to

GI-45, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Remove all foreign materials such as water, oil and grease
from center case and front case mating surfaces.

19. Install the center case assembly to the front case assembly.

CAUTION:

Do not damage mainshaft end.

20. Tap the center case lightly and press-fit the front drive shaft

bearing into the front case.

21. Tighten the front case bolts to the specified torque. Refer to

TF-

146, "COMPONENTS"

.

CAUTION:

Be sure to install air breather hose clamp, connector
bracket and harness clip.

22. Install the drain plug with a new gasket.

CAUTION:

Do not reuse gasket.

23. Align the matching mark on the front drive shaft with the mark on

the companion flange, then install the companion flange.

WDIA0157E

SDIA2138E

SDIA2100E

SDIA2779E

TRANSFER ASSEMBLY

TF-181

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

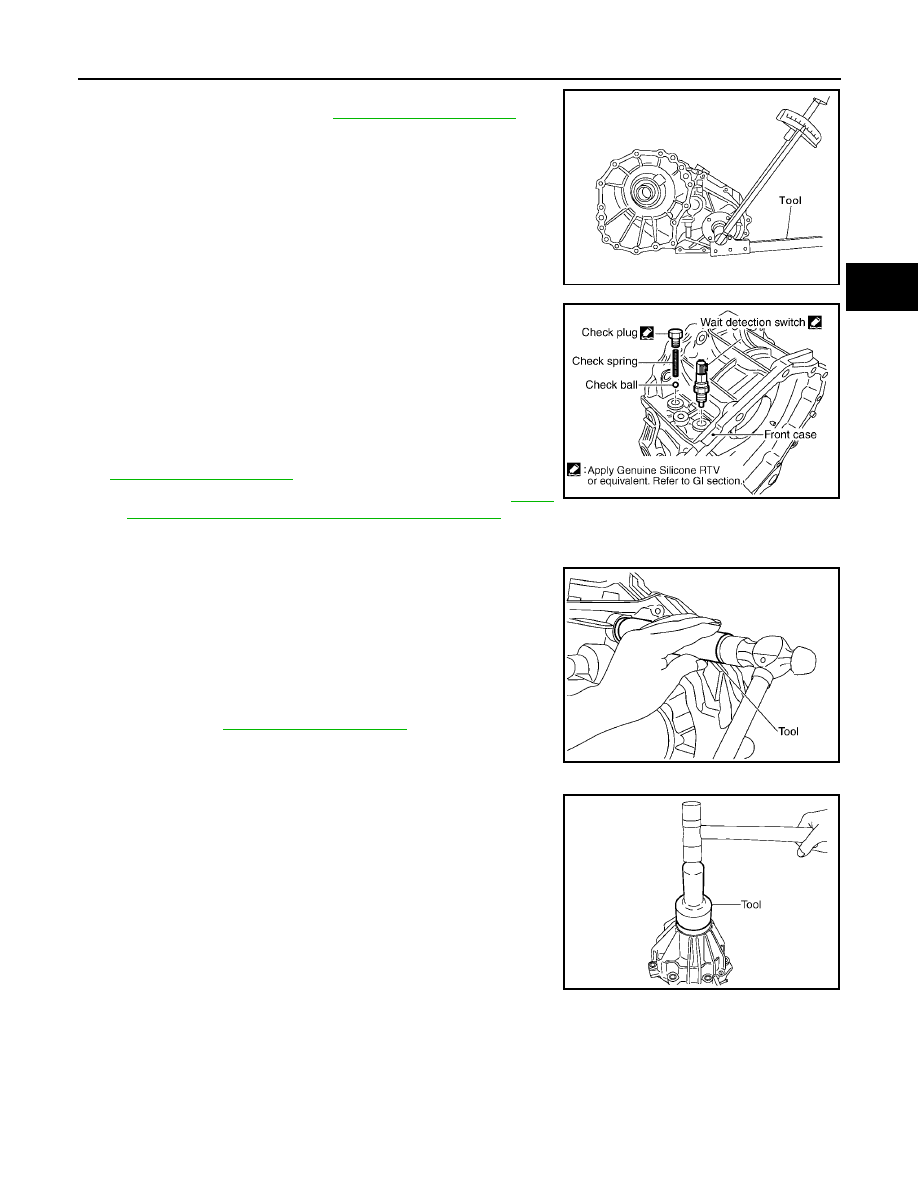

24. Install the companion flange self-lock nut. Tighten to the speci-

fied torque, using Tool. Refer to

TF-146, "COMPONENTS"

.

CAUTION:

Do not reuse self-lock nut.

25. Remove all the sealant from the check plug, switch mounting

and front case.

CAUTION:

Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.

26. Install the check ball and check spring to the front case. Apply

sealant to the check plug and wait detection switch and install
them to the front case. Tighten to the specified torque. Refer to

TF-146, "COMPONENTS"

.

Use Genuine Silicone RTV or equivalent. Refer to

GI-45,

"Recommended Chemical Products and Sealants"

.

NOTE:
Wait detection switch harness connector is black.

27. Install the oil seal in the front case, using Tool.

CAUTION:

Do not reuse oil seal.

Apply petroleum jelly to seal lip before installing.

28. Install the shift lever to the shift cross.

29. Install the lock pin and lock pin nut. Tighten to the specified

torque. Refer to

TF-146, "COMPONENTS"

.

Rear Case

1.

Apply petroleum jelly to the circumference of the rear oil seal.
Install the rear oil seal so that it is flush with the case tip face,
using Tool.

CAUTION:

Do not reuse oil seal.

Apply petroleum jelly to seal lip before installing.

Tool number

: KV40104000 (

)

WDIA0219E

Tool number

: ST22360002 (J-25679-01)

WDIA0158E

SDIA2182E

Tool number

: ST30720000 (J-25405)

SDIA2204E

TF-182

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

2.

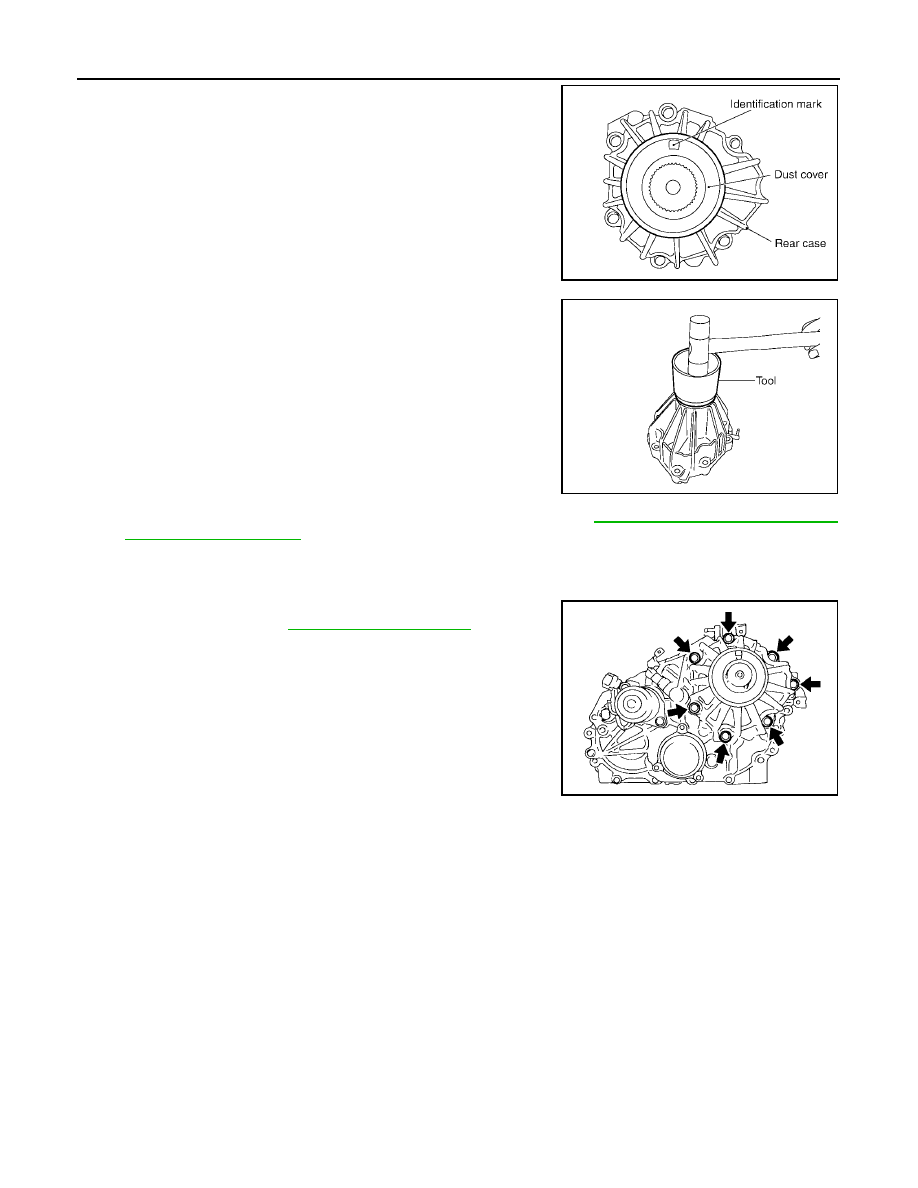

Apply petroleum jelly to the circumference of the dust cover.
Position the dust cover using the identification mark as shown.

CAUTION:

Do not reuse dust cover.

Position the identification mark at the position shown.

3.

Install the dust cover, using Tool.

4.

Install the air breather into the rear case.

5.

Remove all the sealant from the rear case to center case mount-
ing surfaces.

CAUTION:

Remove all foreign materials such as water, oil, and grease
from center case and rear case mating surfaces.

6.

Apply liquid gasket to the entire rear case mounting surface of
the center case.

Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-45, "Recommended Chemical

Products and Sealants"

.

CAUTION:

Do not to allow Liquid Gasket to enter stem bleeder hole.

7.

Install the rear case to the center case. Tighten the bolts to the
specified torque. Refer to

TF-146, "COMPONENTS"

.

SDIA2208E

Tool number

: KV40105310 (

)

SDIA2205E

SDIA2092E

SERVICE DATA AND SPECIFICATIONS (SDS)

TF-183

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

EDS001KH

Inspection and Adjustment

EDS001KI

CLEARANCE BETWEEN INNER GEAR AND OUTER GEAR

Unit: mm (in)

CLUTCH

Unit: mm (in)

PINION GEAR END PLAY

Unit: mm (in)

CLEARANCE BETWEEN SHIFT FORK AND SLEEVE

Unit: mm (in)

SELECTIVE PARTS
Sub-oil Pump

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Main Oil Pump

Unit: mm (in)

Applied model

VQ40DE

Transfer model

ATX14B

Fluid capacity (Approx.)

(US qt, lmp qt)

3.0 (3-1/8, 2-5/8)

Gear ratio

High

1.000

Low

2.596

Number of teeth

Planetary
gear

Sun gear

57

Internal gear

91

Front drive sprocket

38

Front drive shaft

38

Item

Specification

Sub-oil pump

0.015 - 0.035 (0.0006 - 0.0014)

Main oil pump

0.015 - 0.035 (0.0006 - 0.0014)

Item

Limit value

Drive plate

1.4 (0.055)

Item

Standard

Pinion gear end play

0.1 - 0.7 (0.004 - 0.028)

Item

Standard

Shift fork and sleeve

Less than 0.36 (0.0142)

Gear thickness

Part number*

Inner gear

Outer gear

9.27 - 9.28 (0.3650 - 0.3654)

31346 0W462

31347 0W462

9.28 - 9.29 (0.3654 - 0.3657)

31346 0W461

31347 0W461

9.29 - 9.30 (0.3657 - 0.3661)

31346 0W460

31347 0W460

Gear thickness

Part number*

Inner gear

Outer gear

8.27 - 8.28 (0.3256 - 0.3260)

31346 7S112

31347 7S112

8.28 - 8.29 (0.3260 - 0.3264)

31346 7S111

31347 7S111

8.29 - 8.30 (0.3264 - 0.3268)

31346 7S110

31347 7S110

TF-184

[ATX14B]

SERVICE DATA AND SPECIFICATIONS (SDS)

2005 Pathfinder

*: Always check with the Parts Department for the latest parts information.

Control Valve

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Control Valve Spring

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Return Spring

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Mounting position

(Part name)

Part number*

Outer dia.

Overall length

L1

(2-4 shift valve)

31772 21X00

8.0 (0.315)

38.5 (1.516)

L2

(Clutch valve)

31772 80X11

10.0 (0.394)

40.0 (1.575)

L4

(Pilot valve)

31772 80X11

10.0 (0.394)

40.0 (1.575)

L5

(Regulator valve)

31741 0W410

12.0 (0.472)

68.0 (2.677)

Mounting position

(Part name)

Part number*

Free length

Outer dia.

Overall length

L1

(2-4 shift valve spring)

31742 2W500

31.85 (1.2539)

7.0 (0.276)

0.6 (0.024)

L2

(Clutch valve spring)

31742 2W505

40.6 (1.598)

8.9 (0.350)

0.7 (0.028)

L4

(Pilot valve spring)

31742 0W410

28.1 (1.106)

9.0 (0.354)

1.2 (0.047)

L5

(Regulator valve spring)

31742 2W515

39.7 (1.563)

11.0 (0.433)

1.3 (0.051)

Stamped mark

Part number*

Free length

1

31521 7S111

42.7 (1.168)

2

31521 7S112

43.1 (1.697)

3

31521 7S113

43.6 (1.717)

4

31521 7S114

44.0 (1.731)

Stamped mark

Part number*

Free length

Outer dia.

Overall length

L1

(2-4 shift valve spring)

31742 2W500

31.85 (1.2539)

7.0 (0.276)

0.6 (0.024)

L2

(Clutch valve spring)

31742 2W505

40.6 (1.598)

8.9 (0.350)

0.7 (0.028)

L4

(Pilot valve spring)

31742 0W410

28.1 (1.106)

9.0 (0.354)

1.2 (0.047)

L5

(Regulator valve spring)

31742 2W515

39.7 (1.563)

11.0 (0.433)

1.3 (0.051)

PRECAUTIONS

TF-185

[TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EDS001XV

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Transfer Assembly and Transfer Control Unit Replacement

EDS001KK

When replacing transfer assembly or transfer control unit, check the 4WD shift indicator pattern and adjust-
ment of the position between transfer assembly and transfer control unit if necessary.

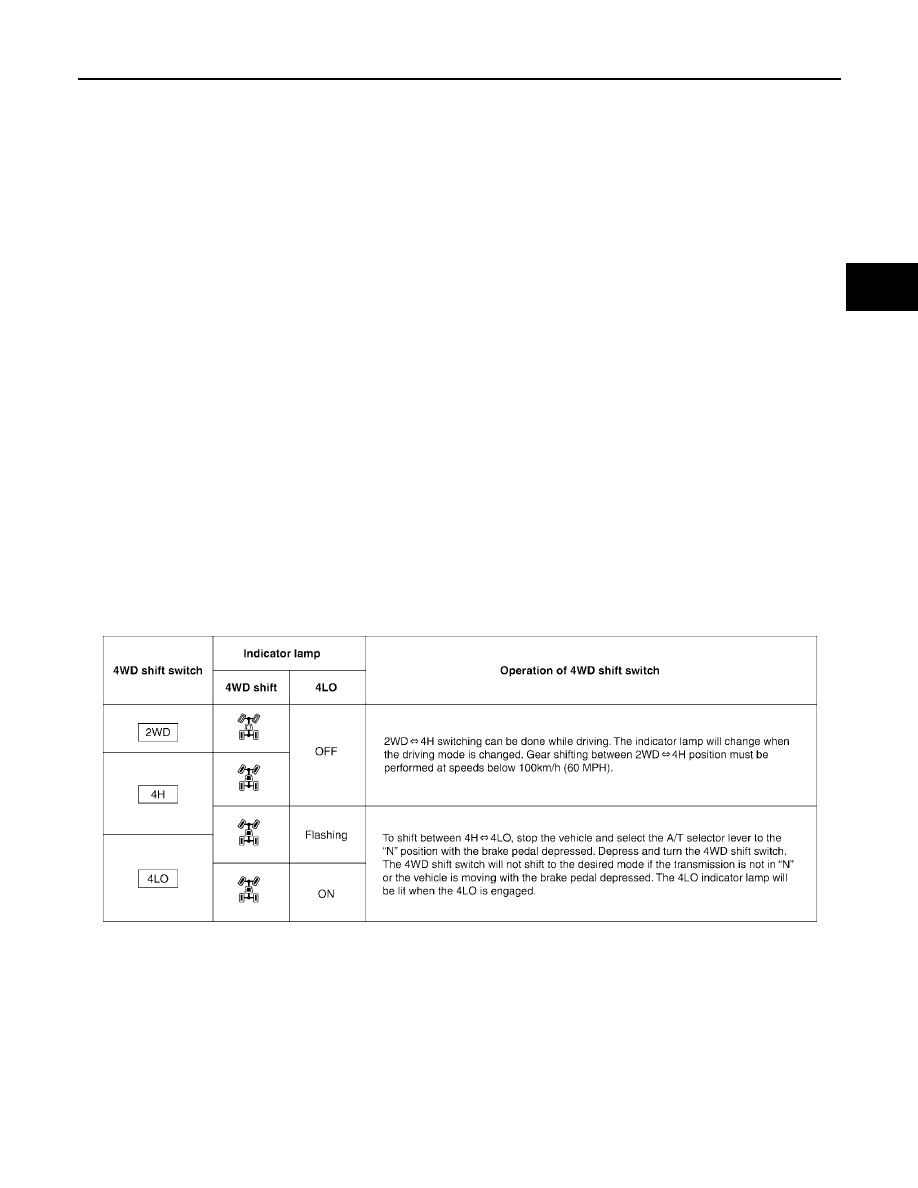

CHECK 4WD SHIFT INDICATOR PATTERN

1.

Set 4WD shift switch to “2WD”, “4H”, “4LO”, “4H” and “2WD” in order. Stay at each switch position for at
least 2 seconds.

2.

Confirm 4WD shift indicator lamp and 4LO indicator lamp are changed properly as follows.

If OK, the position between transfer assembly and transfer control unit is correct.

If NG, the position is different between transfer assembly and transfer control unit.
Adjust the position between transfer assembly and transfer control unit. Refer to pattern table below.

WDIA0137E

TF-186

[TX15B]

PRECAUTIONS

2005 Pathfinder

Transfer position adjustment pattern

NOTE:
Method of adjustment can be chosen voluntarily, according to location of 4WD shift switch.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “2WD”
Select Adjustment Pattern

1.

Start engine. Run engine for at least 10 seconds.

2.

Check 4WD shift indicator lamp and 4LO indicator lamp.

Pattern A

1.

Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.

2.

Turn 4WD shift switch to “4LO” position. Stay in "4LO" for at least 2 seconds.

3.

Turn ignition switch “OFF”.

4.

Start engine.

5.

Erase self-diagnosis. Refer to

TF-217, "How to Erase Self-diagnostic Results"

(with CONSULT-II) or

TF-

220, "ERASE SELF-DIAGNOSIS"

(without CONSULT-II).

6.

Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to

TF-185, "CHECK 4WD SHIFT

INDICATOR PATTERN"

.

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-
trol unit and retry the above check.

Pattern B

1.

Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.

2.

Turn ignition switch “OFF”.

3.

Start engine.

4.

Erase self-diagnosis. Refer to

TF-217, "How to Erase Self-diagnostic Results"

(with CONSULT-II) or

TF-

220, "ERASE SELF-DIAGNOSIS"

(without CONSULT-II).

5.

Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to

TF-185, "CHECK 4WD SHIFT

INDICATOR PATTERN"

.

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-
trol unit and retry the above check.

METHOD FOR ADJUSTMENT WITH 4WD SHIFT SWITCH AT “4H” OR “4LO”

1.

Start engine. Run the engine for at least 10 seconds.

2.

Stop vehicle and move A/T selector lever to “N” position with brake pedal depressed. Stay in "N" for at
least 2 seconds.)

3.

Turn 4WD shift switch to “2WD” position. Stay in "2WD" for at least 2 seconds.

4.

Turn ignition switch “OFF”.

5.

Start engine.

6.

Erase self-diagnosis. Refer to

TF-217, "How to Erase Self-diagnostic Results"

(with CONSULT-II) or

TF-

220, "ERASE SELF-DIAGNOSIS"

(without CONSULT-II).

7.

Check 4WD shift indicator lamp and 4LO indicator lamp again. Refer to

TF-185, "CHECK 4WD SHIFT

INDICATOR PATTERN"

.

If 4WD shift indicator lamp and 4LO indicator lamp do not indicate proper pattern, install new transfer con-
trol unit and retry the above check.

4WD shift switch condition

Refer procedure

4WD shift switch is under “2WD” condition when engine is being stopped.

TF-186, "METHOD FOR ADJUSTMENT WITH

4WD SHIFT SWITCH AT “2WD”"

4WD shift switch is under “4H” or “4LO” condition when engine is being stopped.

TF-186, "METHOD FOR ADJUSTMENT WITH

4WD SHIFT SWITCH AT “4H” OR “4LO”"

Indicator lamp condition

Refer procedure

When 4WD shift indicator lamp or 4LO indicator lamp is flashing.

TF-186, "Pattern A"

Except for above.

TF-186, "Pattern B"















Content      ..     443      444      445      446     ..
