TRANSFER ASSEMBLY

TF-163

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

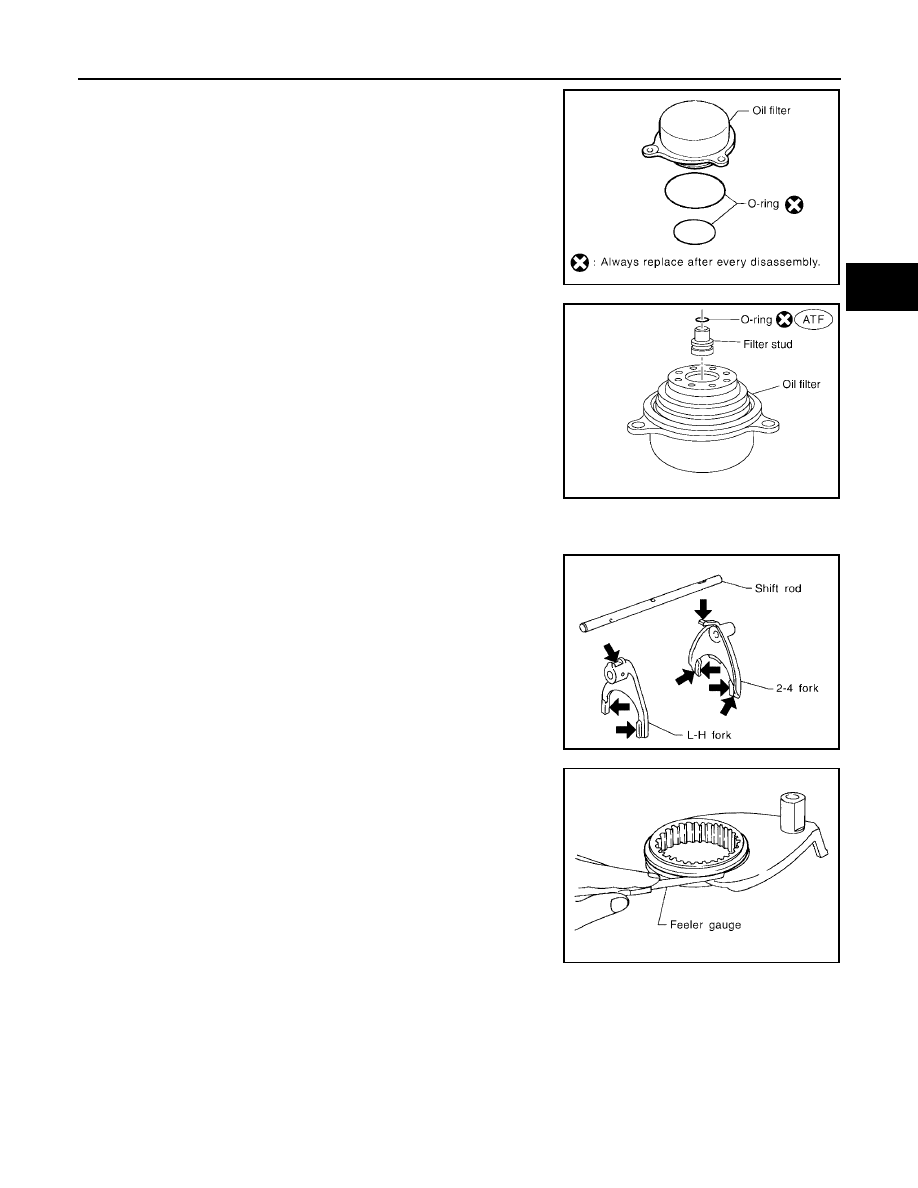

42. Remove the O-rings from the oil filter.

43. Remove the oil filter stud from the oil filter.

44. Remove the O-ring from the oil filter stud.

INSPECTION AFTER DISASSEMBLY
Shift Rod Components

Check the working face of the shift rod and fork for wear, partial
wear, bending and other abnormality. If any is found, replace
with a new one.

Measure the clearance between the shift fork and sleeve. If it is
out of specification, replace it with a new one.

SDIA2327E

SDIA2784E

SMT009D

Specification

: Less than 0.36 mm (0.0142 in)

SMT010D

TF-164

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

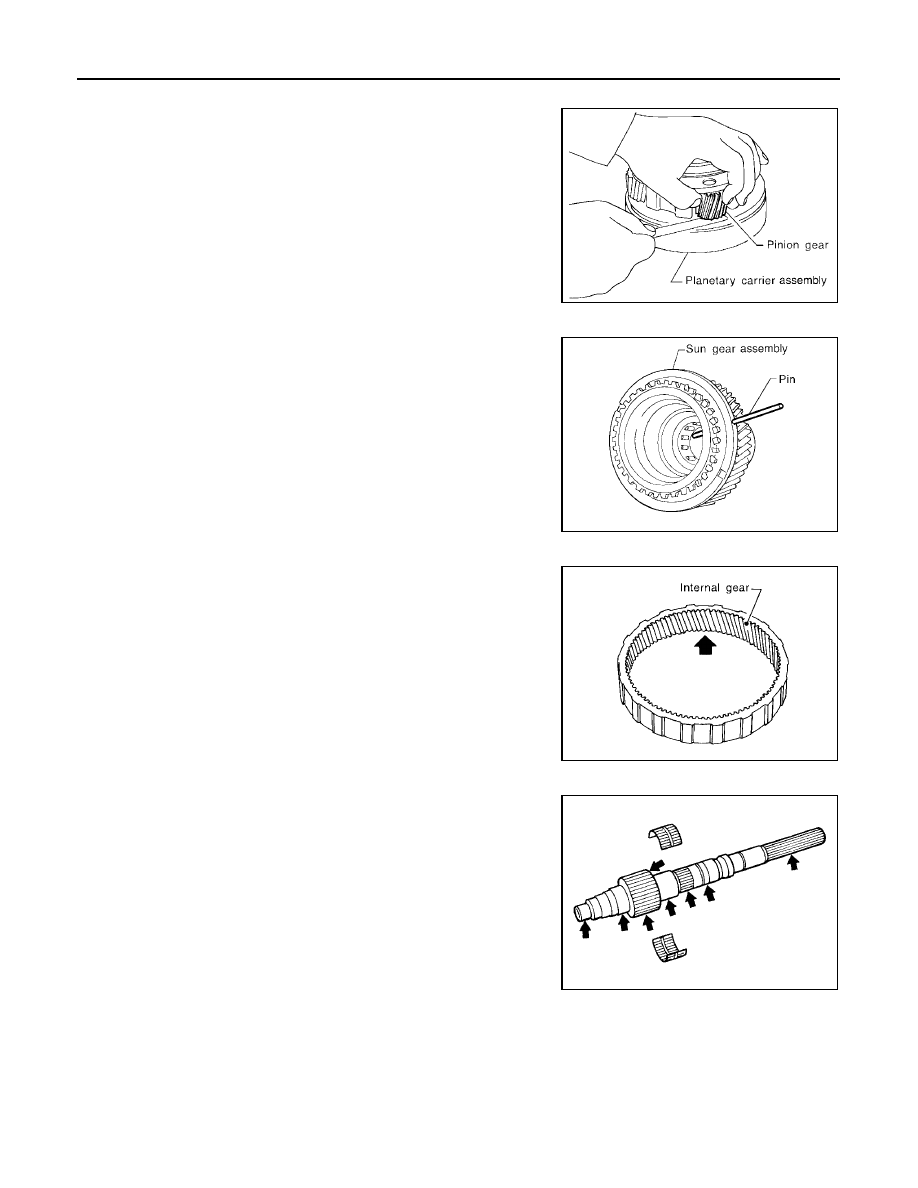

Planetary Carrier

Measure the end play of each pinion gear. If it is out of specifica-
tion, replace the planetary carrier assembly with a new one.

Check the working face of each gear and bearing for damage,
burrs, partial wear, dents and other abnormality. If any is found,
replace the planetary carrier assembly with a new one.

Sun Gear

Check if the oil passage of the sun gear assembly is clogged.
For this, try to pass a 3.6 mm (0.142 in) dia. pin through the oil
passage as shown.

Check the sliding and contact surface of each gear and bearing
for damage, burrs, partial wear, dents, and other abnormality. If
any is found, replace the sun gear assembly with a new one.

Internal Gear

Check the internal gear teeth for damage, partial wear, dents
and other abnormality. If any is found, replace the internal gear
with a new one.

Gears and Drive Chain

Check the gear faces and shaft for wear, cracks, damage, and
seizure.

Check the surfaces which contact the sun gear, clutch drum,
clutch hub, press flange, clutch piston and each bearing for
damage, peel, partial wear, dents, bending, or other abnormal
damage. If any is found, replace with a new one.

Pinion gear end play

: 0.1 - 0.7 mm (0.004 - 0.028 in)

PDIA0185E

PDIA0186E

SMT008D

SMT944C

TRANSFER ASSEMBLY

TF-165

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

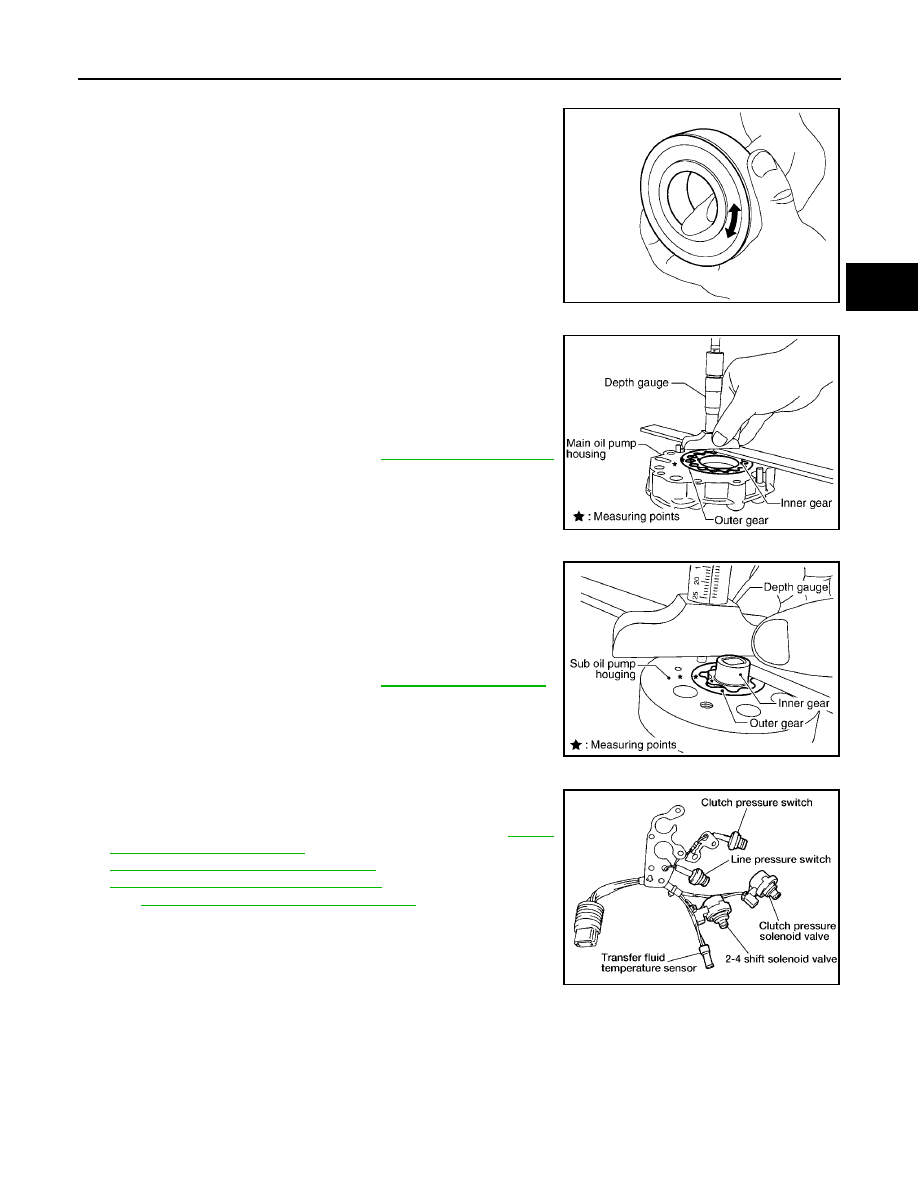

Bearing

Make sure the bearings roll freely and are free from noise, pit-
ting and cracks.

Main Oil Pump

1.

Check the inner and outer circumference, tooth face, and side-
face of the inner and outer gears for damage or abnormal wear.

2.

Measure the side clearance between the main oil pump housing
edge and the inner and outer gears.

3.

Make sure the side clearance is within specification. If the mea-
surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to

TF-183, "Main Oil Pump"

.

Sub-oil Pump

1.

Check the inner and outer circumference, tooth face, and side-
face of the inner and outer gears for damage or abnormal wear.

2.

Measure the side clearance between the sub oil pump housing
edge and the inner and outer gears.

3.

Make sure the side clearance is within specification. If the mea-
surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to

TF-183, "Sub-oil Pump"

.

Control Valve

Check resistance between the terminals of the clutch pressure
solenoid valve, 2-4WD shift solenoid valve, clutch pressure
switch and the transfer fluid temperature sensor. Refer to

TF-92,

"Clutch Pressure Solenoid"

(clutch pressure solenoid valve),

TF-96, "COMPONENT INSPECTION"

(2-4WD solenoid valve),

TF-109, "COMPONENT INSPECTION"

(clutch pressure switch)

and

TF-106, "COMPONENT INSPECTION"

(transfer fluid tem-

perature sensor).

SDIA2175E

Specification

: 0.015 - 0.035 mm (0.0006 - 0.0014 in)

SDIA2174E

Specification

: 0.015 - 0.035 mm (0.0006 - 0.0014 in)

SDIA2173E

WDIA0199E

TF-166

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

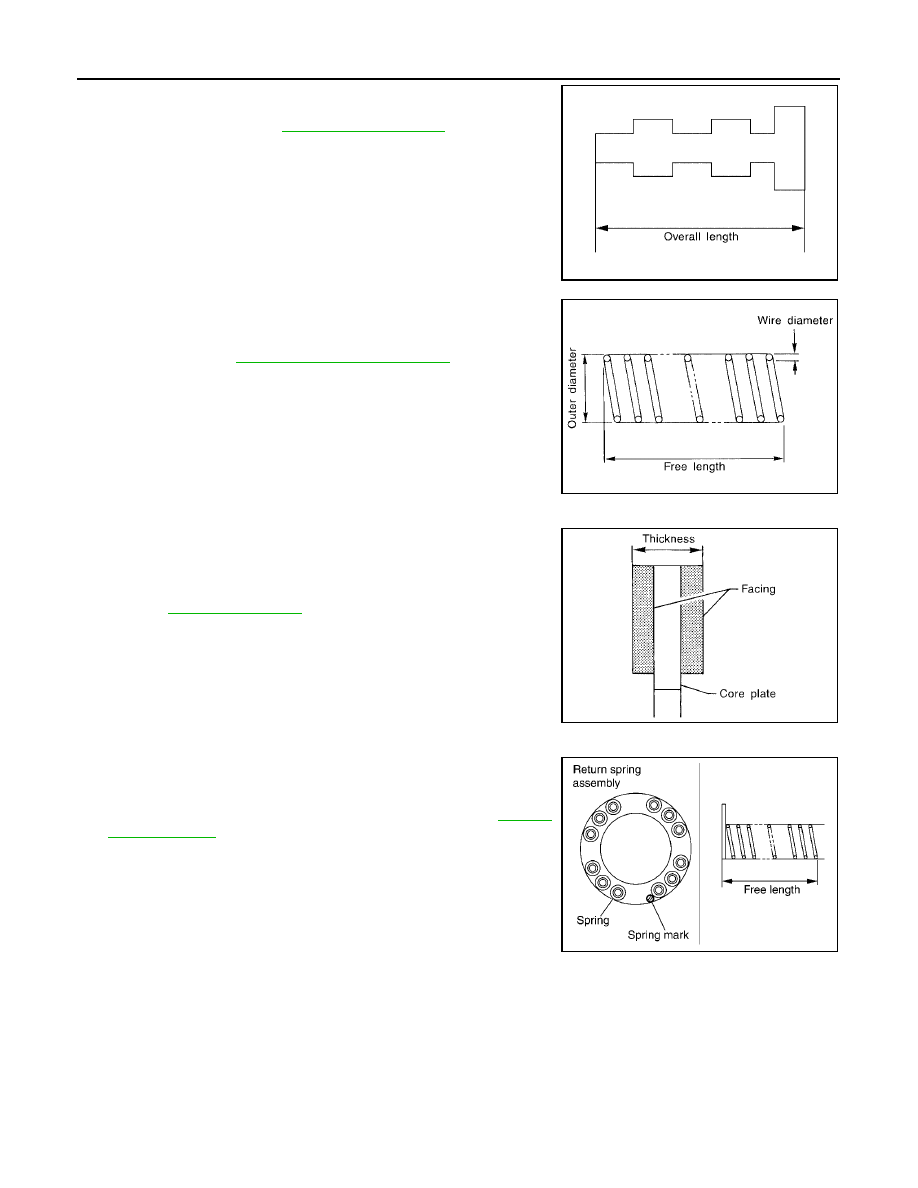

Check the sliding faces of the control valves and plugs for
abnormality. If any is found, replace the control valve assembly
with a new one. Refer to

TF-184, "Control Valve"

.

CAUTION:

Replace control valve body together with clutch return
spring as a set.

Check each control valve spring for damage or distortion. Also
check its free length, outer diameter and wire diameter. If any
damage or fatigue is found, replace the control valve body with a
new one. Refer to

TF-184, "Control Valve Spring"

.

CAUTION:

Replace control valve body together with clutch return
spring as a set.

Clutch

Check the drive plate facings and driven plate for damage,
cracks or other abnormality. If any abnormalities are found,
replace with a new one.

Check the thickness of the drive plate facings and driven plate.
Refer to

TF-183, "CLUTCH"

.

CAUTION:

Measure facing thickness at 3 points to take an average.

Check all drive and driven plates.

Check return spring for damage or deformation.

Do not remove spring from plate.

Return Spring

Check the stamped mark shown. Then, check that the free
lengths, (include thickness of plate) are within specifications. If
any abnormality is found, replace with a new return spring
assembly of the same stamped number. Refer to

TF-184,

"Return Spring"

.

SMT947C

SMT948C

SMT949C

SDIA2176E

TRANSFER ASSEMBLY

TF-167

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

ASSEMBLY
Center Case

1.

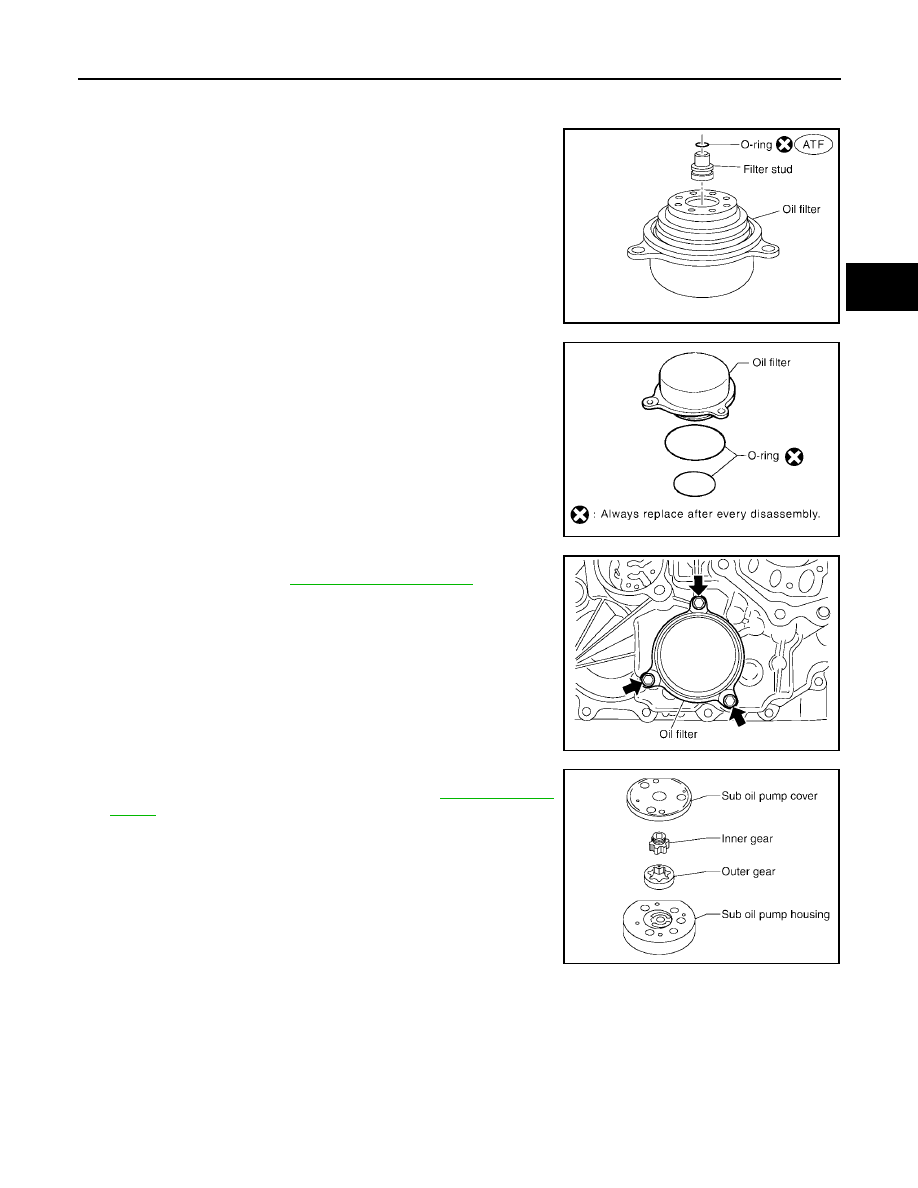

Apply ATF to the O-ring, and install it on the oil filter stud.

CAUTION:

Do not reuse O-rings.

2.

Install the oil filter stud to the oil filter.

3.

Apply ATF to the two O-rings, and install them on the oil filter.

CAUTION:

Do not reuse O-rings.

4.

Install the oil filter to the center case. Tighten the bolts to the
specified torque. Refer to

TF-146, "COMPONENTS"

.

CAUTION:

Do not damage oil filter.

Attach oil filter and tighten bolts evenly.

5.

Install the outer gear and inner gear into the sub oil pump hous-
ing, and measure the side clearance. Refer to

TF-165, "Sub-oil

Pump"

.

SDIA2784E

SDIA2327E

SDIA2136E

SDIA2135E

TF-168

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

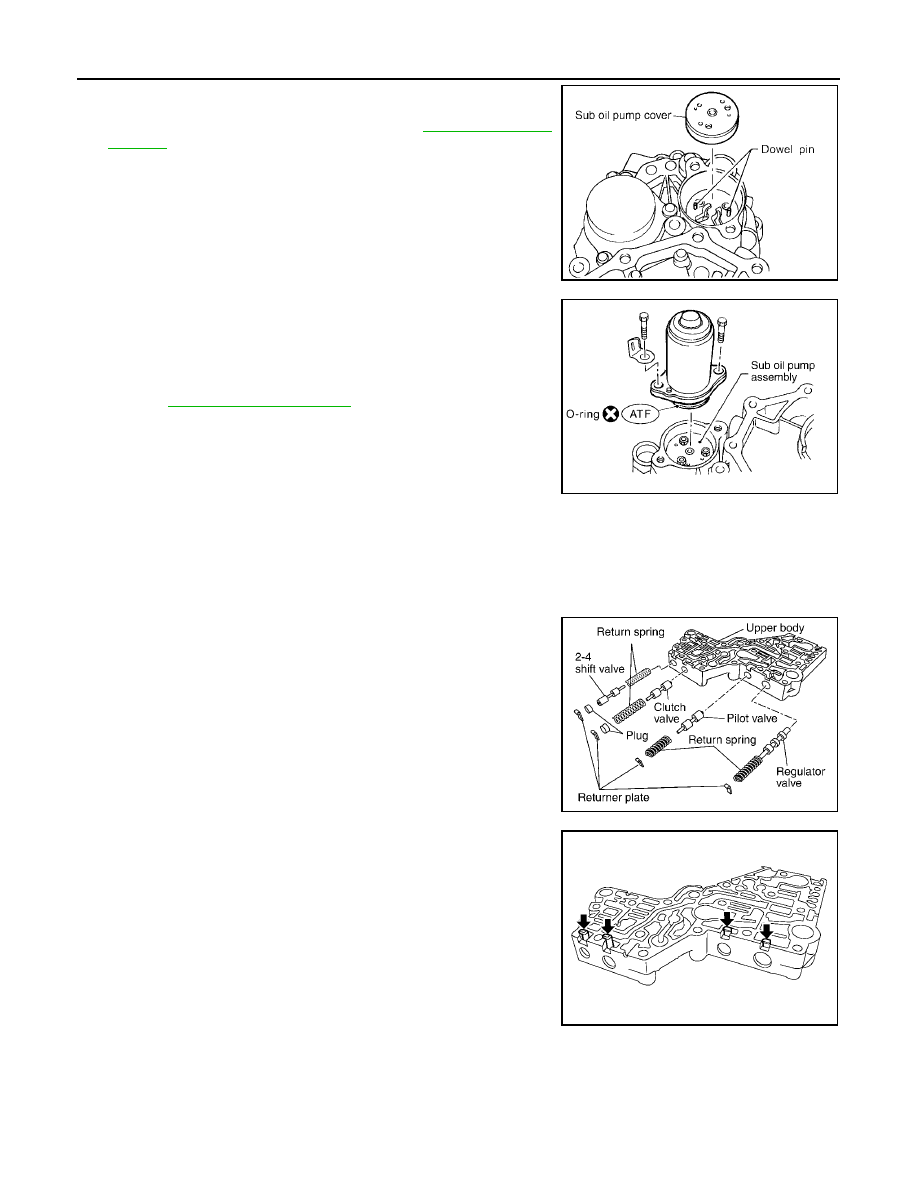

6.

Align the dowel pin hole and bolt hole of the sub oil pump
assembly with the center case. Install the sub oil pump cover.
Then tighten to the specified torque. Refer to

TF-146, "COMPO-

NENTS"

.

7.

Apply ATF to the O-ring and install it to the transfer motor.

CAUTION:

Do not reuse O-rings.

8.

Fit the double-flat end of the transfer motor shaft into the slot of
the sub-oil pump assembly. Then tighten to the specified torque.
Refer to

TF-146, "COMPONENTS"

.

CAUTION:

Be sure to install connector bracket.

9.

Assemble the control valve assembly with the following procedure.

CAUTION:

Do not reuse any part that has been dropped or damaged.

Make sure valve is assembled in the proper direction.

Do not use a magnet because residual magnetism stays during assembly.

a.

Clean the upper body, control valves and springs with cleaning
agent, and dry with compressed air.

b.

Dip the control valves in ATF, and apply ATF to the valve-mount-
ing area of the upper body.

c.

Install each control valve, spring, and plug to the upper body,
and install retainer plates to hold them in place.

CAUTION:

To insert control valves into upper body, place upper
body on a level surface in order to prevent flaw or dam-
age.

Make sure each control valve is smoothly inserted.

SDIA2328E

SDIA2787E

SDIA2128E

SDIA2127E

TRANSFER ASSEMBLY

TF-169

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

d.

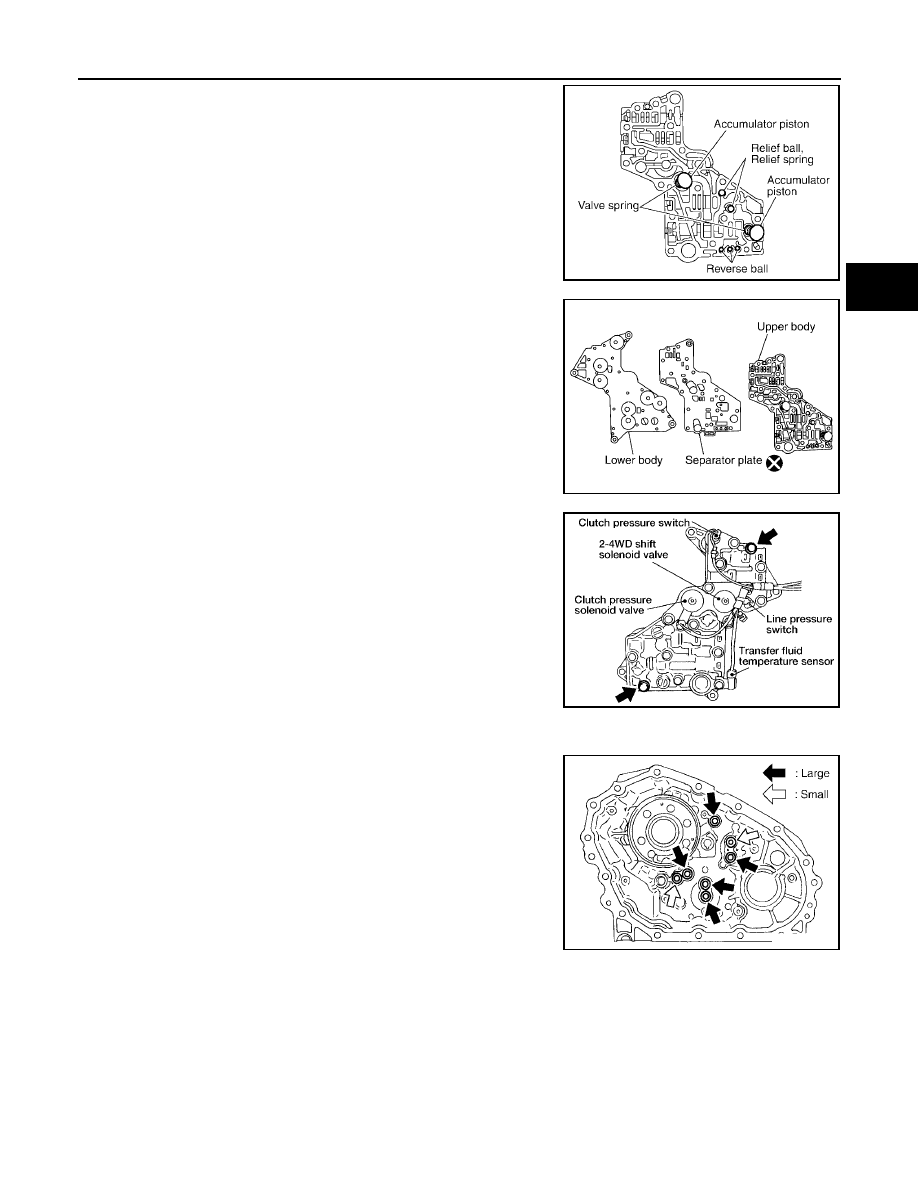

Install the reverse balls, relief balls and relief springs, accumula-
tor pistons and valve springs to the upper body.

e.

Install the lower body and separator plate to the upper body.

CAUTION:

Do not reuse separator plates.

f.

With the lower body down, tighten the two bolts shown.

g.

Apply ATF to the O-rings, and install them to each solenoid
valve, switch and terminal body.

CAUTION:

Do not reuse O-rings.

h.

Install the following to the control valve assembly:

Clutch pressure solenoid valve

Clutch pressure switch

2-4WD shift solenoid valve

Line pressure switch

Transfer fluid temperature sensor

10. Apply ATF to lip seals, and install them to the center case.

CAUTION:

Do not reuse lip seals.

There are 2 kinds of lip seals (lip seal of large inner diam-
eter: 5 pieces, lip seal of small inner diameter: 2 pieces).
Confirm their position for installation.

SDIA2126E

WDIA0200E

WDIA0198E

SDIA2123E

TF-170

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

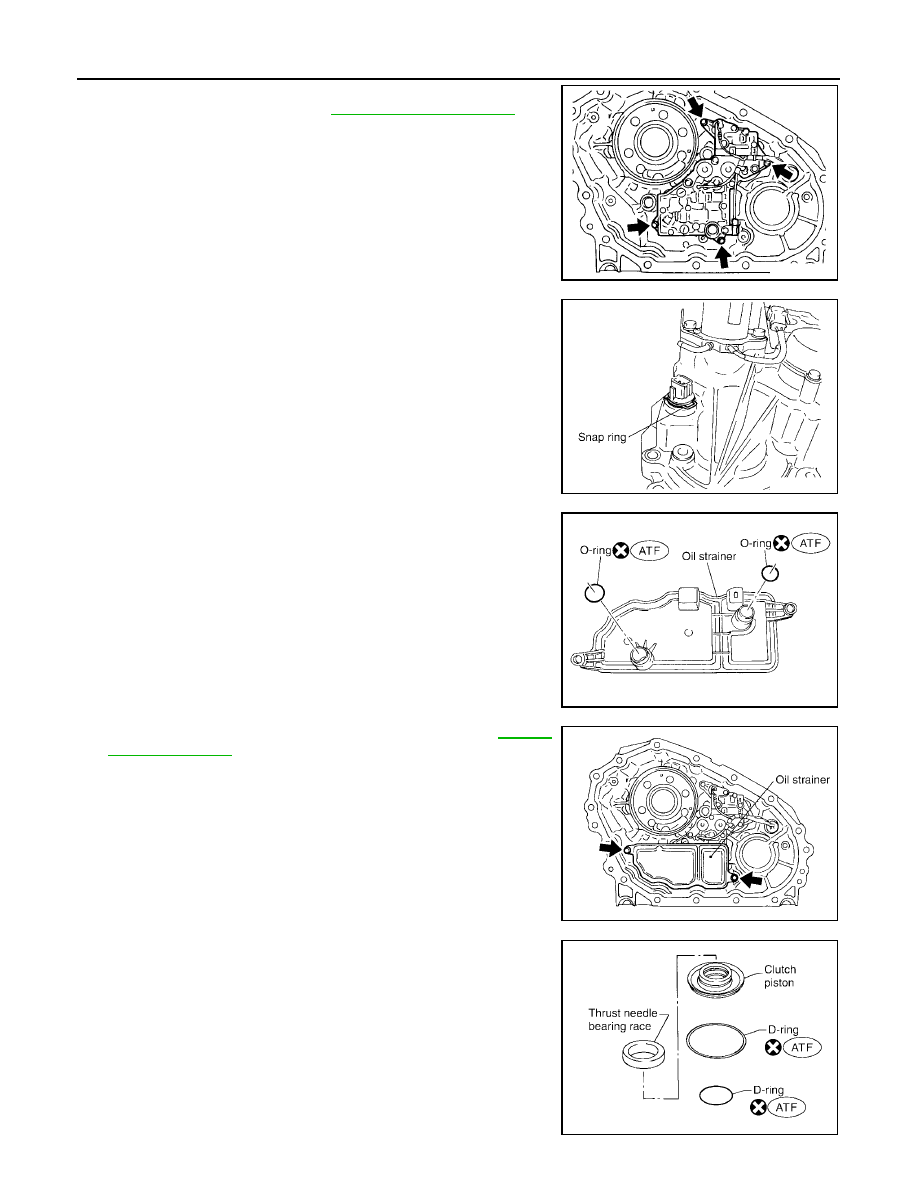

11. Install the control valve assembly to the center case, and tighten

to the specified torque. Refer to

TF-146, "COMPONENTS"

.

CAUTION:

Do not reuse any part that has been dropped or damaged.

Make sure valve is assembled in the proper direction.

Do not use a magnet because residual magnetism stays
during assembly.

12. Install the connector assembly into the center case, and secure

with a snap ring.

13. Apply ATF to the O-rings, and install them on the oil strainer.

CAUTION:

Do not reuse O-rings.

14. Install the oil strainer to the control valve assembly.

15. Tighten the bolts to the specified torque. Refer to

TF-146,

"COMPONENTS"

.

16. Apply ATF to the D-rings, and install them to the clutch piston.

CAUTION:

Do not reuse D-rings.

SDIA2121E

SDIA2122E

SDIA2782E

SDIA2119E

SDIA2781E
