Nissan Pathfinder (2005 year). Manual - part 441





TRANSFER ASSEMBLY

TF-147

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

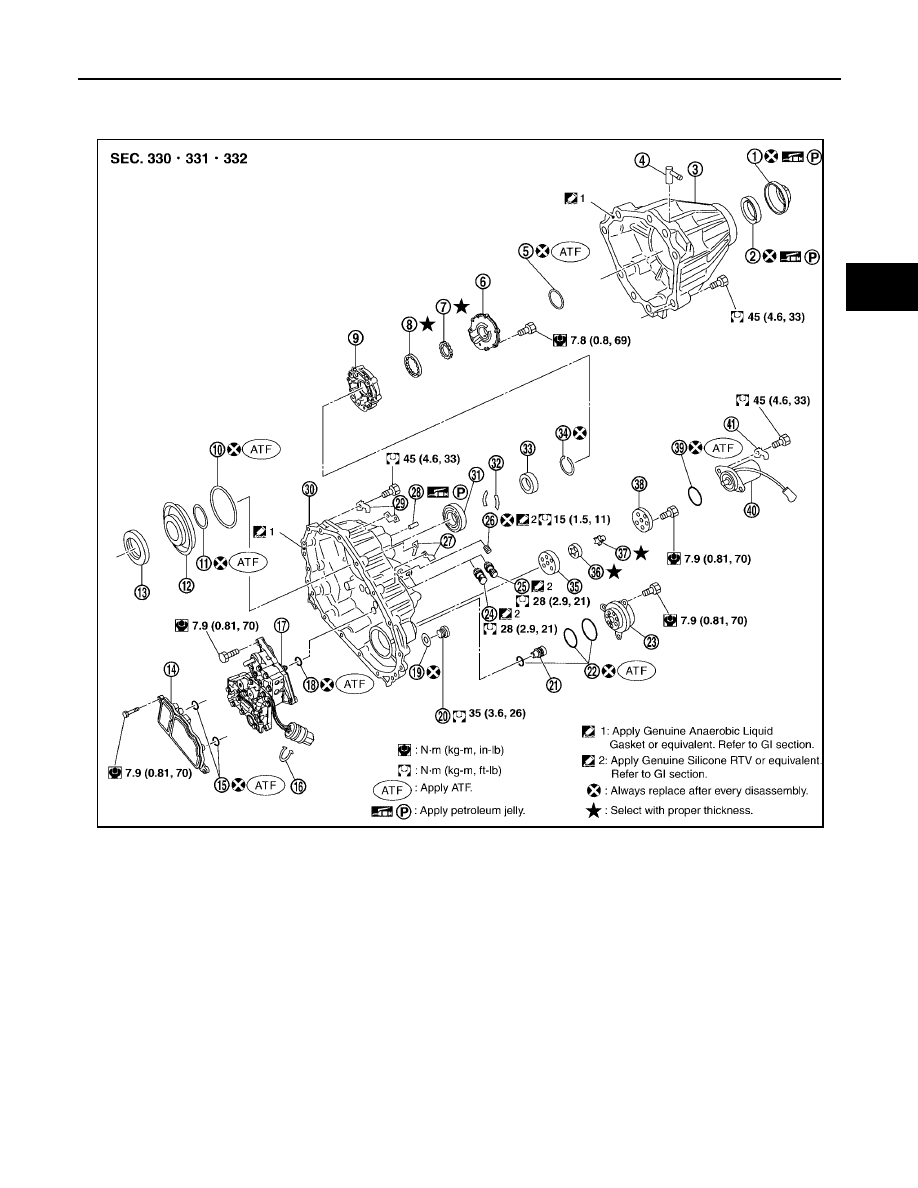

49.

2-4 fork

50.

Shift fork spring

51.

Fork guide

52.

Retainer pin

53.

Shift rod

1.

Dust cover

2.

Oil seal

3.

Rear case

4.

Air breather

5.

Seal ring

6.

Main oil pump cover

7.

Inner gear

8.

Outer gear

9.

Main oil pump housing

10.

D-ring

11.

D-ring

12.

Clutch piston

13.

Thrust needle bearing race

14. Oil strainer

15.

O-ring

16.

Snap ring

17. Control valve assembly

18.

Lip seal (7 pieces)

19.

Gasket

20. Filler plug

21.

Oil filter stud

22.

O-ring

23. Oil filter

24.

ATP switch

25

Neutral-4LO switch

26. Oil pressure check plug

27.

Harness bracket

28.

Stem bleeder

29. Harness bracket

30.

Center case

31.

Mainshaft rear bearing

32. C-ring

33.

Washer holder

34.

Snap ring

35. Sub oil pump housing

36.

Outer gear

37.

Inner gear

38. Sub oil pump cover

39.

O-ring

40.

Transfer motor

41. Connector bracket

WDIA0195E

TF-148

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

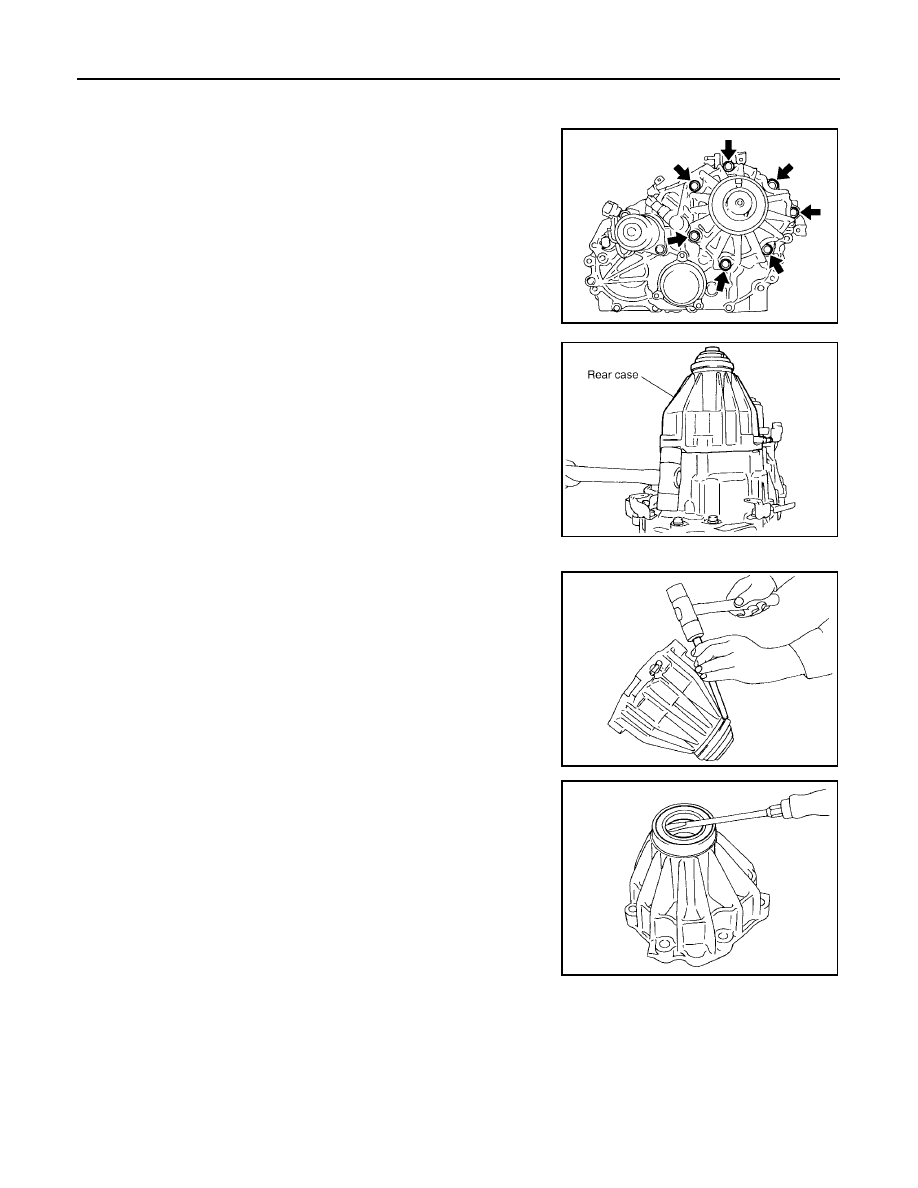

DISASSEMBLY
Rear Case

1.

Remove the rear case bolts.

2.

Remove the rear case from the center case.

3.

Remove the dust cover, using suitable tool.

4.

Remove the oil seal, using suitable tool.

CAUTION:

Do not damage rear case.

5.

Remove the air breather.

SDIA2092E

SDIA2093E

SDIA2094E

SDIA2095E

TRANSFER ASSEMBLY

TF-149

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

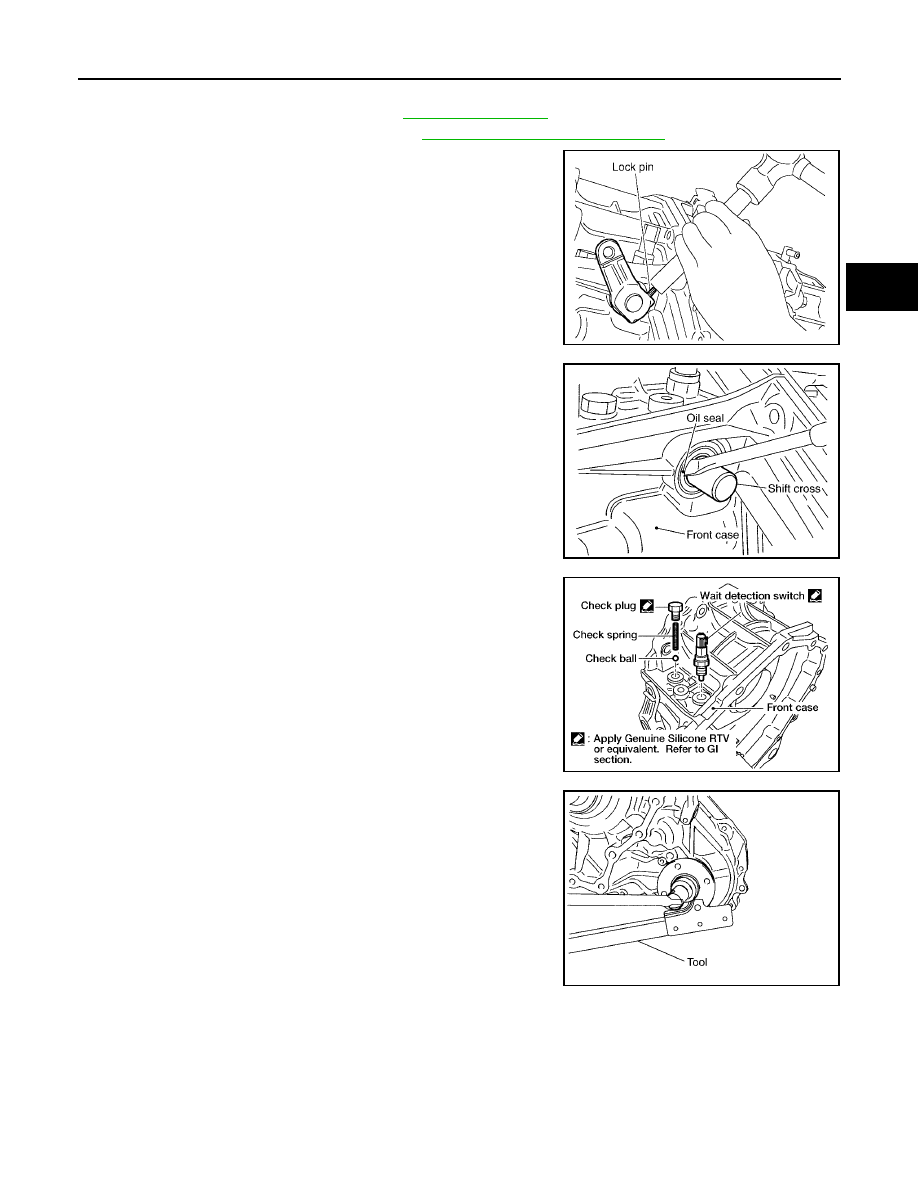

Front Case

1.

Remove the rear case assembly. Refer to

TF-148, "Rear Case"

.

2.

Remove the transfer control device. Refer to

TF-140, "Removal and Installation"

.

3.

Remove the lock pin nut.

4.

Remove the lock pin, using suitable tool.

5.

Remove the shift lever.

6.

Remove the oil seal from the front case, using suitable tool.

CAUTION:

Do not damage front case or shift cross.

7.

Remove the check plug, check spring and check ball.

8.

Remove the wait detection switch.

9.

Remove the self-lock nut from the companion flange, using Tool.

SDIA2150E

SDIA2166E

WDIA0196E

Tool number

: KV40104000 (

)

SDIA2841E

TF-150

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

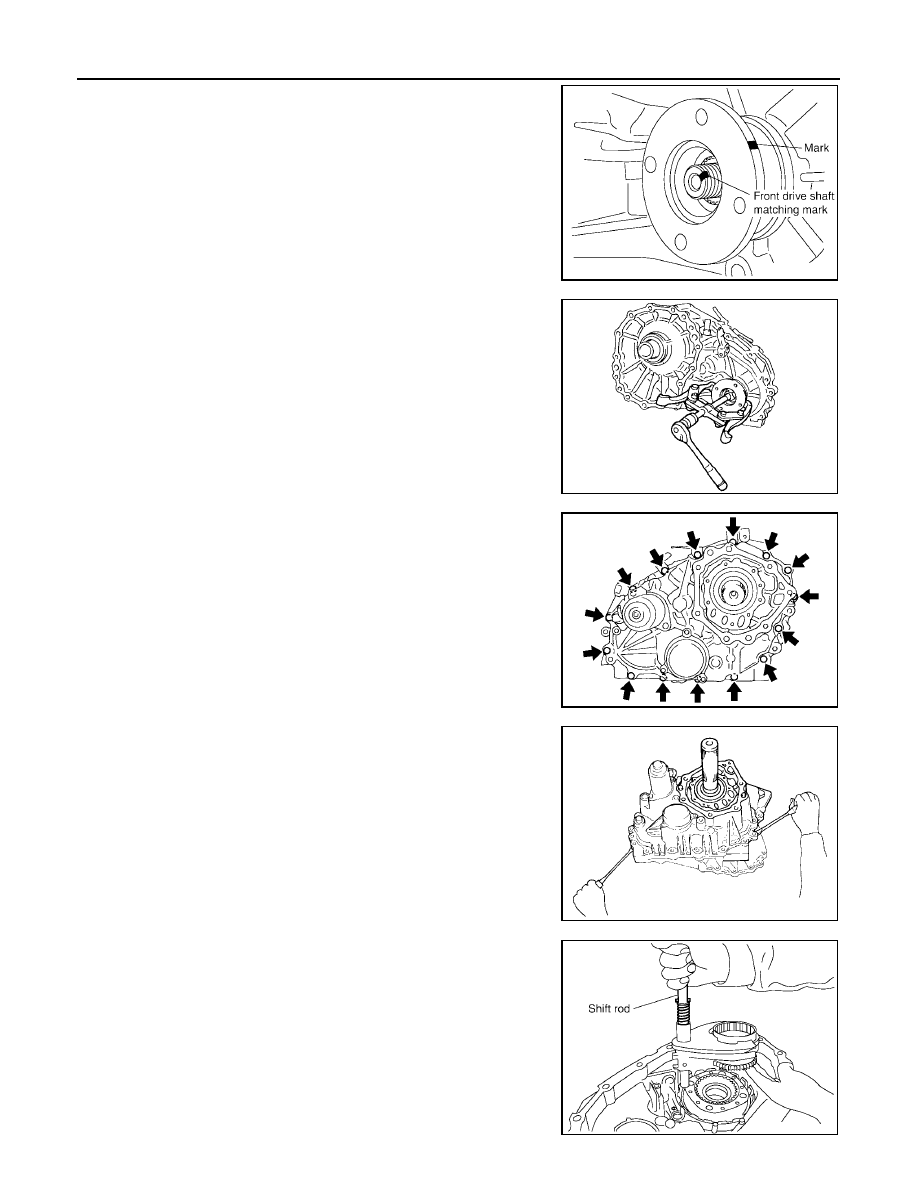

10. Put a matching mark on top of the front drive shaft thread in line

with the mark on the companion flange.

CAUTION:

Use paint to make the matching mark on the front drive
shaft thread. Never damage the front drive shaft.

11. Remove the companion flange, using suitable tool.

12. Remove the center case bolts and harness bracket.

13. Remove the filler plug and gasket.

14. Separate the center case from the front case. Then remove the

center case from the front case by prying it up, using suitable
tool.

CAUTION:

Do not damage the mating surfaces.

15. Remove the shift rod components together with the 2-4 sleeve

and L-H sleeve.

16. Remove the shift cross from the front case.

SDIA2779E

WDIA0133E

SDIA2100E

SDIA2101E

SDIA2140E

TRANSFER ASSEMBLY

TF-151

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

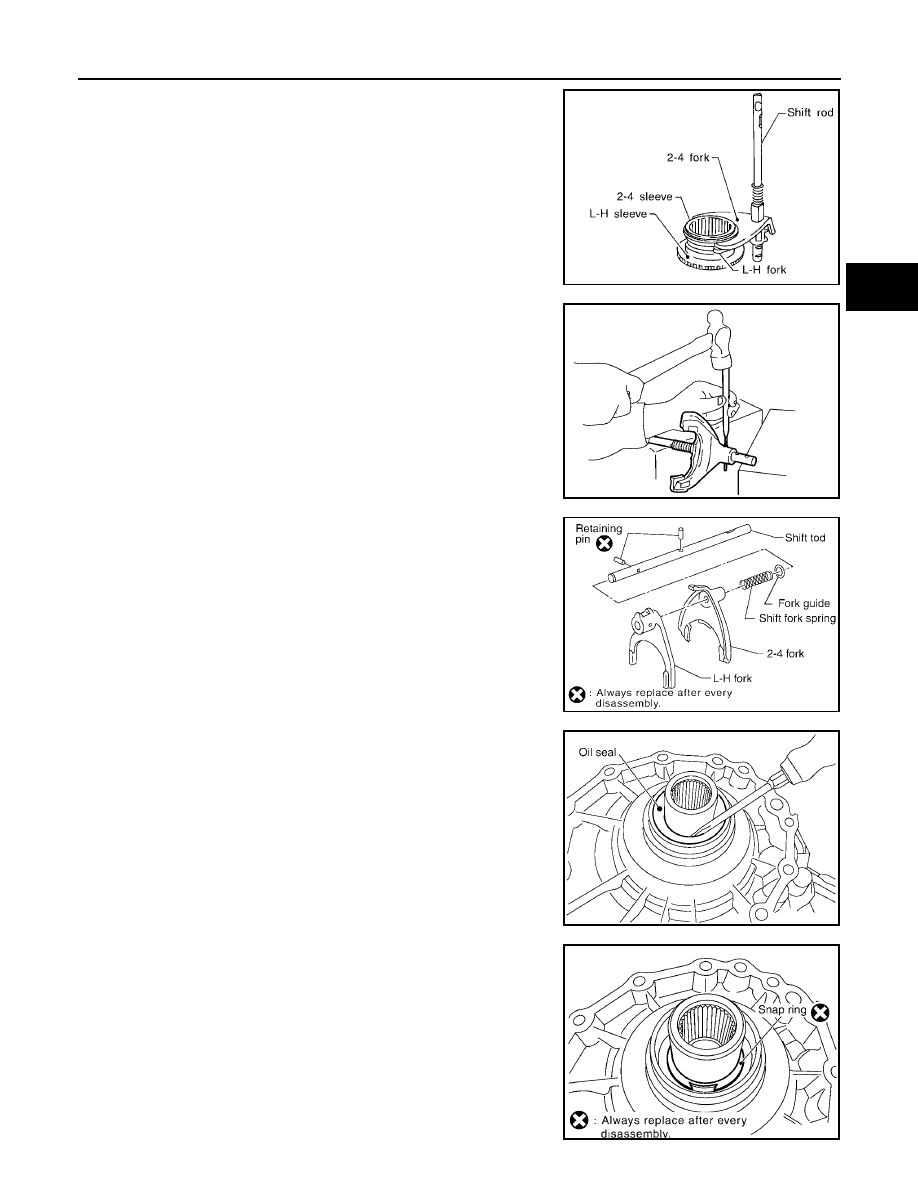

17. Remove the 2-4 sleeve and L-H sleeve from the 2-4 fork and L-

H fork respectively.

18. Drive out the retaining pin from the shift rod, using suitable tool.

19. Remove the L-H fork, 2-4 fork, shift fork spring and fork guide

from the shift rod.

20. Remove the oil seal from the front case, using suitable tool.

CAUTION:

Do not damage front case or sun gear.

21. Remove the snap ring from the sun gear.

CAUTION:

Do not damage front case or sun gear.

SMT992C

WDIA0134E

SDIA2142E

SDIA2143E

SDIA2144E

TF-152

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

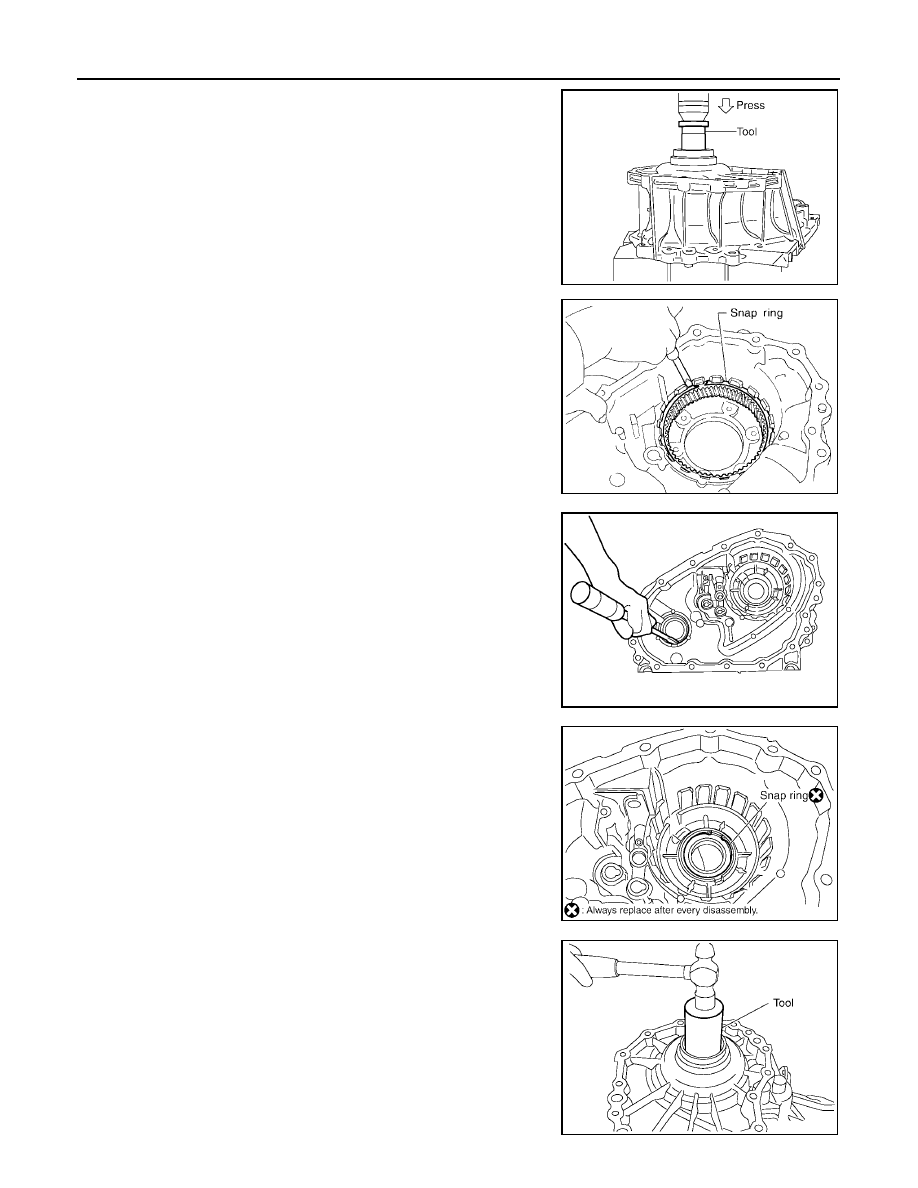

22. Remove the sun gear assembly and planetary carrier assembly

from the front case, using Tool.

23. Remove the snap ring and internal gear, using suitable tool.

24. Remove the oil seal, using suitable tool.

CAUTION:

Do not damage front case.

25. Remove the snap ring from the front case.

26. Remove the mainshaft front bearing from the front case, using

Tool.

Tool number

: ST35300000 (

)

SDIA2145E

SMT004D

SDIA2170E

SDIA2171E

Tool number

: ST33200000 (J-26082)

SDIA2178E

TRANSFER ASSEMBLY

TF-153

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

TF

2005 Pathfinder

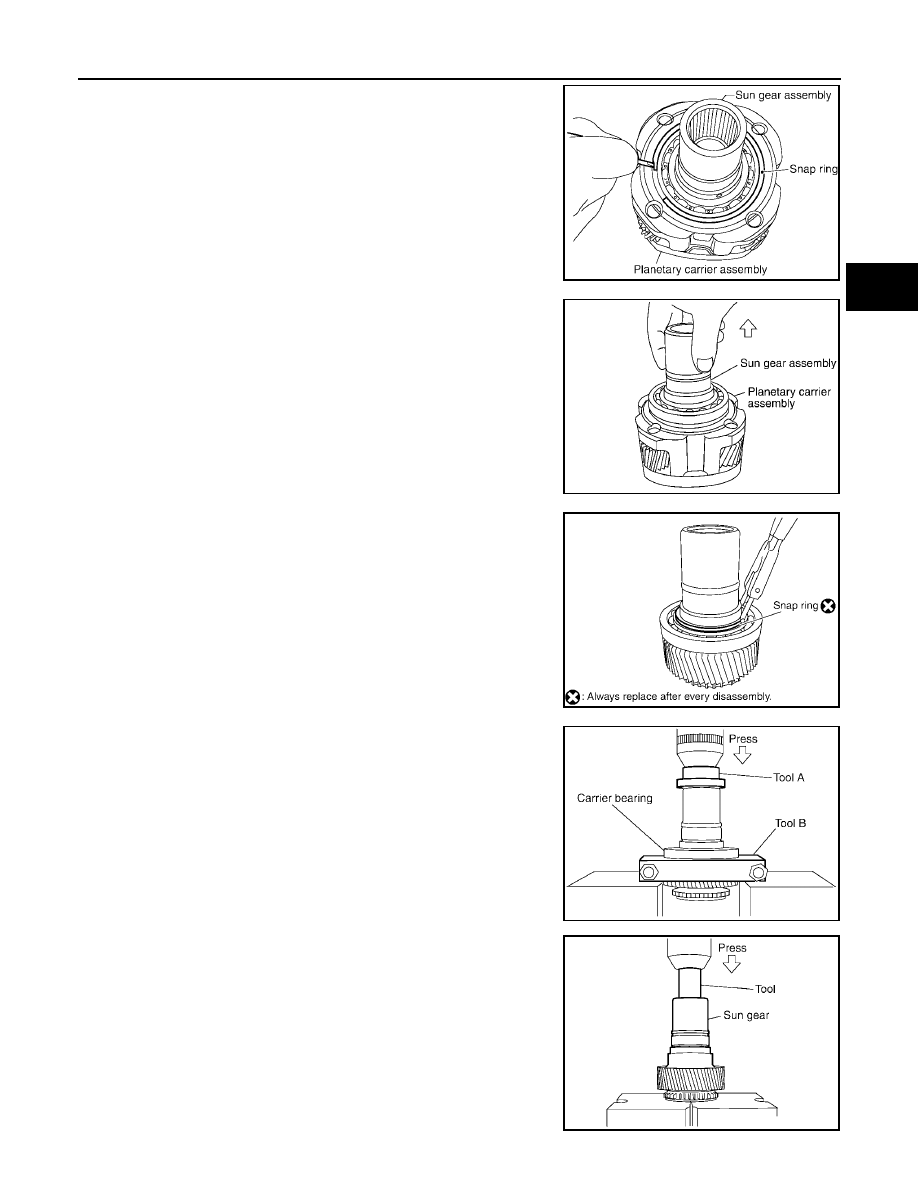

27. Remove the snap ring from the planetary carrier assembly,

using suitable tool.

28. Remove the sun gear assembly from the planetary carrier

assembly.

29. Remove the snap ring from the sun gear, using suitable tool.

30. Remove the carrier bearing from the sun gear, using Tools.

31. Remove the needle bearing from the sun gear, using Tool.

SDIA2146E

SDIA2147E

SDIA2148E

Tool number

A: ST35300000 (

)

B: ST30031000 (

)

SDIA2149E

Tool number

: ST33710000 (

)

SDIA2354E

TF-154

[ATX14B]

TRANSFER ASSEMBLY

2005 Pathfinder

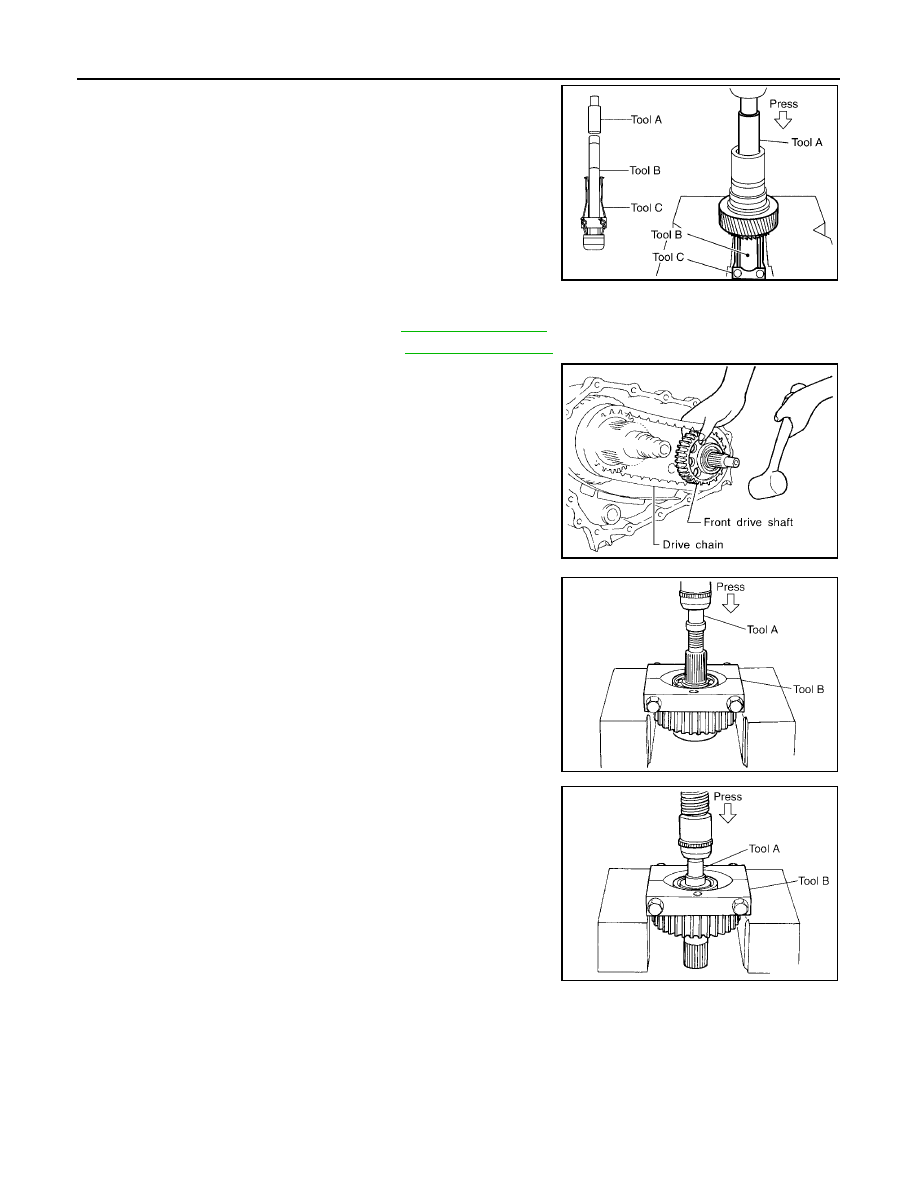

32. Remove the metal bushing from the sun gear, using Tools.

Center Case

1.

Remove the rear case assembly. Refer to

TF-148, "Rear Case"

.

2.

Remove the front case assembly. Refer to

TF-149, "Front Case"

.

3.

Hold the front drive shaft with one hand and tap to remove the
front drive shaft with the drive chain.

CAUTION:

Do not tap drive chain.

4.

Remove the front drive shaft front bearing, using Tools.

5.

Remove the front drive shaft rear bearing, using Tools.

Tool number

A: ST33710000 (

)

B: ST35325000 (

)

C: ST33290001 (J-34286)

SDIA2168E

SMT900C

Tool number

A: ST33052000 (

)

B: ST30031000 (

)

SDIA2106E

Tool number

A: ST33052000 (

)

B: ST30031000 (

)

SDIA2107E
