SUNROOF RF-27 C D E F G H J K L M A B RF

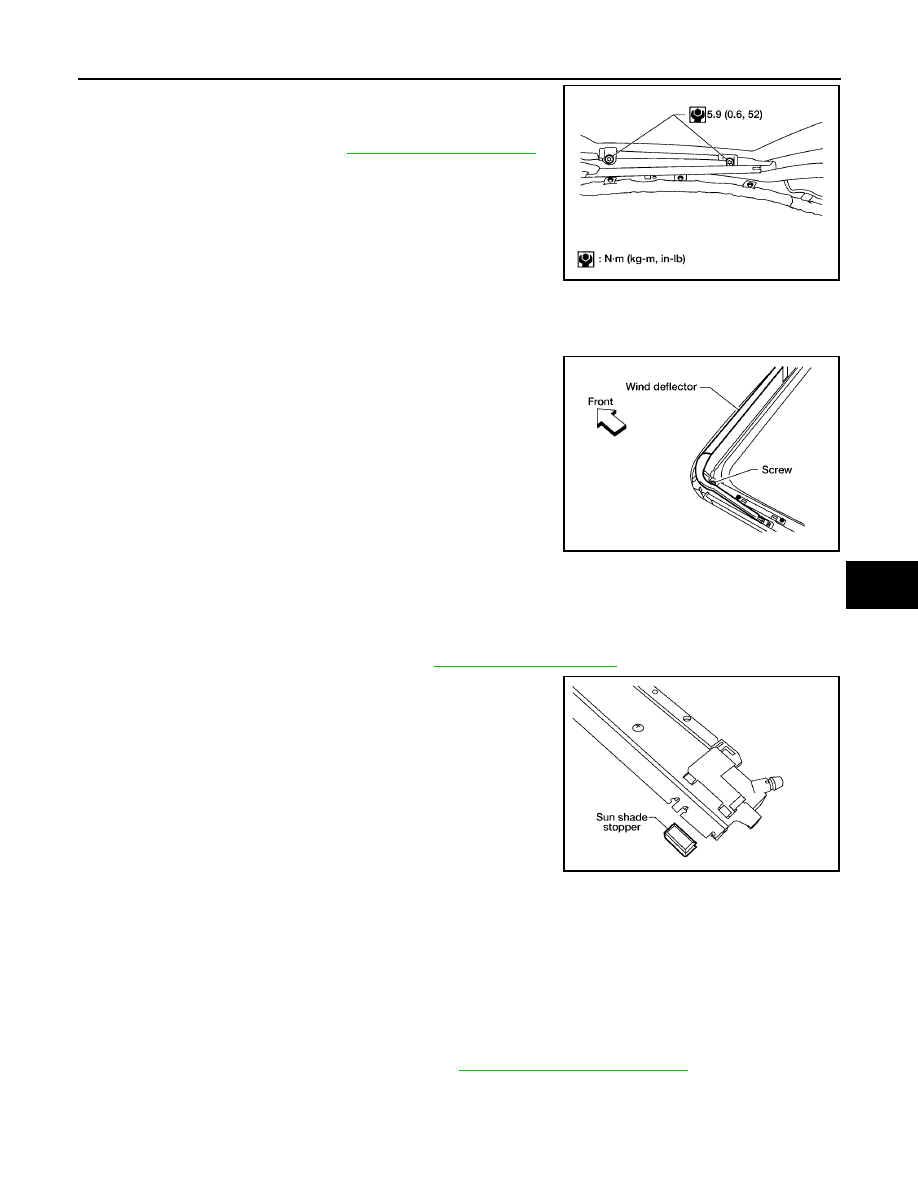

2005 Pathfinder 2. Install the glass lid assembly screws. (First tighten left front bolt, 3. Adjust the sunroof glass. Refer to . WIND DEFLECTOR 1. Open the sunroof. 2. Remove screws from the left, center, and right side wind deflec- 3. Remove the wind deflector from the sunroof frame assembly. Installation Installation is in the reverse order of removal. SUNSHADE 1. Remove the sunroof frame assembly. Refer to . 2. Remove the sunshade stoppers (2 points) from the rear end of 3. Remove the sunshade assembly from the rear end of the sun- Installation Installation is in the reverse order of removal. SUNROOF MOTOR CAUTION: ● When removing the sunroof motor, be sure that the sunroof is in the fully closed position. ● Never run the removed motor as a single unit. 1. Position the sunroof assembly in the fully closed position. 2. Remove the front roof console assembly. Refer to EI-30, "Removal and Installation" . WIIA0252E WIIA0424E LIIA1672E |
