Nissan Pathfinder (2005 year). Manual - part 385





SUNROOF

RF-11

C

D

E

F

G

H

J

K

L

M

A

B

RF

2005 Pathfinder

to sunroof motor assembly terminal 1

through sunroof switch terminal 3

through sunroof switch terminal 2

through grounds M57, M61 and M79.

Then the sunroof will tilt up/slide closed.

TILT DOWN/SLIDE OPEN OPERATION

When down/open switch is pressed, ground is supplied

to sunroof motor assembly terminal 5

through sunroof switch terminal 1

through sunroof switch terminal 2

through grounds M57, M61 and M79.

Then the sunroof will tilt down/slide open.

AUTO OPERATION

The power sunroof AUTO feature makes it possible to slide open and slide closed or tilt up and tilt down the
sunroof without holding the sunroof switch in the UP/CLOSE or DOWN/OPEN position.

RETAINED POWER OPERATION

When the ignition switch is turned to OFF position from ON position, power is supplied for 45 seconds

through BCM terminal 68

to sunroof motor assembly terminal 9.

When power is supplied, the sunroof can be operated.
The retained power operation is canceled when the front door LH or RH is opened.
RAP signal period can be changed by CONSULT-II. Refer to

RF-16, "CONSULT-II Function (BCM)"

.

ANTI-PINCH FUNCTION

The CPU (central processing unit) of sunroof motor assembly monitors the sunroof motor operation and the
sunroof position (fully-closed or other) by the signals from sunroof motor.
When sunroof motor detects an interruption during the following slide close and tilt down operation, sunroof
switch controls the motor for open and the sunroof will operate until it reaches full up position (during tilt down
operation) or 125 mm (4.92 in) or more in an open direction (during slide close operation).

close operation and tilt down when ignition switch is in the ON position.

close operation and tilt down during retained power operation.

INITIALIZATION FAILURE CONDITIONS

Initialization and teaching of system should be conducted if the following conditions exist:

sunroof will only move in the UP/CLOSE direction, having a step by step motion

sunroof does not have any auto operation.

INITIALIZATION PROCEDURE

If the sunroof does not close or open automatically, use the following procedure to return sunroof operation to
normal.

1.

Press the switch to the UP/CLOSE position to tilt the sunroof up fully. When the sunroof reaches the full tilt
up position it will back up a few millimeters and stop.

2.

Release the UP/CLOSE switch.

3.

Within 5 seconds of releasing the UP/CLOSE switch, press and hold the UP/CLOSE switch again. The
sunroof will move to the full open position and back to the closed position.

NOTE:
If the UP/CLOSE switch is released anytime during this teaching process, all learned profile data will be dis-
carded and the procedure will have to be started over.

4.

Release the UP/CLOSE switch. Do not disconnect power for at least two seconds. The sunroof is now ini-
tialized and taught.

Initializing procedure is complete. Confirm proper operation of the sunroof (slide open, slide closed, tilt up, tilt
down).

RF-12

SUNROOF

2005 Pathfinder

RE-TEACHING CONDITIONS

Re-teaching of system should be conducted if any of the following conditions exist:

the sunroof is manually operated using the sunroof wrench with the battery discharged or disconnected.

the sunroof is manually operated using the sunroof wrench with the key switch in the OFF position and
retained power timed out (after approximately 45 seconds or with a front door open).

the sunroof motor assembly is replaced with a new one.

the sunroof motor is removed from the sunroof assembly and operated before it is reinstalled.

the sunroof motor is removed from the sunroof assembly and the glass panel position is changed.

RE-TEACHING PROCEDURE

1.

Using the UP/CLOSE switch, move the sunroof toward the tilt position until it stops.

2.

Release the UP/CLOSE switch.

3.

Press the UP/CLOSE switch again and continuously hold. The sunroof will begin to move in about 10 sec-
onds.

4.

Continue to hold the UP/CLOSE switch while the sunroof moves in a jogging motion to the full tilt position.
When the sunroof reaches the full tilt position, it will back up a few millimeters and stop.

5.

Release the UP/CLOSE switch.

6.

Within 5 seconds of releasing the UP/CLOSE switch, press and hold the UP/CLOSE switch again. The
sunroof will move to the full open position and back to the closed position.

NOTE:
If the UP/CLOSE switch is released anytime during this teaching process, all learned profile data will be dis-
carded and the procedure will have to be started over.

7.

Release the UP/CLOSE switch. Do not disconnect power for at least two seconds. The sunroof is now re-
taught.

CAN Communication System Description

EIS0043F

Refer to

LAN-24, "CAN COMMUNICATION"

.

SUNROOF

RF-13

C

D

E

F

G

H

J

K

L

M

A

B

RF

2005 Pathfinder

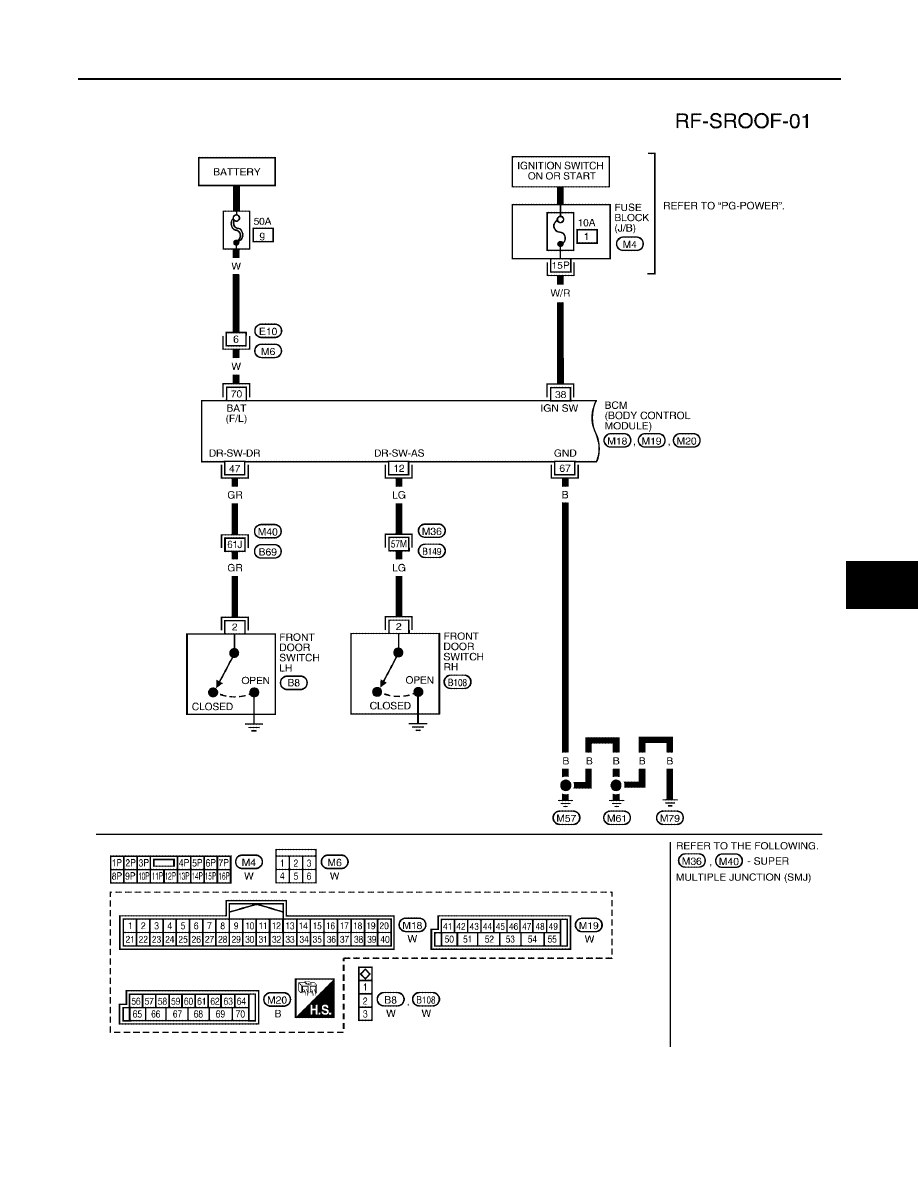

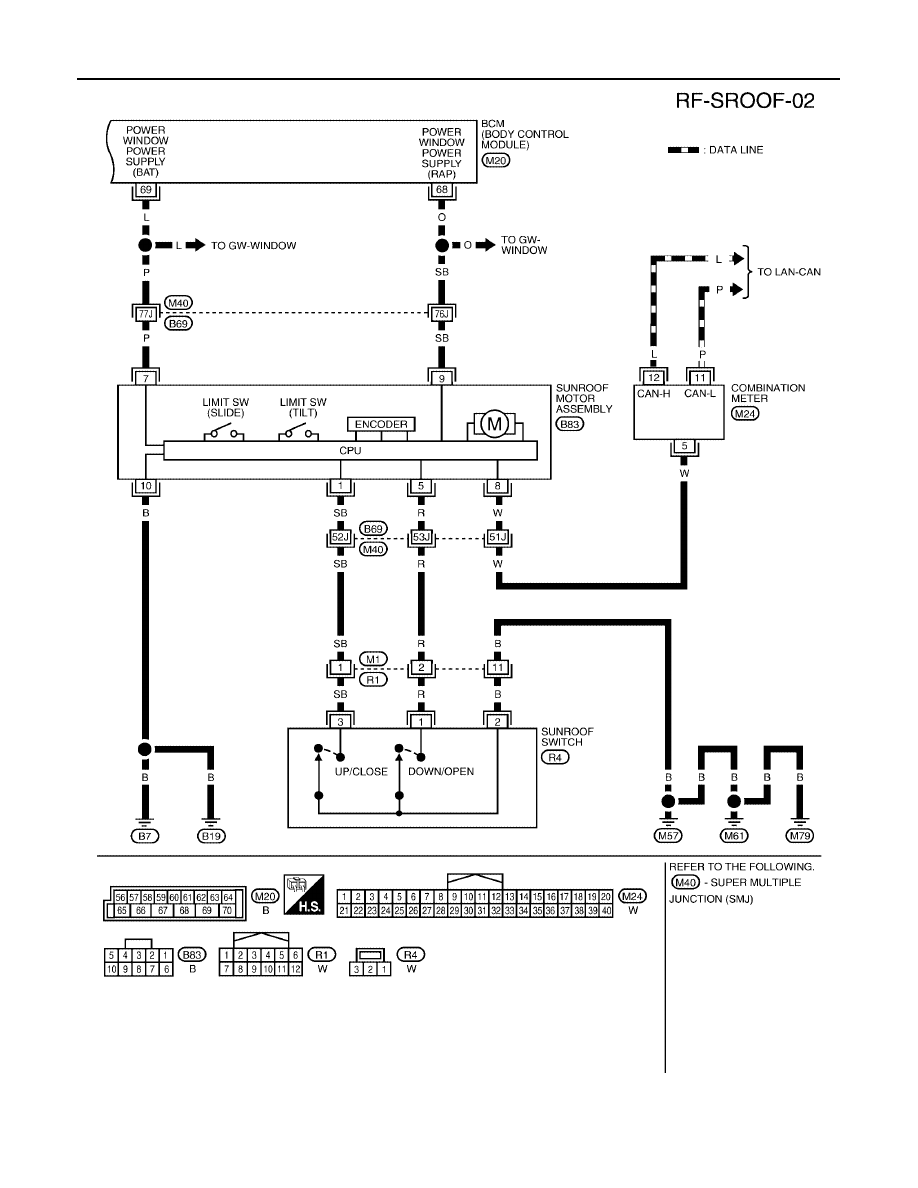

Wiring Diagram — SROOF —

EIS0043G

WIWA0520E

RF-14

SUNROOF

2005 Pathfinder

WIWA0521E

SUNROOF

RF-15

C

D

E

F

G

H

J

K

L

M

A

B

RF

2005 Pathfinder

Terminals and Reference Values for BCM

EIS004ZL

Terminals and Reference Values for Sunroof Motor Assembly

EIS004ZM

Work Flow

EIS0043J

1.

Check the symptom and customer's requests.

2.

Understand the outline of system. Refer to

RF-10, "System Description"

.

3.

According to the trouble diagnosis chart, repair or replace the cause or replace of the malfunction.
Refer to

RF-18, "Trouble Diagnosis Chart by Symptom"

.

4.

Does sunroof system operate normally? If Yes, GO TO 5, If No, GO TO 3.

5.

Inspection End.

Terminal

Wire color

Item

Condition

Voltage

(Approx.)

12

LG

Front door switch RH signal

ON (Open)

0

OFF (Closed)

Battery voltage

38

W/R

Ignition switch (ON)

Ignition switch (ON or START) position

Battery voltage

47

GR

Front door switch LH signal

ON (Open)

0

OFF (Closed)

Battery voltage

67

B

Ground (power)

0

68

O

RAP signal

Ignition switch ON

Battery voltage

Within 45 seconds after ignition switch is turned OFF

Battery voltage

When front door LH or RH is open while retained
power is operating

0

69

L

Power window power supply

Battery voltage

70

W

BAT power supply

Battery voltage

Terminal

Wire

color

Item

Condition

Voltage

(Approx.)

1

SB

Sunroof switch (UP/CLOSE) signal

Ignition switch ON and sunroof
switch in UP/CLOSE position

0

Ignition switch ON and sunroof
switch in OFF position

Battery voltage

5

R

Sunroof switch (DOWN/OPEN) signal

Ignition switch ON and sunroof
switch in DOWN/OPEN position

0

Ignition switch ON and sunroof
switch in OFF position

Battery voltage

7

P

BAT power supply

Battery voltage

8

W

Vehicle speed signal

Speedometer operated [when
vehicle speed is approx. 40 km/h
(25 MPH)]

9

SB

RAP signal

Ignition switch ON

Battery voltage

Within 45 seconds after ignition
switch is turned OFF

Battery voltage

When front door LH or RH is
open while retained power is
operating

0

10

B

Ground

0

ELF1080D

RF-16

SUNROOF

2005 Pathfinder

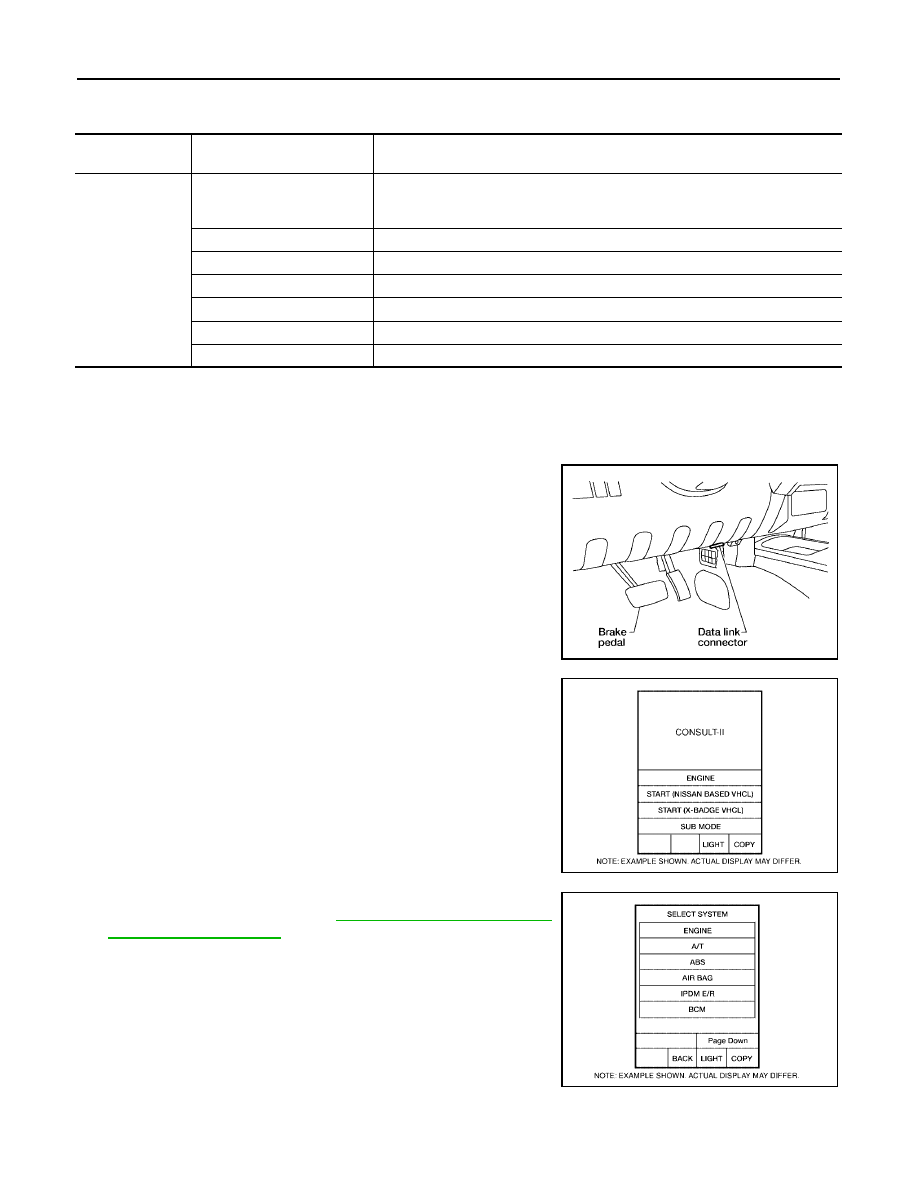

CONSULT-II Function (BCM)

EIS0043K

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

CONSULT-II OPERATION

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carries out CAN communication.

1.

With the ignition switch OFF, connect CONSULT-II and CON-
SULT-II CONVERTER to the data link connector, then turn igni-
tion switch ON.

2.

Touch "START (NISSAN BASED VHCL)".

3.

Touch "BCM".
If "BCM" is not indicated, go to

GI-38, "CONSULT-II Data Link

Connector (DLC) Circuit"

.

BCM diagnostic

test item

Diagnostic mode

Description

Inspection by part

WORK SUPPORT

Supports inspections and adjustments. Commands are transmitted to the BCM
for setting the status suitable for required operation, input/output signals are
received from the BCM and received data is displayed.

DATA MONITOR

Displays BCM input/output data in real time.

ACTIVE TEST

Operation of electrical loads can be checked by sending drive signal to them.

SELF-DIAG RESULTS

Displays BCM self-diagnosis results.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

ECU PART NUMBER

BCM part number can be read.

CONFIGURATION

Performs BCM configuration read/write functions.

BBIA0538E

BCIA0029E

BCIA0030E

SUNROOF

RF-17

C

D

E

F

G

H

J

K

L

M

A

B

RF

2005 Pathfinder

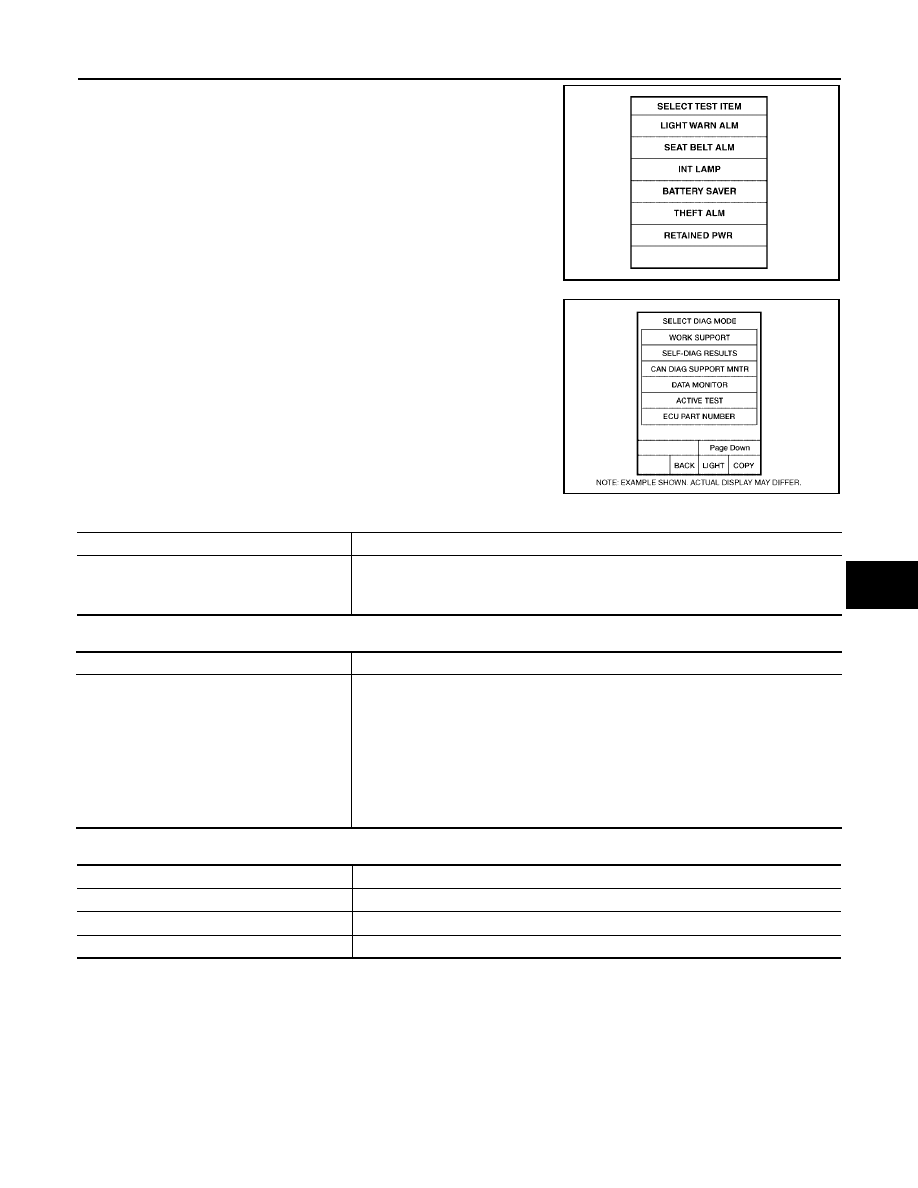

4.

Touch "RETAINED PWR".

5.

Select diagnosis mode. "DATA MONITOR", "ACTIVE TEST" and
"WORK SUPPORT" are available.

Work Support

EIS0043N

Active Test

EIS0043M

Data Monitor

EIS0043L

LIIA0163E

BCIA0031E

Work item

Description

RETAINED PWR SET

RAP signal’s power supply period can be changed by mode setting. Selects RAP sig-
nal’s power supply period between two steps.

MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.)

Test item

Description

RETAINED PWR

This test is able to supply RAP signal (power) from BCM to power window system,
power sunroof system. Those systems can be operated when turning on "RETAINED
PWR" on CONSULT-II screen even if the ignition switch is turned OFF.

NOTE:
During this test, CONSULT-II can be operated with ignition switch in "OFF"
position. "RETAINED PWR" should be turned "ON" or "OFF" on CONSULT-II
screen when ignition switch ON. Then turn ignition switch OFF for checking
retained power operation. CONSULT-II might be stuck if "RETAINED PWR" is
turned "ON" or "OFF" on CONSULT-II screen when ignition switch is OFF.

Monitored item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

RF-18

SUNROOF

2005 Pathfinder

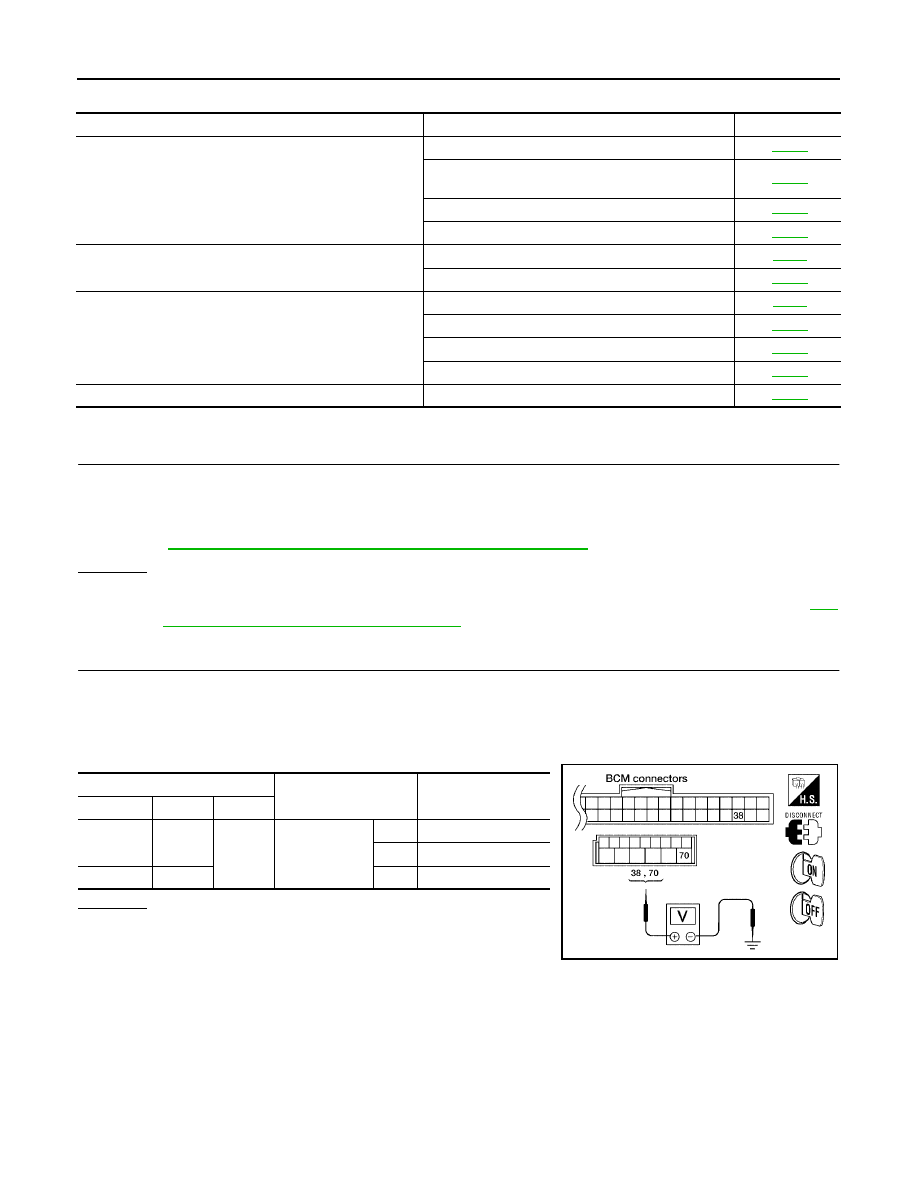

Trouble Diagnosis Chart by Symptom

EIS004ZN

BCM Power Supply and Ground Circuit Check

EIS004ZO

1.

CHECK FUSE

Check 10A fuse [No.1, located in the fuse block (J/B)]

Check 50A fusible link (letter g, located in the fuse and fusible link box).

NOTE:
Refer to

RF-10, "Component Parts and Harness Connector Location"

.

OK or NG

OK

>> GO TO 2.

NG

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to

PG-

4, "POWER SUPPLY ROUTING CIRCUIT"

.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connectors.

3.

Check voltage between BCM connectors M18 and M20 terminals 38, 70 and ground with ignition switch
ON, then OFF.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace harness.

Symptom

Diagnostic procedure and repair order

Refer to page

Sunroof does not operate.

1. BCM power supply and ground circuit check

RF-18

2. Sunroof motor assembly power supply and ground
circuit check

RF-20

3. Sunroof switch system check

RF-19

4. Replace sunroof motor assembly

RF-27

Motor does not stop at the sunroof fully -open or fully-
closed position.

1. Initialization procedure check

RF-11

2. Replace sunroof motor assembly

RF-27

Retained power operation does not operate properly.

1. Check the retained power operation mode setting

RF-11

2. BCM power supply and ground circuit check

RF-18

3. Door switch check

RF-22

4. Replace sunroof motor assembly

RF-27

Sunroof does not do the interruption detection.

1. Replace sunroof motor assembly

RF-27

Terminal

Condition

Voltage

(Approx.)

Connector

(+)

(–)

M18

38

Ground

Ignition switch

ON

Battery voltage

OFF

0V

M20

70

OFF

Battery voltage

WIIA0229E
