Nissan Pathfinder (2005 year). Manual - part 314





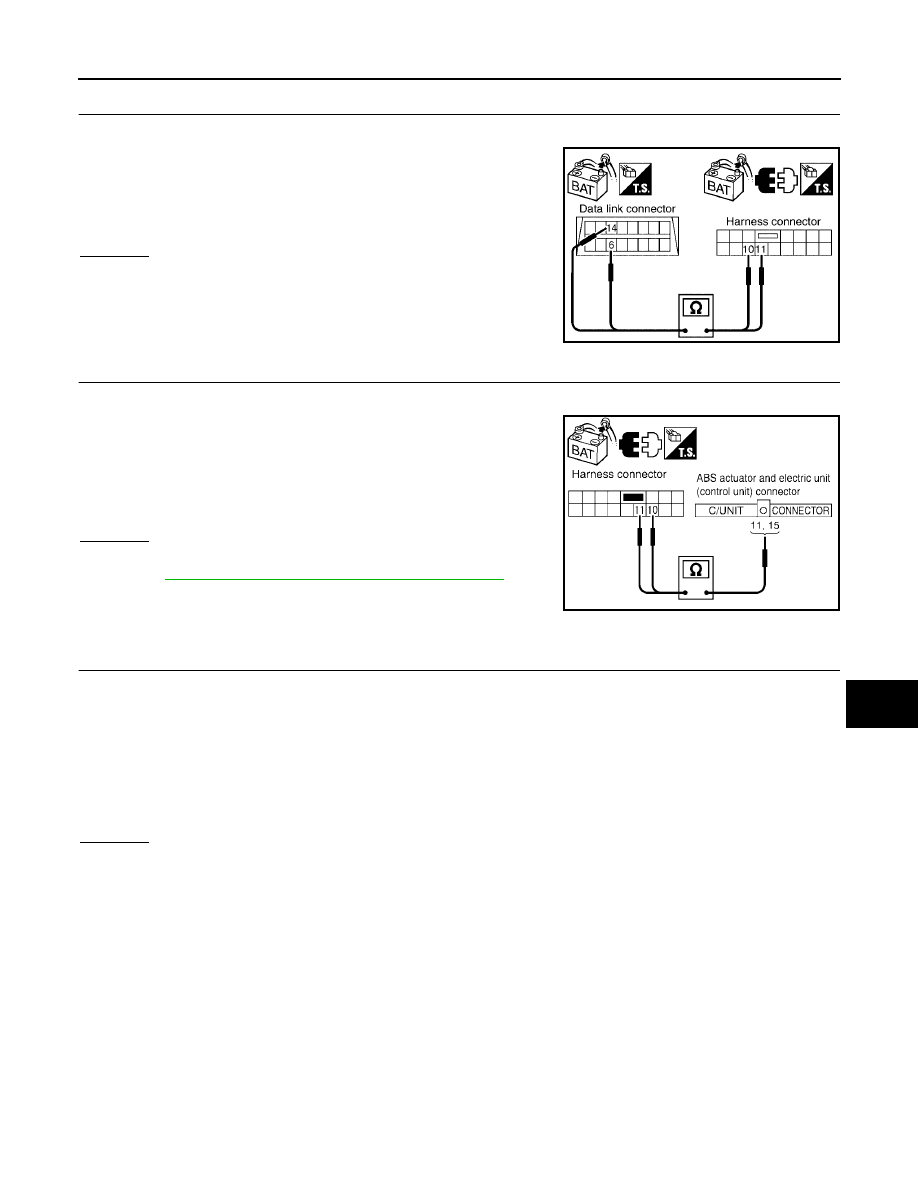

CAN SYSTEM (TYPE 6)

LAN-211

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect harness connector M91.

2.

Check continuity between data link connector M22 terminals 6
(L), 14 (P) and harness connector M91 terminals 11 (L), 10 (P).

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness.

3.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect ABS actuator and electric unit (control unit) connector.

2.

Check continuity between harness connector E26 terminals 11
(L), 10 (P) and ABS actuator and electric unit (control unit) har-
ness connector E125 terminals 11 (L), 15 (P).

OK or NG

OK

>> Connect all the connectors and diagnose again. Refer to

LAN-6, "TROUBLE DIAGNOSES WORK FLOW"

.

NG

>> Repair harness.

ECM Circuit Inspection

UKS003DL

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).

ECM connector

Harness connector E2

Harness connector F32

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

6 (L) – 11 (L)

: Continuity should exist.

14 (P) – 10 (P)

: Continuity should exist.

SKIB2812E

11 (L) – 11 (L)

: Continuity should exist.

10 (P) – 15 (P)

: Continuity should exist.

SKIB2813E

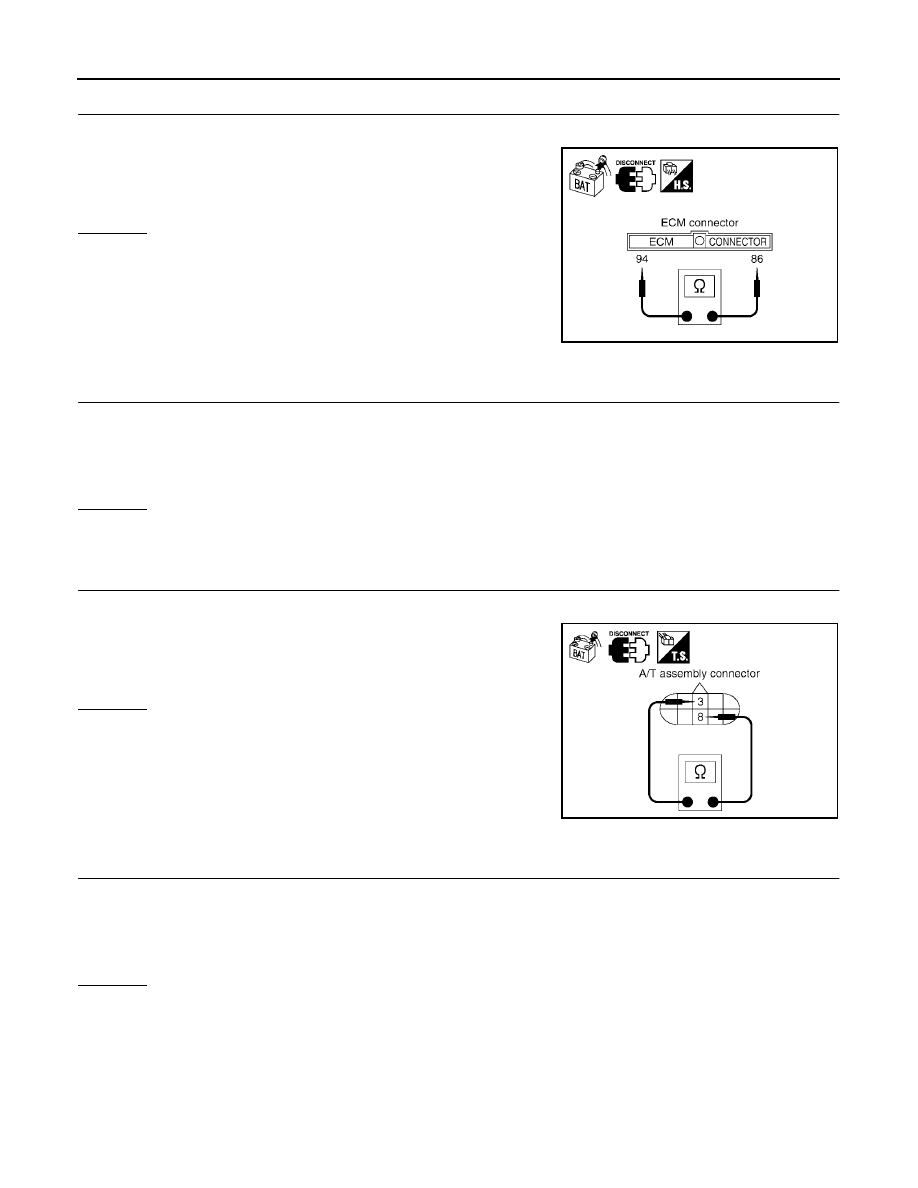

LAN-212

[CAN]

CAN SYSTEM (TYPE 6)

2005 Pathfinder

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect ECM connector.

2.

Check resistance between ECM harness connector E16 termi-
nals 94 (L) and 86 (P).

OK or NG

OK

>> Replace ECM.

NG

>> Repair harness between ECM and A/T assembly.

TCM Circuit Inspection

UKS003DM

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of A/T assembly for damage, bend and loose connection (control module
side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect A/T assembly connector.

2.

Check resistance between A/T assembly harness connector F9
terminals 3 (L) and 8 (P).

OK or NG

OK

>> Replace control valve with TCM.

NG

>> Repair harness between A/T assembly and harness

connector F14.

Steering Angle Sensor Circuit Inspection

UKS003DO

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

94 (L) – 86 (P)

: Approx. 108 – 132

PKIA9592E

3 (L) – 8 (P)

: Approx. 54 – 66

SKIA6866E

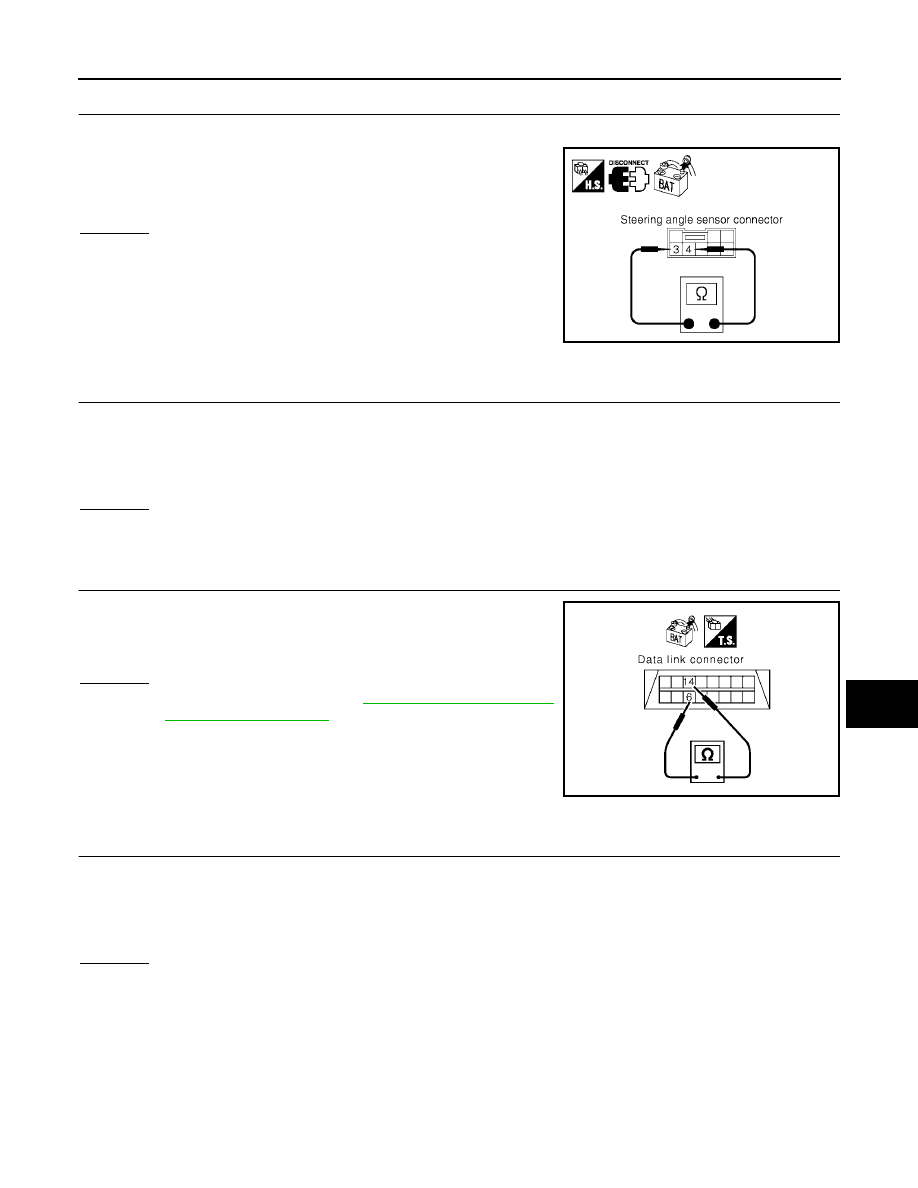

CAN SYSTEM (TYPE 6)

LAN-213

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect steering angle sensor connector.

2.

Check resistance between steering angle sensor harness con-
nector M47 terminals 3 (L) and 4 (P).

OK or NG

OK

>> Replace steering angle sensor.

NG

>> Repair harness between steering angle sensor and data

link connector.

Data Link Connector Circuit Inspection

UKS003DP

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check the terminals and connector of data link connector for damage, bend and loose connection (con-
nector side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

Check resistance between data link connector M22 terminals 6 (L)
and 14 (P).

OK or NG

OK

>> Diagnose again. Refer to

LAN-6, "TROUBLE DIAG-

NOSES WORK FLOW"

.

NG

>> Repair harness between data link connector and BCM.

BCM Circuit Inspection

UKS003DQ

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

3 (L) – 4 (P)

: Approx. 54 – 66

PKIA6838E

6 (L) – 14 (P)

: Approx. 54 – 66

SKIA6868E

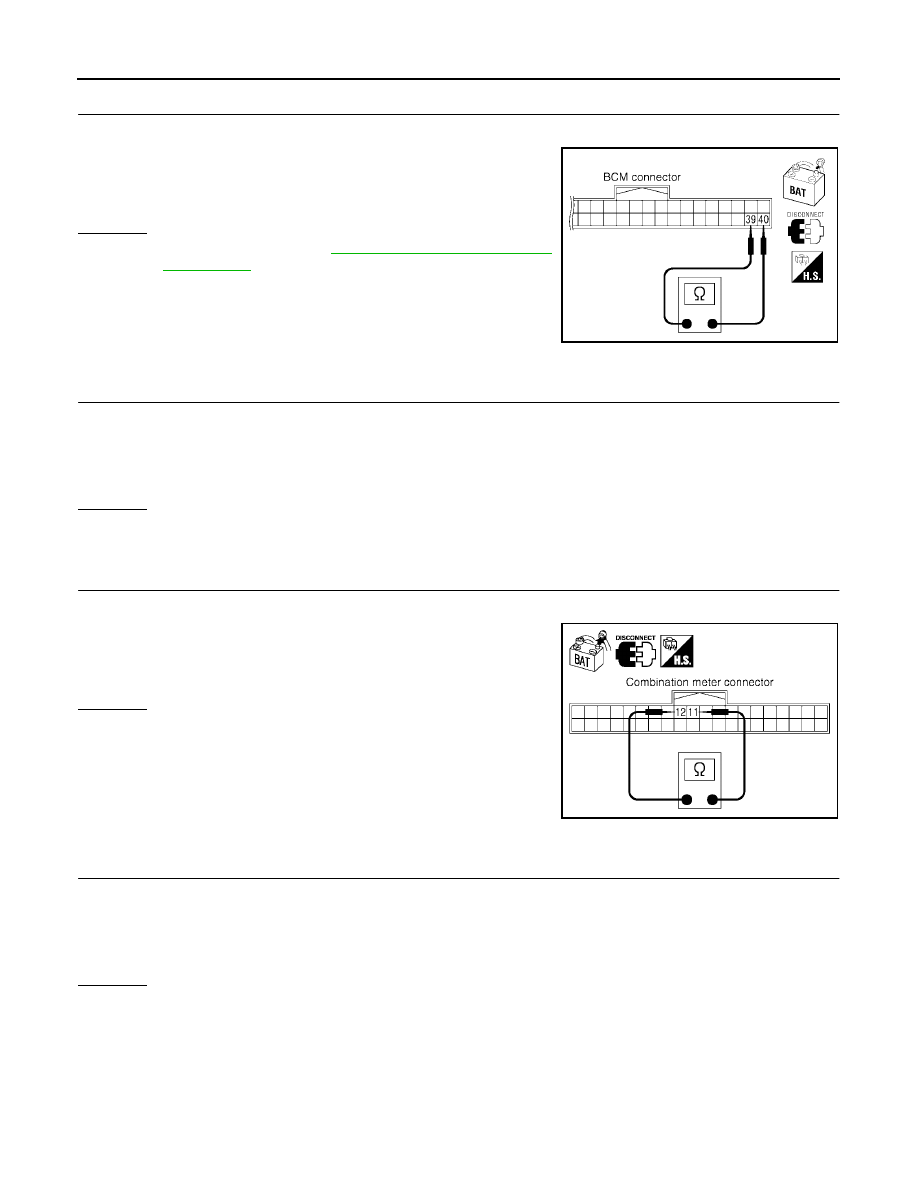

LAN-214

[CAN]

CAN SYSTEM (TYPE 6)

2005 Pathfinder

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect BCM connector.

2.

Check resistance between BCM harness connector M18 termi-
nals 39 (L) and 40 (P).

OK or NG

OK

>> Replace BCM. Refer to

BCS-19, "Removal and Installa-

tion of BCM"

.

NG

>> Repair harness between BCM and data link connector.

Combination Meter Circuit Inspection

UKS003DR

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of combination meter for damage, bend and loose connection (meter side
and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect combination meter connector.

2.

Check resistance between combination meter harness connec-
tor M24 terminals 12 (L) and 11 (P).

OK or NG

OK

>> Replace combination meter.

NG

>> Repair harness between combination meter and data

link connector.

Transfer Control Unit Circuit Inspection

UKS003DS

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of transfer control unit for damage, bend and loose connection (control
unit side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

39 (L) – 40 (P)

: Approx. 54 – 66

SKIA6869E

12 (L) – 11 (P)

: Approx. 54 – 66

PKIA6837E

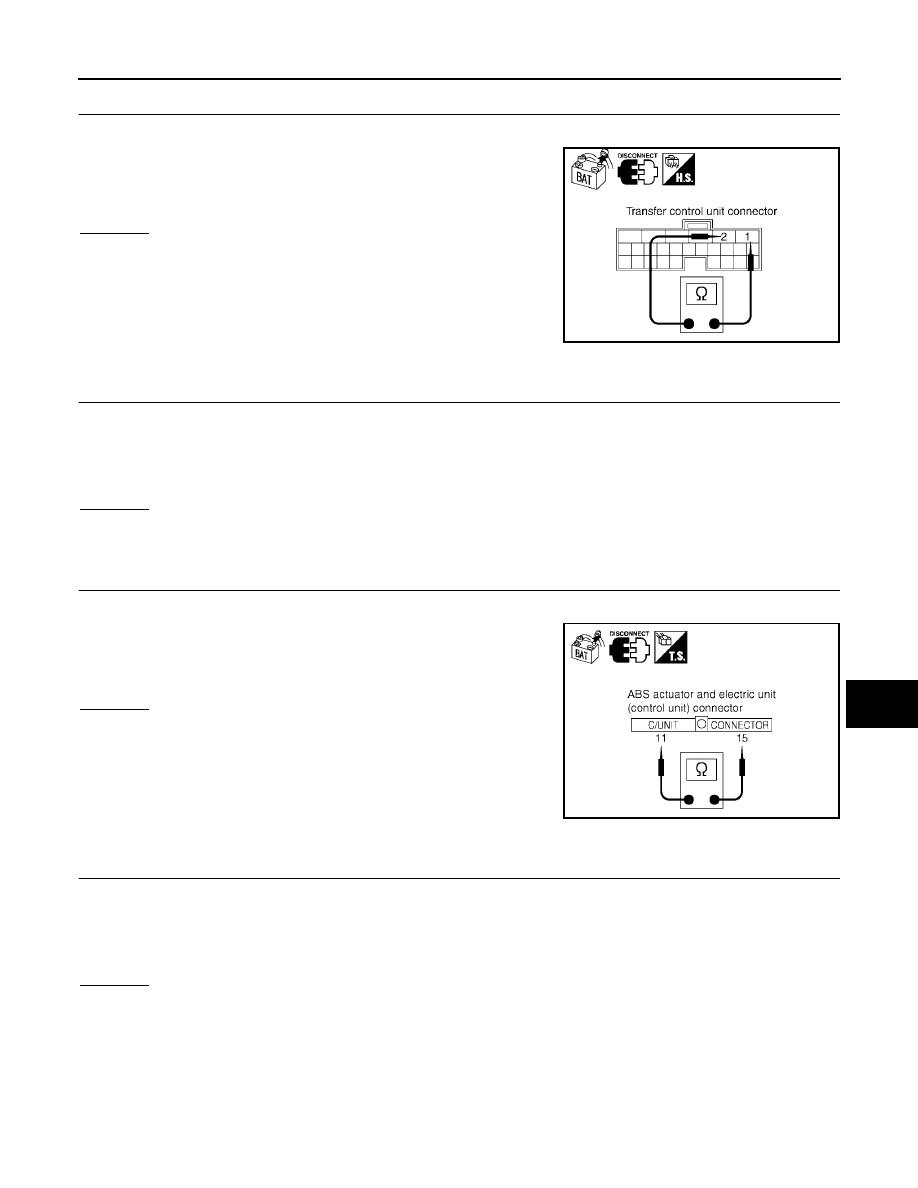

CAN SYSTEM (TYPE 6)

LAN-215

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect transfer control unit connector.

2.

Check resistance between transfer control unit harness connec-
tor M152 terminals 1 (L) and 2 (P).

OK or NG

OK

>> Replace transfer control unit.

NG

>> Repair harness between transfer control unit and data

link connector.

ABS Actuator and Electric Unit (Control Unit) Circuit Inspection

UKS003DT

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect ABS actuator and electric unit (control unit) connector.

2.

Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E125 terminals 11 (L) and 15 (P).

OK or NG

OK

>> Replace ABS actuator and electric unit (control unit).

NG

>> Repair harness between ABS actuator and electric unit

(control unit) and IPDM E/R.

IPDM E/R Circuit Inspection

UKS003DU

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check terminals and connector of IPDM E/R for damage, bend and loose connection (control module side
and harness side).

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

1 (L) – 2 (P)

: Approx. 54 – 66

PKIA9745E

11 (L) – 15 (P)

: Approx. 54 – 66

SKIA6872E

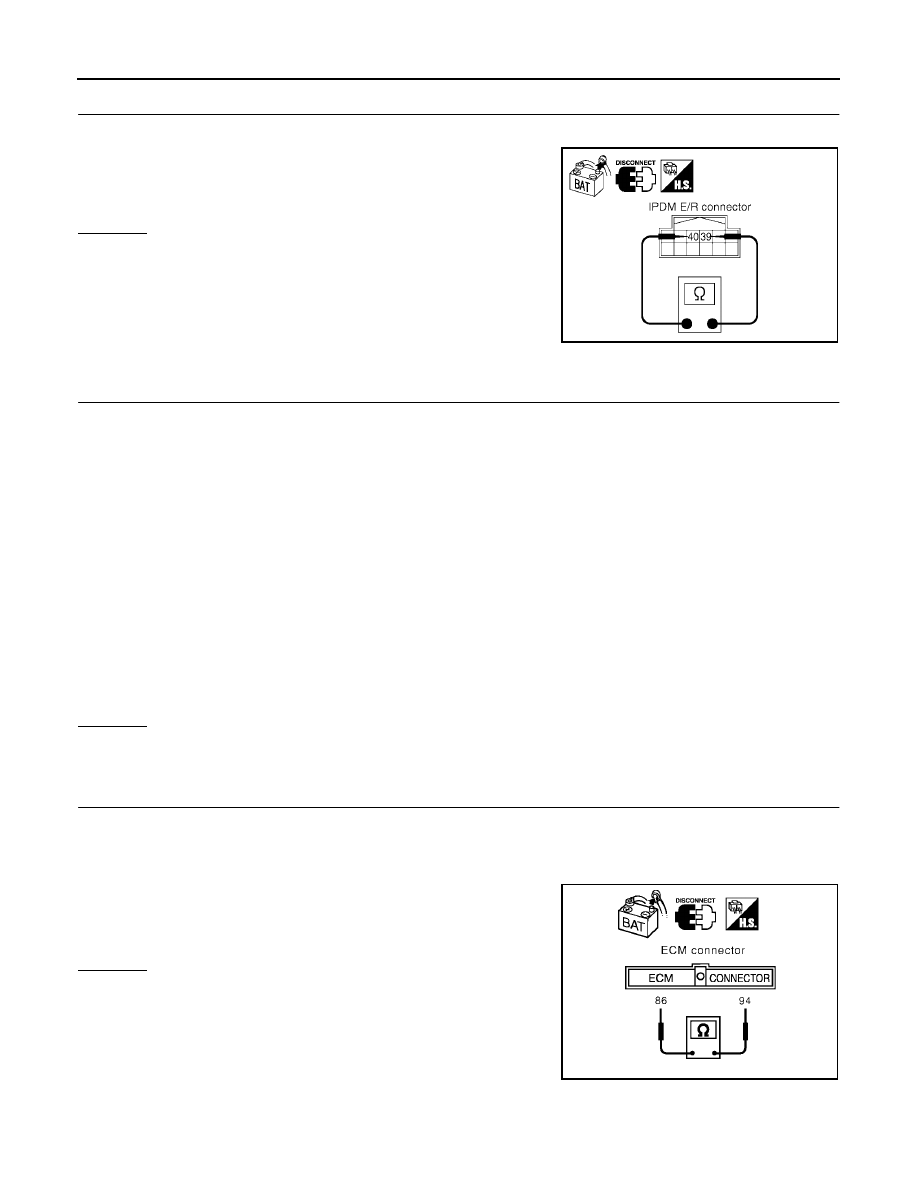

LAN-216

[CAN]

CAN SYSTEM (TYPE 6)

2005 Pathfinder

2.

CHECK HARNESS FOR OPEN CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check resistance between IPDM E/R harness connector E122
terminals 39 (L) and 40 (P).

OK or NG

OK

>> Replace IPDM E/R.

NG

>> Repair harness between IPDM E/R and ABS actuator

and electric unit (control unit).

CAN Communication Circuit Inspection

UKS003DV

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, sensor side, meter side, and harness side).

ECM

TCM

Front air control

Steering angle sensor

BCM

Combination meter

Transfer control unit

ABS actuator and electric unit (control unit)

IPDM E/R

Between ECM and IPDM E/R

OK or NG

OK

>> GO TO 2.

NG

>> Repair terminal or connector.

2.

CHECK HARNESS FOR SHORT CIRCUIT

1.

Disconnect following connectors.

ECM connector

Harness connector E2

2.

Check continuity between ECM harness connector E16 termi-
nals 94 (L) and 86 (P).

OK or NG

OK

>> GO TO 3.

NG

>> Repair harness between ECM and harness connector

E2.

39 (L) – 40 (P)

: Approx. 108 – 132

PKIA8141E

94 (L) – 86 (P)

: Continuity should not exist.

SKIA6865E

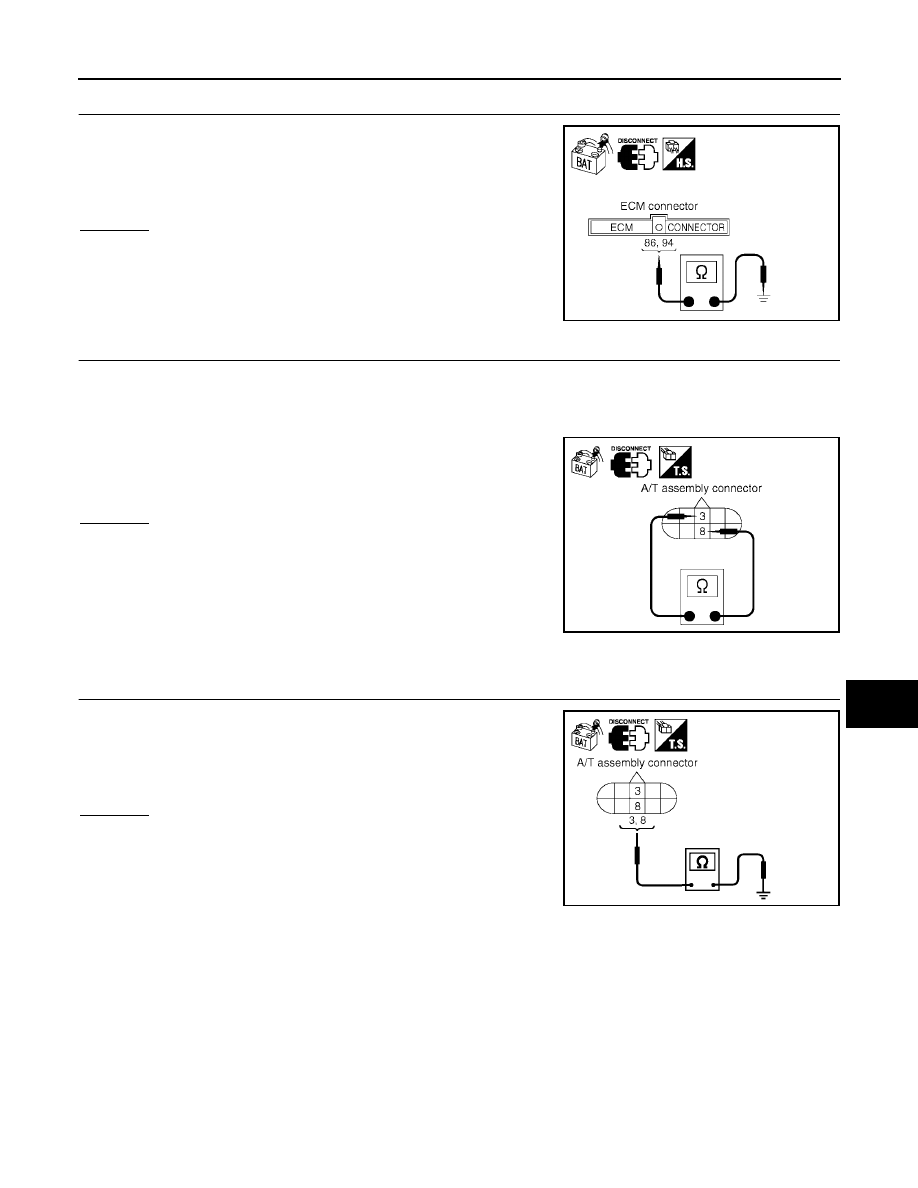

CAN SYSTEM (TYPE 6)

LAN-217

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

3.

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between ECM harness connector E16 terminals 94
(L), 86 (P) and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness between ECM and harness connector

E2.

4.

CHECK HARNESS FOR SHORT CIRCUIT

1.

Disconnect following connectors.

A/T assembly connector

Harness connector F14

2.

Check continuity between A/T assembly harness connector F9
terminals 3 (L) and 8 (P).

OK or NG

OK

>> GO TO 5.

NG

>> Check the following harnesses. If any harness is dam-

aged, repair the harness.

Harness between A/T assembly and harness connec-
tor F32

Harness between A/T assembly and harness connec-
tor F14

5.

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between A/T assembly harness connector F9 ter-
minals 3 (L), 8 (P) and ground.

OK or NG

OK

>> GO TO 6.

NG

>> Check the following harnesses. If any harness is dam-

aged, repair the harness.

Harness between A/T assembly and harness connec-
tor F32

Harness between A/T assembly and harness connector F14

94 (L) – Ground

: Continuity should not exist.

86 (P) – Ground

: Continuity should not exist.

SKIB0571E

3 (L) - 8 (P)

: Continuity should not exist.

SKIA6866E

3 (L) – Ground

: Continuity should not exist.

8 (P) – Ground

: Continuity should not exist.

SKIA6875E

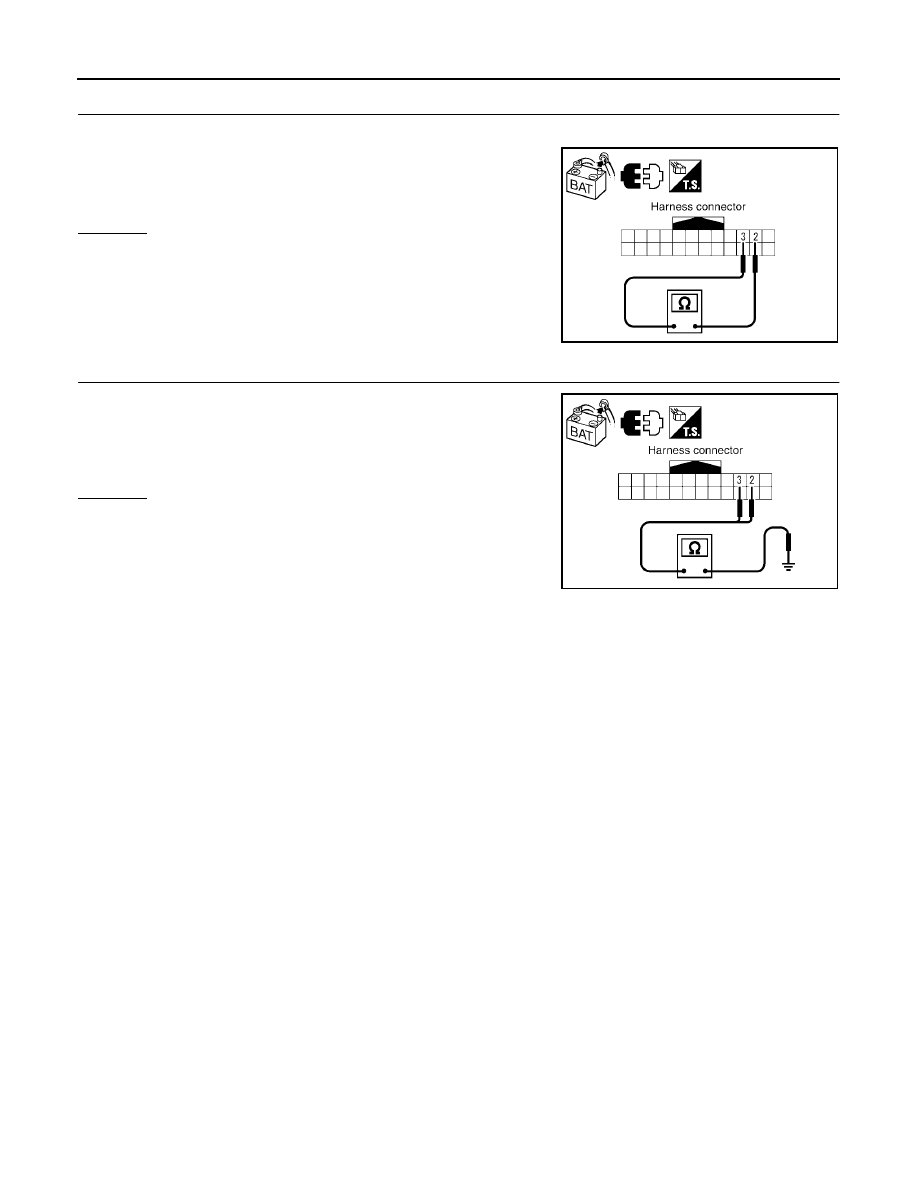

LAN-218

[CAN]

CAN SYSTEM (TYPE 6)

2005 Pathfinder

6.

CHECK HARNESS FOR SHORT CIRCUIT

1.

Disconnect harness connector E152.

2.

Check continuity between harness connector E5 terminals 2 (L)
and 3 (P).

OK or NG

OK

>> GO TO 7.

NG

>> Repair harness between harness connector E5 and har-

ness connector E152.

7.

CHECK HARNESS FOR SHORT CIRCUIT

Check continuity between harness connector E5 terminals 2 (L), 3
(P) and ground.

OK or NG

OK

>> GO TO 8.

NG

>> Repair harness between harness connector E5 and har-

ness connector E152.

2 (L) – 3 (P)

: Continuity should not exist.

SKIB2816E

2 (L) – Ground

: Continuity should not exist.

3 (P) – Ground

: Continuity should not exist.

SKIB2817E















Content      ..     312      313      314      315     ..
