CAN SYSTEM (TYPE 3)

LAN-123

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

18.

UNIT REPRODUCIBILITY INSPECTION

Perform the following procedure for each unit, and then perform reproducibility test.

1.

Turn ignition switch OFF.

2.

Disconnect the battery cable from the negative terminal.

3.

Disconnect the unit connector.

4.

Connect the battery cable to the negative terminal.

5.

Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it
with the symptom related to removed unit.)

6.

Make sure that the same symptom is reproduced.

TCM

Front air control

Steering angle sensor

BCM

Combination meter

Driver seat control unit

ABS actuator and electric unit (control unit)

ECM

IPDM E/R

Inspection results

Reproduced>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.

IPDM E/R Ignition Relay Circuit Inspection

UKS003FI

Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to

PG-26, "IPDM E/R Power/Ground Circuit Inspection"

.

Ignition power supply circuit. Refer to

PG-14, "IGNITION POWER SUPPLY — IGNITION SW. IN ON

AND/OR START"

.

LAN-124

[CAN]

CAN SYSTEM (TYPE 4)

2005 Pathfinder

CAN SYSTEM (TYPE 4)

PFP:23710

System Description

UKS003EF

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

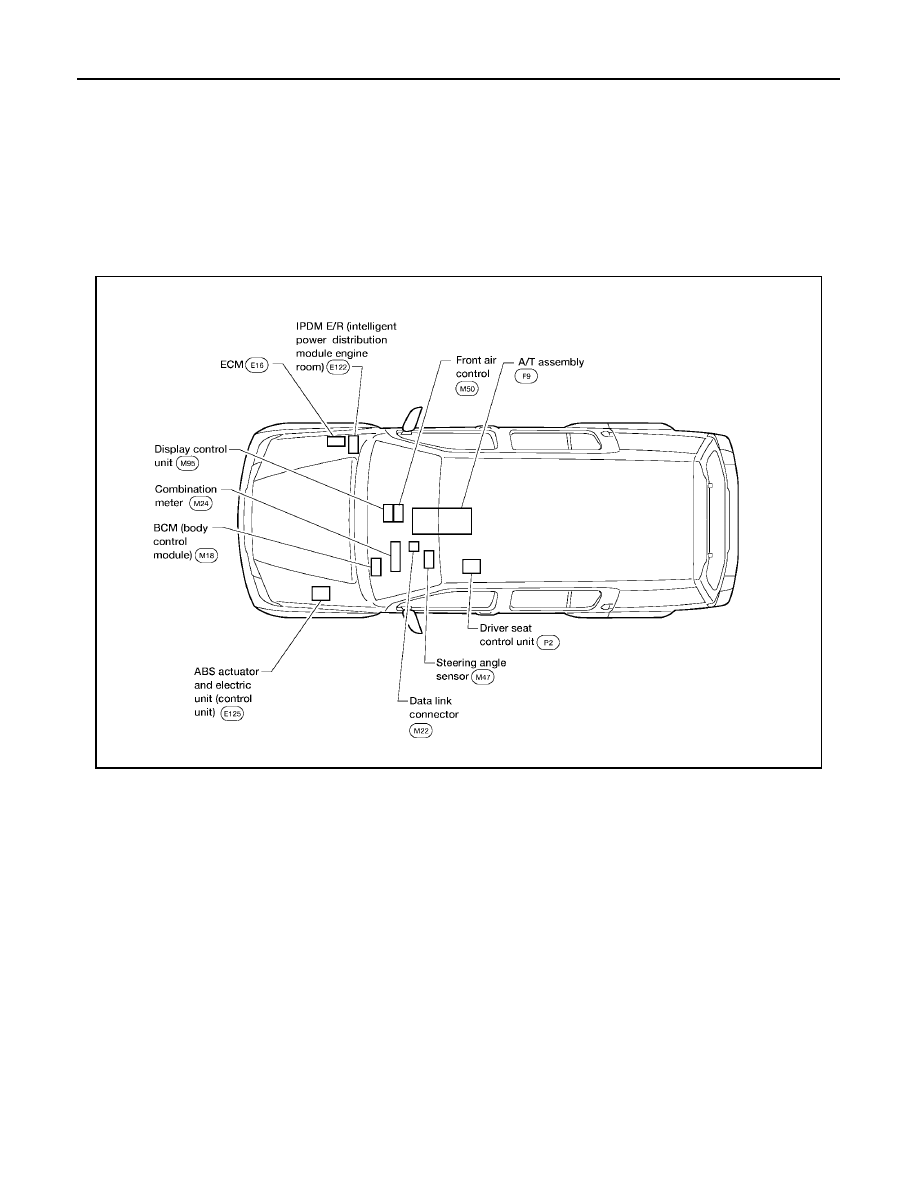

Component Parts and Harness Connector Location

UKS003EG

BKIA0112E

CAN SYSTEM (TYPE 4)

LAN-125

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

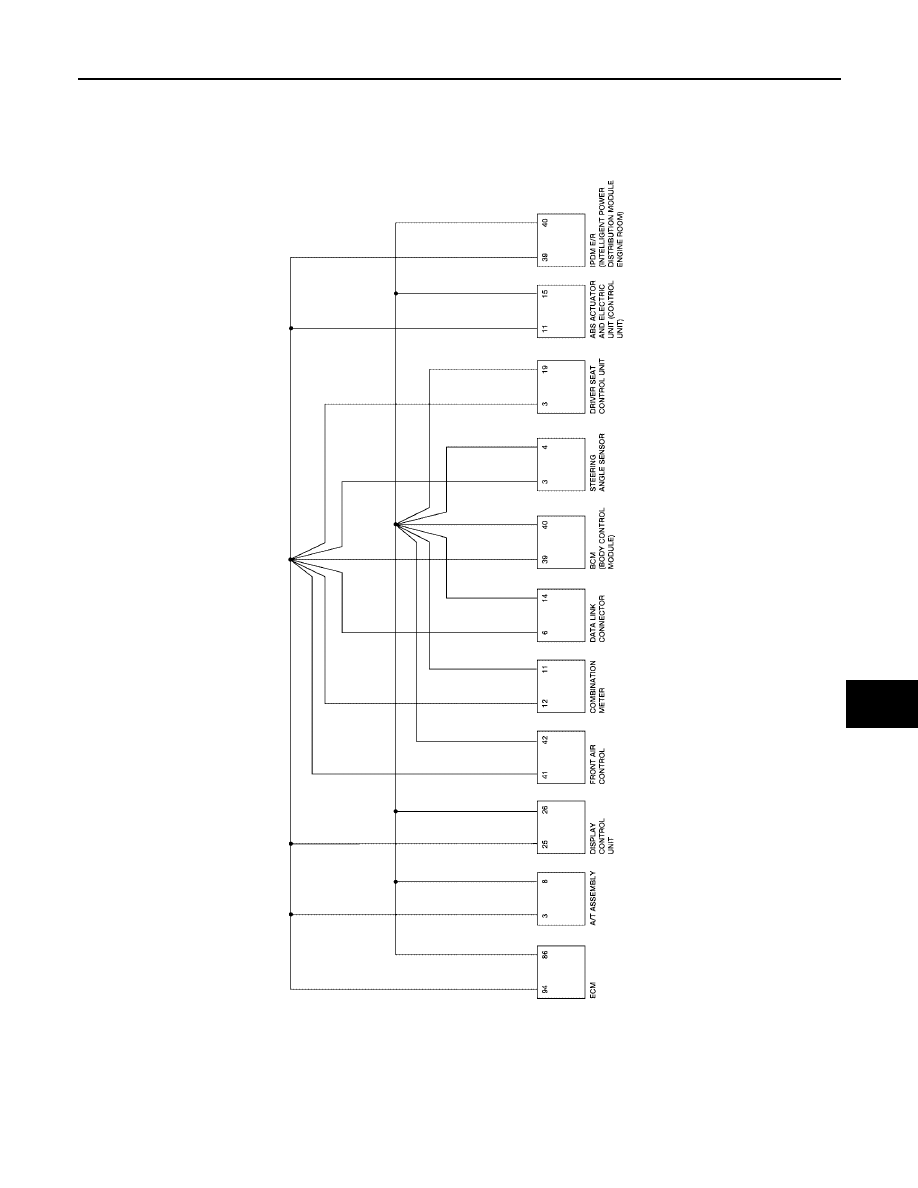

Schematic

UKS003EH

BKWA0379E

LAN-126

[CAN]

CAN SYSTEM (TYPE 4)

2005 Pathfinder

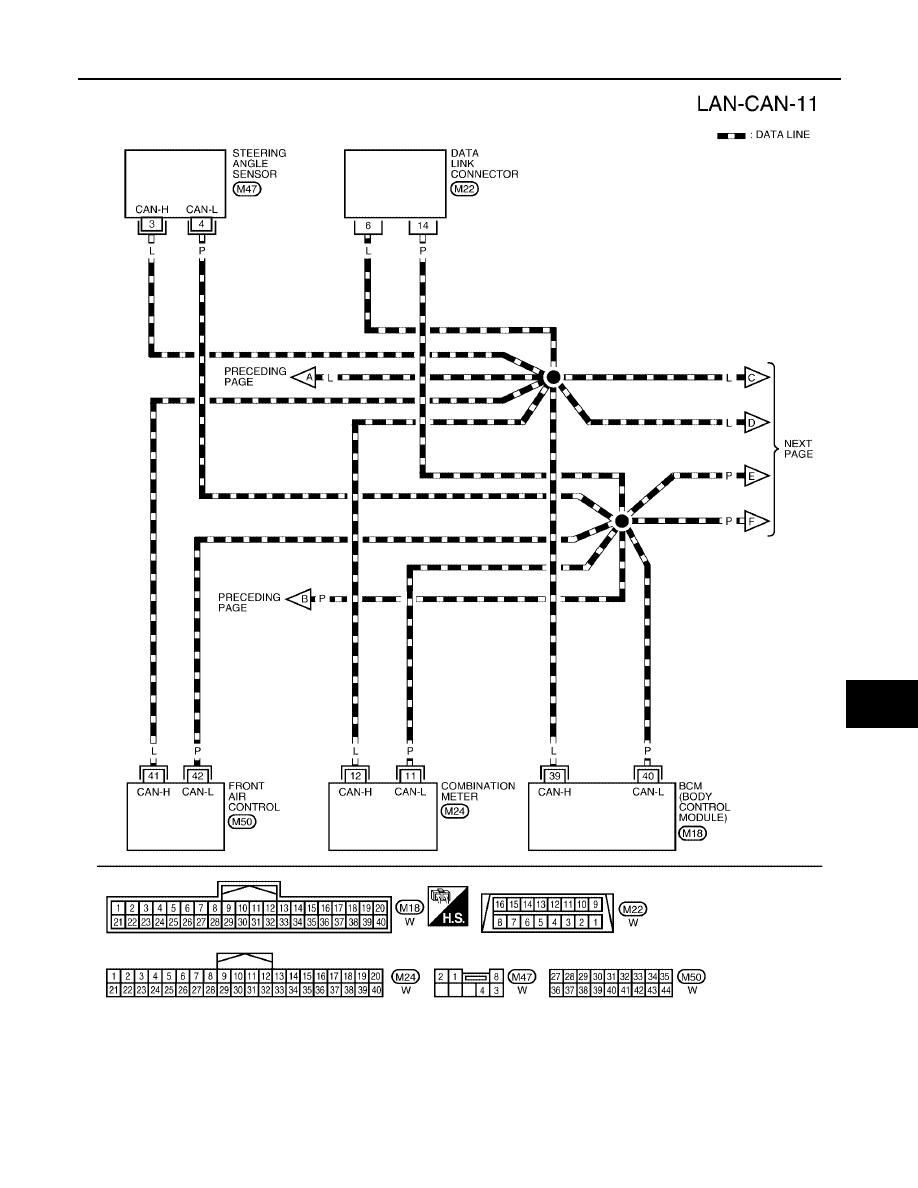

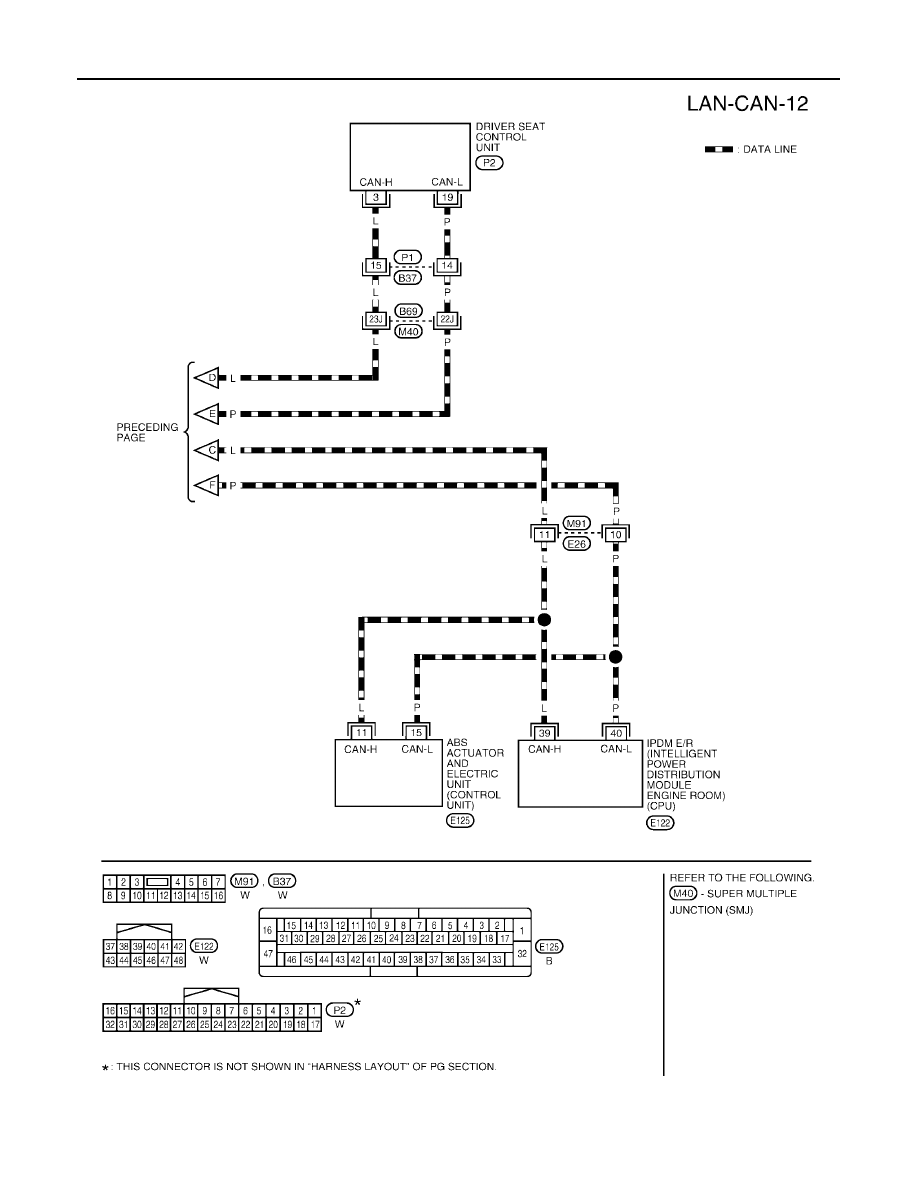

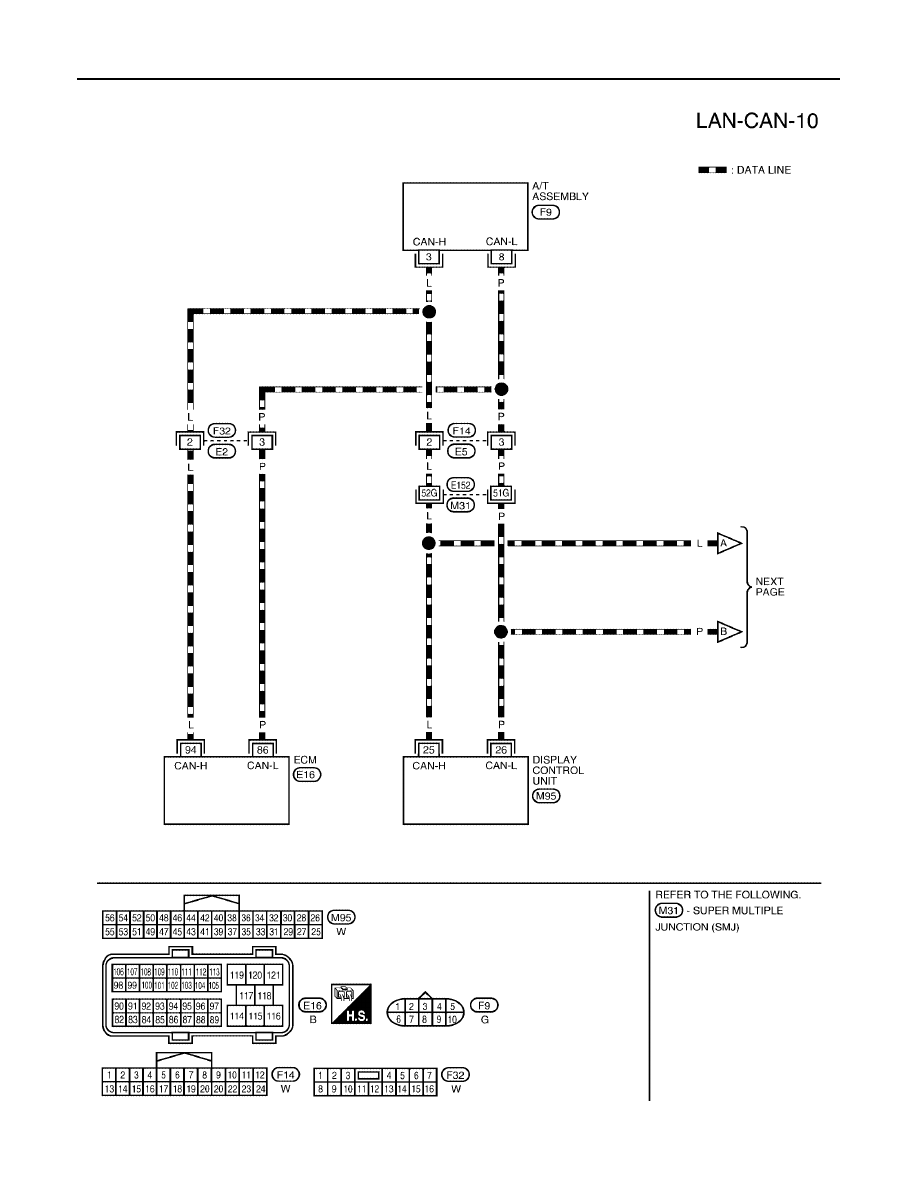

Wiring Diagram - CAN -

UKS003EI

BKWA0380E

CAN SYSTEM (TYPE 4)

LAN-127

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

BKWA0381E

LAN-128

[CAN]

CAN SYSTEM (TYPE 4)

2005 Pathfinder

BKWA0382E

CAN SYSTEM (TYPE 4)

LAN-129

[CAN]

C

D

E

F

G

H

I

J

L

M

A

B

LAN

2005 Pathfinder

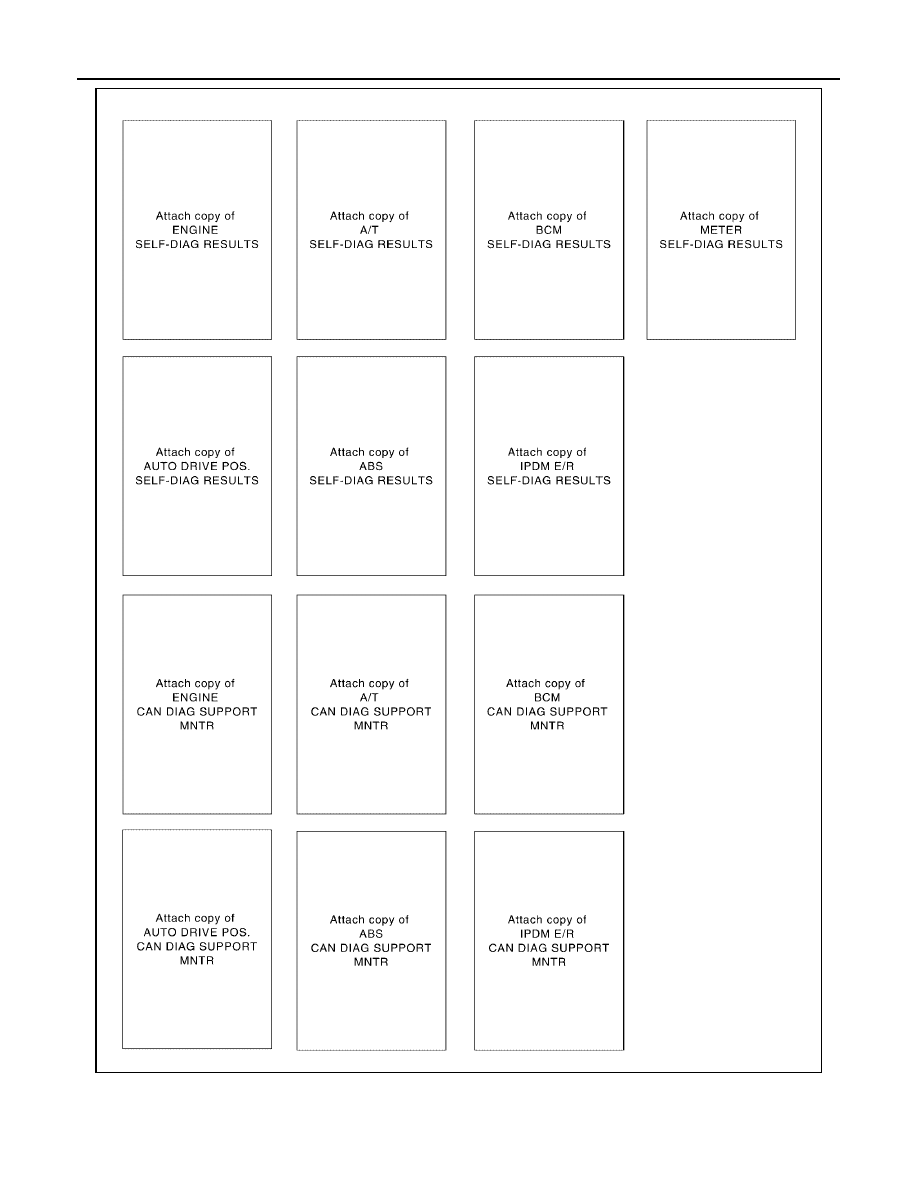

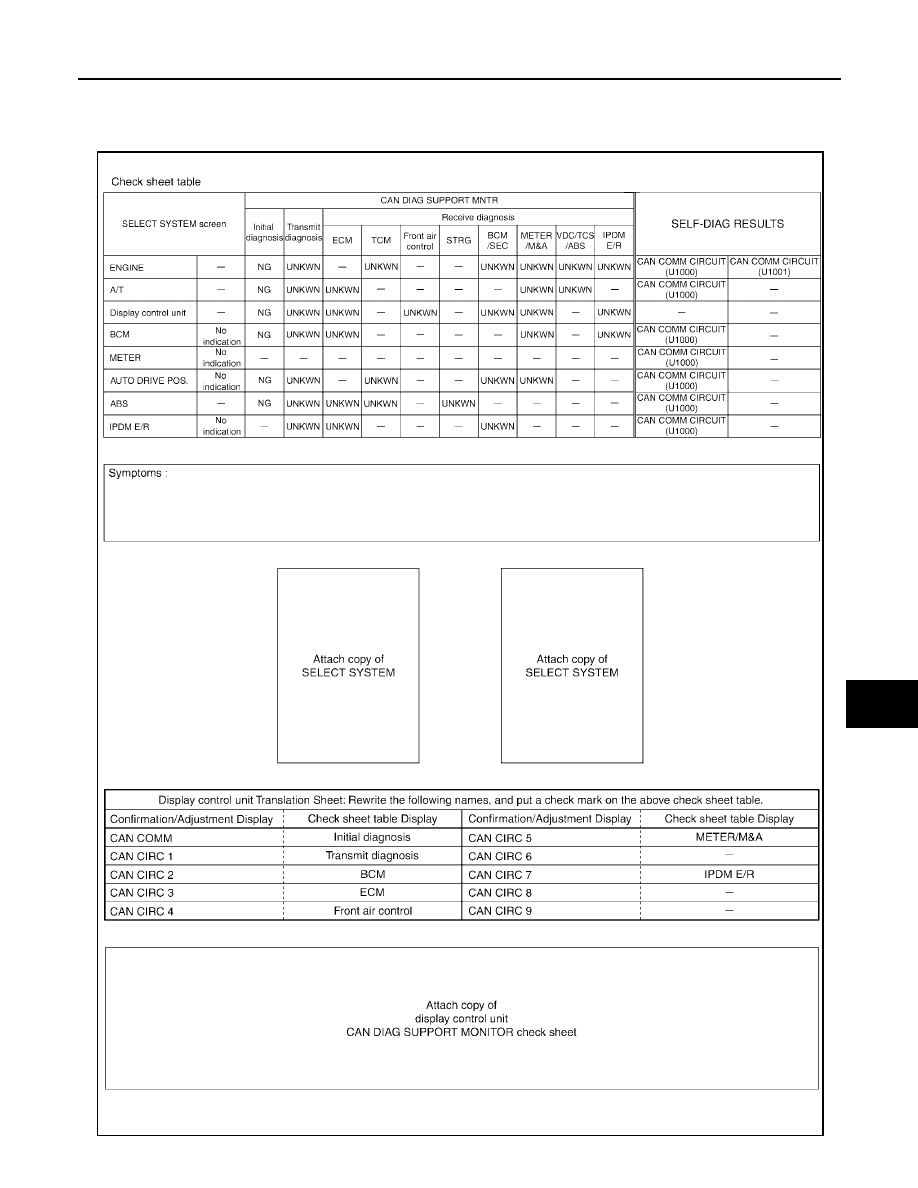

CHECK SHEET

UKS003EJ

NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

PKIB5020E

LAN-130

[CAN]

CAN SYSTEM (TYPE 4)

2005 Pathfinder

PKIB5019E
