NAVIGATION SYSTEM

AV-75

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

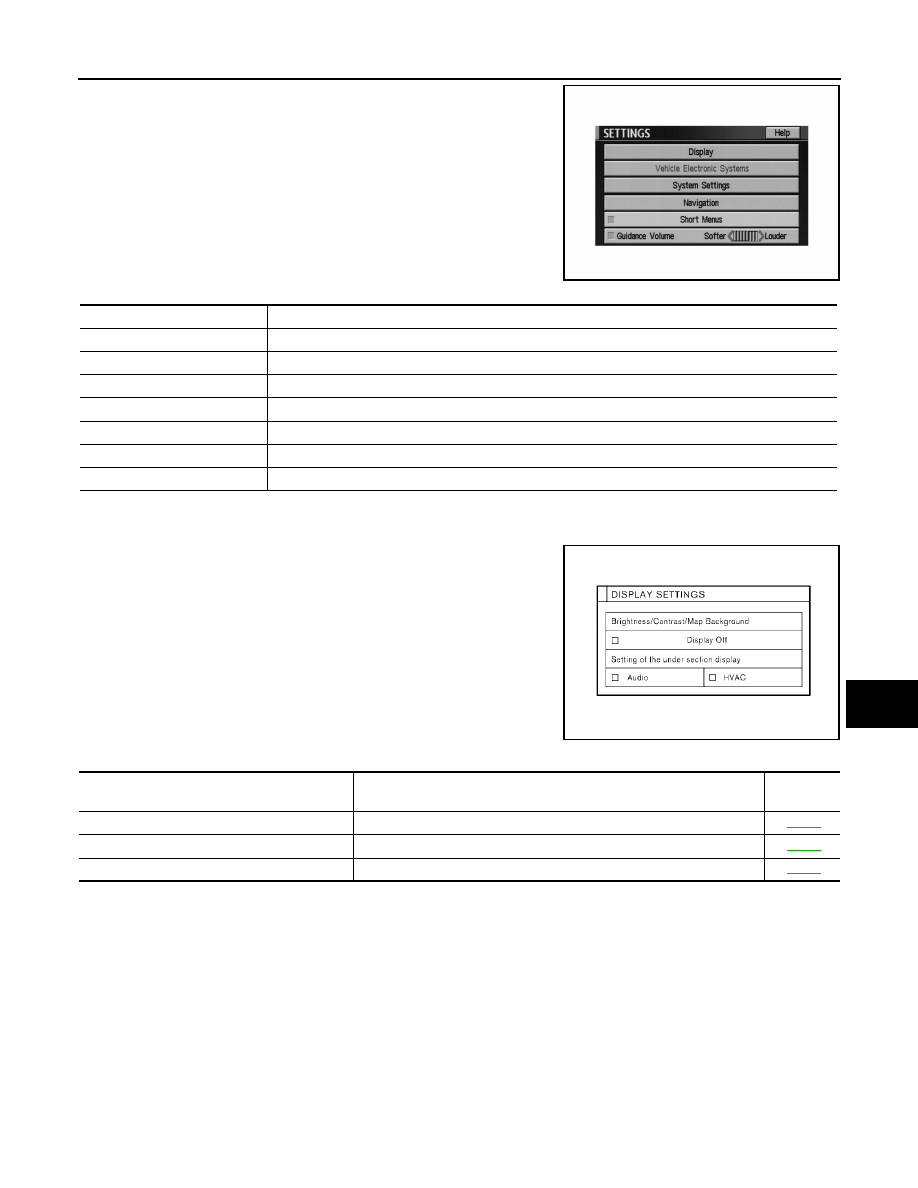

Display with Pushed “SETTING” button

The function of each icon is as follows:

Display Settings

How To Perform Display Setting
1.

Start the engine.

2.

Push “SETTING” button.

3.

Select “Display” with "ENTER" button.

Application Items

Brightness/Contrast/Map Back ground

How To Perform Navigation Setting
1.

Select “Brightness/Contrast/Map Background”.

Brightness, Contrast and Background are shown at the lower part of the screen, and it can be set with the
joystick.

Display Off

How To Perform Navigation Setting

1.

Select “Display Off”.

When setting is turned on (Indicator light ON), the display will be under sleep mode.

SKIA4496E

Icon

Description

Display

Settings of display can be performed.

Vehicle Electronic Systems

Settings of vehicle electrical equipment can be performed.

System Settings

Settings of linguistic select, time adjusting and beep sound can be performed.

Navigation

Settings and adjusting of navigation can be performed.

Short Menus

Easy Mode and Expert Mode can be switched.

Guidance Volume

The volume and/or on/off of voice prompt can be controlled by the joystick.

Help (only easy mode)

Explanation of navigational functions appear on the display.

SKIA5791E

Icon

Description

Reference

page

Brightness/Contrast/Map Background

Brightness, Contrast and Map Background can be set.

AV-75

Display Off

Display sleep mode ON/OFF can be switched.

AV-75

Setting of the under section display

The setting status of A/C or AV can be shown.

AV-76

AV-76

NAVIGATION SYSTEM

2005 Pathfinder

Setting of the under section display

How To Perform Under Section Display Setting
1.

Select “Setting of the Under Section Display”.

The setting status that is selected from A/C or AV is shown at the lower part of the screen.

Vehicle Electronic Systems

Application Items

How To Perform Navigation Setting

1.

Start the engine.

2.

Push “SETTING” button.

3.

Select “Vehicle Electronic Systems”.

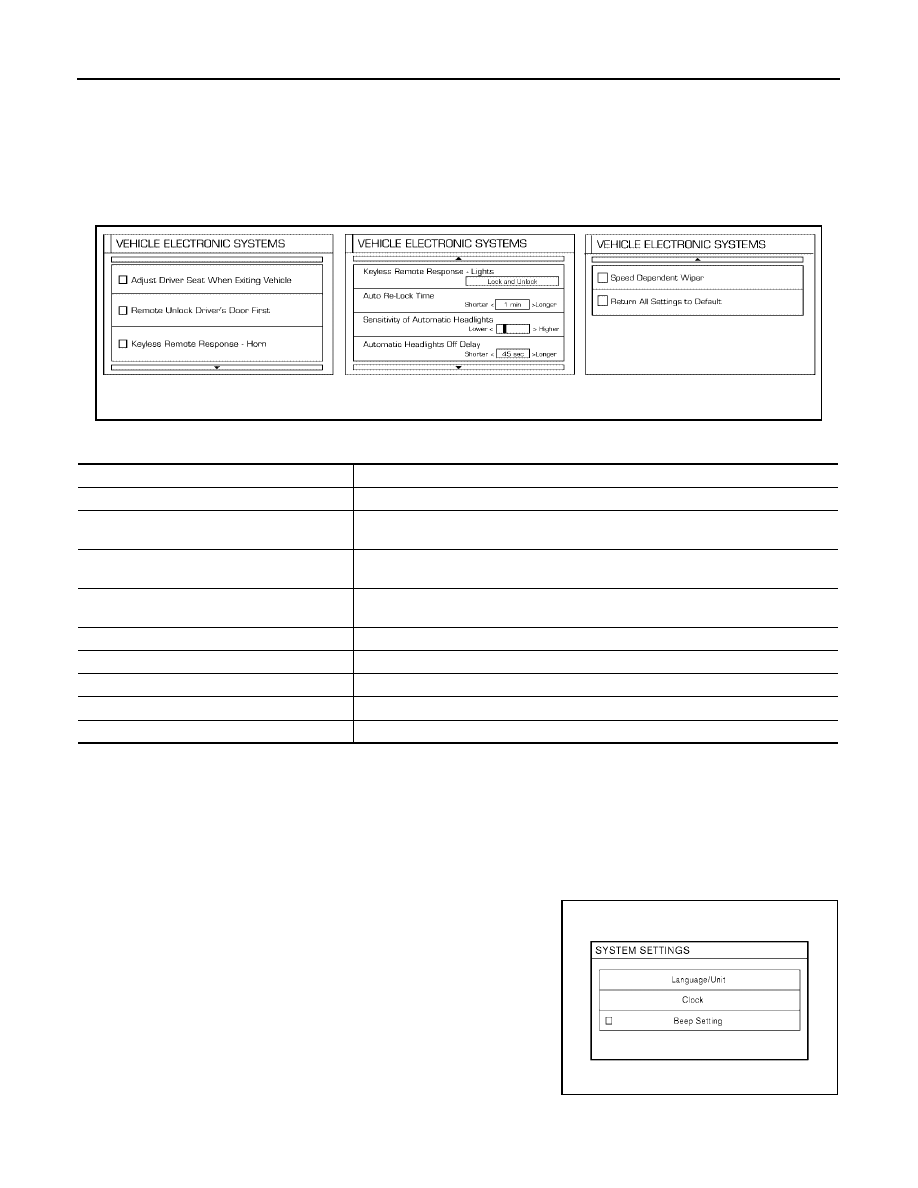

System Settings

How To Perform System Setting

1.

Start the engine.

2.

Push “SETTING” button.

3.

Select “System Settings”.

Icon

Description

Adjust Driver Seat When Exiting Vehicle

The driver's seat automatically moves back and returns to the original position.

Remote Unlock Driver's Door First

This option allows selection of which doors will unlock first during an unlocking oper-
ation.

Keyless Remote Response — Horn

This option allows the horn chirp mode when pressing the LOCK or UNLOCK button
on the key fob to be changed.

Keyless Remote Response — Lights

This option allows the hazard flash mode when pressing the LOCK or UNLOCK but-
ton on the key fob to be changed.

Auto Re-Lock Time

This option allows the length of time before doors auto re-lock to be set.

Sensitivity of Automatic Headlights

This option allows the sensitivity of the autolights to be set.

Automatic Headlights Off Delay

This option allows the length of time before the autolights turn off to be set.

Speed Dependent Wiper

This option allows the driving speed dependent wiper function to be turned on or off.

Return All Settings Default

All settings will return to the initial conditions.

WKIA1378E

SKIA4536E

NAVIGATION SYSTEM

AV-77

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

Application Items

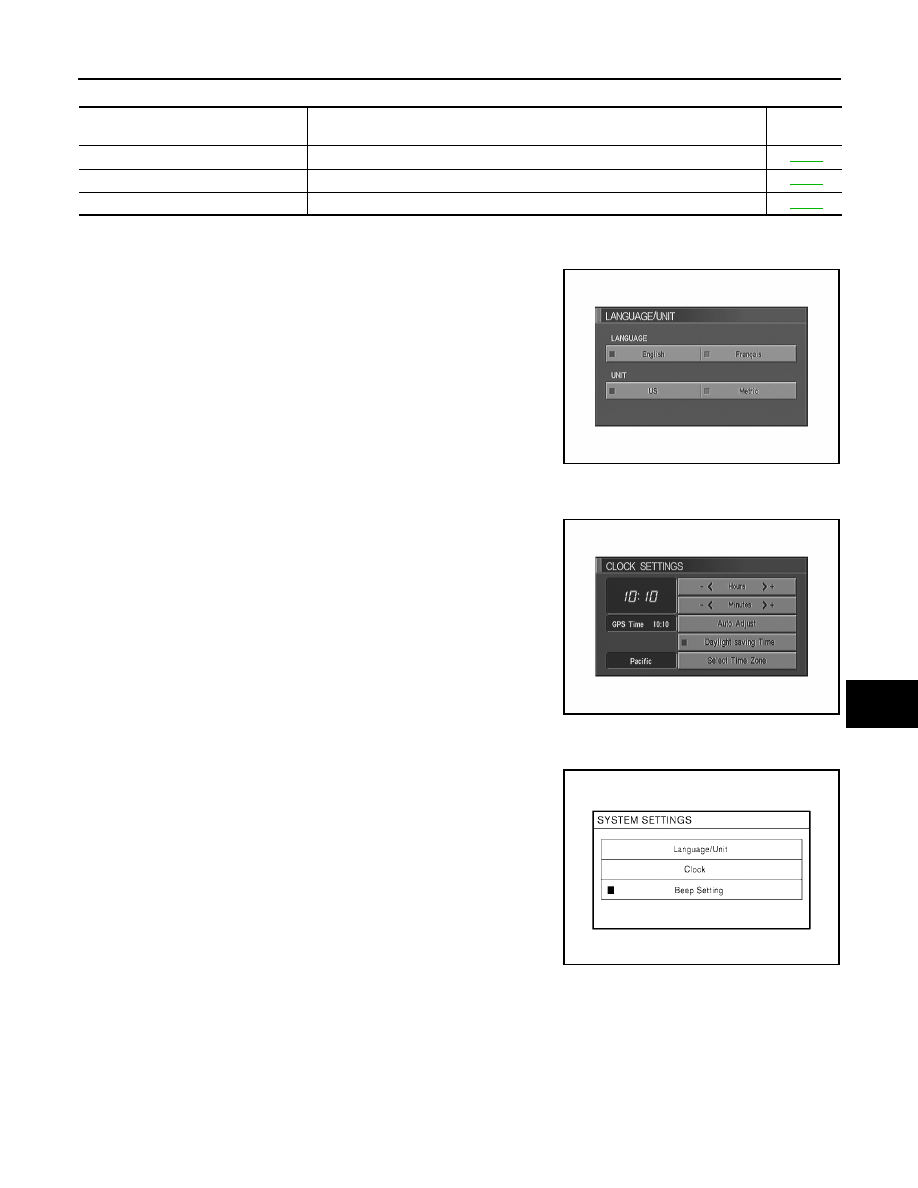

Language Setting

How To Perform Language Setting
1.

Select "Language/Unit".

Language setting can be switched.

Unit setting can be changed.

Clock Settings

How To Perform Clock Setting
1.

Select “Clock”.

Select the “Hours” or “Minutes” key and tilt the joystick to the
right or left to adjust the time.

Turn ON and OFF daylight saving time.

Select the “Auto Adjust” key. The time will be reset to the GPS
time.

Select the “Select Time Zone” key. The [TIME ZONE] screen will
appear.

Beep Setting

How To Perform Beep Setting
1.

Select “Beep Setting”.

When Beep Setting is on (indicator light on), a beep will sound if
the button is pushed.

NOTE:
Items in exception of Beep Setting ON/OFF.

An error beep.

An interrupted-screen beep.

Icon

Description

Reference

page

Language/Unit

Settings of language or unit can be performed.

AV-77

Clock

Settings of clock can be performed.

AV-77

Beep Setting

Settings of beep sound can be performed.

AV-77

SKIA2065E

SKIA2063E

SKIA4829E

AV-78

NAVIGATION SYSTEM

2005 Pathfinder

Navigation Setting

How To Perform Navigation Setting
1.

Start the engine.

2.

Push “SETTING” button.

3.

Select “NAVIGATION”.

Application Items

*: Not displayed in Easy Mode.

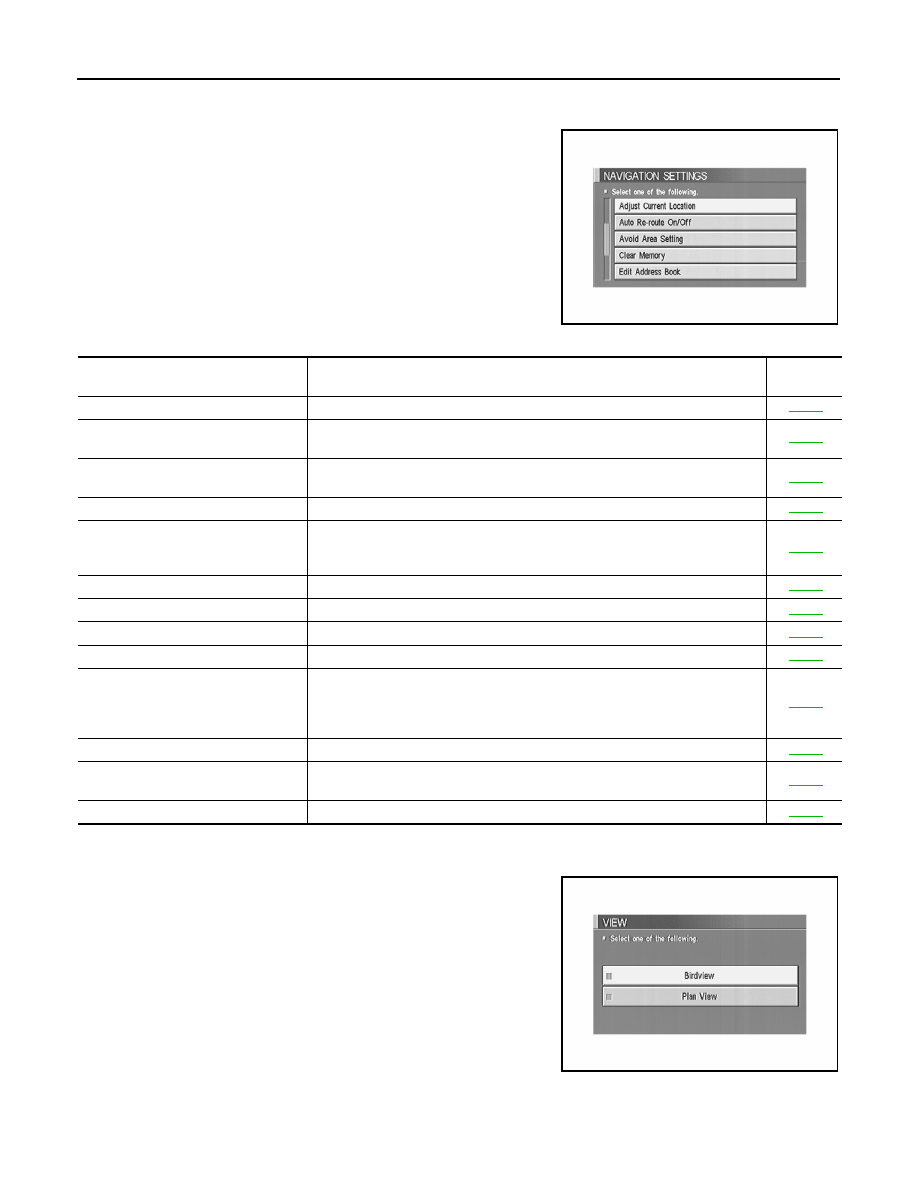

“VIEW” MODE

1.

Select “Birdview™” or “Plan View” icon.

To open the map screen display with Birdview™, select “Bird-
view™”.

To open the map screen display with Plan View, select “Plan
View”.

SKIA0551E

Icon

Description

Reference

page

View

Map display mode can be switched.

AV-78

Heading

Heading of the map display can be customized for either north heading or the
actual driving direction of the vehicle.

AV-79

Nearby Display Icons*

Icons of facilities can be displayed.
Facilities to be displayed can be selected from the variety selections.

AV-79

Save Current Location*

Current vehicle location can be registered in Address Book.

AV-79

Adjust Current Location*

Current location of position marker can be adjusted. Direction of position marker
also can be calibrated when heading direction of the vehicle on the display is
not matched with the actual direction.

AV-79

Auto Re-route On/Off*

ON/OFF of Auto Re-route can be switched.

AV-80

Avoid Area Setting*

A particular area can be avoided when routing.

AV-80

Clear Memory*

Address Book, Previous destination or Avoid area can be deleted.

AV-80

Edit Address Book*

Address Book can be edited.

AV-81

GPS Information*

The GPS data includes longitude, latitude and altitude (distance above sea
level) of the present vehicle position, and current date and time for the area in
which the vehicle is being driven.
Also indicated are the GPS reception conditions and the GPS satellite position.

AV-81

Quick Stop Customer Setting*

One facility of your selection can be added to your Quick Stop.

AV-81

Set Average Speed for Estimated
Journey Time*

Average vehicle speed can be set to calibrate estimated journey time for the
destination.

AV-81

Tracking On/Off*

Tracking to the present vehicle position can be displayed.

AV-82

SKIA0554E

NAVIGATION SYSTEM

AV-79

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

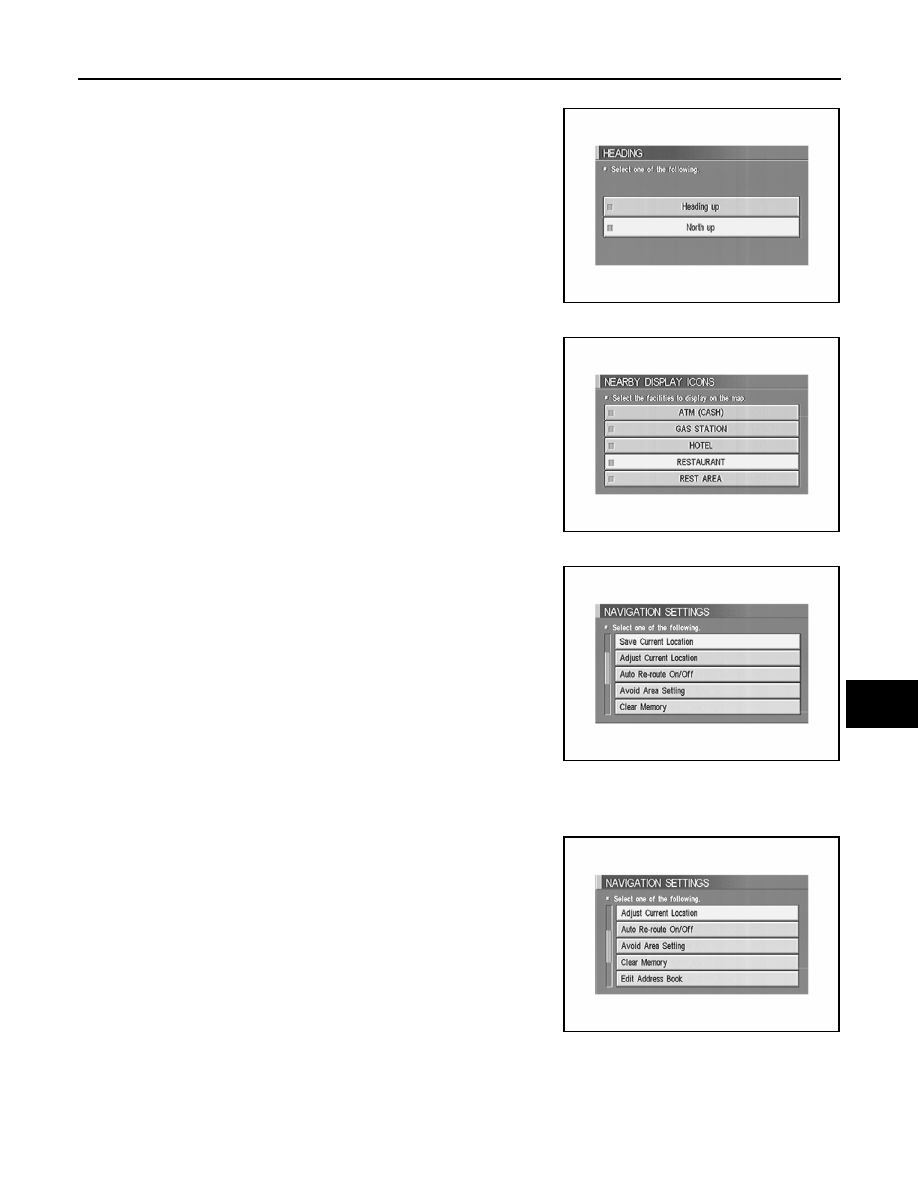

“HEADING” MODE

To display North up, select “North up”.

To display the car heading up, select “Heading up”.

“NEARBY DISPLAY ICONS” MODE

Select an icon to display on the map screen.

“SAVE CURRENT LOCATION” MODE

The current vehicle location can be registered in “Address
Book”.

NOTE:
“Address Book” can store 50 items maximum.

“ADJUST CURRENT LOCATION” MODE

1.

Move marker to current location.

2.

Select "SET" and then vehicle mark will be located in current position.

3.

Select an icon “right” or “left” to calibrate the heading direction.
(Arrow marks will rotate corresponding to the calibration key.)

SKIA0561E

SKIA0562E

SKIA0556E

SKIA0563E

AV-80

NAVIGATION SYSTEM

2005 Pathfinder

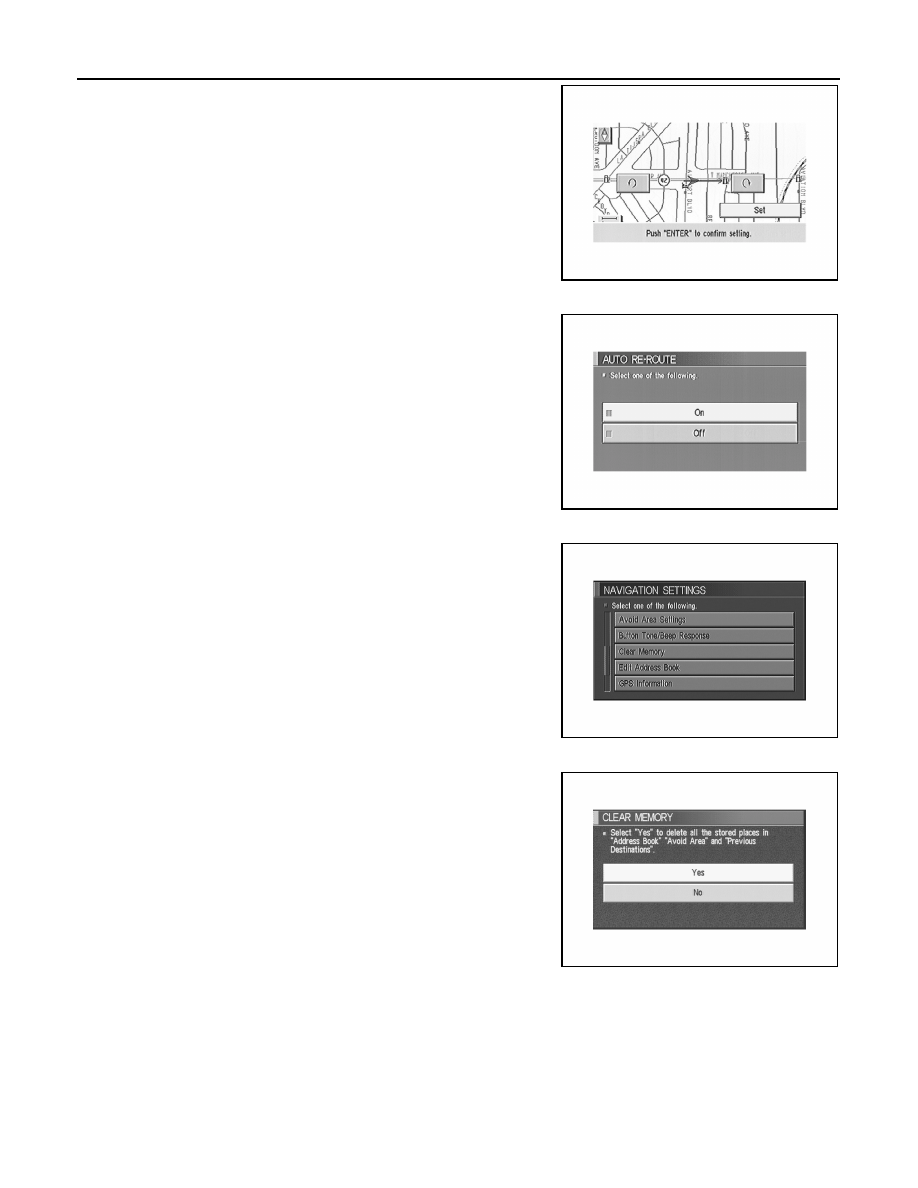

4.

Select “Set”. Then the vehicle mark will be matched to the arrow
mark.

“AUTO RE-ROUTE” MODE

To activate “AUTO RE-ROUTE” mode, select “On”.

To deactivate “AUTO RE-ROUTE” mode, select “Off”.

“AVOID AREA SETTINGS” MODE

Areas to avoid can be registered.

“CLEAR MEMORY” MODE

To delete all the stored places in “Address Book”, “Avoid Area”
and “Previous Destinations”, select “Yes”.

SKIA0564E

SKIA0558E

SKIA2058E

SKIA3572E

NAVIGATION SYSTEM

AV-81

C

D

E

F

G

H

I

J

L

M

A

B

AV

2005 Pathfinder

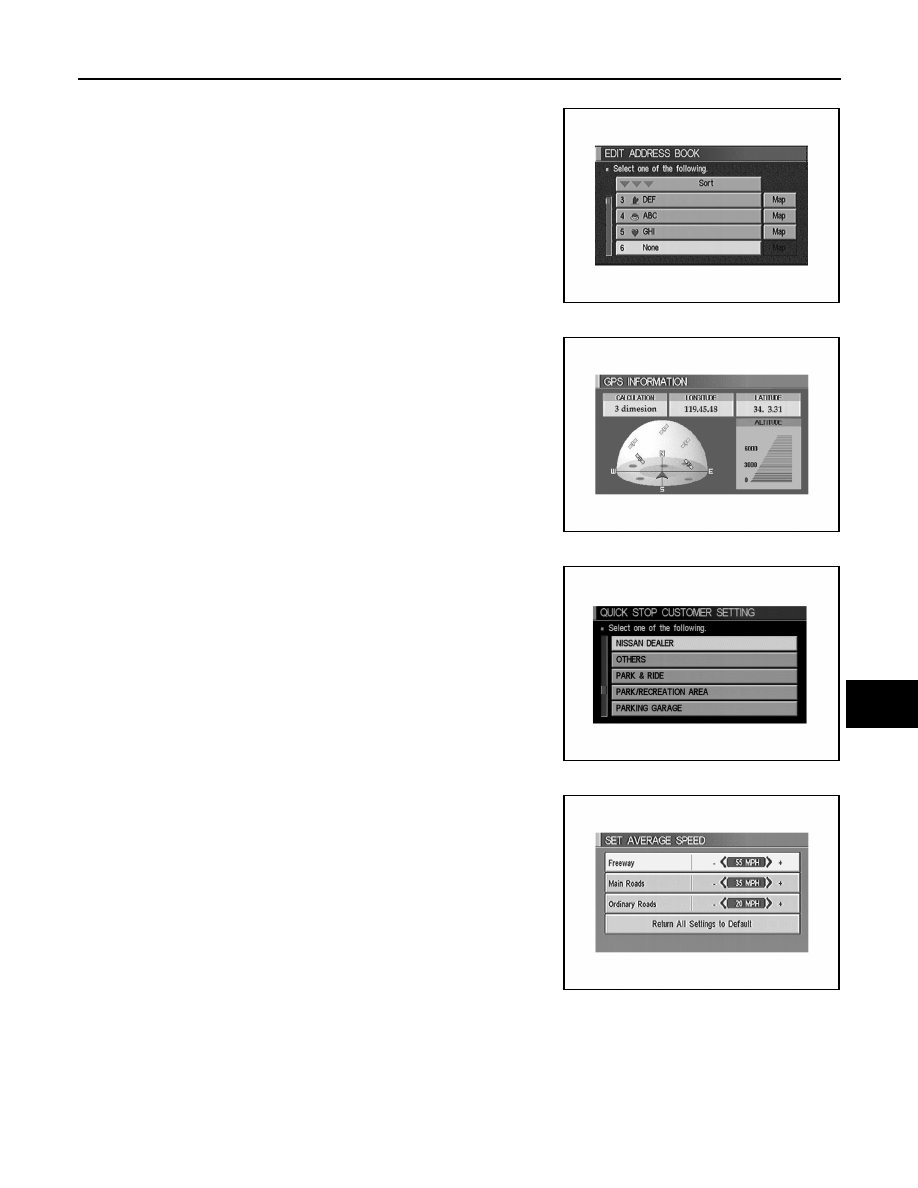

“EDIT ADDRESS BOOK” MODE

Edit the items registered in Address Book.

“GPS INFORMATION” MODE

Latitude, longitude, altitude, astrometric state, and satellite loca-
tion are displayed as GPS information.

NOTE:
Altitude is displayed only in three-dimensional status.

“QUICK STOP CUSTOMER SETTING” MODE

Select a category for the “Quick Stop” menu.

NOTE:
This only replaces the fifth position on the "Quick Stop" menu
when "ROUTE" is pressed.

“SET AVERAGE SPEED” MODE

Set the average vehicle speed to calibrate the estimated journey
time for the destination.

Set three items: “Freeway”, “Main Roads”, and “Ordinary
Roads”.

SKIA3511E

SKIA0555E

SKIA5820E

SKIA0565E

AV-82

NAVIGATION SYSTEM

2005 Pathfinder

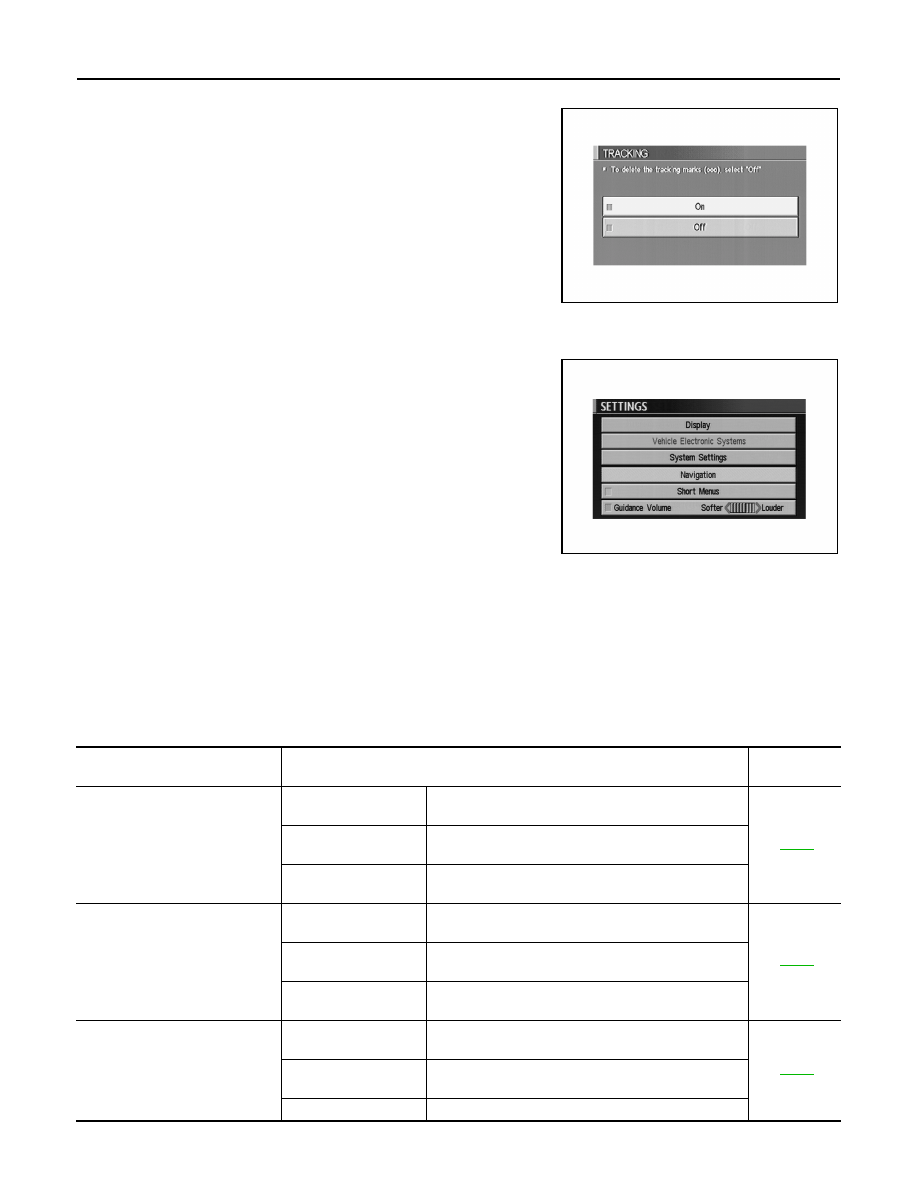

“TRACKING” MODE

To delete the tracking marks on the map, select “Off”.

To leave the tracking marks on the map, select “On”.

NOTE:
When a trail display is turned OFF, trail data is erased from the mem-
ory.

GUIDANCE VOLUME
Description

Following guidance volume settings can be changed.

Activation/Deactivation Setting

The voice prompt can be turned on/off by pressing the “Guidance Volume” button.

Voice Volume Setting

Volume of the voice can be controlled by tilting the joystick to left/right.

DISPLAY WITH PUSHED “TRIP” BUTTON

When the “TRIP” button is pushed, the following items will display on the screen.

Warning message (if there are any)

TRIP 1

TRIP 2

FUEL ECONOMY

MAINTENANCE

OFF.

SKIA0559E

SKIA4497E

Display items

Display/Setting contents

Reference

page

Trip 1 or Trip 2

Elapsed Time

Displays driving time with a range of 0000:00:00 to
9999:59:59.

AV-83

Driving Distance
[(km) or (miles)]

Displays driving distance with a range of 00000.0 to
99999.9.

Average speed
[(km/h) or (MPH)]

Displays average speed with a range of 000.0 to 999.9.

Fuel Economy

Average Fuel Economy

[(MPG) or (l/100km)]

Displays fuel economy with ignition switch ON, average
fuel economy each 30 seconds.

AV-83

Distance to Empty
[(km) or (miles)]

Displays possible driving distance with remaining fuel.

Fuel Economy [(MPG)
or (l/100km)]

Displays fuel economy each approx. 100 ms.

Maintenance

Engine oil

Maintenance intervals of engine oil and setting of oil
change cycle.

AV-83

Tire rotation

Maintenance intervals of tire and setting of tire replace-
ment cycle.

Tire pressure

Tire pressure displayed as tire pressure information.
