AIR BREATHER HOSE

AT-243

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

AIR BREATHER HOSE

PFP:31098

Removal and Installation

UCS0038E

4X2

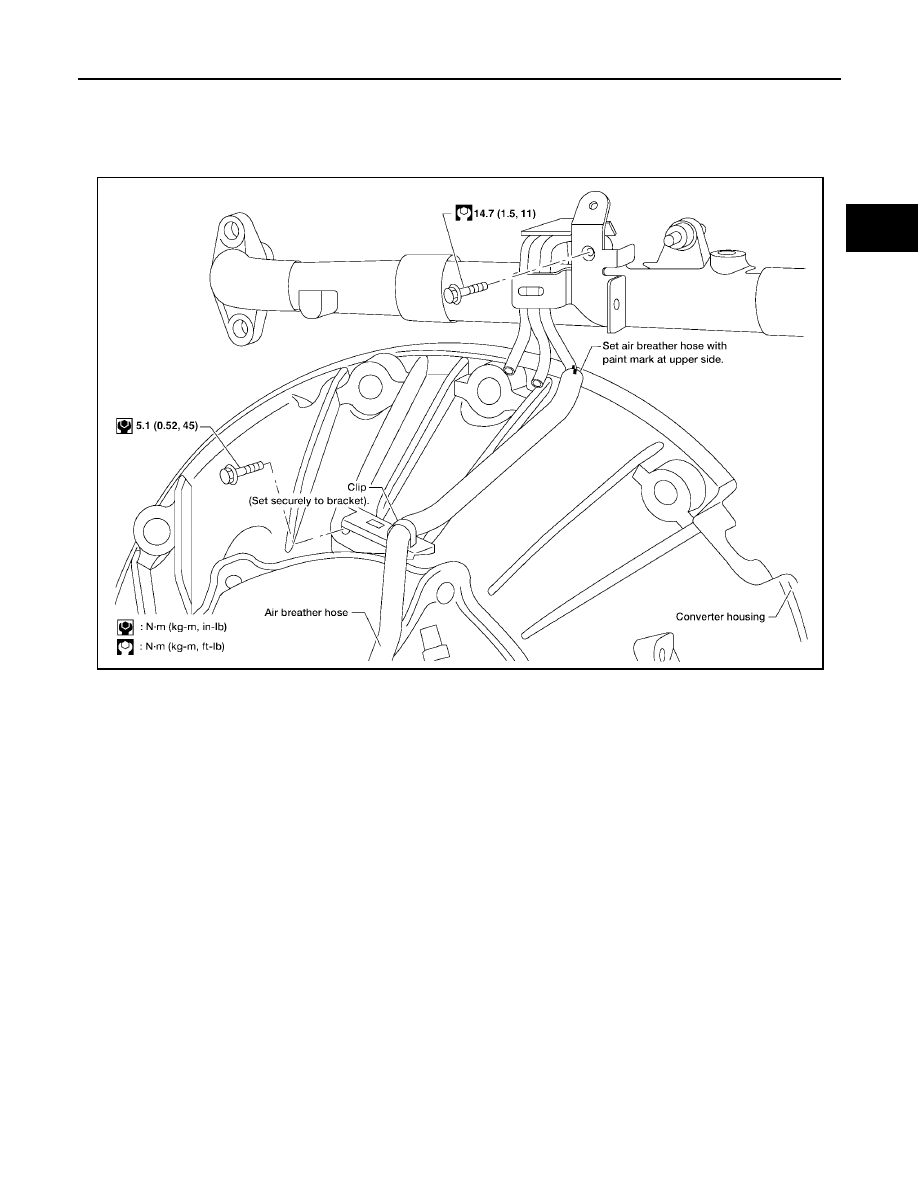

Refer to the figure below for air breather hose removal and installation procedure.

CAUTION:

When installing an air breather hose, do not to crush or block by folding or bending the hose.

When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the
tube bend portion.

LCIA0389E

AT-244

AIR BREATHER HOSE

2005 Pathfinder

4X4

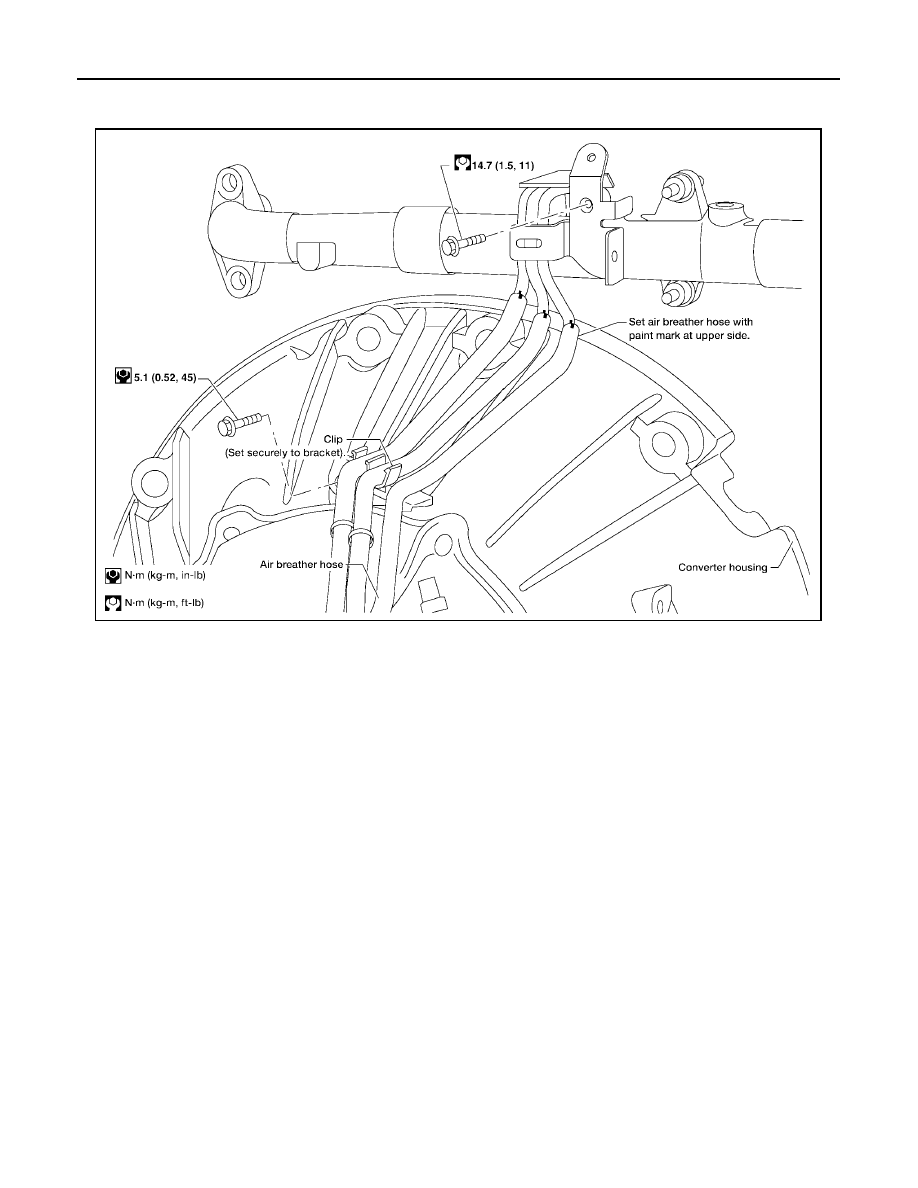

Refer to the figure below for air breather hose removal and installation procedure.

CAUTION:

When installing an air breather hose, do not to crush or block by folding or bending the hose.

When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the
tube bend portion.

LCIA0390E

TRANSMISSION ASSEMBLY

AT-245

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

TRANSMISSION ASSEMBLY

PFP:31020

Removal and Installation (4x2)

UCS0038F

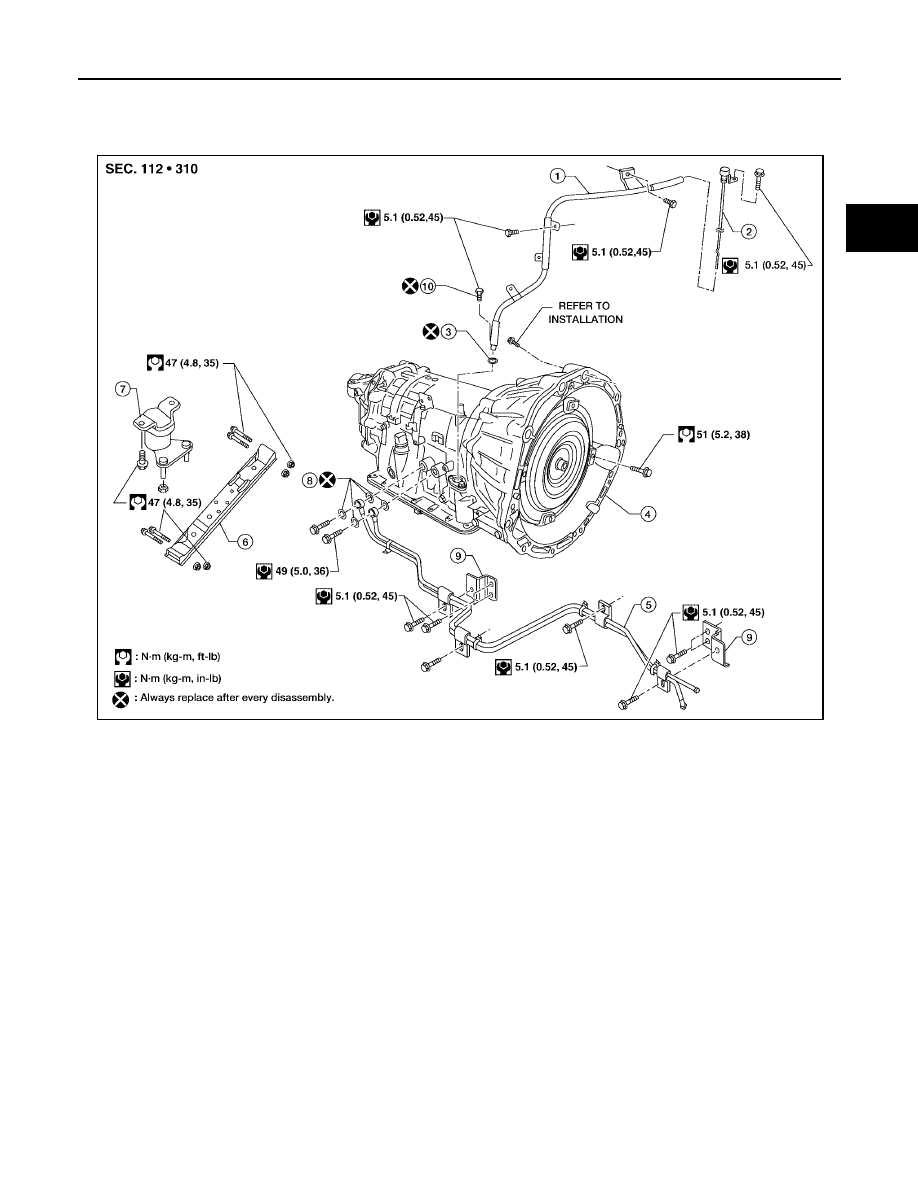

COMPONENTS

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from
the A/T assembly.

1.

Disconnect the negative battery terminal.

2.

Remove the A/T fluid indicator.

3.

Remove the LH fender protector.

1.

A/T fluid indicator pipe

2.

A/T fluid indicator

3.

O-ring

4.

Transmission assembly

5.

A/T fluid cooler tube

6.

A/T crossmember

7.

Insulator

8.

Copper washers

9.

A/T fluid cooler tube bracket

10.

Self-sealing bolt

WCIA0501E

AT-246

TRANSMISSION ASSEMBLY

2005 Pathfinder

4.

Remove the crankshaft position sensor (POS) from the A/T
assembly.

CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings or foreign material to get on the
sensor front edge magnetic area.

Do not place in an area affected by magnetism.

5.

Remove the undercovers using power tool.

6.

Partially drain the A/T fluid. Refer to

AT-13, "A/T FLUID"

.

7.

Remove the front crossmember using power tool.

8.

Remove the starter motor.

9.

Remove the rear propeller shaft. Refer to

PR-10, "Removal and Installation"

.

10. Remove the left and right front exhaust tubes. Refer to

EX-3, "Removal and Installation"

.

11. Remove the A/T selector control cable and bracket from the A/T.

12. Disconnect the A/T fluid cooler tubes from the A/T assembly.

13. Remove the dust cover from the converter housing.

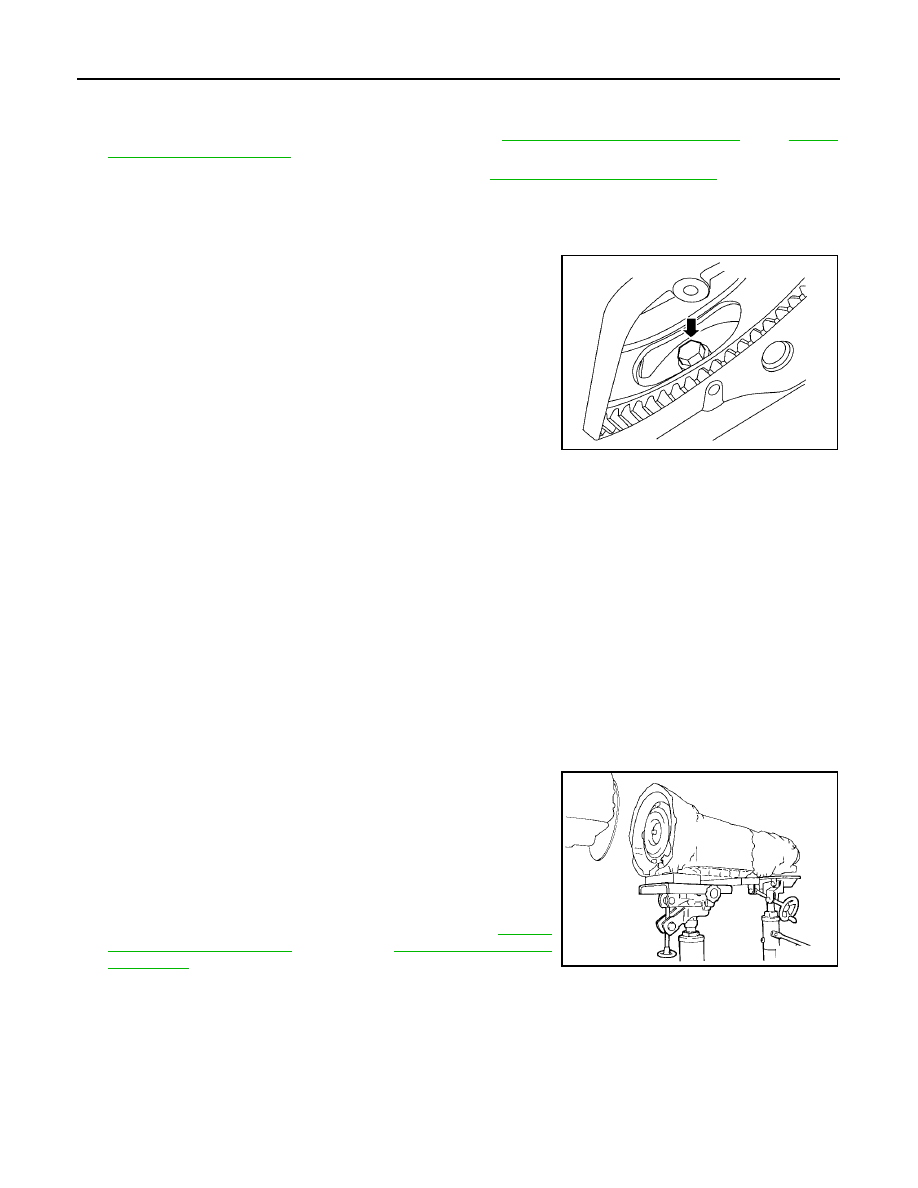

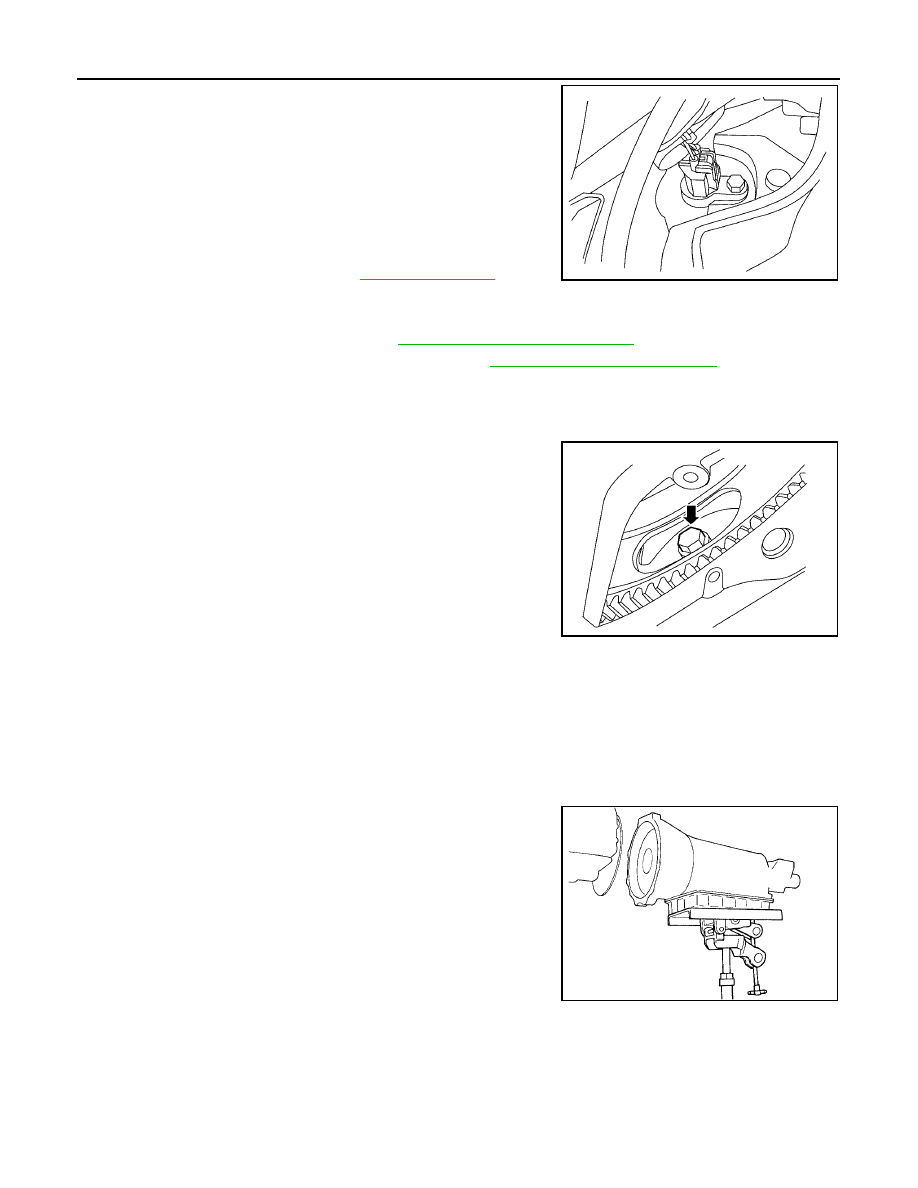

14. Turn the crankshaft to access and remove the four bolts for the

drive plate and torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed
from the front of the engine.

15. Support the A/T assembly using a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow
it to collide against the drain plug.

16. Remove the nuts securing the insulator to the crossmember.

17. Remove the crossmember using power tool.

18. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect

the air breather hose.

19. Disconnect the A/T assembly harness connector.

20. Remove the wiring harness from the retainers.
21. Remove the A/T fluid indicator pipe.

22. Plug any openings such as the A/T fluid indicator pipe hole.

23. Remove the A/T assembly to engine bolts using power tool.

24. Remove A/T assembly from the vehicle using Tool.

CAUTION:

Secure the torque converter to prevent it from dropping.

Secure the A/T assembly the transmission jack.

NOTE:
The actual special service Tool may differ from Tool shown.

Tool number

:

(J-47002)

LCIA0367E

LCIA0335E

SCIA0499E

TRANSMISSION ASSEMBLY

AT-247

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

INSPECTION
Installation and Inspection of Torque Converter

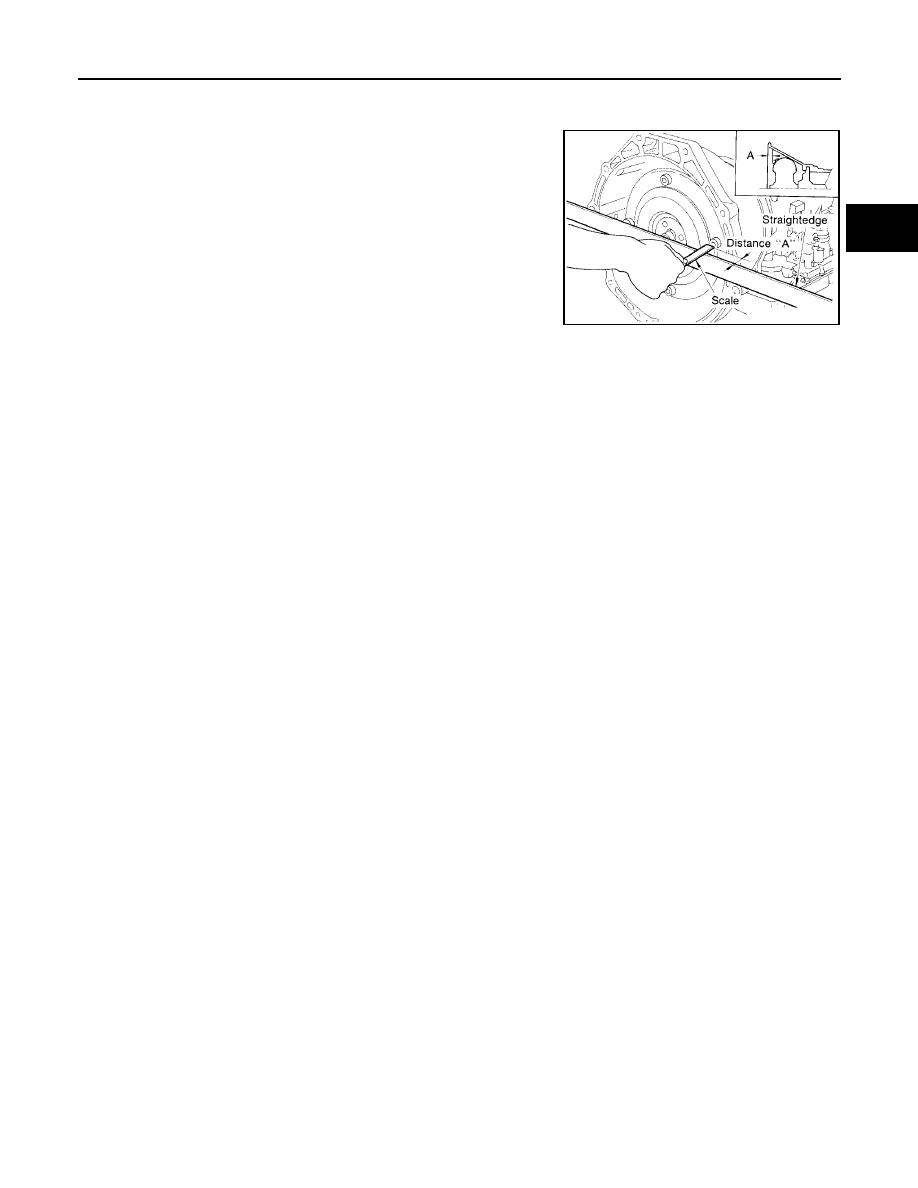

After inserting the torque converter to the transmission, check
dimension "A" to ensure it is within the reference value limit.

Dimension "A"

: 25.0 mm (0.98 in) or more

SAT017B

AT-248

TRANSMISSION ASSEMBLY

2005 Pathfinder

INSTALLATION

Installation is in the reverse order of the removal, while paying attention to the following.

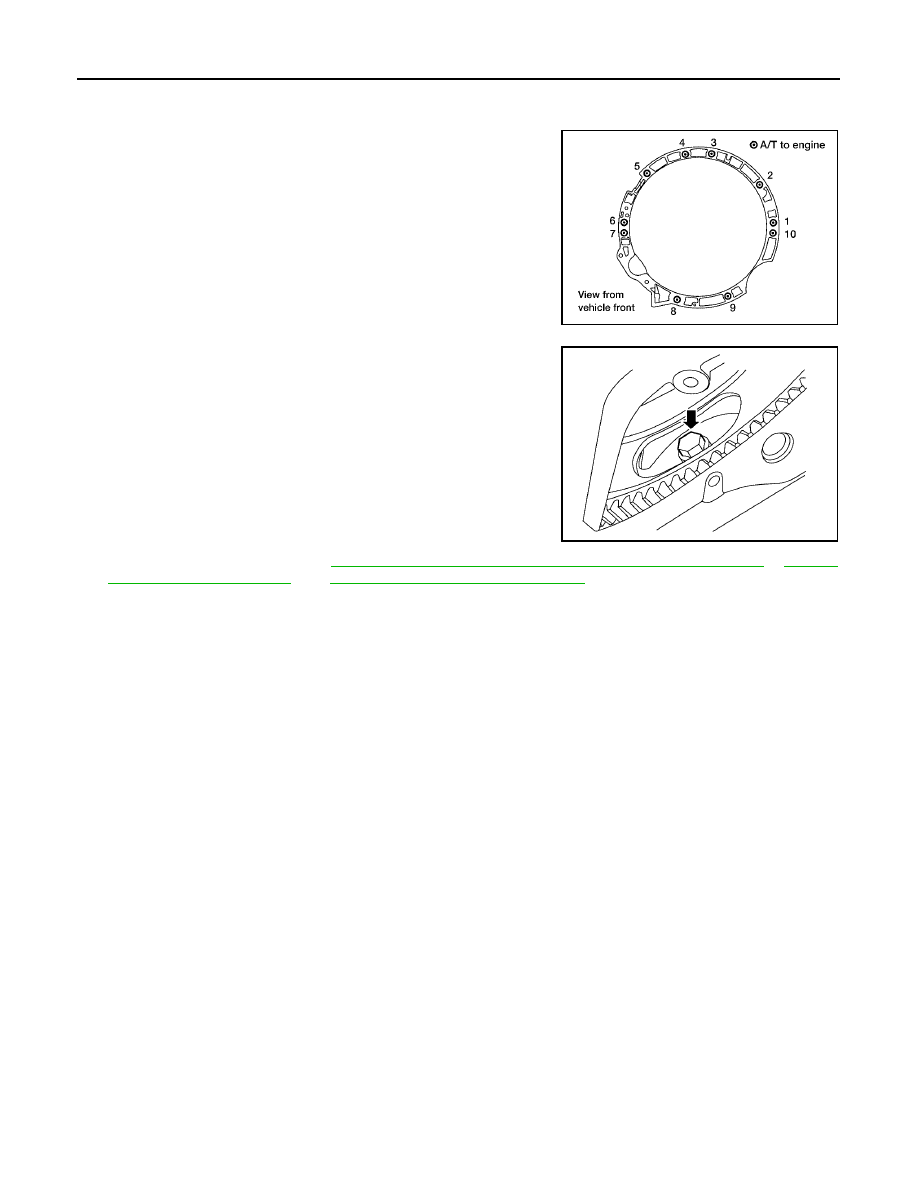

When installing transmission to the engine, tighten the bolts to
the specified torque using sequence shown.

Align the positions of bolts for drive plate with those of the torque
converter, and temporarily tighten the bolts. Then, tighten the
bolts with the specified torque.

CAUTION:

When turning crankshaft, turn it clockwise as viewed from
the front of the engine.

After converter is installed to drive plate, rotate crankshaft
several turns and check to be sure that transmission
rotates freely without binding.

Install crankshaft position sensor (POS).

After completing installation, check fluid leakage, fluid level, and
the positions of A/T. Refer to

MA-22, "Checking the Automatic Transmission Fluid (ATF)"

,

AT-222,

"Checking of A/T Position"

and

AT-222, "Adjustment of A/T Position"

.

Transmission bolts

: 74 N·m (7.5 kg-m, 55 ft-lb)

LCIA0370E

LCIA0335E

TRANSMISSION ASSEMBLY

AT-249

D

E

F

G

H

I

J

K

L

M

A

B

AT

2005 Pathfinder

Removal and Installation (4x4)

UCS0038G

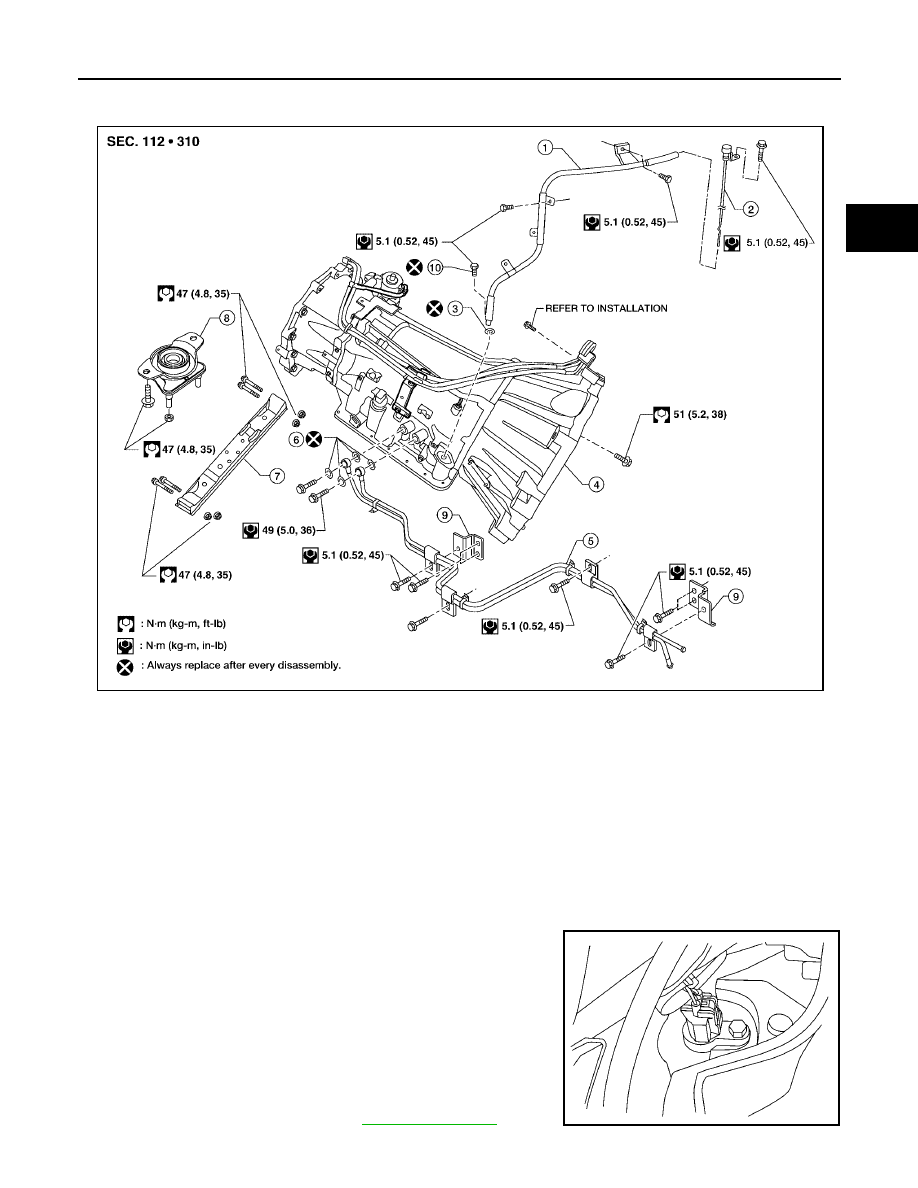

COMPONENTS

REMOVAL

CAUTION:

When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from
the A/T assembly.

1.

Disconnect the negative battery terminal.

2.

Remove the A/T fluid indicator.

3.

Remove the LH fender protector.

4.

Remove the crankshaft position sensor (POS) from the A/T
assembly.

CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings or foreign material to get on the
sensor's front edge magnetic area.

Do not place in an area affected by magnetism.

5.

Remove the undercovers using power tool.

6.

Partially drain the A/T fluid. Refer to

AT-13, "A/T FLUID"

.

1.

A/T fluid indicator pipe

2.

A/T fluid indicator

3.

O-ring

4.

Transmission assembly

5.

Fluid cooler tube

6.

Copper washer

7.

A/T cross member

8.

Insulator

9.

A/T fluid cooler tube bracket

10.

Self-sealing bolt

WCIA0502E

LCIA0367E

AT-250

TRANSMISSION ASSEMBLY

2005 Pathfinder

7.

Remove the front crossmember using power tool.

8.

Remove the starter motor.

9.

Remove the front and rear propeller shafts. Refer to

PR-5, "Removal and Installation"

and

PR-10,

"Removal and Installation"

.

10. Remove the left and right front exhaust tubes. Refer to

EX-3, "Removal and Installation"

.

11. Remove the A/T selector control cable and bracket from the A/T.

12. Disconnect the fluid cooler tubes from the A/T assembly.
13. Remove the dust cover from the converter housing.

14. Turn the crankshaft to access and remove the four bolts for the

drive plate and torque converter.

CAUTION:

When turning the crankshaft, turn it clockwise as viewed
from the front of the engine.

15. Support the A/T assembly using a transmission jack.

CAUTION:

When setting the transmission jack, be careful not to allow
it to collide against the drain plug.

16. Remove the nuts securing the insulator to the crossmember.

17. Remove the crossmember using power tool.
18. Tilt the transmission slightly to gain clearance between the body and the transmission, then disconnect

the air breather hose.

19. Disconnect the following:

A/T assembly harness connector

Neutral-4 low switch connector

Wait detection switch connector

ATP switch connector

Transfer motor connector (ATX14B only)

Control valve assembly connector (ATX14B only)

Transfer control device connector (TX15B only)

20. Remove the wiring harness from the retainers.

21. Remove the A/T fluid indicator pipe.

22. Plug any openings such as the fluid charging pipe hole.
23. Remove the A/T assembly to engine bolts using power tool.

24. Remove A/T assembly with transfer from the vehicle using Tool.

CAUTION:

Secure the torque converter to prevent it from dropping.

Secure the A/T assembly to the transmission jack.

NOTE:
The actual special service Tool may differ from Tool shown.

25. Remove the transfer from the A/T assembly. Refer to

TF-145,

"Removal and Installation"

(ATX14B) or

TF-275, "Removal and

Installation"

(TX15B).

Tool number

:

(J-47002)

LCIA0335E

SCIA2203E
