Nissan Teana J32. Manual - part 957





RF-94

< ON-VEHICLE REPAIR >

REAR SUNROOF GLASS

REAR SUNROOF GLASS

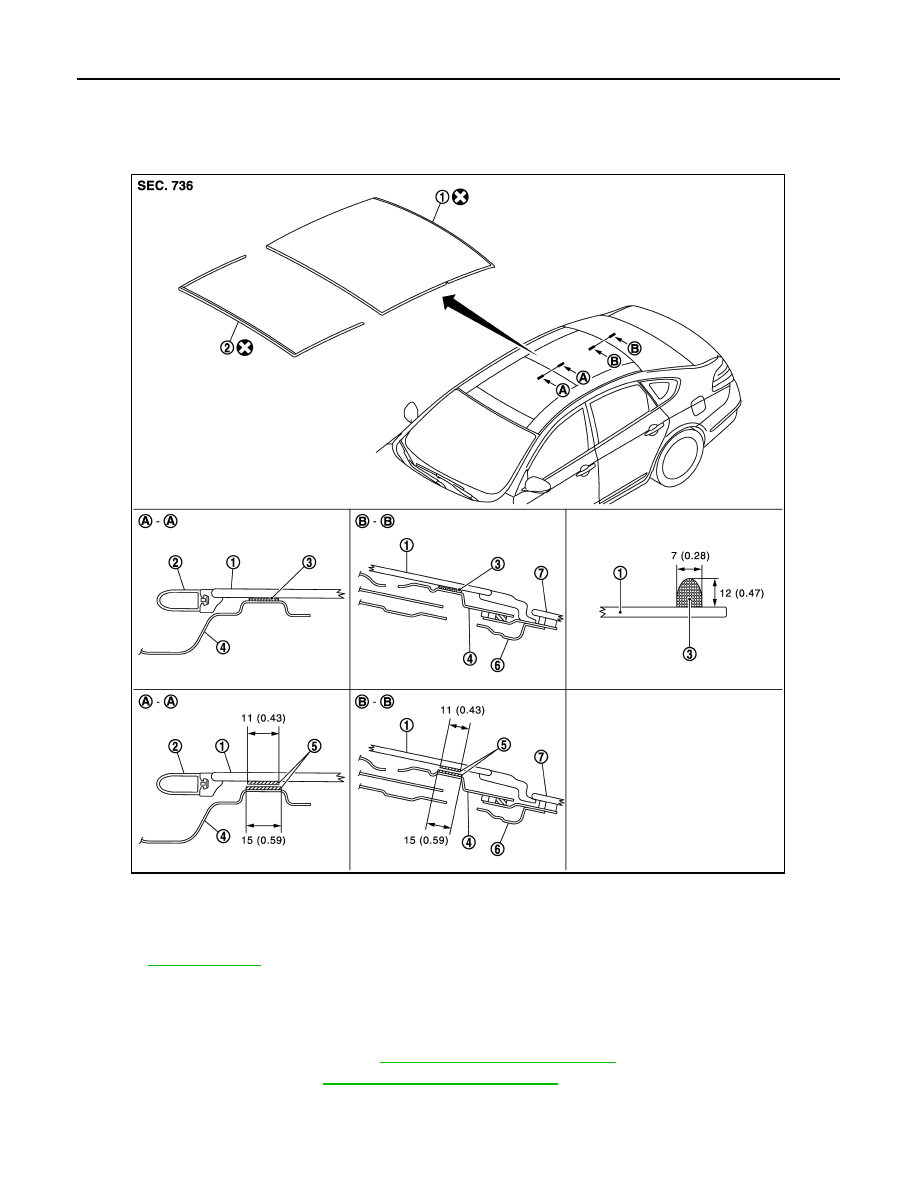

Exploded View

INFOID:0000000003812896

Removal and Installation

INFOID:0000000003812897

REMOVAL

1.

Remove the roof side finisher. Refer to

RF-88, "Removal and Installation"

.

2.

Remove the glass lid. Refer to

RF-80, "Removal and Installation"

.

3.

Paint matching marks on body before removing the rear sunroof glass.

4.

Apply protective tape around the roof panel and sunroof unit to protect the surface from damage.

1.

Rear sunroof glass

2.

Weather-strip

3.

Adhesive

4.

Sunroof frame

5.

Primer

6.

Roof panel

7.

Rear window glass

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2509GB

REAR SUNROOF GLASS

RF-95

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

5.

Remove weather-strip.

6.

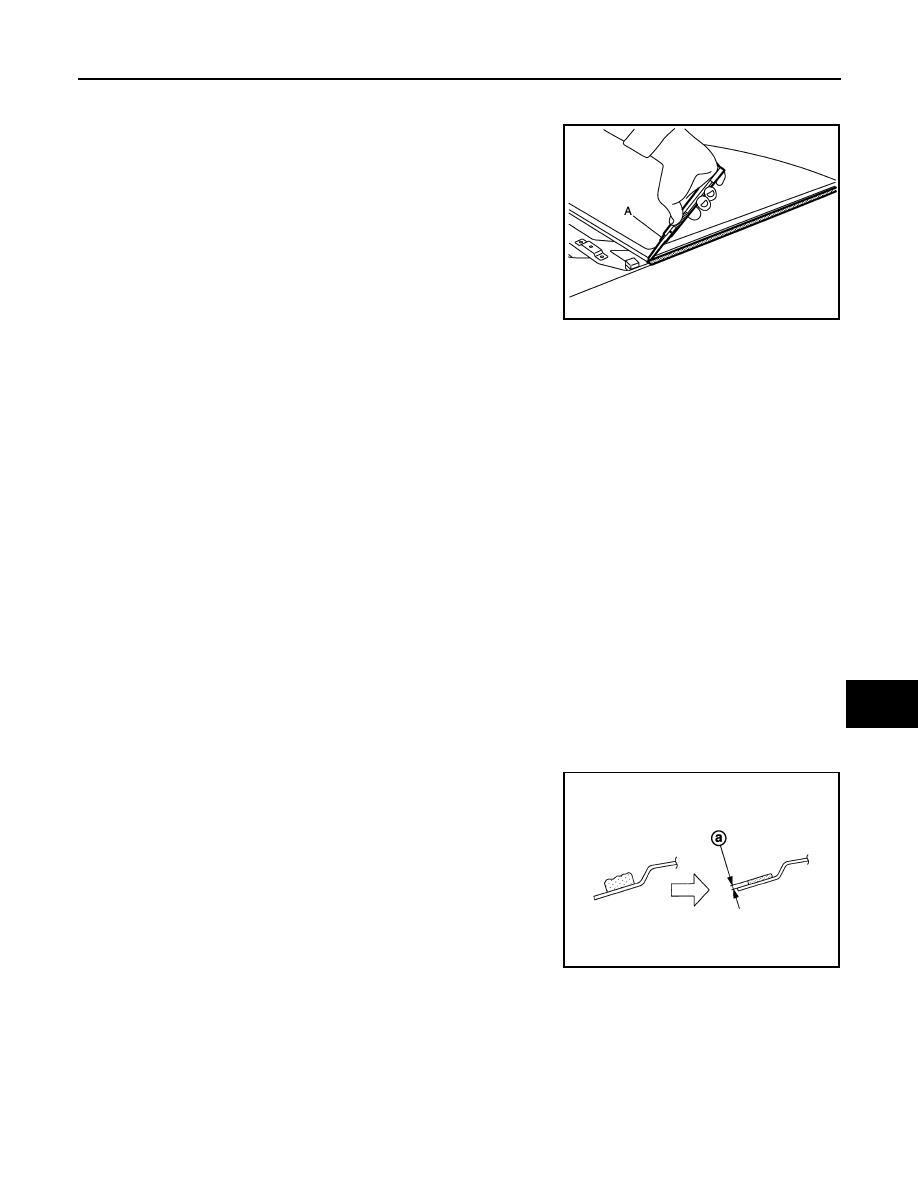

Cut adhesive.
• Cut the resin part of the rear sunroof glass rear using cutter

(A).

• Pass piano wire though the adhesive with a wire pierce.
• Tie both ends of piano wire to wire grip.
• Pull piano wire in turn and cut off adhesive.

7.

Remove rear sunroof glass from vehicle using suction lifter.

WARNING:

Always use safety glasses and heavy gloves to help prevent glass splinters from entering your eyes
or cutting your hands when cutting the glass from the vehicle.

CAUTION:

Never reuse the rear sunroof glass which has been removed once.

INSTALLATION

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

CAUTION:

After installing the rear sunroof glass, perform the leak test and check that there is no malfunction.
NOTE:
• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions fur-

nished with it.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

1.

Using a knife or spatula, trim the adhesive (sealant) remaining
on body down to approximately 2 mm thick (a) so that the con-
tour becomes smooth.

CAUTION:

If bonded area on sunroof frame is scratched, always repair
it with 2-component urethane. Never use lacquer.

2.

Clean bonded area on glass with white gasoline.

3.

Apply glass primer along the entire circumference of glass.

CAUTION:

There are 2 types of primer. Never confuse the application methods.
Paint primer: for painted surfaces
Glass primer: for glass

4.

Apply paint primer on areas where adhesive contacts on the side of sunroof frame.

CAUTION:

JMKIA2510ZZ

JMKIA0307ZZ

RF-96

< ON-VEHICLE REPAIR >

REAR SUNROOF GLASS

If paint primer adheres to a painted surface other than bonding area, or if it overflows, quickly
remove it with white gasoline.

5.

After applying primers, apply the adhesive along the entire circumference of the glass as shown in the fig-
ure, and within the time specified in the instructions for the adhesive.
Open adhesive by cutting off the nozzle tip and set it in a sealant gun.

6.

After setting suction lifter to glass, align matching marks on sunroof frame and glass. Install glass to the
sunroof frame.

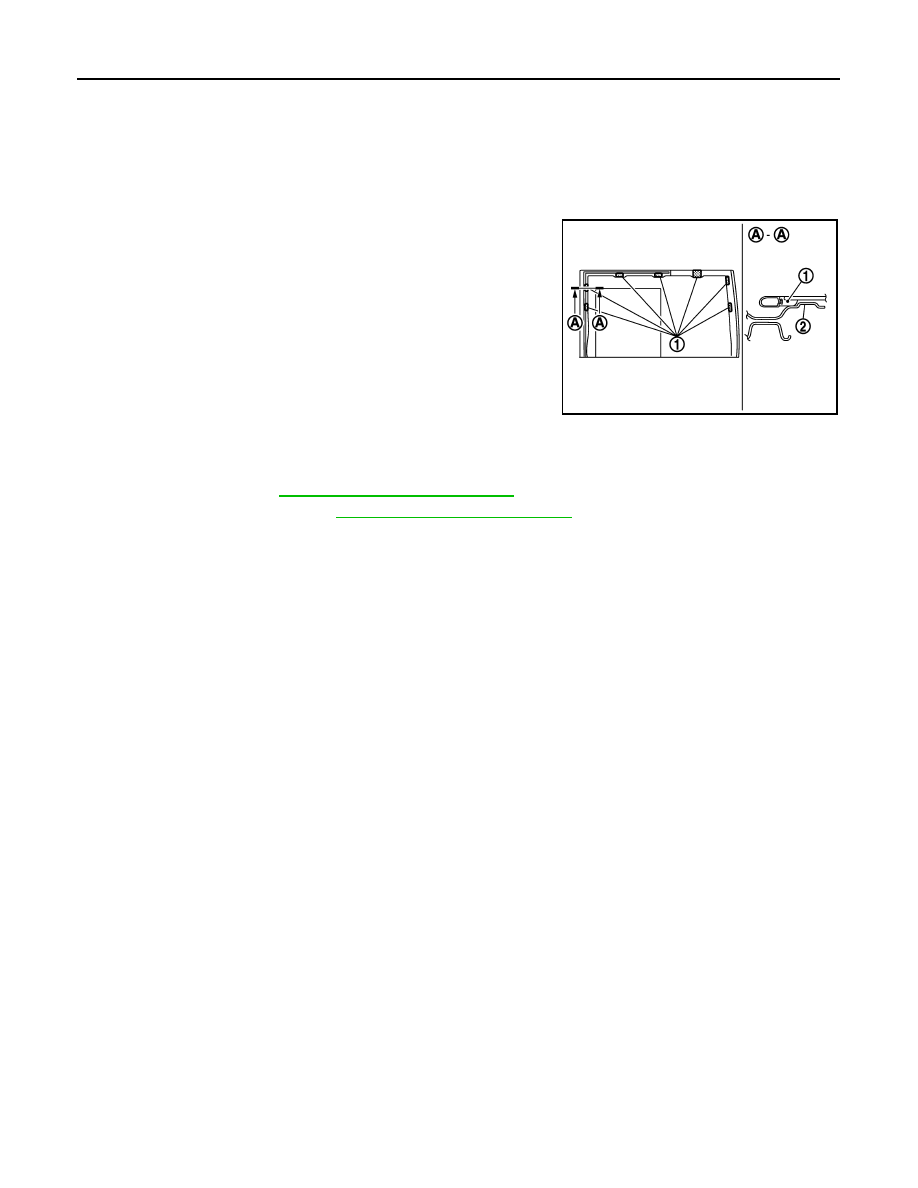

7.

Press glass till positioning ribs (1) faces sunroof frame (2).

8.

Using a spatula, repair any adhesive overflow or shortage to make the surface smooth.

9.

Remove protective tape.

10. Install glass lid. Refer to

RF-80, "Removal and Installation"

.

11. Install roof side finisher. Refer to

RF-88, "Removal and Installation"

.

12. Check for water leaks.

NOTE:
• Perform the water leakage check more than 2 hours after rear sunroof glass installation.
• After glass lid fitting adjustment, carry out water leakage check by spreading water on the whole roof.

JMKIA2554ZZ

WIND DEFLECTOR

RF-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

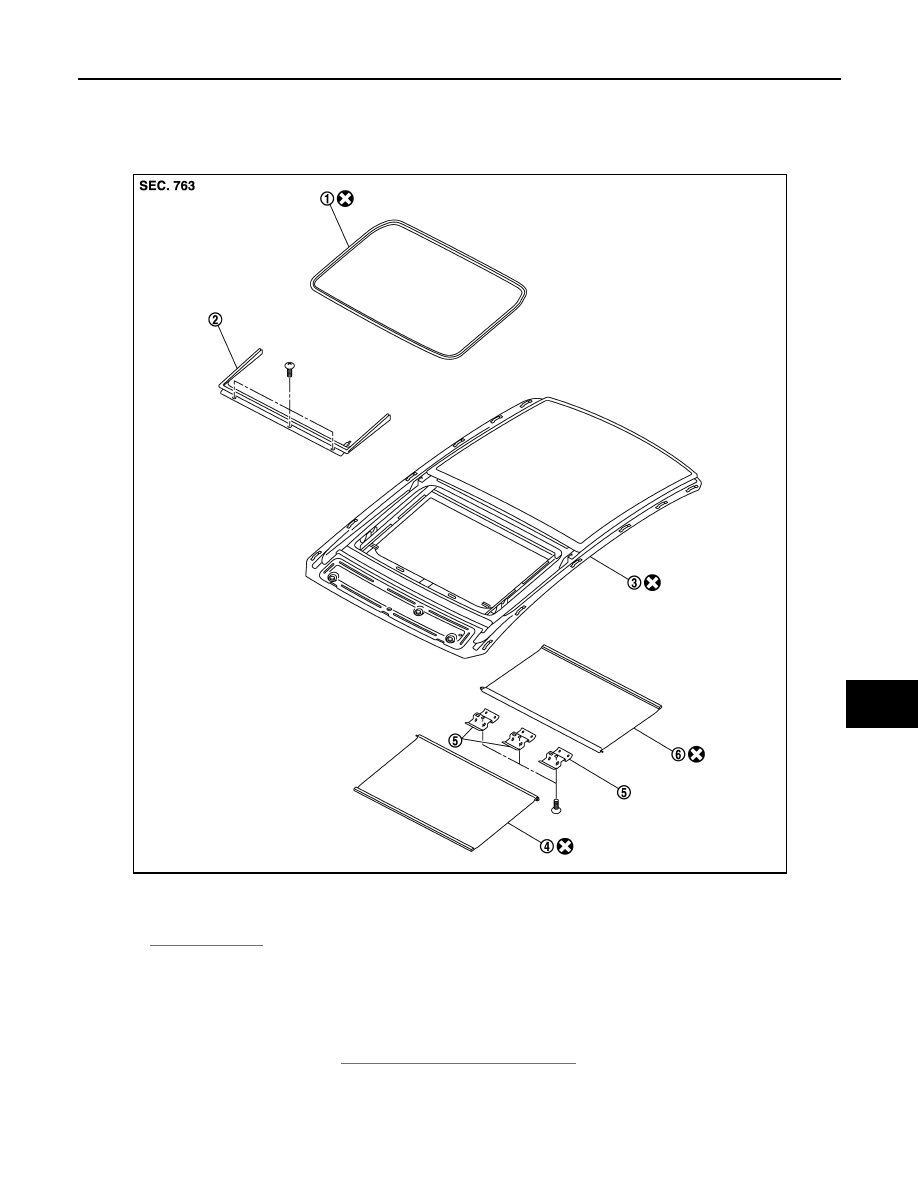

WIND DEFLECTOR

Exploded View

INFOID:0000000003812898

Removal and Installation

INFOID:0000000003812899

REMOVAL

1.

Fully open the glass lid.

2.

Remove the lnner blind. Rerer to

RF-80, "Removal and Installation"

.

3.

Remove the wind deflector.

1.

Weather-strip

2.

Wind deflector

3.

Sunroof frame

4.

Front sunshade

5.

Sunshade cover

6.

Rear sunshade

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2489GB
