RF-98

< ON-VEHICLE REPAIR >

WIND DEFLECTOR

• Push and slide the fastener as shown by the arrows (1) and

(2) in the figure to remove.

• Remove the screws (A), and then remove wind deflector (1).

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMKIA2192ZZ

JMKIA2514ZZ

SUNSHADE

RF-99

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

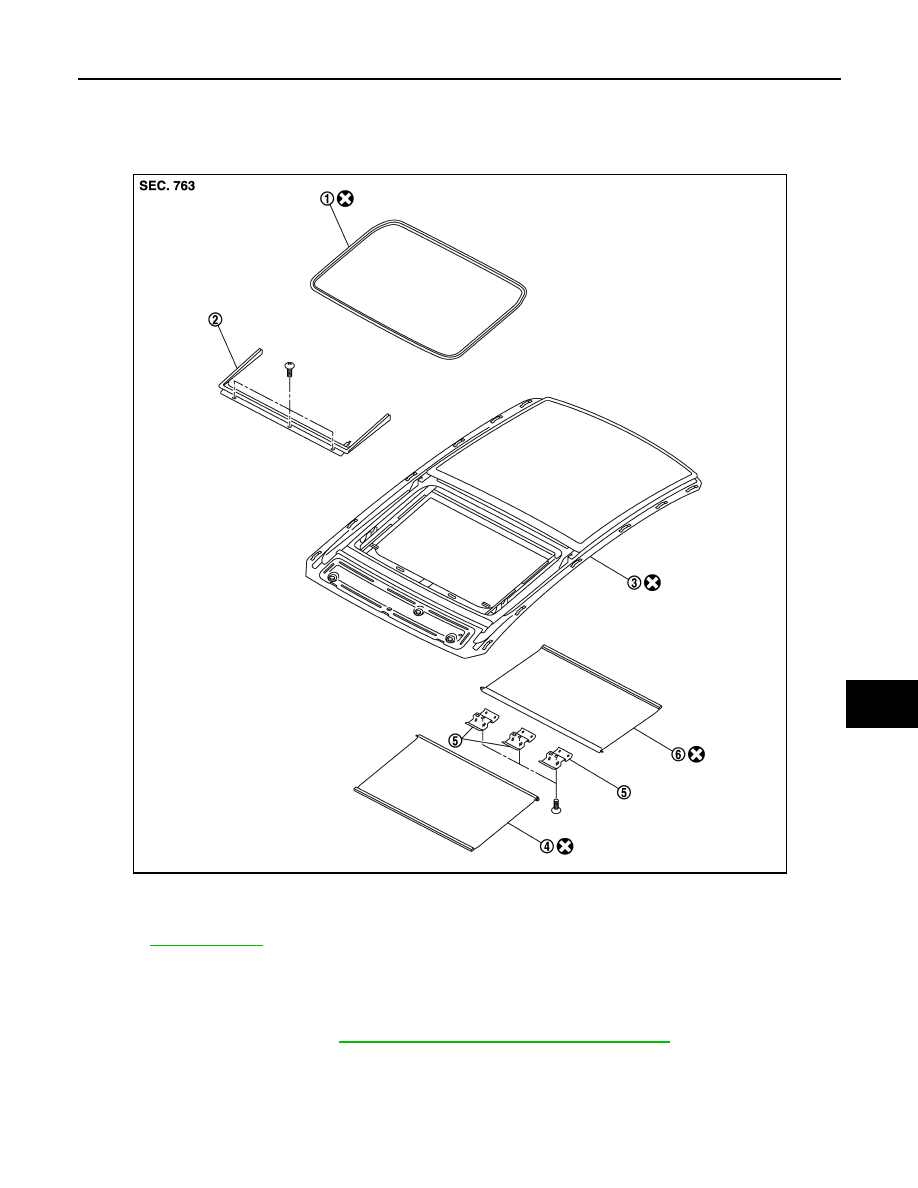

Exploded View

INFOID:0000000003843880

Removal and Installation

INFOID:0000000003812901

REMOVAL

1.

Remove the headlining. Refer to

INT-54, "SUNROOF : Removal and Installation"

.

2.

Remove the sunshade cover.
Remove the screws, and then sunshade cover.

CAUTION:

Be careful not to deform the sunshade covers during removal or installation.

3.

Remove the front sunshade and rear sunshade.

1.

Weather-strip

2.

Wind deflector

3.

Sunroof frame

4.

Front sunshade

5.

Sunshade cover

6.

Rear sunshade

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2489GB

RF-100

< ON-VEHICLE REPAIR >

SUNSHADE

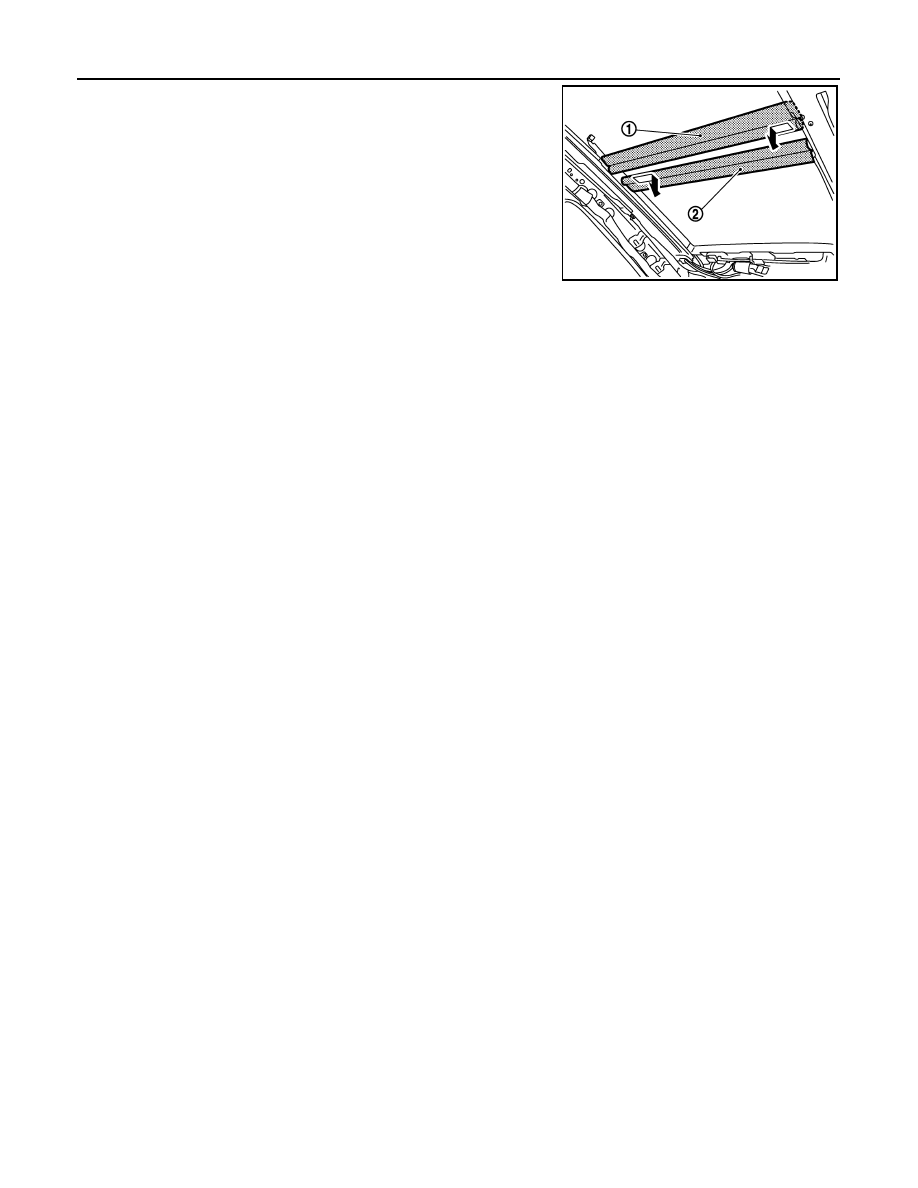

Remove it to the lower part while pushing the front sunshade (1)
and rear sunshade (2) towards the direction of the arrow in the
figure.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful not to release the spring when installing the sunshade.

JMKIA2515ZZ

SUNROOF SWITCH

RF-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF SWITCH

Exploded View

INFOID:0000000003812902

Refer to

INT-53, "SUNROOF : Exploded View"

.

Removal and Installation

INFOID:0000000003812903

Removal

Remove the sunroof switch. Refer to

INT-54, "SUNROOF : Removal and Installation"

.

Installation

Install in the reverse order of removal.
