HEADLINING

CAUTION:

• When removing, 2 workers are required. (1 for the front and rear of headlining)
• Cover center console finisher upper surface with a shop cloth to prevent it from being damaged.
• Never bend headlining when removing.

13. Remove the following parts after removing headlining.

• Map lamp assembly. Refer to

INL-89, "Removal and Installation"

.

• Personal lamp assembly. Refer to

INL-96, "Removal and Installation"

.

• Roof harness assembly.
• Antenna feeder assembly. Refer to

AV-44, "Harness Layout"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install headlining assembly after inserting clips to clip holder of headlining rear end.
• Never bend headlining when installing.

TRUNK ROOM TRIM

INT-57

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

TRUNK ROOM TRIM

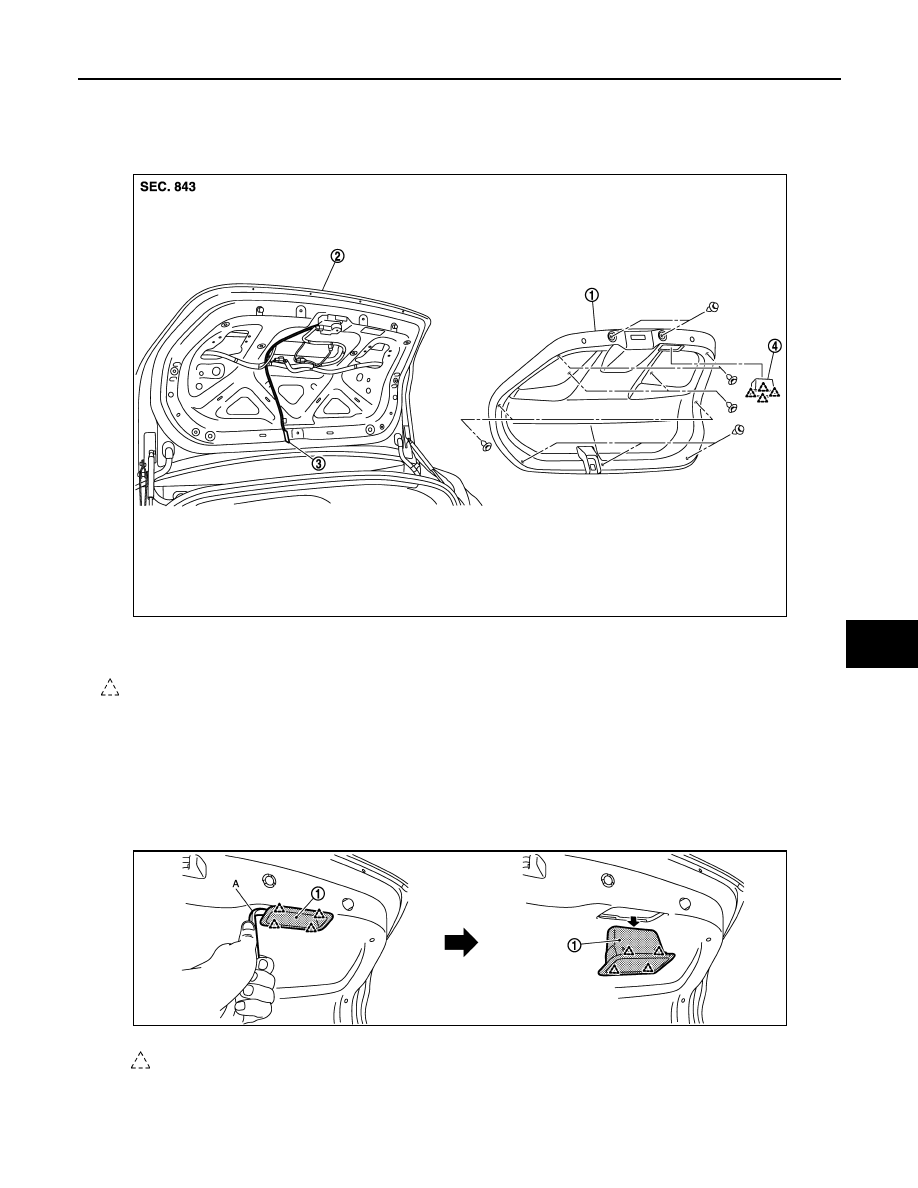

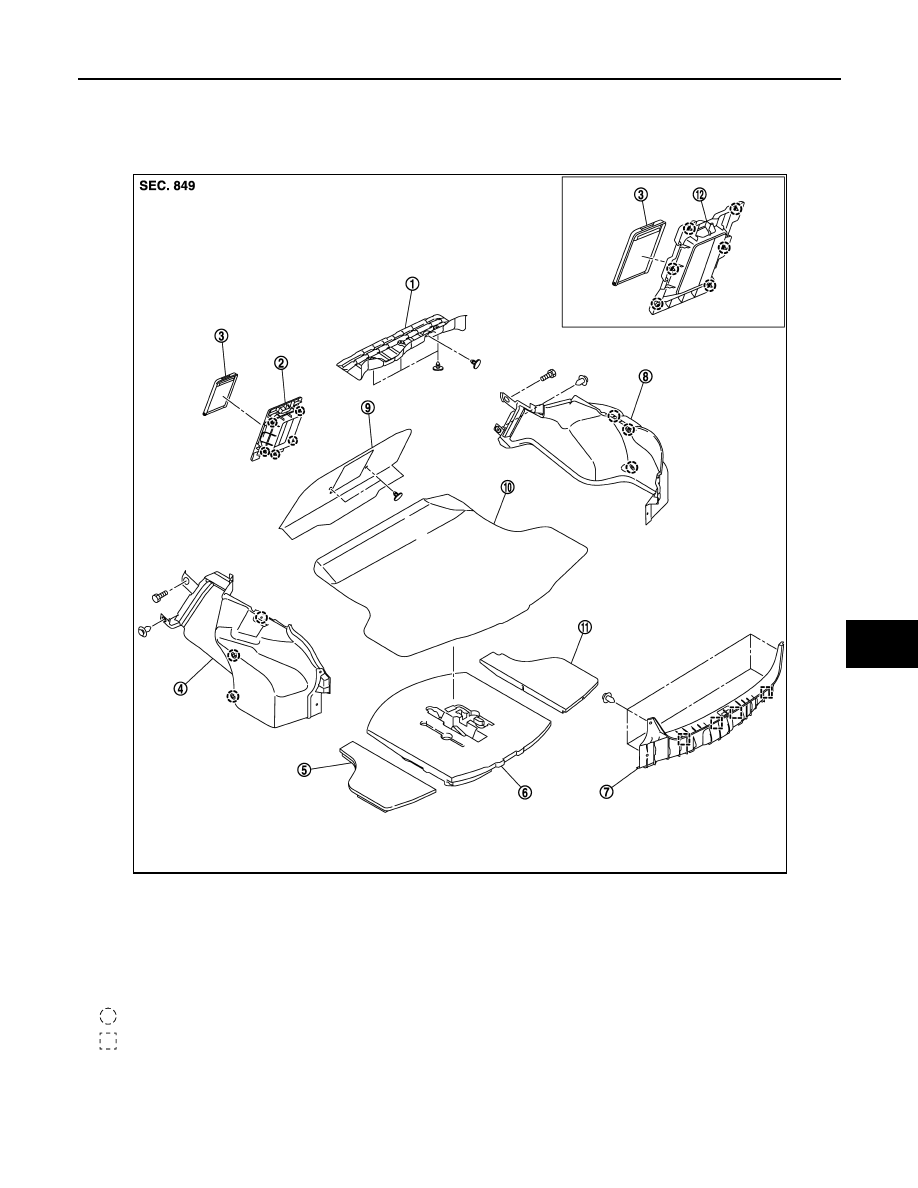

Exploded View

INFOID:0000000003819232

Removal and Installation

INFOID:0000000003819233

REMOVAL

1.

Fully open trunk lid assembly.

1.

Trunk front finisher upper

2.

Rear seatback center finisher (Nor-
mal roof models)

3.

Rear seatback center finisher lid

4.

Rear wheel house finisher (LH)

5.

Trunk floor spacer (LH)

6.

Trunk center box assembly

7.

Trunk rear finisher

8.

Rear wheel house finisher (RH)

9.

Trunk front finisher center

10. Trunk floor carpet

11. Trunk floor spacer (RH)

12. Rear seatback center finisher (Sun-

roof models)

: Clip

: Metal clip

JMJIA1806ZZ

INT-58

< ON-VEHICLE REPAIR >

TRUNK ROOM TRIM

2.

Remove trunk floor carpet.

3.

Remove trunk center box.

4.

Remove trunk floor spacer (LH/RH).

5.

Remove trunk rear finisher mounting clips and metal clips, and then remove trunk rear finisher.

6.

Remove trunk weather-strip.

7.

Remove trunk front finisher center fixing clips, and then remove trunk front finisher center.

8.

Remove trunk front finisher upper fixing clips, and then remove the trunk front finisher upper.

9.

Remove rear wheel house finisher (LH/RH).
• Remove rear wheel fixing clips
• Remove rear seat assembly. Refer to

SE-99, "Removal and Installation"

.

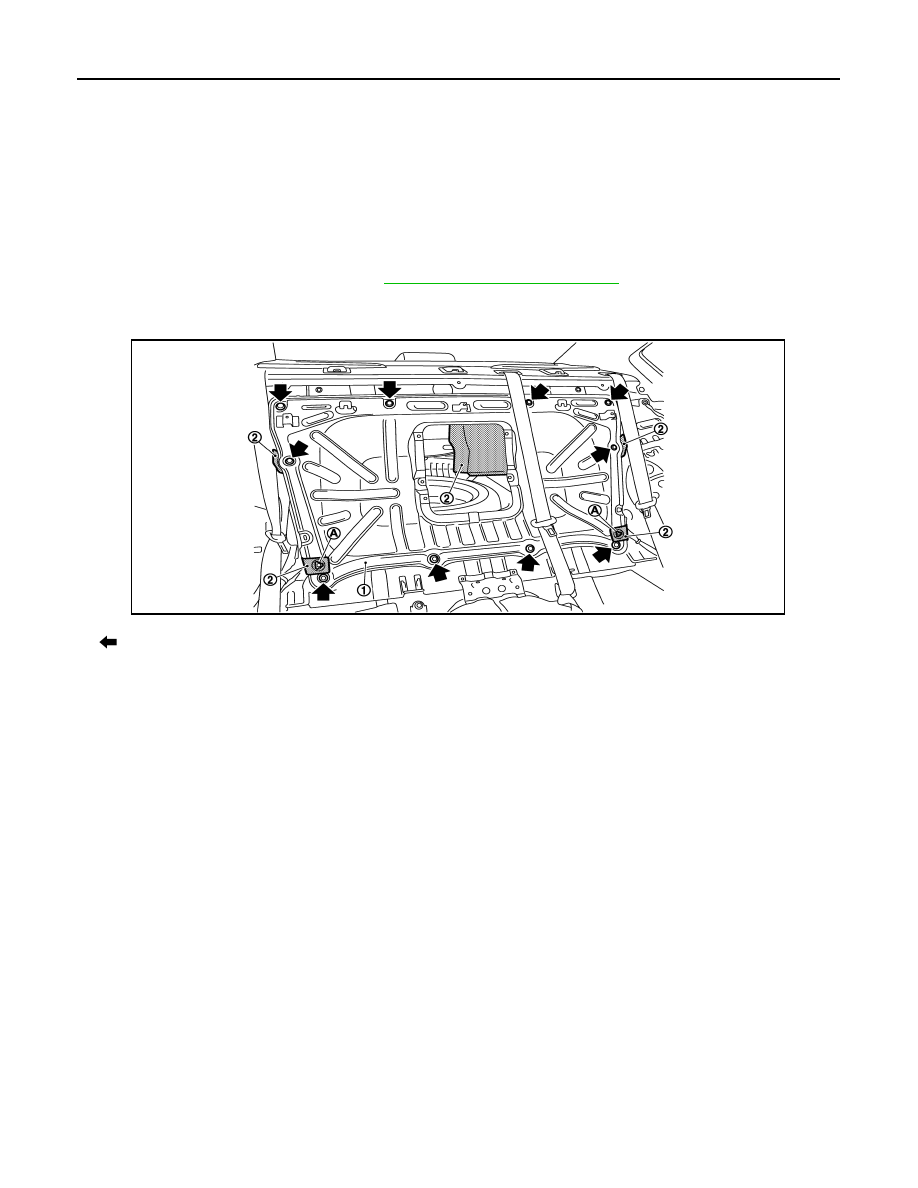

• Remove rear seat support (1) fixing bolts, shown by the arrows in the figure below and then remove rear

wheel house finisher (2)

10. Disengage rear seatback center finisher assembly fixing clips with a remover tool (A), and then remove

rear seatback center finisher assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check that clips, pawls, metal clips are securely fitted in panel holes on body when installing, and then
press them in.

: Bolt

JMJIA1791ZZ

TRUNK LID TRIM

INT-59

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

TRUNK LID TRIM

Exploded View
