TRUNK LID TRIM

3.

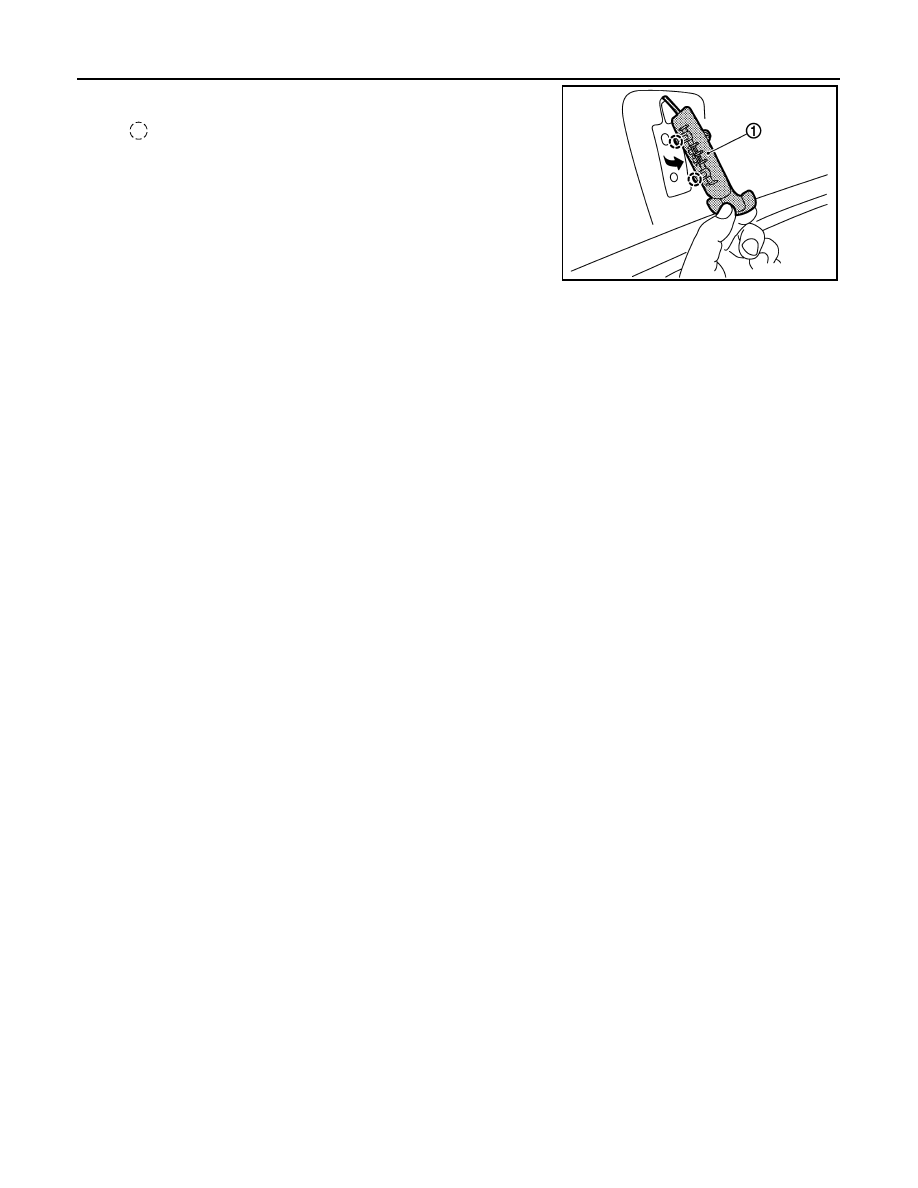

Remove trunk lid emergency handle holder (1).

4.

Remove trunk lid finisher mounting clips, and then remove trunk lid finisher inner.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMJIA1793ZZ

REAR SUNSHADE CONTROL UNIT

INT-61

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR SUNSHADE CONTROL UNIT

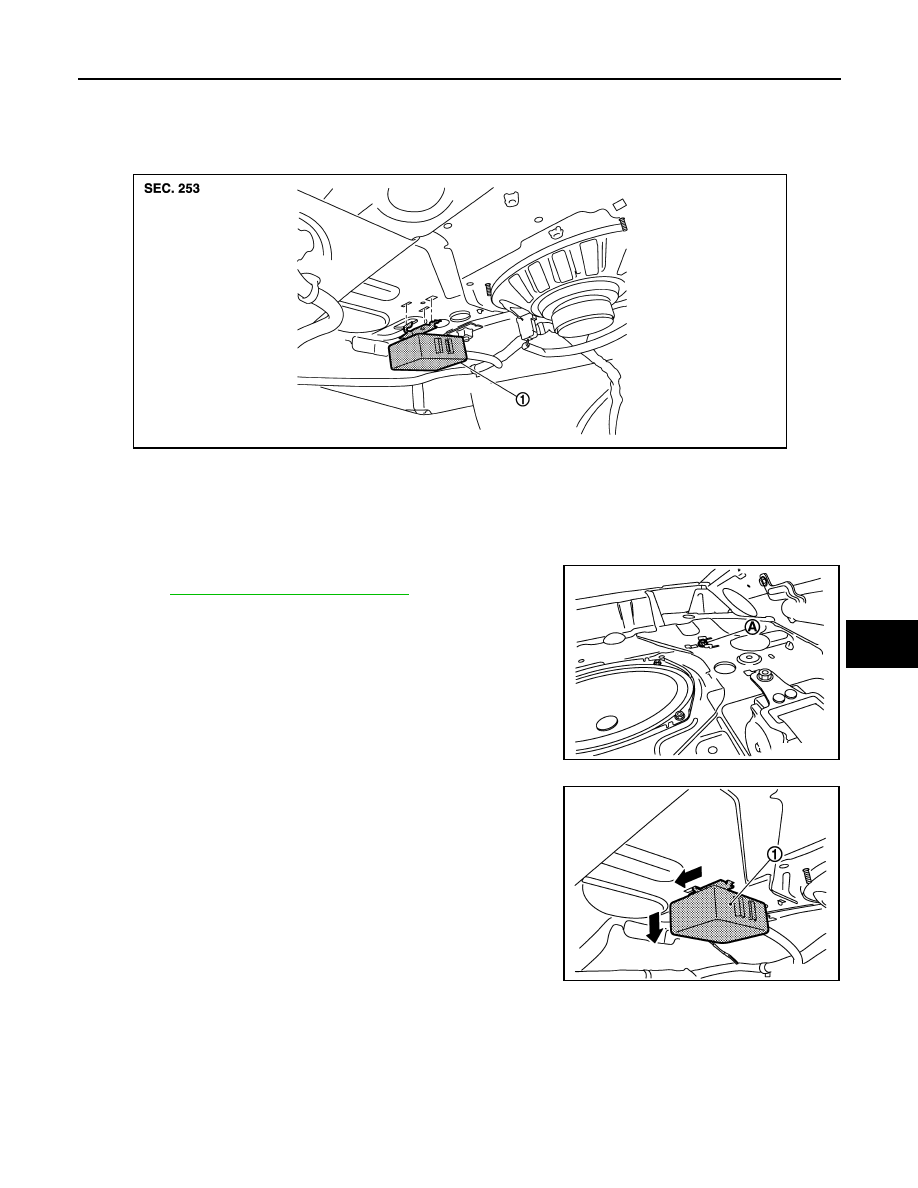

Exploded View

INFOID:0000000003840071

Removal and Installation

INFOID:0000000003840072

REMOVAL

1.

Remove the rear parcel shelf finisher.
Refer to

INT-43, "Removal and Installation"

.

2.

Remove the rear sunshade control unit bracket bolt (A).

3.

Remove the rear sunshade control unit. (1) Pull toward the
direction of the arrow.

INSTALLATION

Install in the reverse order of removal.

1.

Rear sunshade control unit

JMJIA1949ZZ

JMJIA1950ZZ

JMJIA1951ZZ

INT-62

< ON-VEHICLE REPAIR >

REAR SUNSHADE SWITCH

REAR SUNSHADE SWITCH

FRONT

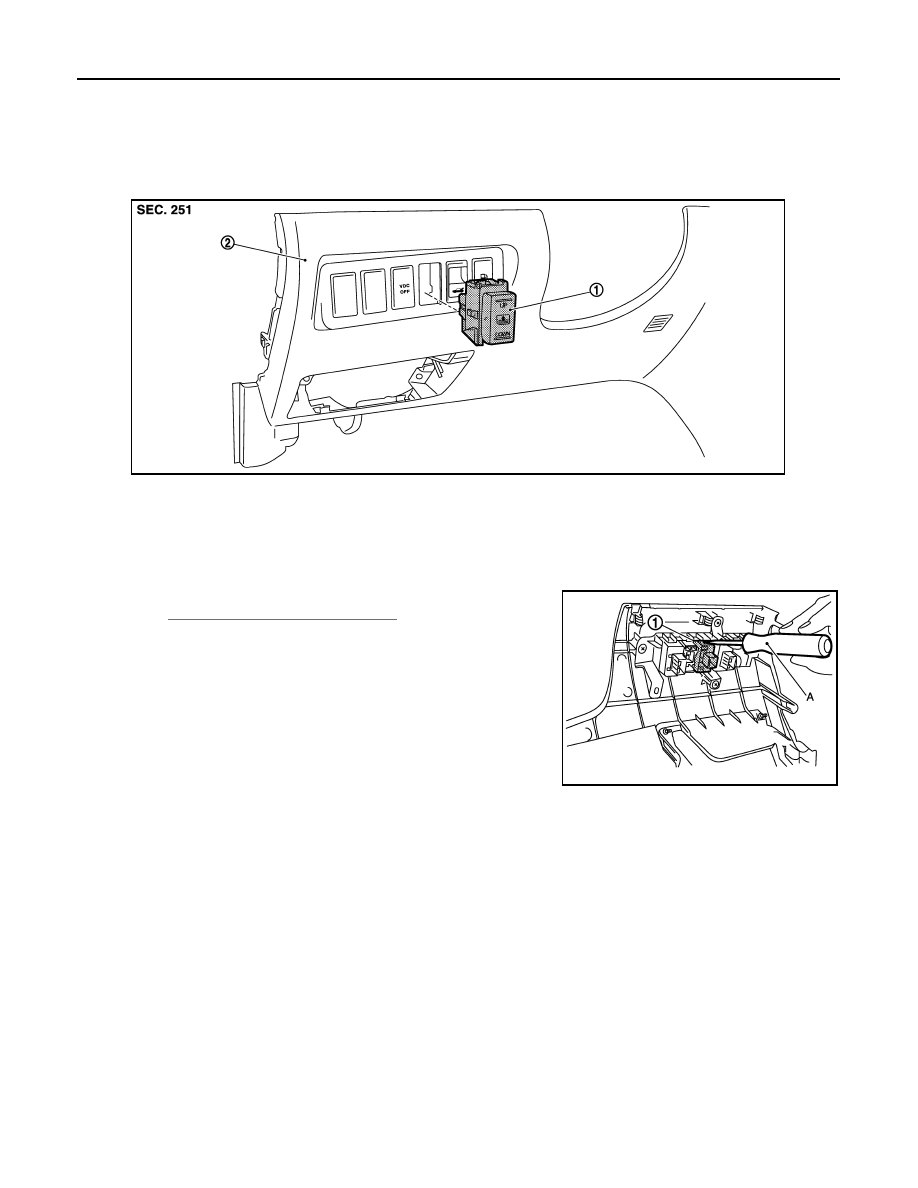

FRONT : Exploded View

INFOID:0000000003840075

FRONT : Removal and Installation

INFOID:0000000003840076

REMOVAL

1.

Remove the instrument lower panel LH.
Refer to

IP-12, "Removal and Installation"

.

2.

Rear sunshade switch (front) (1) is removed from instrument
lower panel LH using flat-bladed screw driver (A) etc.

CAUTION:

Never fold pawl of instrument lower panel LH.

INSTALLATION

Install in the reverse order of removal.

REAR

1.

Rear sunshade switch (front)

2.

Instrument lower panel LH

JMJIA1730ZZ

JMJIA1731ZZ

REAR SUNSHADE SWITCH

INT-63

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

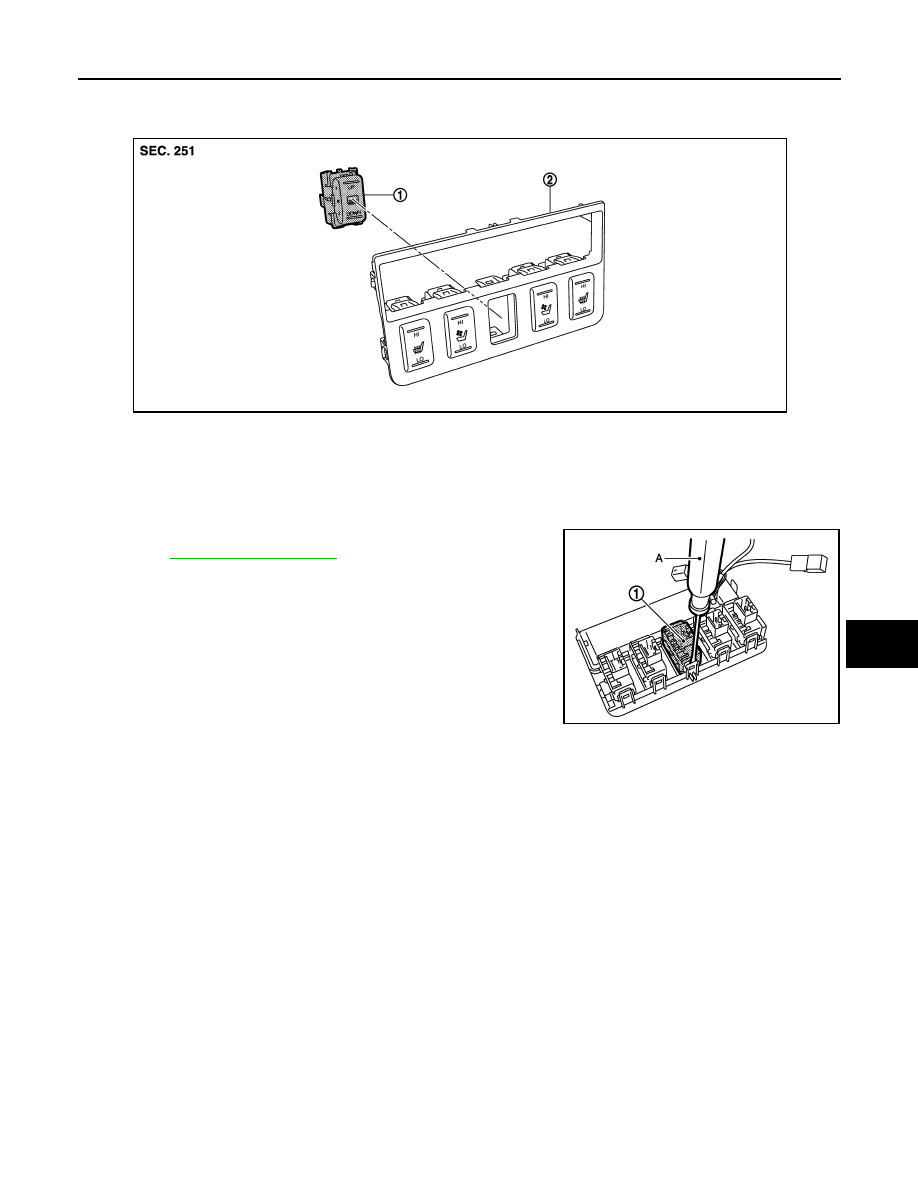

REAR : Exploded View

INFOID:0000000003840077

REAR : Removal and Installation

INFOID:0000000003840078

REMOVAL

1.

Remove the control switch panel.
Refer to

SE-98, "Exploded View"

.

2.

Rear sunshade switch (rear) (1) is removed from control switch
panel using flat-bladed screw driver (A) etc.

CAUTION:

Never fold the pawl of control switch panel.

INSTALLATION

Install in the reverse order of removal.

1.

Rear sunshade switch (rear)

2.

Control switch panel

JMJIA1722ZZ
