INT-52

< ON-VEHICLE REPAIR >

HEADLINING

CAUTION:

• When removing, 2 workers are required. (1 for the front and rear of headlining)
• Cover center console finisher upper surface with a shop cloth to prevent it from being damaged.
• Never bend headlining when removing.

13. Remove the following parts after removing headlining.

• Map lamp assembly. Refer to

INL-89, "Removal and Installation"

.

• Personal lamp assembly. Refer to

INL-96, "Removal and Installation"

.

• Roof harness assembly.
• Antenna feeder assembly. Refer to

AV-44, "Harness Layout"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Install headlining assembly after inserting clips to clip holder of headlining rear end.
• Never bend headlining when installing.

SUNROOF

HEADLINING

INT-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

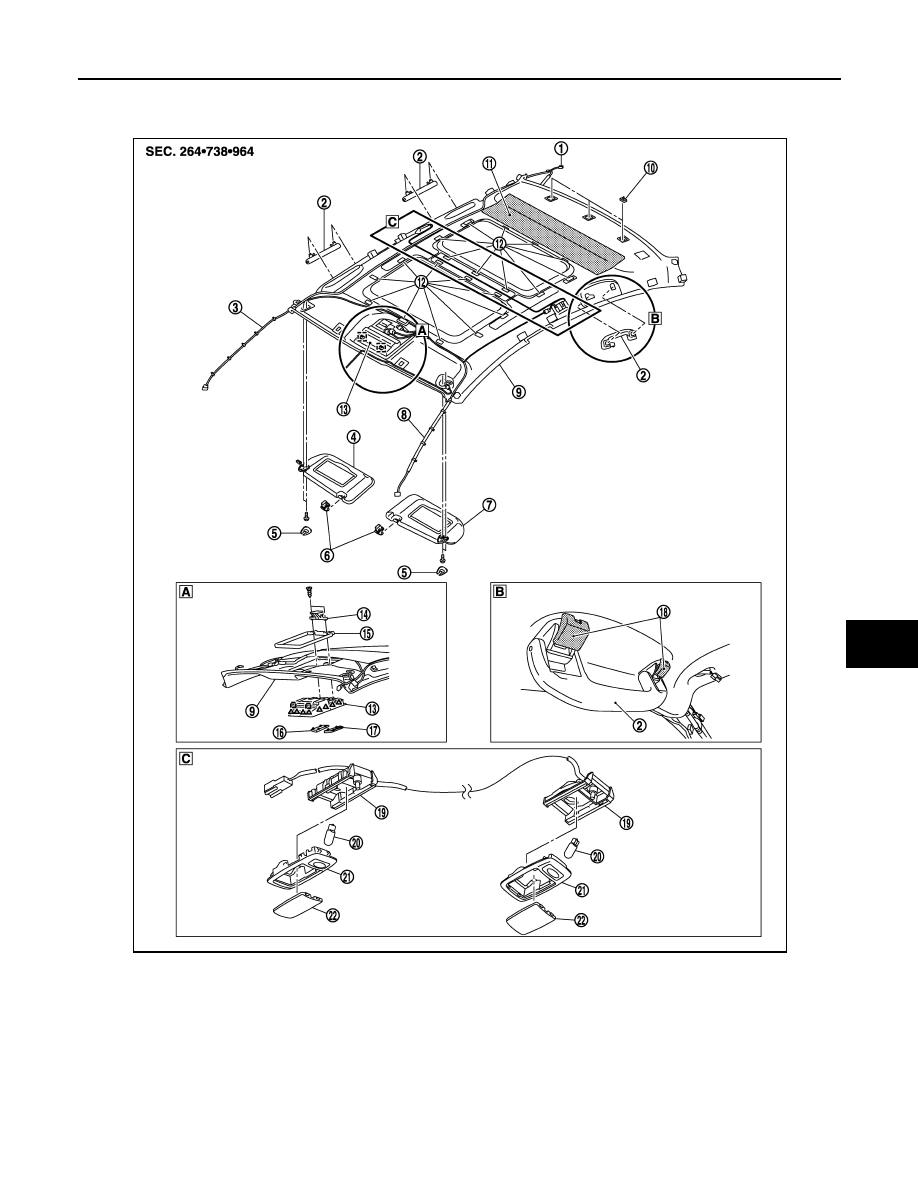

SUNROOF : Exploded View

INFOID:0000000003826877

1.

Antenna feeder (rear)

2.

Assist grip

3.

Antenna feeder (front)

4.

Sun visor assembly RH

5.

Sun visor cover

6.

Sun visor holder

7.

Sun visor assembly LH

8.

Roof harness

9.

Headlining assembly

10. Rear hidden clip

11. Roof insulator

12. Dual lock fastener

13. Over head console

14. Roof bracket

15. Roof plate assembly

16. Map lamp lens RH

17. Map lamp lens LH

18. Assist grip clip

19. Personal lamp bracket

20. Personal lamp bulb

21. Personal lamp cover

22. Personal lamp lens

JMJIA1805ZZ

INT-54

< ON-VEHICLE REPAIR >

HEADLINING

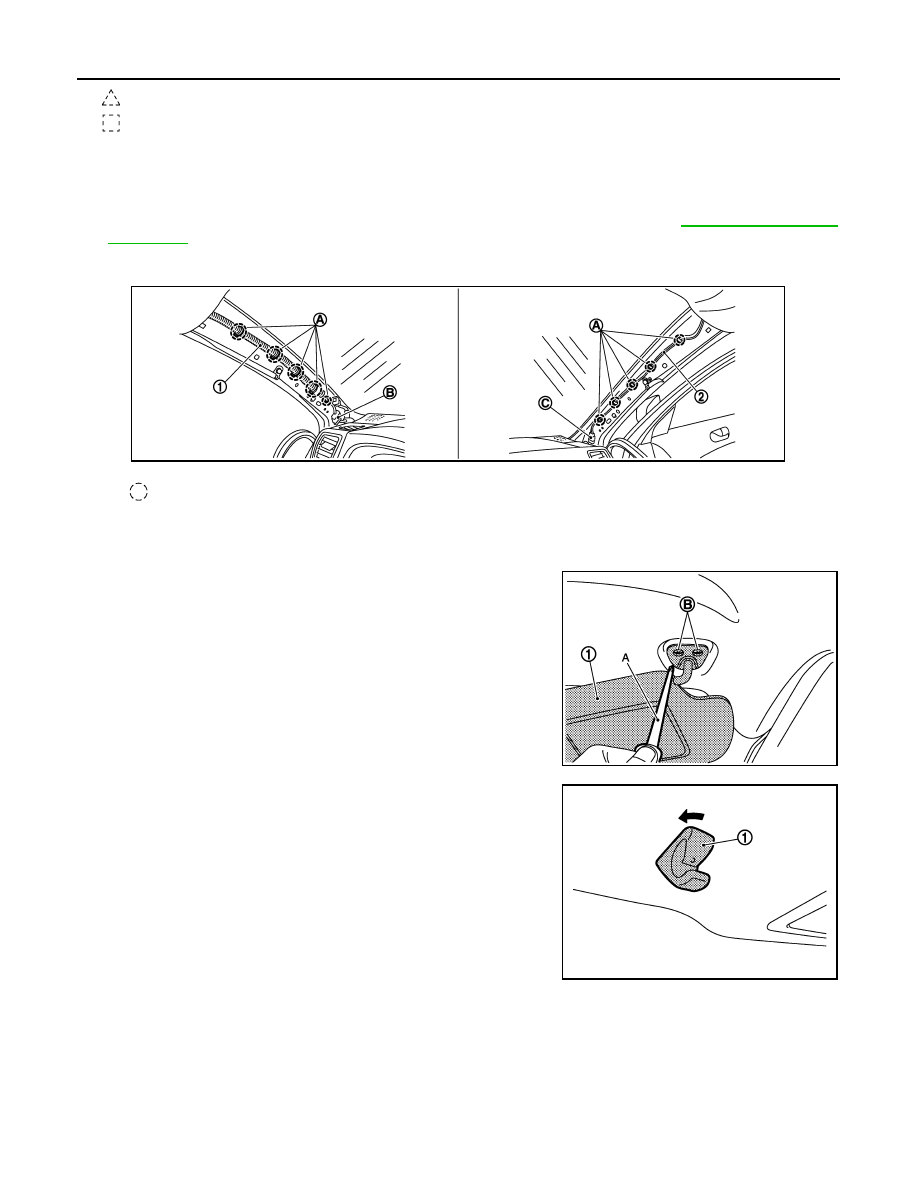

SUNROOF : Removal and Installation

INFOID:0000000003826878

REMOVAL

1.

Remove front body side welt (LH/RH) and front pillar garnish (LH/RH). Refer to

INT-39, "Removal and

Installation"

.

2.

Disconnect the roof harness (1) connector (B), antenna feeder (2) harness connector (C) and then
remove all the clips (A) as shown in the figure below.

3.

Remove sun visor assembly (LH/RH).
• Remove sun visor cover.
• Remove sun visor assembly (1) mounting screws (B) with a

screwdriver (A).

• Disconnect vanity mirror lamp harness connectors.

4.

Rotate 90 degrees and remove sun visor holder (1) (LH/RH).

: Pawl

: Metal clip

: Clip

JMJIA1785ZZ

JMJIA1786ZZ

JMJIA1787ZZ

HEADLINING

INT-55

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

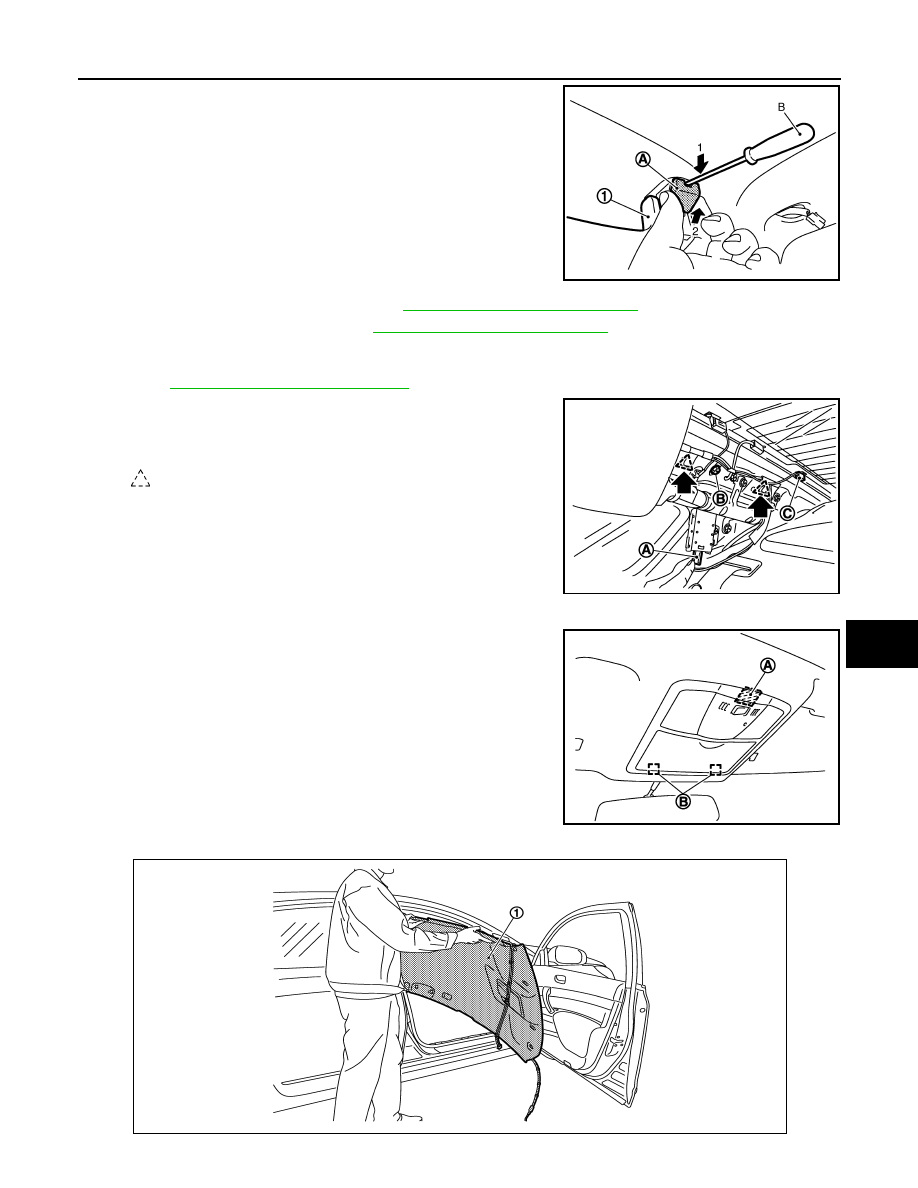

5.

Remove mounting plastic clips (A) using a flat-bladed screw-
driver (B) of front and rear assistance grips (1), and then remove
assist grips.

6.

Remove the front seat assembly. Refer to

SE-92, "Removal and Installation"

.

7.

Remove rear seat assembly. Refer to

SE-99, "Removal and Installation"

.

8.

Remove front kicking plate inner (LH/RH), center pillar upper garnish (LH/RH) and rear pillar finisher (LH/
RH).
Refer to

INT-39, "Removal and Installation"

.

9.

On the rear right side of the vehicle, disconnect the harness
connector (A) and (C), remove the bolt (B) and then disengage
the pawls as shown in the figure.

10. With a removal tool, remove body side mounting plastic clip from rear end of headlining.

11. Pull map lamp assembly toward vehicle lower, and disengage

dual-lock fastener (A) and metal clips (B).

CAUTION:

Map lamp assembly is crimped from back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.

12. Remove headlining assembly (1) as shown in the figure below.

JMJIA0096GB

: Pawl

JMJIA1788ZZ

JMJIA1008ZZ

JMJIA1789ZZ
