BODY SIDE TRIM

2.

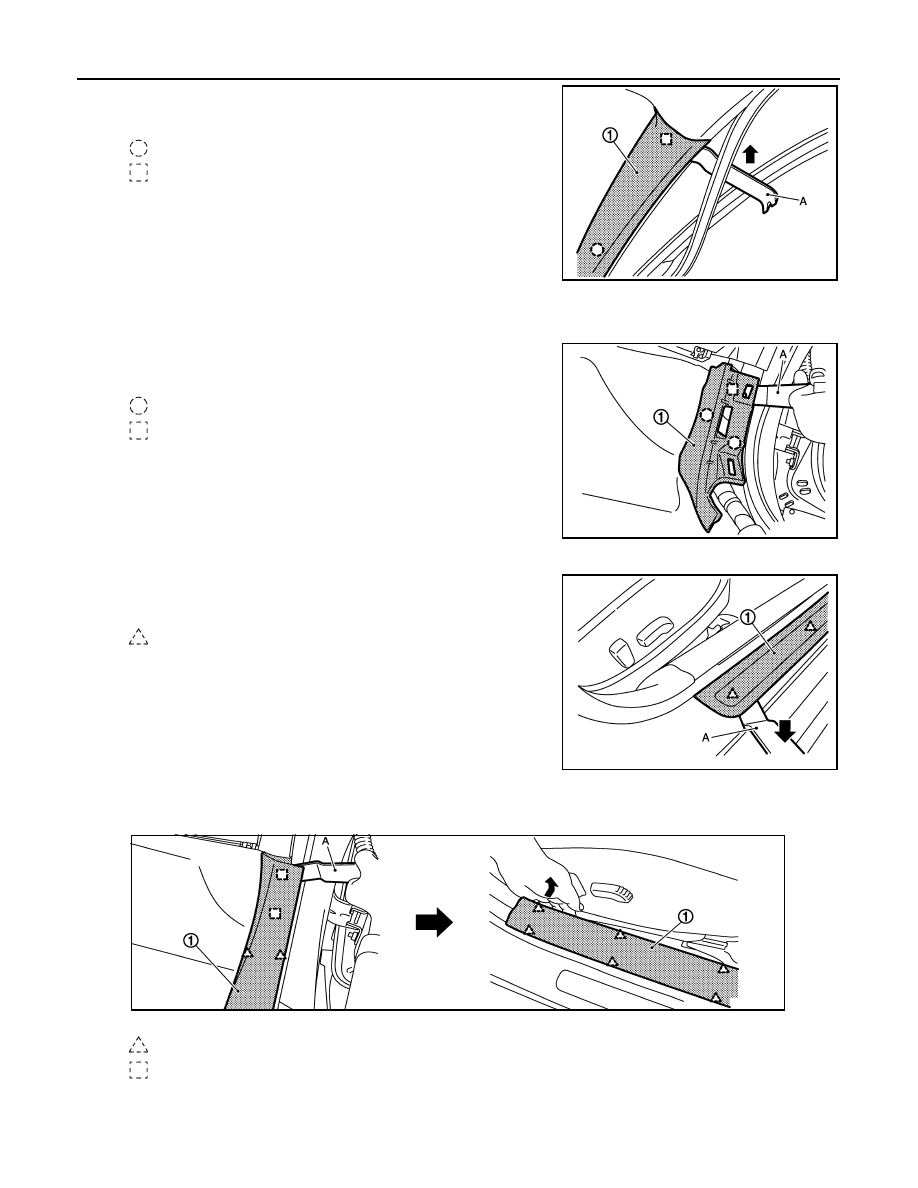

Remove front pillar garnish mounting clip and metal clip with a
remover tool (A), and then remove front pillar garnish (1).

DASH SIDE FINISHER

1.

Remove front kicking plate inner.

2.

Remove dash side finisher mounting clips and metal clip with a
remover tool (A), and then remove dash side finisher (1).

FRONT KICKING PLATE OUTER

Remove front kicking plate outer mounting pawls with a remover tool
(A), and then remove kicking plate outer (1).

FRONT KICKING PLATE INNER

1.

With a remover tool (A), disengage the metal clips and pawls located in the front, then pull up front kicking
plate inner (1) to remove as shown by the figure below.

REAR KICKING PLATE OUTER

: Clip

: Metal clip

JMJIA1771ZZ

: Clip

: Metal clip

JMJIA1773ZZ

: Pawl

JMJIA1779ZZ

: Pawl

: Metal clip

JMJIA1772ZZ

BODY SIDE TRIM

INT-41

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

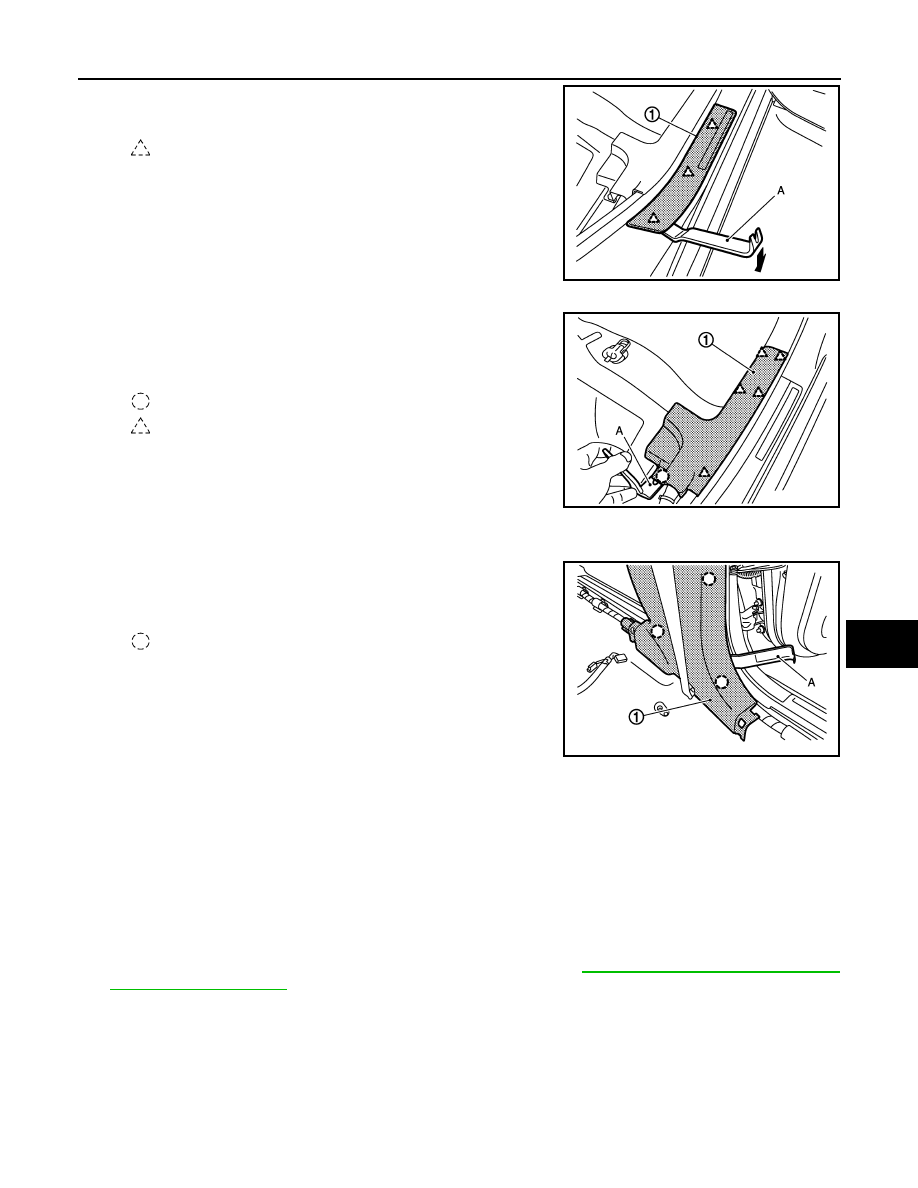

Remove rear kicking plate outer mounting pawls with a remover tool
(A), and then remove kicking plate outer (1).

REAR KICKING PLATE INNER

1.

Pull up rear kicking plate inner, and disconnect the clip and
pawls with remover tool (A).

2.

Remove rear kicking plate inner (1).

CENTER PILLAR LOWER GARNISH

1.

Remove front and rear kicking plate inner.

2.

Remove center pillar lower garnish mounting clips with a
remover tool (A), and then remove center pillar lower garnish
(1).

FRONT BODY SIDE WELT

1.

Remove front kicking plate inner.

2.

Remove front body side welt.

REAR BODY SIDE WELT

1.

Remove rear kicking plate inner.

2.

Remove rear body side welt.

CENTER PILLAR UPPER GARNISH

1.

Remove center pillar lower garnish.

2.

Remove front seat belt pre-tension fixing anchor bolt. Refer to

SB-5, "SEAT BELT RETRACTOR :

Removal and Installation"

3.

Remove partially front and rear body side welt.

: Pawl

JMJIA1777ZZ

: Clip

: Pawl

JMJIA1778ZZ

: Clip

JMJIA1775ZZ

INT-42

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

4.

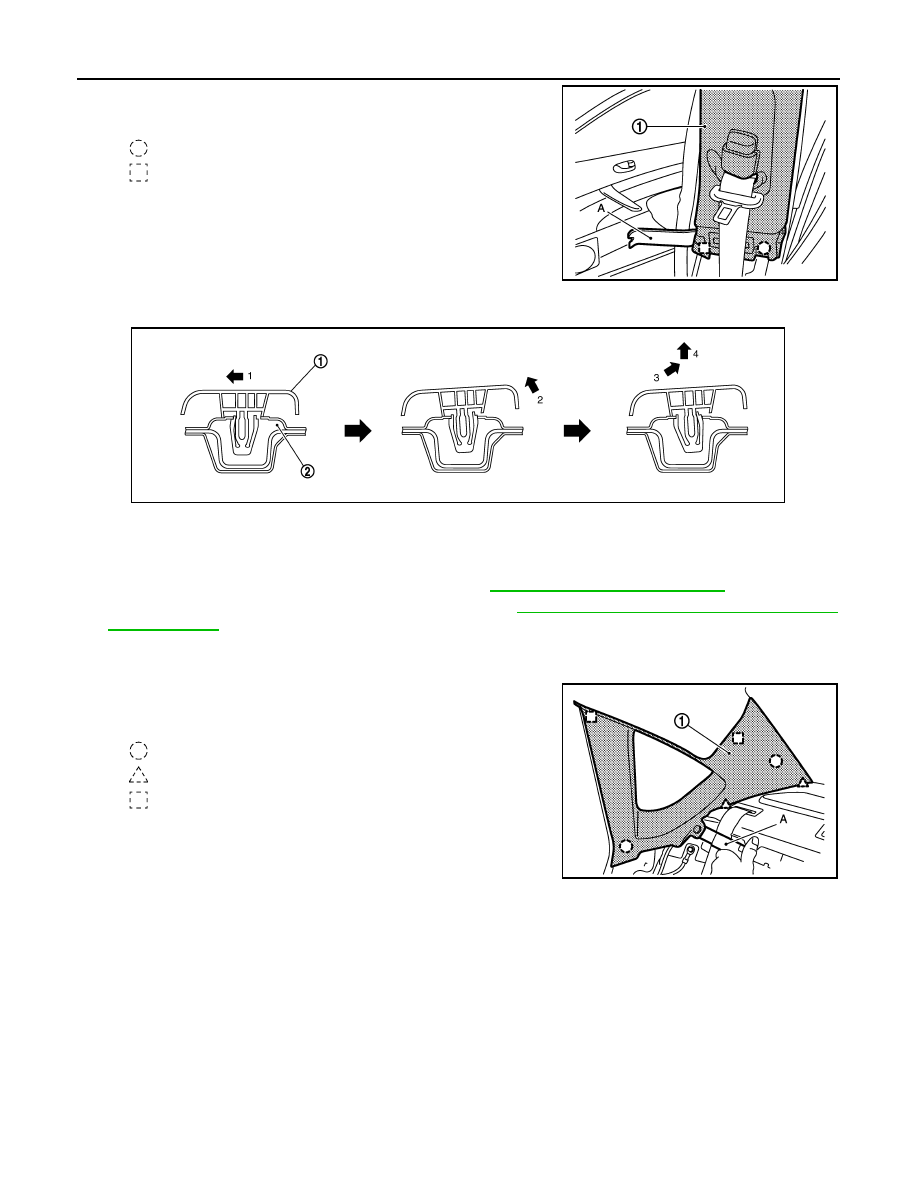

Remove center pillar upper garnish mounting clip and metal clip
with a remover tool (A).

5.

Pull center pillar upper garnish from inside passenger room, disengage the clip by following the steps
shown in the figure below to remove the garnish from the vehicle.

REAR PILLAR FINISHER

1.

Remove rear seat cushion and rear seatback. Refer to

SE-99, "Removal and Installation"

.

2.

Remove rear seat belt pre-tensioner anchor bolt. Refer to

SB-10, "SEAT BELT RETRACTOR : Removal

and Installation"

.

3.

Remove rear kicking plate inner.

4.

Remove rear body side welt.

5.

Remove pillar finisher mounting clips and metal clips with a
remover tool (A), and then remove pillar finisher (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check that clips are securely fitted in panel holes on body when installing, and then press them in.

: Clip

: Metal clip

JMJIA1776ZZ

1.

Center pillar upper garnish

2.

Center pillar panel

JMJIA1176ZZ

: Clip

: Pawl

: Metal clip

JMJIA1774ZZ

REAR PARCEL SHELF FINISHER

INT-43

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR PARCEL SHELF FINISHER

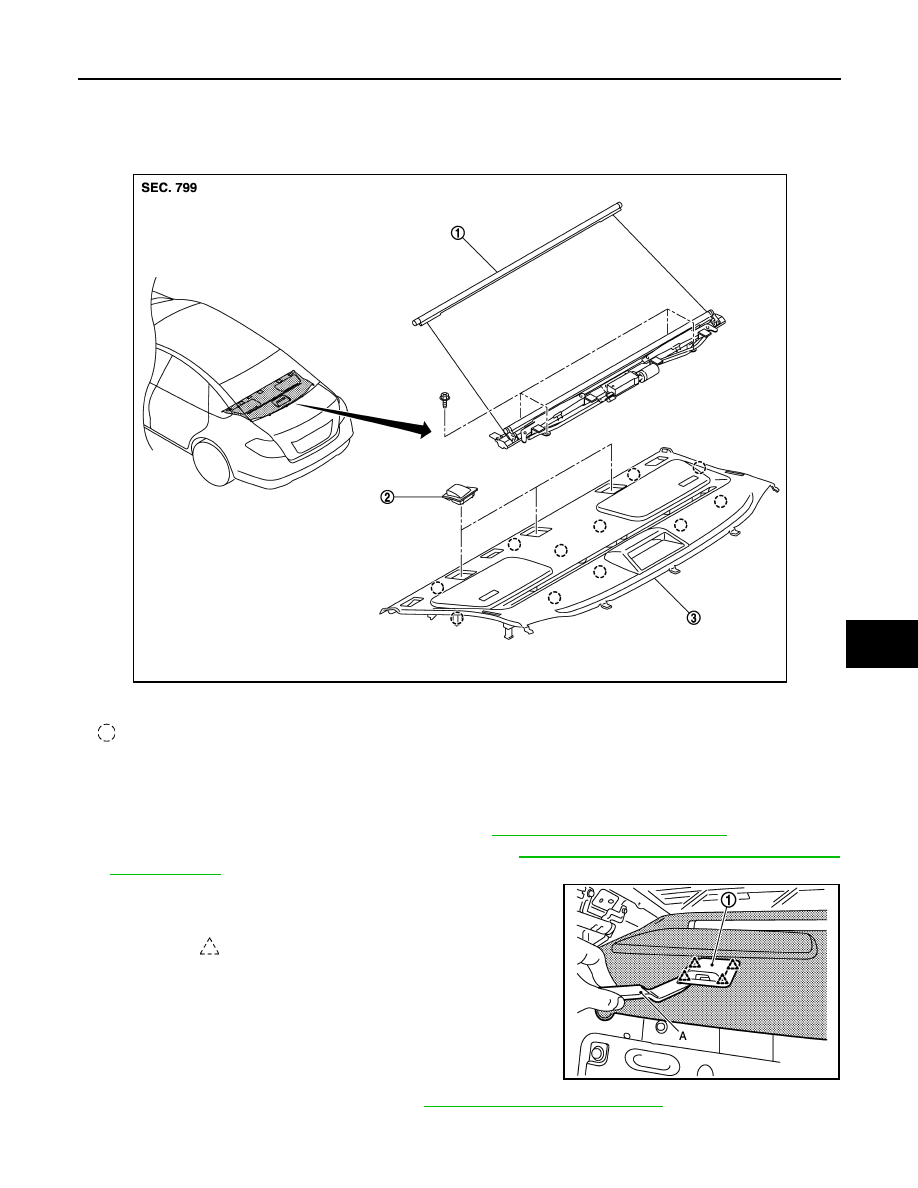

Exploded View

INFOID:0000000003819224

Removal and Installation

INFOID:0000000003819225

REMOVAL

1.

Remove rear seatback and rear seat cushion. Refer to

SE-99, "Removal and Installation"

.

2.

Remove rear seat belt pre-tensioner anchor bolt. Refer to

SB-10, "SEAT BELT RETRACTOR : Removal

and Installation"

.

3.

Disengage child anchor cover (1) fixing pawls with a remover
tool (A) and then remove it.

4.

Remove rear pillar finisher (LH/RH). Refer to

INT-39, "Removal and Installation"

.

1.

Rear sunshade

2.

Child anchor cover

3.

Rear parcel shelf finisher

: Clip

JMJIA1802ZZ

: Pawl

JMJIA1780ZZ
