Nissan Teana J32. Manual - part 753





INT-32

< ON-VEHICLE REPAIR >

FRONT DOOR FINISHER

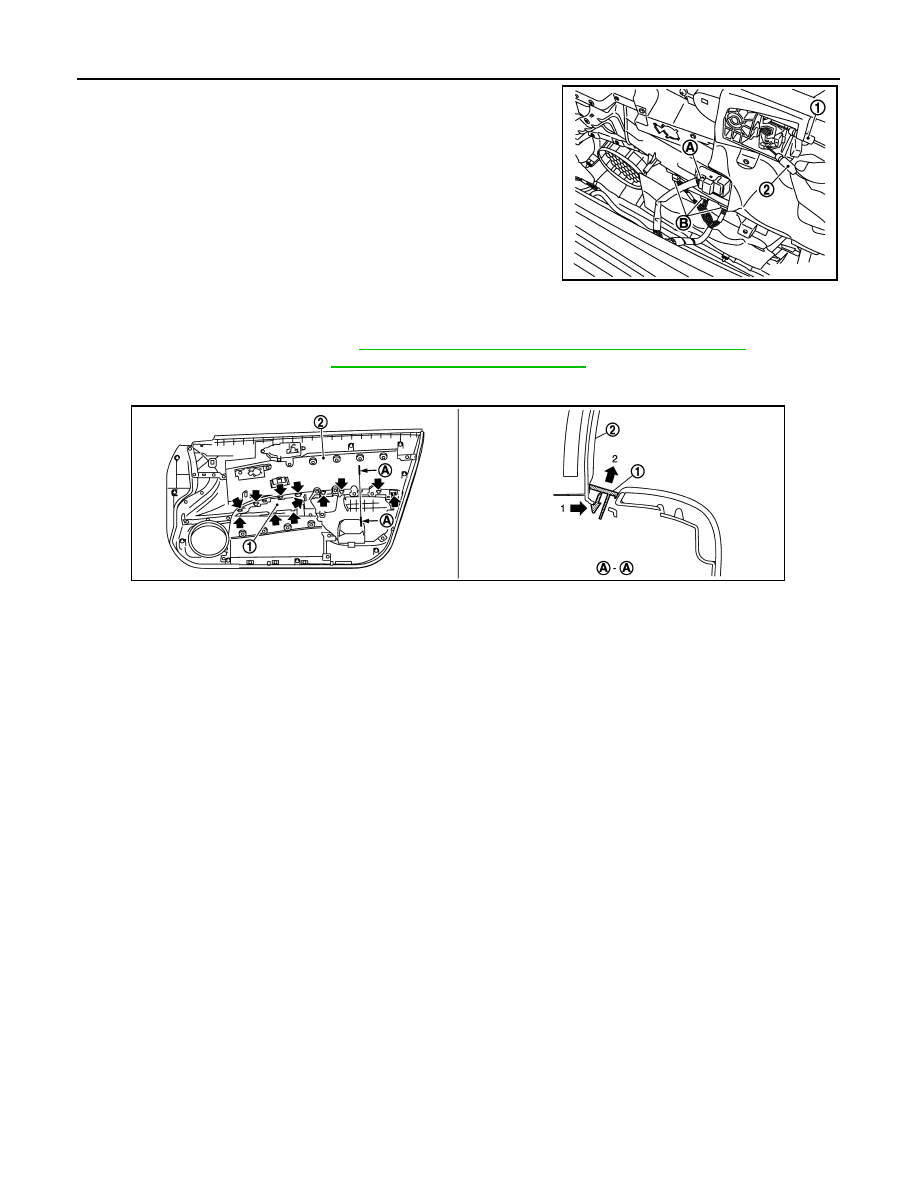

7.

Disconnect lock knob cable (1), inside handle cable (2), power
window switch finisher harness connectors (B) and seat memory
switch harness connector (A).

8.

Remove front door finisher.

9.

Remove the following parts after removing front door finisher.
• Front door inside handle. Refer to

DLK-223, "INSIDE HANDLE : Removal and Installation"

.

• Seat memory switch. Refer to

ADP-137, "Removal and Installation"

.

• Disengage power window switch finisher (1) pawls as shown by the figure by pressing them toward the

arrow, then remove the power window switch finisher (1) from the door finisher (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

PASSENGER SIDE

JMJIA1761ZZ

JMJIA1954ZZ

FRONT DOOR FINISHER

INT-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

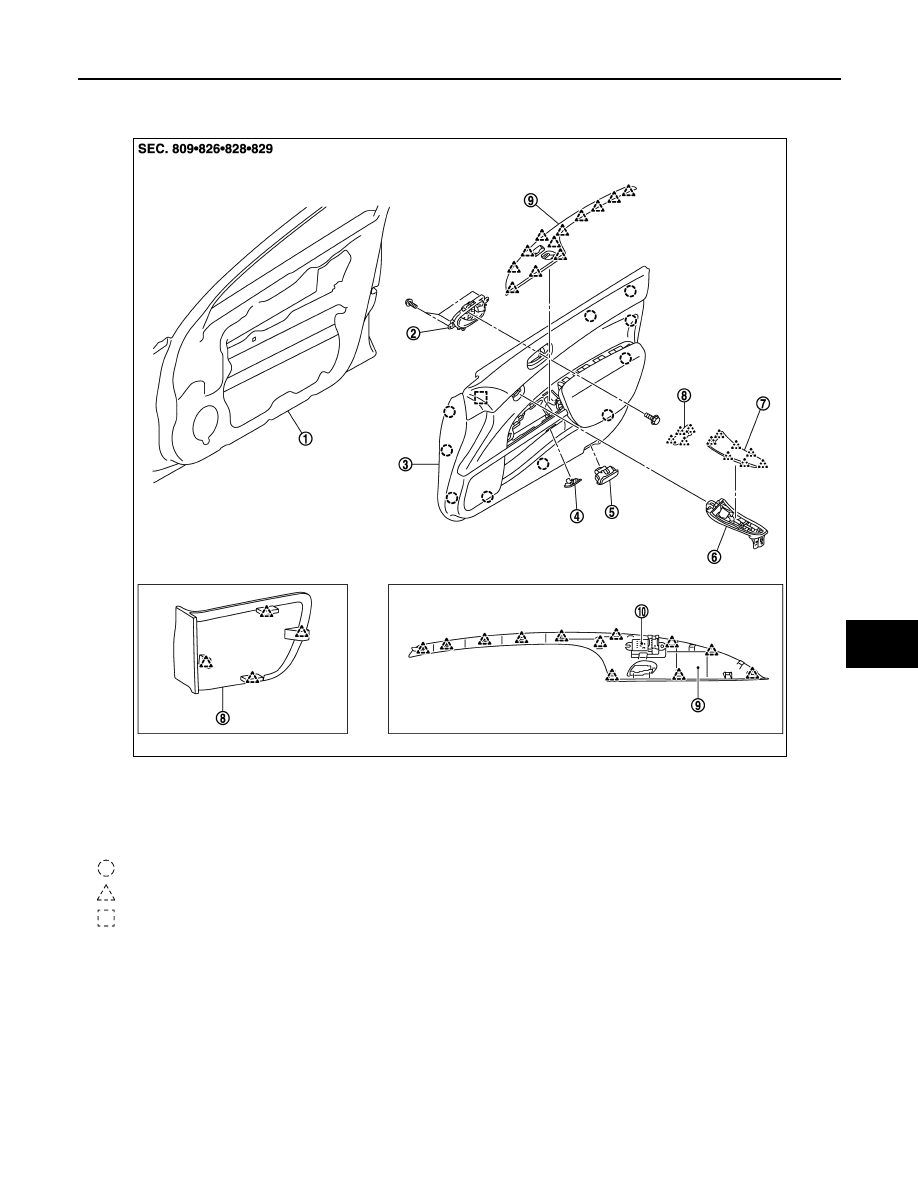

PASSENGER SIDE : Exploded View

INFOID:0000000003819218

PASSENGER SIDE : Removal and Installation

INFOID:0000000003819219

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth before remove.

REMOVAL

1.

Fully open door window.

1.

Front door panel

2.

Front door inside handle

3.

Front door finisher

4.

Cap

5.

Step lamp

6.

Front door grip

7.

Front door grip cover

8.

Inside handle escutcheon

9.

Power window switch finisher

10. Power window switch

: Clip

: Pawl

: Metal clip

JMJIA1799ZZ

INT-34

< ON-VEHICLE REPAIR >

FRONT DOOR FINISHER

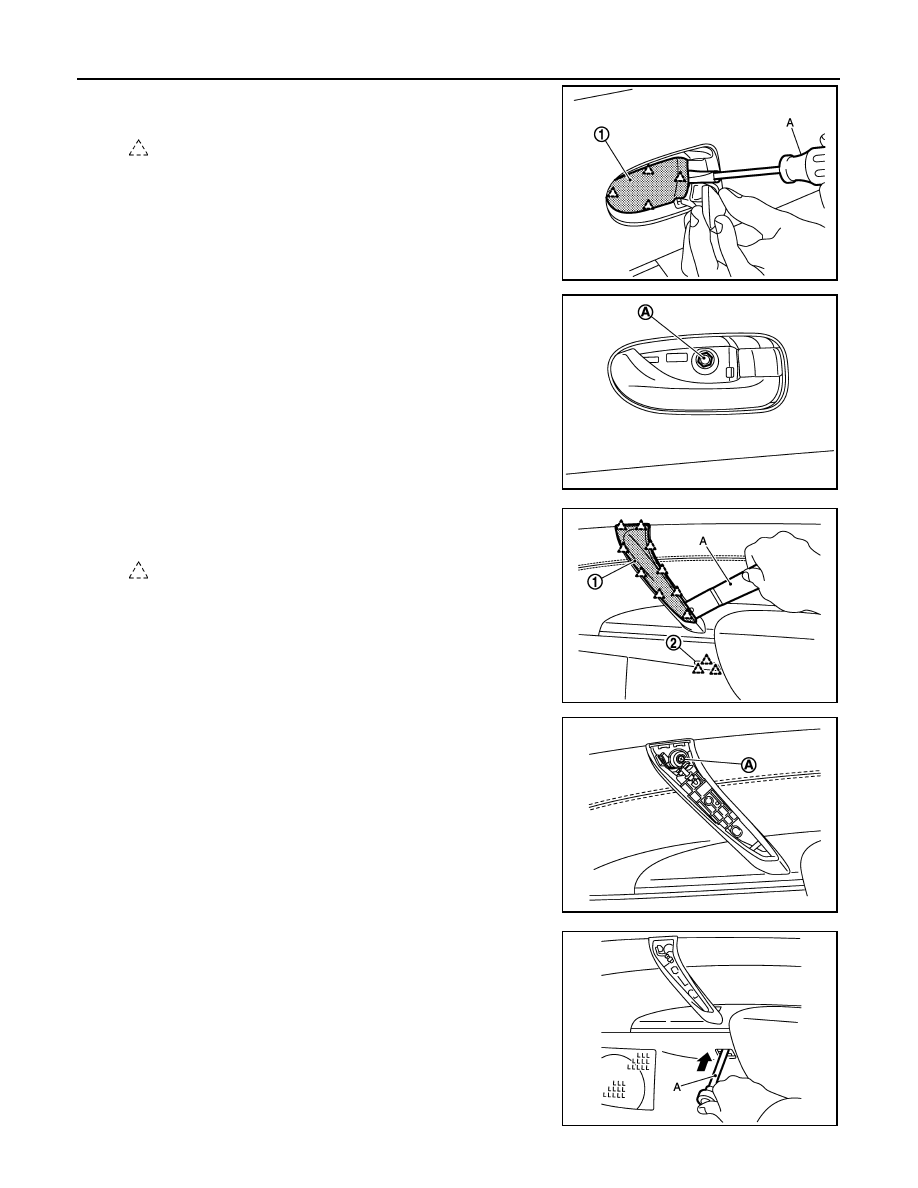

2.

Remove inside handle escutcheon (1) with a flat-bladed screw-
driver (A) wrapped in a tape as shown in the figure.

3.

Remove screw (A) located on the back side of inside handle
escutcheon.

4.

Disengage the front door grip cover (1) and cap (2) fixing pawls
with a remover tool (A).

5.

Remove front door grip fixing bolt (A) with tool.

6.

Remove front door finisher fixing bolt with tool (A) as shown in
the figure.

: Pawl

JMJIA1756ZZ

JMJIA1758ZZ

: Pawl

JMJIA1763ZZ

JMJIA1765ZZ

JMJIA1767ZZ

FRONT DOOR FINISHER

INT-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

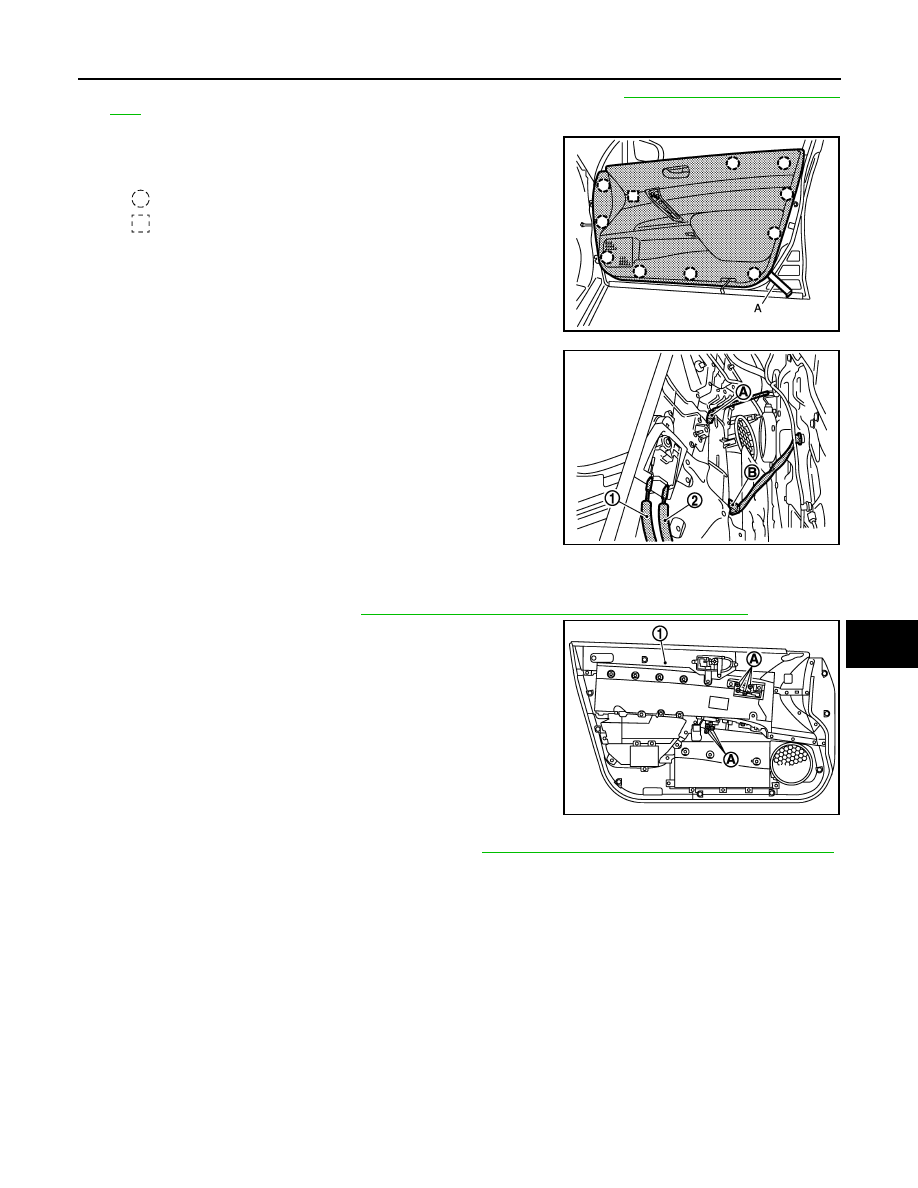

7.

Remove step lamp and then disconnect the harness connector. Refer to

INL-96, "Removal and Installa-

tion"

.

8.

Insert a remover tool (A) between door finisher and door panel
to disengage the clips and metal clip.

CAUTION:

Insert a remover tool (A) into the part shown in the figure.
(Between the clips and the door panel)

9.

Disconnect lock knob cable (1), inside handle cable (2), power
window switch harness connector (B) and mood lamp harness
connector (A).

10. Remove the front door finisher.

11. Remove the following parts after removing the door finisher.

• Front door inside handle. Refer to

DLK-223, "INSIDE HANDLE : Removal and Installation"

.

• Remove the front door grip fixing screws (A), then remove the

door grip from the door finisher (1).

• Remove the power window switch finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

: Clip

: Metal clip

JMJIA1770ZZ

JMJIA1769ZZ

JMJIA1955ZZ
