INT-28

< PRECAUTION >

PRECAUTIONS

Precaution for Procedure without Cowl Top Cover

INFOID:0000000003819212

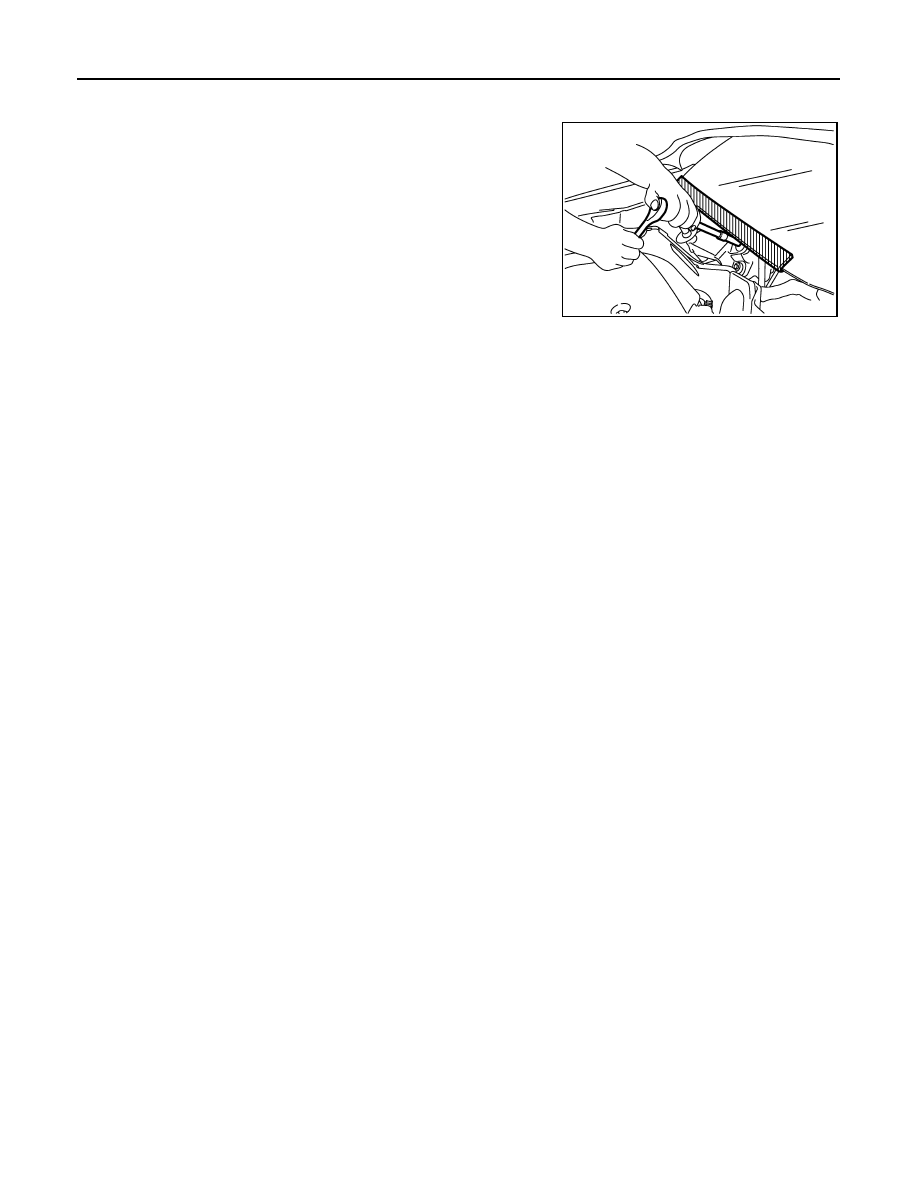

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Work

INFOID:0000000003819213

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

PREPARATION

INT-29

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000003819215

Tool name

Description

Engine ear

Location the noise

Remover tool

Removes clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

INT-30

< ON-VEHICLE REPAIR >

FRONT DOOR FINISHER

ON-VEHICLE REPAIR

FRONT DOOR FINISHER

DRIVER SIDE

DRIVER SIDE  : Exploded View

INFOID:0000000003819216

DRIVER SIDE  : Removal and Installation

INFOID:0000000003819217

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth before remove.

REMOVAL

1.

Front door panel

2.

Front door inside handle

3.

Power window switch finisher

4.

Front door finisher

5.

Inside handle escutcheon

6.

Step lamp

7.

Cap

8.

Seat memory switch finisher

9.

Power window switch

10. Door mirror remote control switch

: Clip

: Pawl

: Metal clip

JMJIA1798ZZ

FRONT DOOR FINISHER

INT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

1.

Fully open door window.

2.

Remove inside handle escutcheon (1) with a flat-bladed screw-
driver (A) wrapped in a tape as shown in the figure.

3.

Remove screw (A) located on the back side of inside handle
escutcheon.

4.

Remove the cap and front door finisher fixing bolt as shown in
the figure with tool (A).

5.

Remove step lamp and then disconnect the harness connector. Refer to

INL-95, "Removal and Installa-

tion"

.

6.

Insert a remover tool (A) between the door finisher and door
panel to disengage the clips and pawl.

CAUTION:

Insert a remover tool (A) into the part shown in the figure.
(Between the clips and the door panel)

: Pawl

JMJIA1755ZZ

JMJIA1757ZZ

JMJIA1759ZZ

: Clip

: Metal clip

JMJIA1760ZZ
