Nissan Teana J32. Manual - part 607

EXT-38

< ON-VEHICLE REPAIR >

TRUNK LID FINISHER

TRUNK LID FINISHER

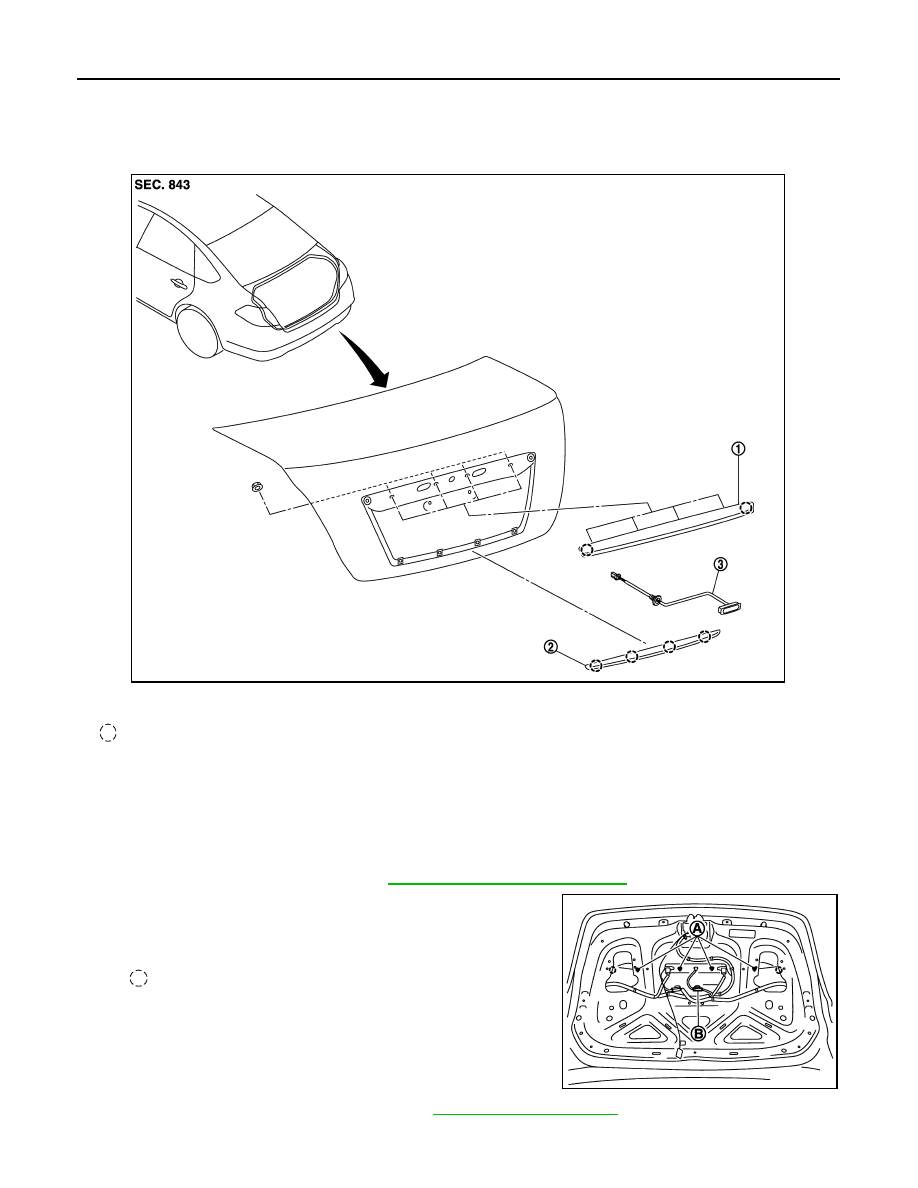

Exploded View

INFOID:0000000003819553

Removal and Installation

INFOID:0000000003819554

REMOVAL

TRUNK LID FINISHER

1.

Fully open trunk lid.

2.

Remove trunk lid finisher inner. Refer to

INT-59, "Removal and Installation"

.

3.

Remove trunk lid finisher mounting nuts (A) and disconnect
trunk opener request switch harness connector (B).

4.

Disengage trunk lid finisher fixing clips.

5.

Remove trunk opener request switch. Refer to

DLK-242, "Exploded View"

.

1.

Trunk lid finisher

2.

Trunk lid molding

3.

Trunk opener request switch

: Clip

JMKIA2547ZZ

: Clip

JMKIA2548ZZ

TRUNK LID FINISHER

EXT-39

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

TRUNK LID MOLDING

1.

Fully open trunk lid.

2.

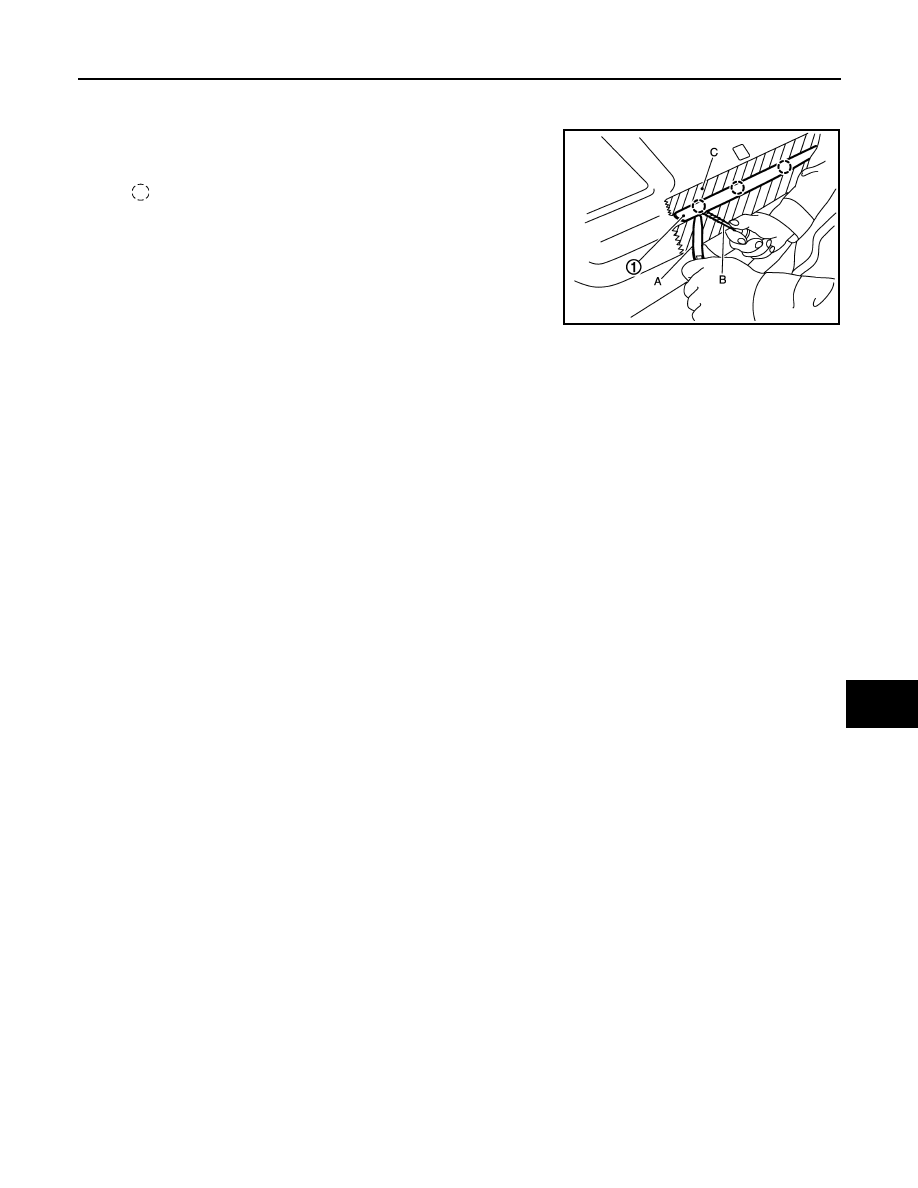

Remove trunk lid molding (1) fixing clips, using remover tool (A
and B).

CAUTION:

Apply a protective tape (C) on the trunk lid to protect the
painted surface from damage.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing, visually check the trunk lid molding and the clips, then replace them with new parts if
are damaged.

: Clip

JMKIA2631ZZ
