EXL-194

< ON-VEHICLE REPAIR >

[XENON TYPE]

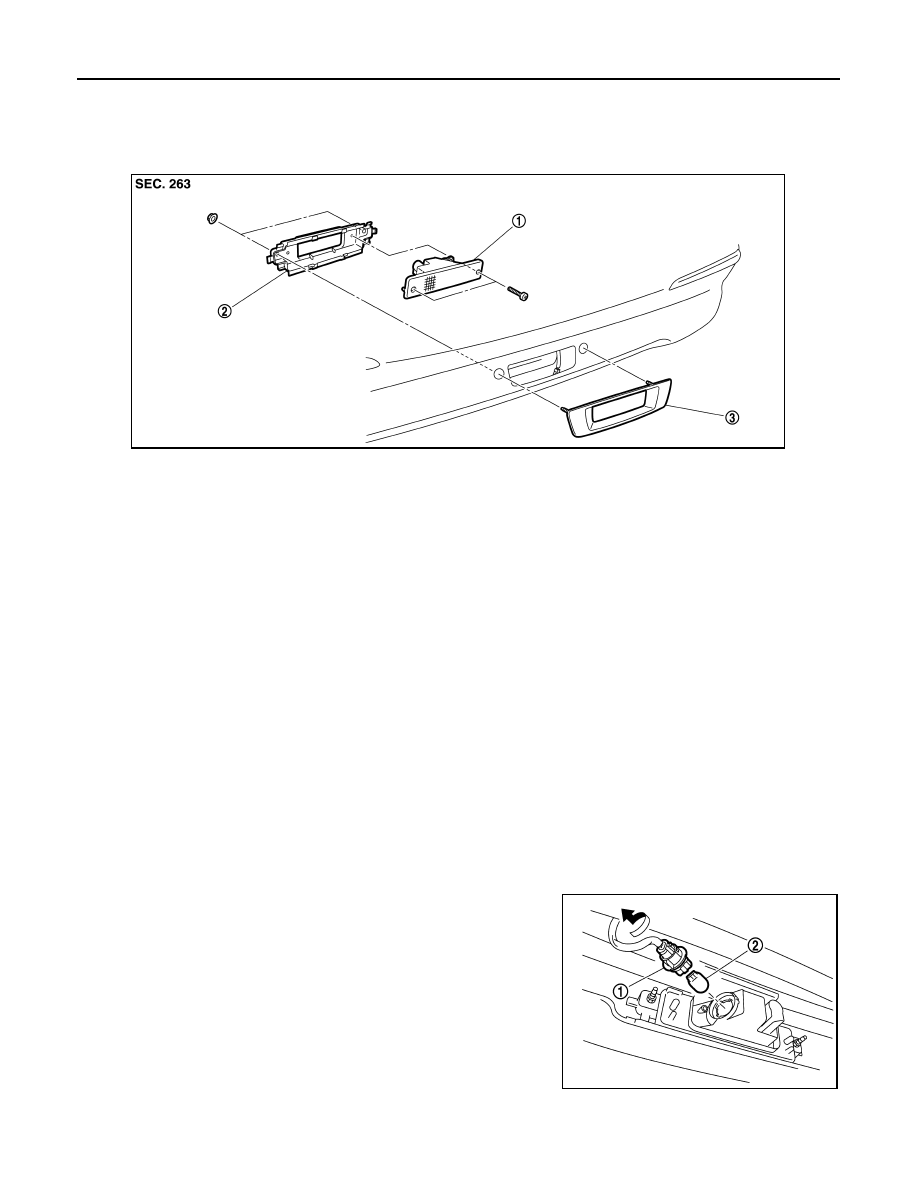

REAR FOG LAMP

REAR FOG LAMP

Exploded View

INFOID:0000000003774379

Removal and Installation

INFOID:0000000003774380

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Disconnect the rear fog lamp connector.

2.

Remove the nuts. And then remove the rear fog lamp rim.

3.

Remove the screw. And then remove the rear fog lamp from the rear fog lamp rim.

INSTALLATION

Installation is the reverse order of removal.

Replacement

INFOID:0000000003774381

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR FOG LAMP BULB

1.

Turn the bulb socket (1) counterclockwise and unlock it.

2.

Remove the bulb (2) from the rear fog lamp bulb socket.

1.

Rear fog lamp

2.

Rear fog lamp bracket

3.

Rear fog lamp finisher

JPLIA1102ZZ

JPLIA1103ZZ

LICENSE PLATE LAMP

EXL-195

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

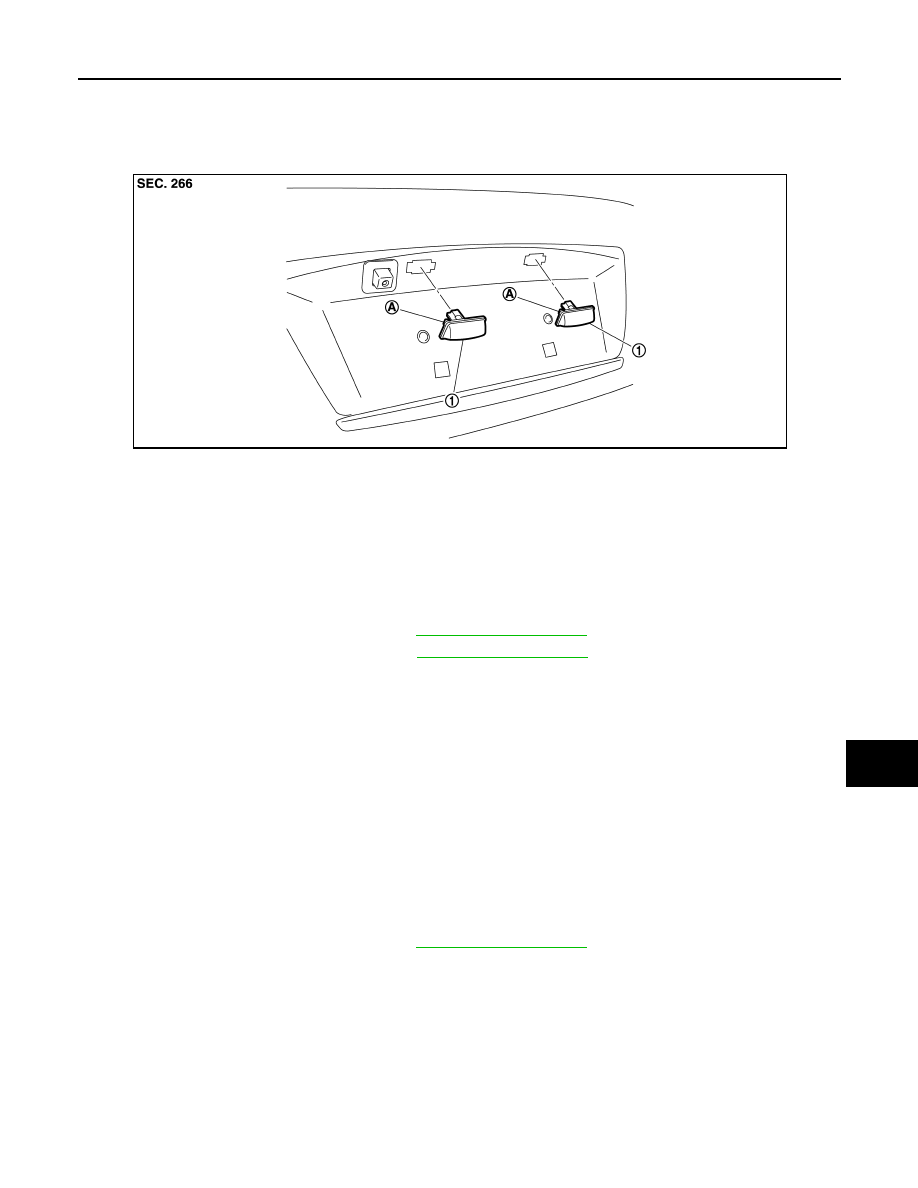

LICENSE PLATE LAMP

Exploded View

INFOID:0000000003773642

Removal and Installation

INFOID:0000000003773643

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the trunk lid finisher inner. Refer to

INT-59, "Exploded View"

.

2.

Remove the trunk lid finisher outer. Refer to

INT-59, "Exploded View"

.

3.

Remove the license plate lamp while pushing a resin clip.

4.

Disconnect the license plate lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000003773644

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove the trunk lid finisher inner. Refer to

INT-59, "Exploded View"

.

1.

License plate lamp

A.

Resin clip

JPLIA1100ZZ

EXL-196

< ON-VEHICLE REPAIR >

[XENON TYPE]

LICENSE PLATE LAMP

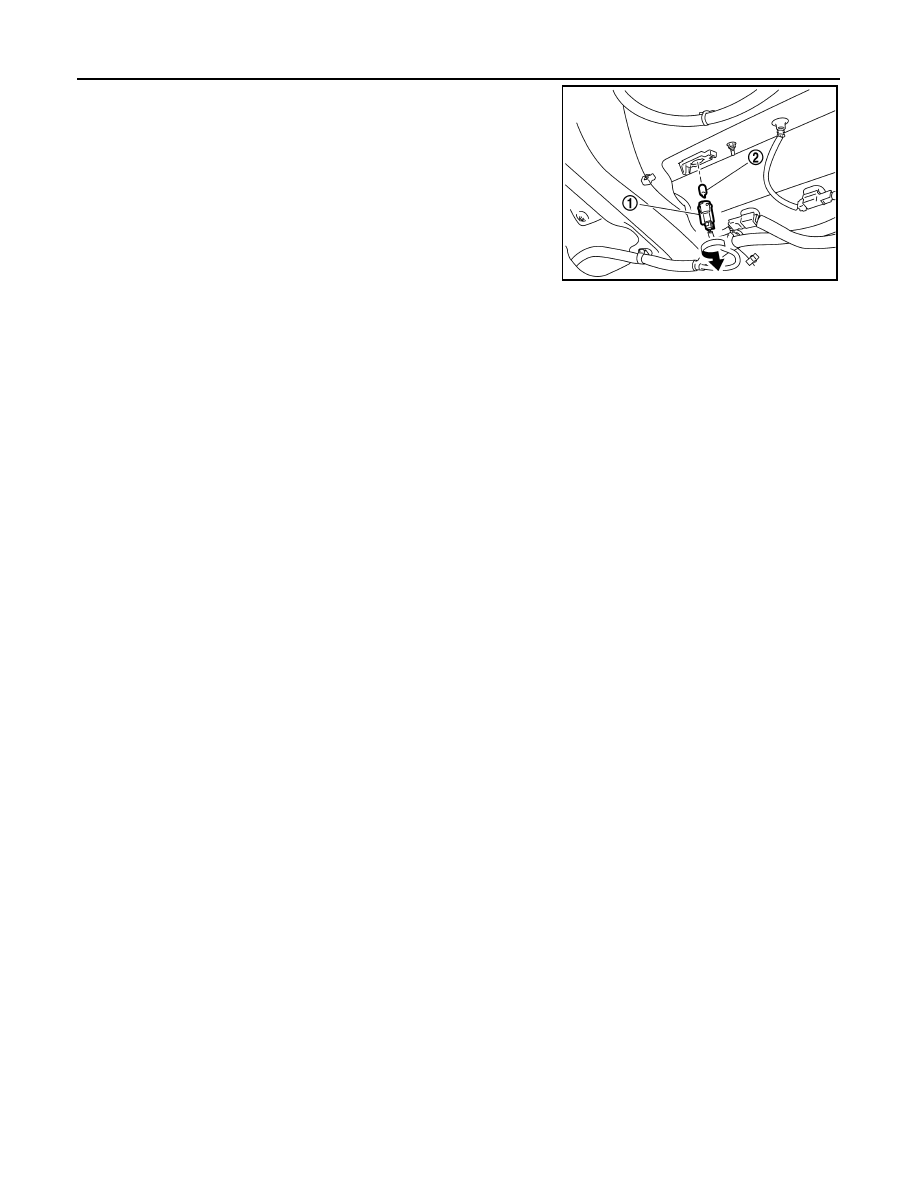

2.

Turn the license plate lamp bulb socket (1) counterclockwise
and unlock it.

3.

Remove the bulb (2) from the license plate lamp bulb socket.

JPLIA1101ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-197

< SERVICE DATA AND SPECIFICATIONS (SDS)

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000003774382

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

H9

65

Headlamp (LO)

D2R

35

Parking Lamp

W5W

5

Front turn signal

WY21W (Amber)

21

Front fog lamp

H11

55

Front side turn signal lamp (integrated into the door mirror)

LED

—

Rear combination lamp

Stop/tail lamp

LED

—

Rear turn signal lamp

S25 (Amber)

21

Back-up lamp

W16W

16

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

Rear fog lamp

W21W

21
