LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000003773628

Removal and Installation

INFOID:0000000003773629

Lighting & turn signal switch is integrated in the combination switch. Refer to

BCS-79, "Exploded View"

.

HAZARD SWITCH

EXL-187

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

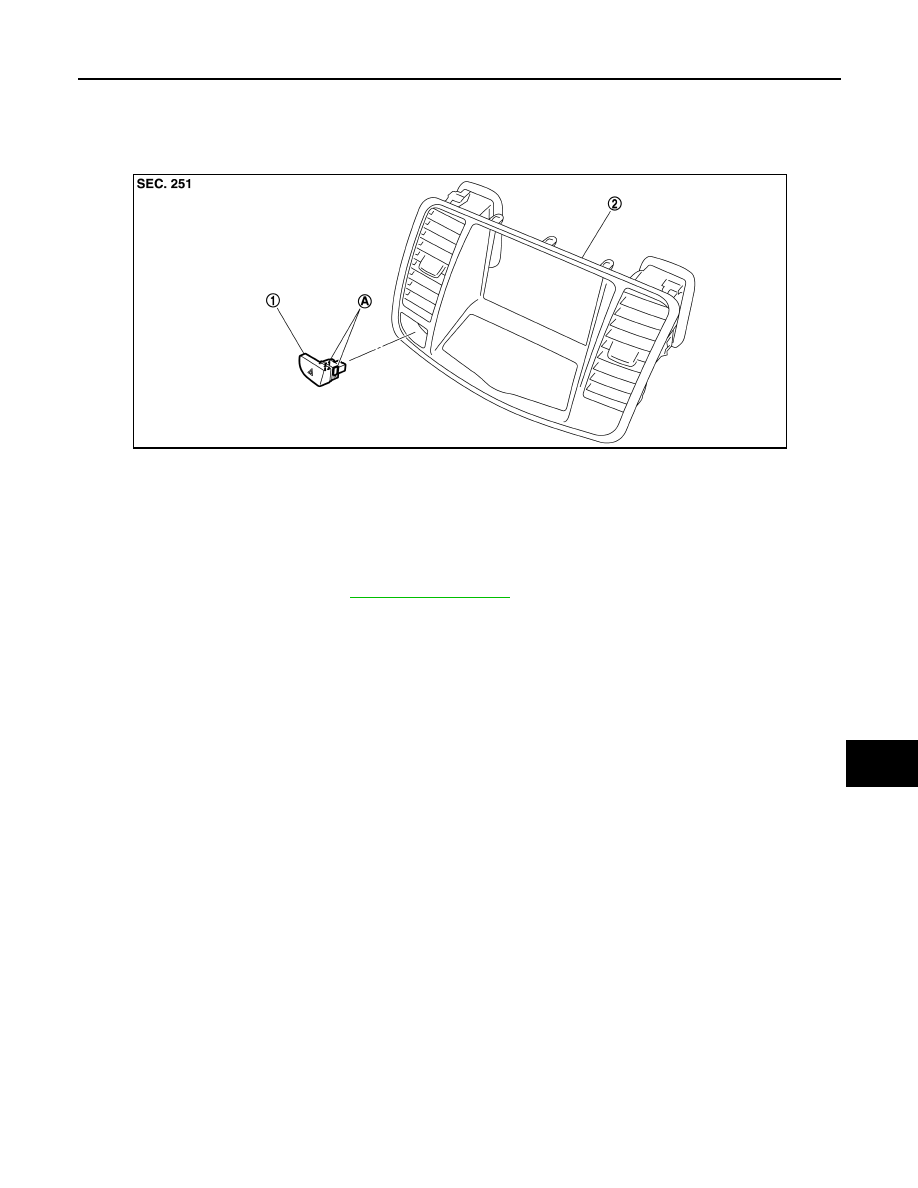

Exploded View

INFOID:0000000003773630

Removal and Installation

INFOID:0000000003773631

REMOVAL

1.

Remove the cluster lid D. Refer to

IP-11, "Exploded View"

.

2.

Disengage the pawls. And then remove the hazard switch.

INSTALLATION

Install in the reverse order of removal.

1.

Hazard switch

2.

Cluster lid D

A.

Pawls

JPLIA1093ZZ

EXL-188

< ON-VEHICLE REPAIR >

[XENON TYPE]

SIDE TURN SIGNAL LAMP

SIDE TURN SIGNAL LAMP

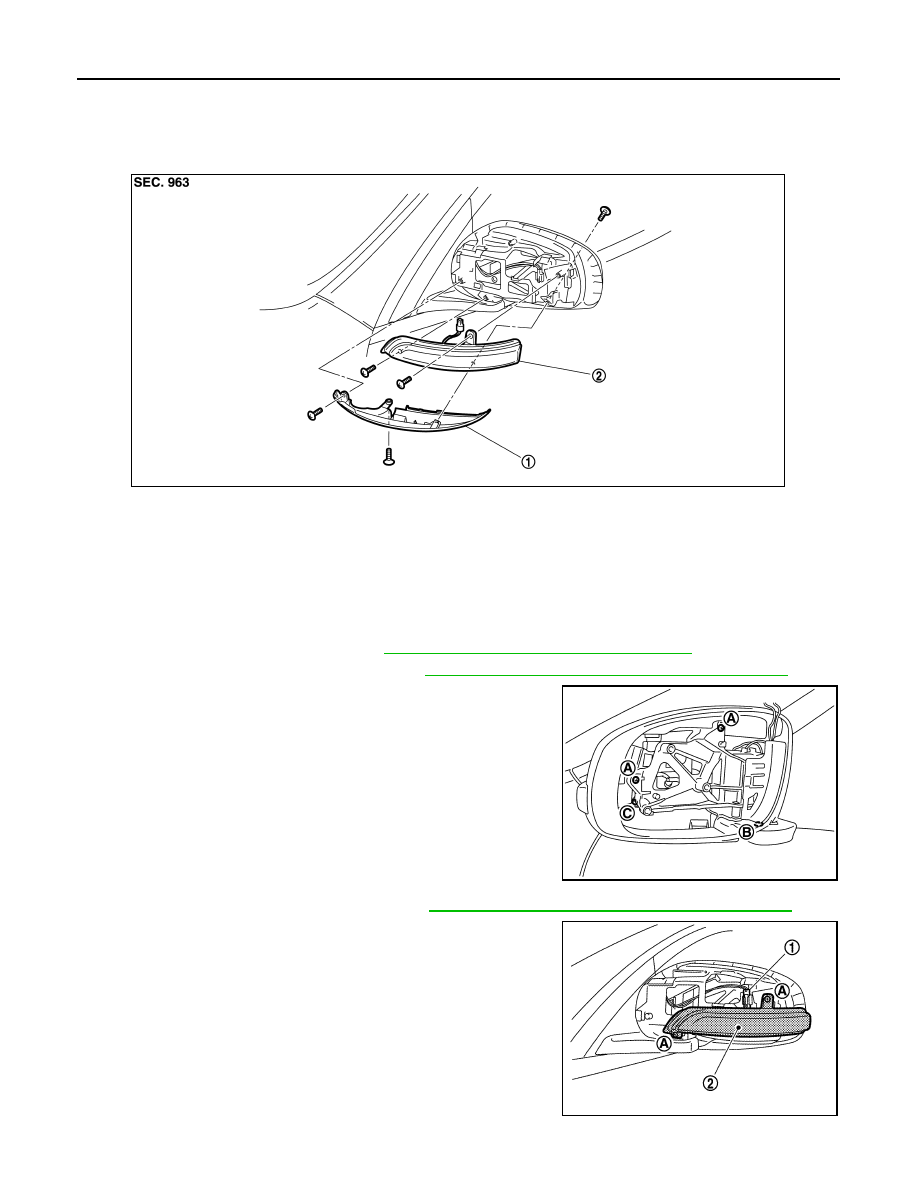

Exploded View

INFOID:0000000003816250

Removal and Installation

INFOID:0000000003816251

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the door mirror glass. Refer to

MIR-18, "GLASS MIRROR : Exploded View"

.

2.

Remove the door mirror outer cover. Refer to

MIR-19, "DOOR MIRROR COVER : Exploded View"

.

3.

Remove the door mirror actuator mounting screws (A) and (B).
And then remove the side turn signal lamp mounting screw (C).

4.

Remove the door mirror under cover. Refer to

MIR-19, "DOOR MIRROR COVER : Exploded View"

.

5.

Remove the screws (A) and connector (1). And then remove the
side turn signal lamp (2).

INSTALLATION

1.

Side turn signal lamp

2.

Door mirror under cover

JPLIA1094ZZ

JPLIA1095ZZ

JPLIA1096ZZ

SIDE TURN SIGNAL LAMP

EXL-189

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Install in the reverse order of removal.
