EXL-182

< ON-VEHICLE REPAIR >

[XENON TYPE]

FRONT COMBINATION LAMP

1.

Remove the relay box cover

*

. Refer to

PCS-34, "Exploded View"

.

*: When replace a left

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the front turn signal lamp bulb socket.

Disassembly and Assembly

INFOID:0000000003773622

DISASSEMBLY

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Disconnect the xenon bulb socket ground line.

3.

Rotate the xenon bulb socket counterclockwise and unlock it.

4.

Unlock the retaining spring. And then remove the xenon bulb from the headlamp housing.

5.

Rotate the halogen bulb (HI) socket counterclockwise and unlock it.

6.

Remove the halogen bulb (HI) from the headlamp housing.

7.

Remove the HID control unit installation screw.

8.

Remove the screw. And then disconnect the connector from HID control unit.

9.

Remove the xenon bulb socket from the headlamp housing.

10. Rotate the parking lamp bulb socket counterclockwise and unlock it.

11. Remove the bulb from the parking lamp bulb socket.
12. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

13. Remove the bulb from the front turn signal lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• Install HID control unit securely.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

FRONT FOG LAMP

EXL-183

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

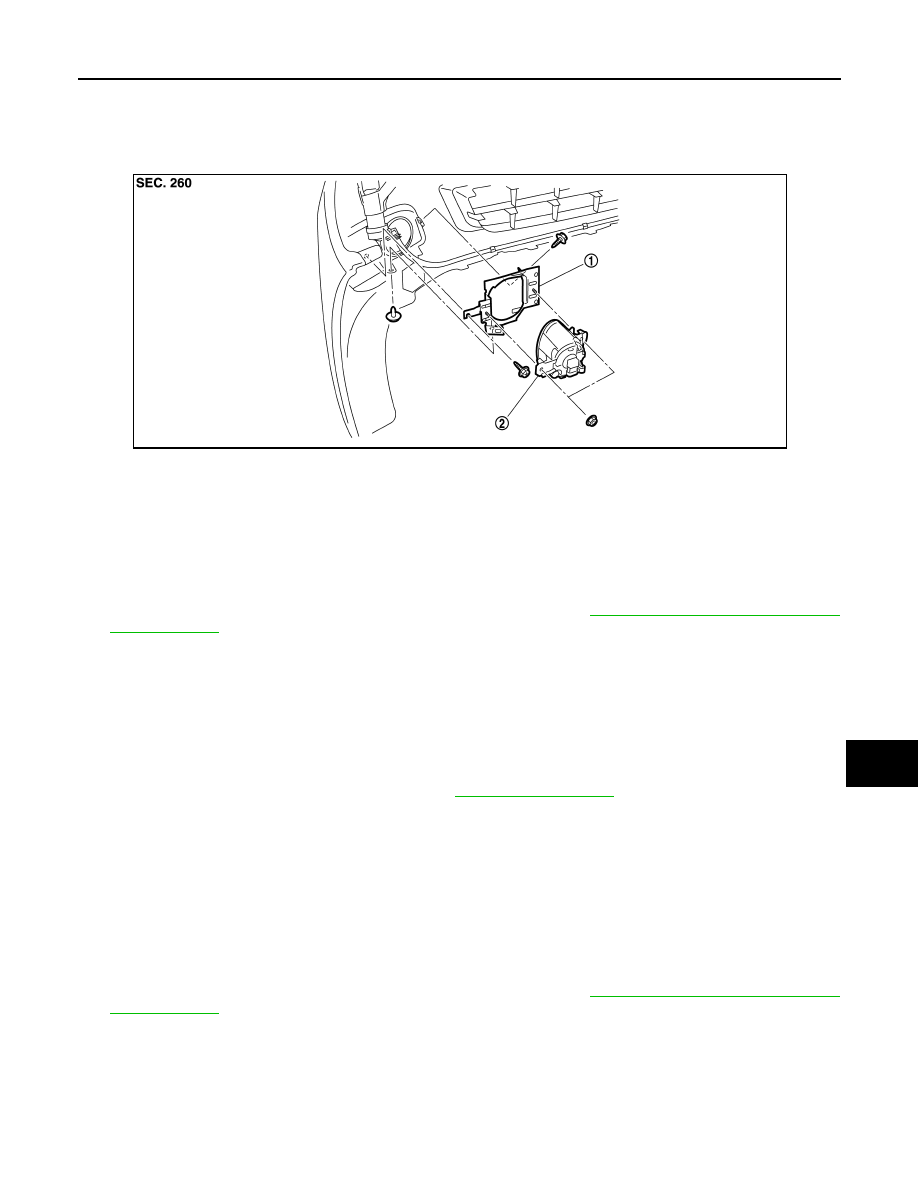

FRONT FOG LAMP

Exploded View

INFOID:0000000003773623

Removal and Installation

INFOID:0000000003773624

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the front fender protector. Keep a service area. Refer to

EXT-22, "FENDER PROTECTOR :

Exploded View"

.

2.

Remove the front fog lamp connector.

3.

Remove the mounting nuts. And then remove the front fog lamp.

NOTE:
Never remove a front fog lamp bracket, when the front fog lamp is replaced.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-178, "Description"

.

Replacement

INFOID:0000000003773625

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove the front fender protector. Keep a service area. Refer to

EXT-22, "FENDER PROTECTOR :

Exploded View"

.

1.

Front fog lamp bracket

2.

Front fog lamp

JPLIA1090ZZ

EXL-184

< ON-VEHICLE REPAIR >

[XENON TYPE]

FRONT FOG LAMP

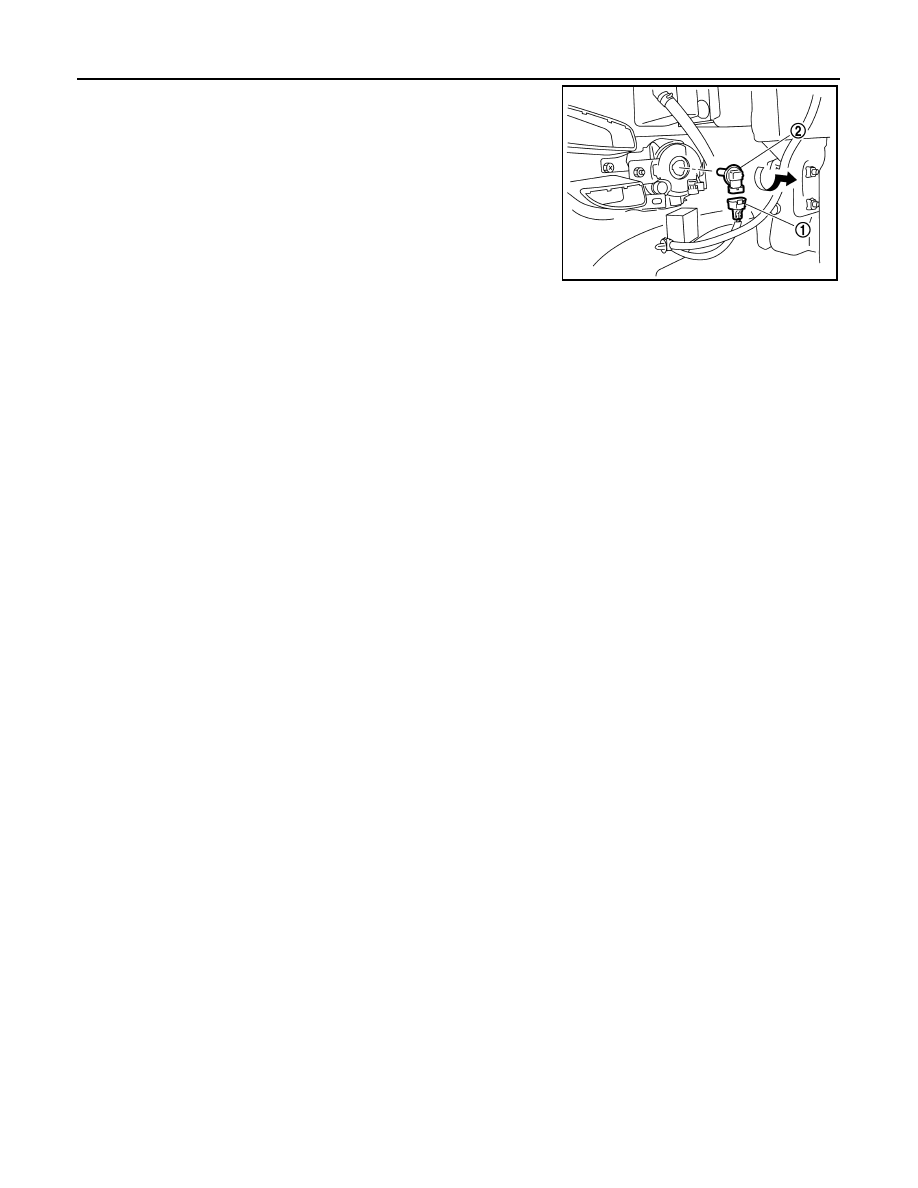

2.

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA1091ZZ

OPTICAL SENSOR

EXL-185

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

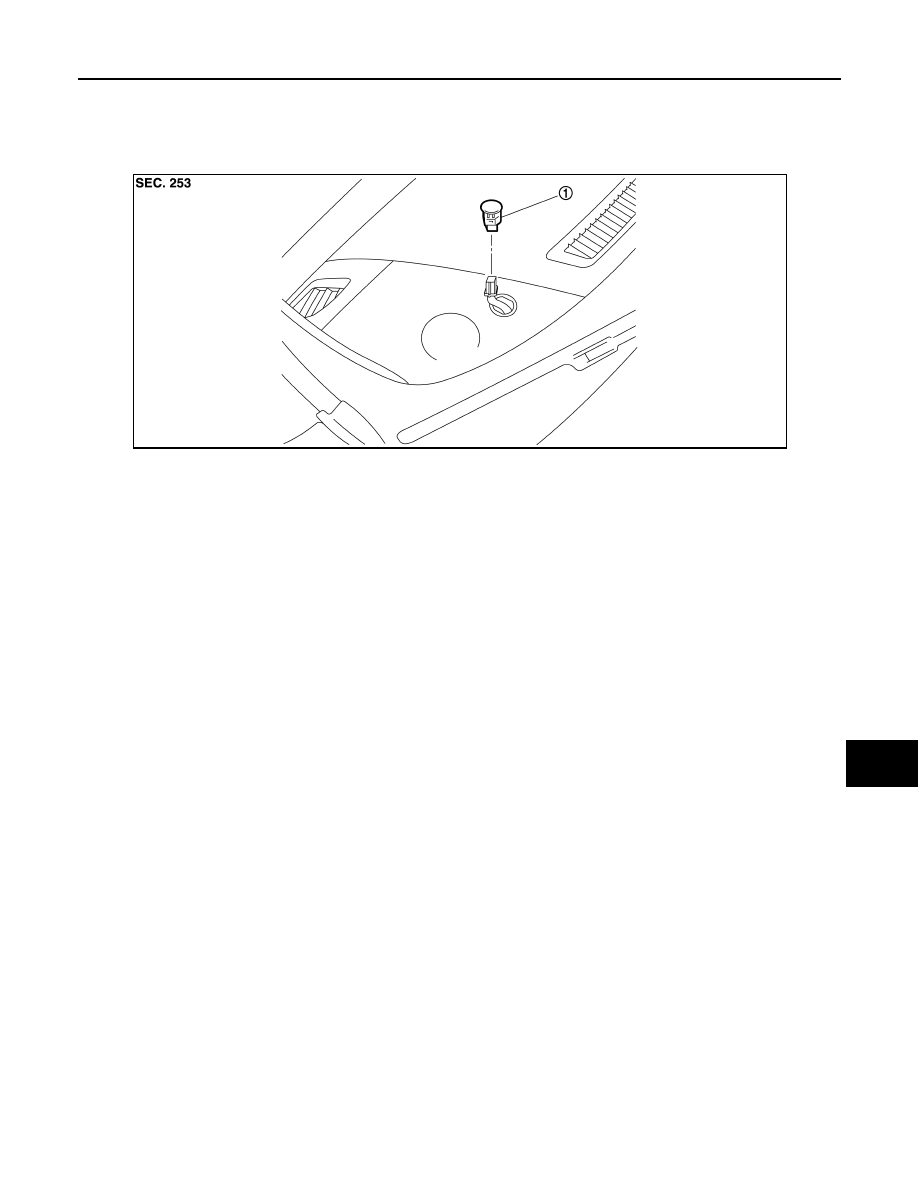

OPTICAL SENSOR

Exploded View

INFOID:0000000003773626

Removal and Installation

INFOID:0000000003773627

REMOVAL

1.

Insert an appropriate tool between the optical sensor and the speaker grille (RH). Pull out the optical sen-
sor upward.

2.

Disconnect the optical sensor connector. And then remove the optical sensor.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

JPLIA1092ZZ
