EXL-190

< ON-VEHICLE REPAIR >

[XENON TYPE]

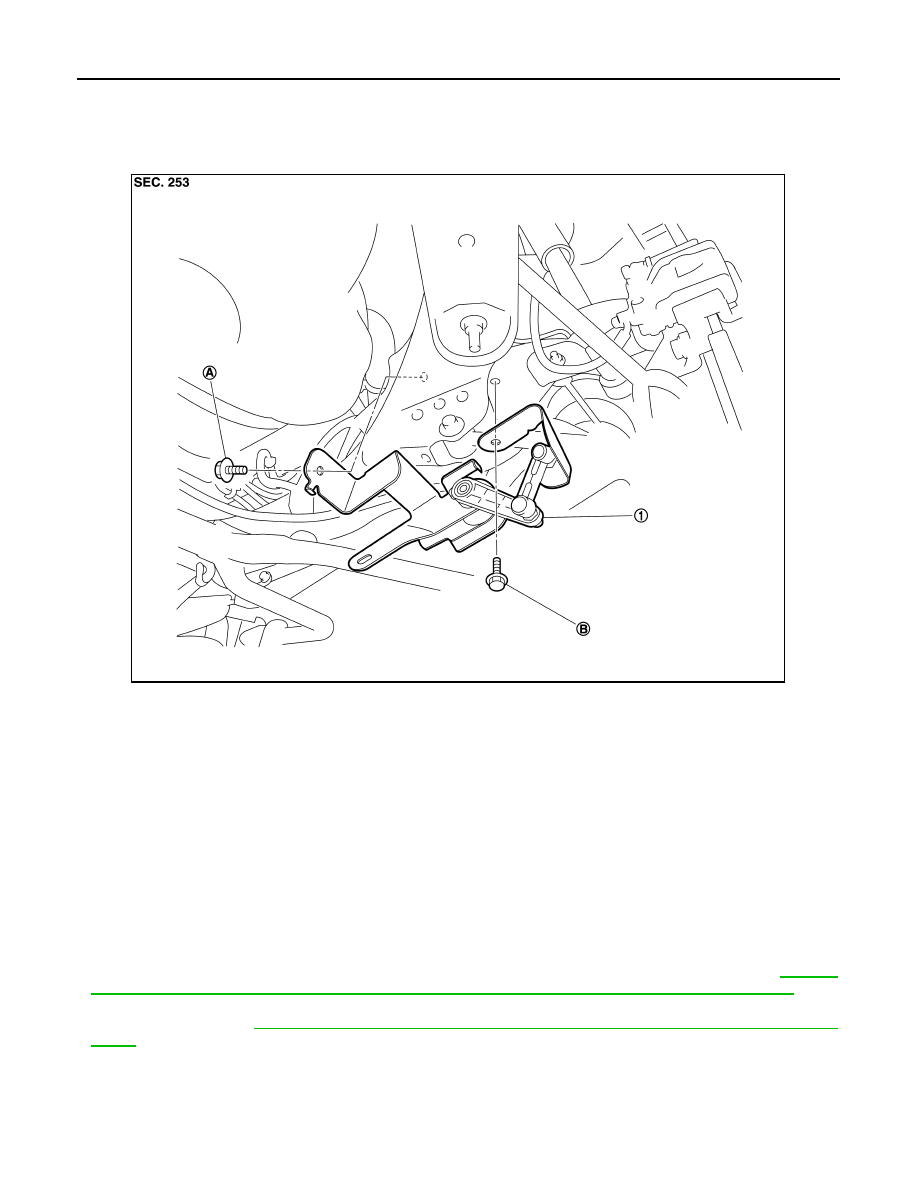

AUTO LEVELIZER CONTROL UNIT

AUTO LEVELIZER CONTROL UNIT

Exploded View

INFOID:0000000003774377

Removal and Installation

INFOID:0000000003774378

Removal

1.

Remove the auto levelizer control unit bolt.

2.

Remove the sensor lever link bracket bolt.

3.

Disconnect the auto levelizer control unit connector.

4.

Remove the auto levelizer control unit.

Installation

Install in the reverse order of removal.

CAUTION:

• Be sure to perform sensor initialization if auto levelizer control unit is removed. Refer to

EXL-10,

"SENSOR INITIALIZE : Special Repair Requirement (HEADLAMP AIMING CONTROL SYSTEM)"

.

• Be sure to perform “WRITE CONFIGURATION” with CONSULT-III when replacing the auto levelizer

control unit. Refer to

EXL-9, "CONFIGURATION (HEADLAMP LEVELIZER) : Special Repair Require-

ment"

.

1.

Auto levelizer control unit

A.

Auto levelizer control unit bolt

B.

Sensor lever link bracket bolt

JPLIA1147ZZ

REAR COMBINATION LAMP

EXL-191

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

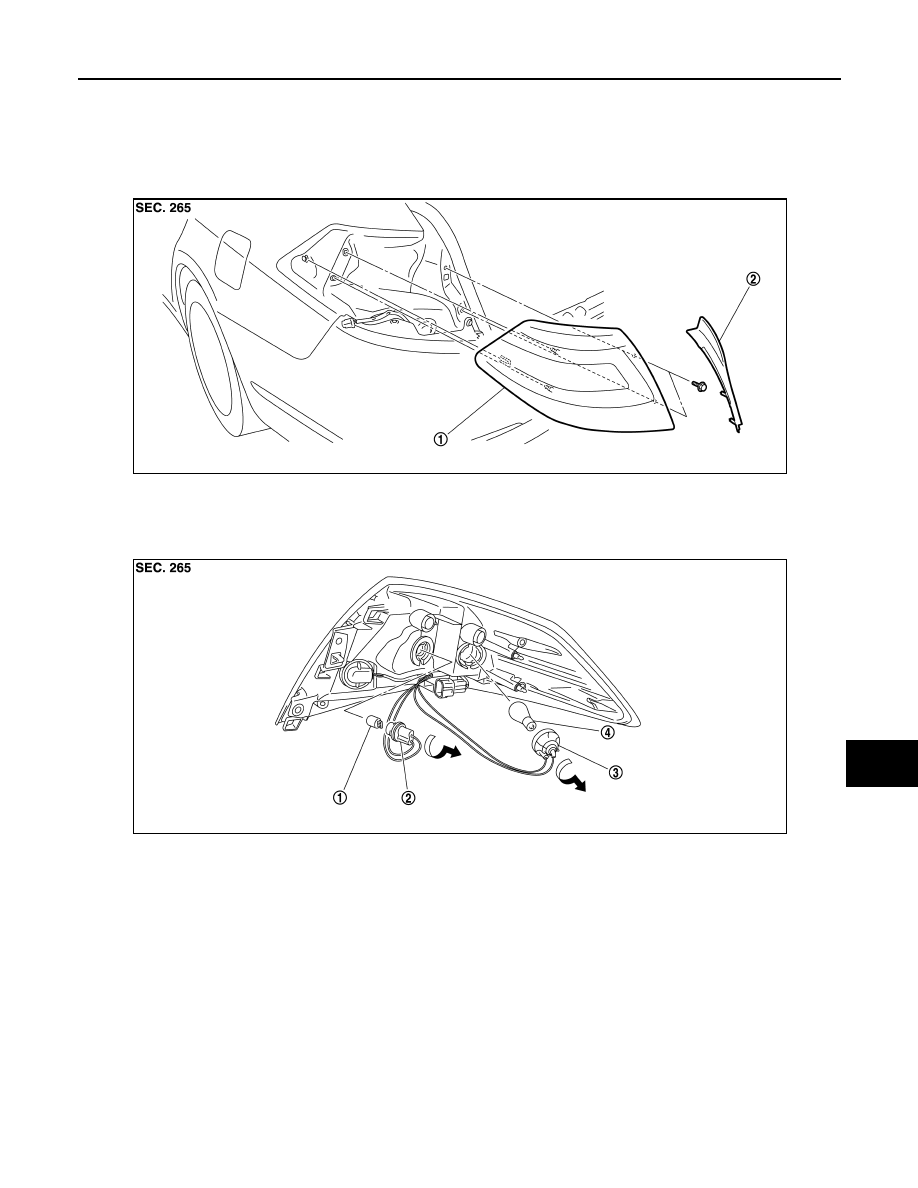

REAR COMBINATION LAMP

Exploded View

INFOID:0000000003773634

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000003773635

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear combination lamp finisher.

2.

Remove the rear combination lamp mounting bolts.

3.

Pull the rear combination lamp toward outside of the vehicle. And then remove the rear combination lamp.

4.

Disconnect the rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

1.

Rear combination lamp

2.

Rear combination lamp finisher

JPLIA1097ZZ

1.

Back-up lamp bulb

2.

Back-up lamp bulb socket

3.

Rear turn signal lamp bulb socket

4.

Rear turn signal lamp bulb

JPLIA1098ZZ

EXL-192

< ON-VEHICLE REPAIR >

[XENON TYPE]

REAR COMBINATION LAMP

Replacement

INFOID:0000000003773636

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP

Replacement integral with rear combination lamp. Refer to

EXL-191, "Exploded View"

.

REAR TURN SIGNAL LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-191, "Exploded View"

.

2.

Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the rear turn signal lamp bulb socket.

BACK-UP LAMP BULB

1.

Remove the rear combination lamp. Refer to

EXL-191, "Exploded View"

.

2.

Rotate the back-up lamp bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the back-up lamp bulb socket.

HIGH-MOUNTED STOP LAMP

EXL-193

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

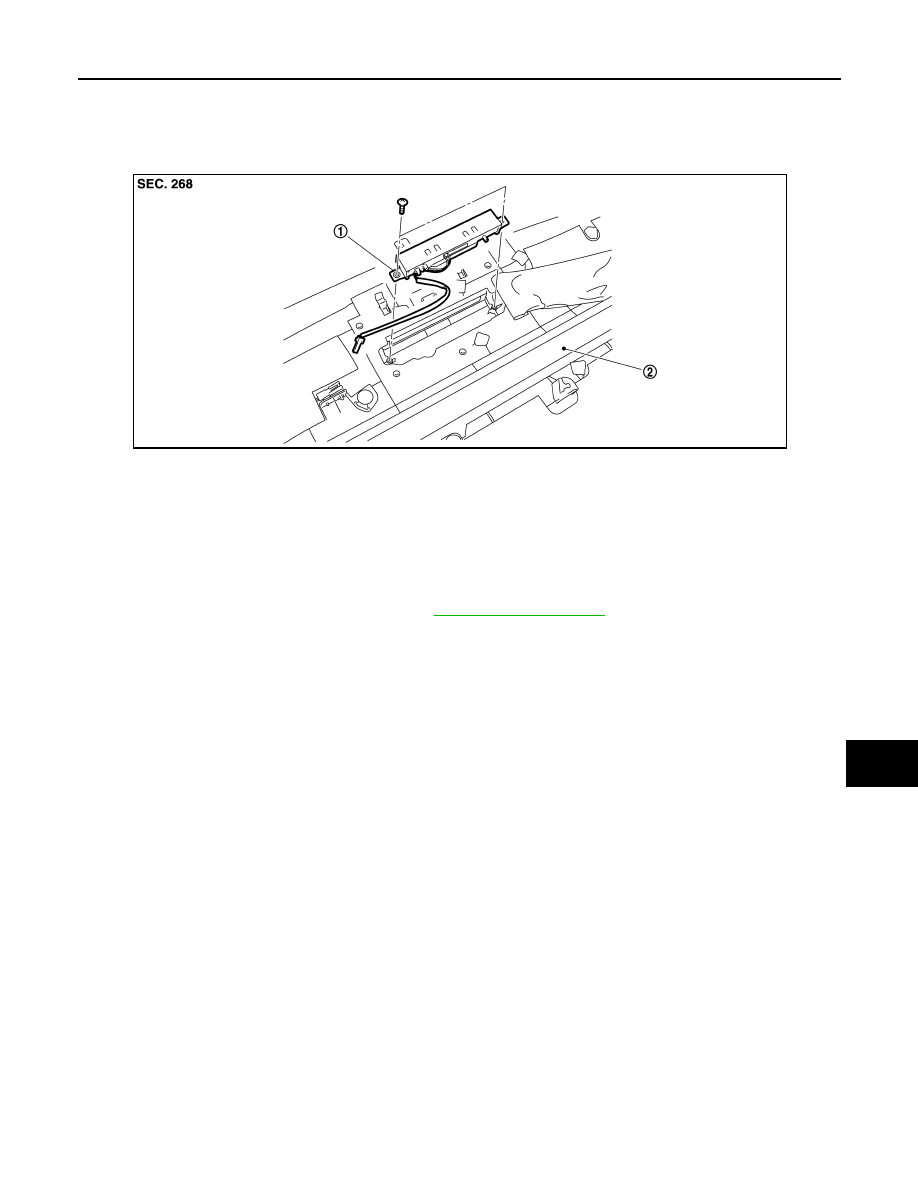

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000003773637

Removal and Installation

INFOID:0000000003773638

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the rear parcel shelf finisher. Refer to

INT-43, "Exploded View"

.

2.

Remove the screw. And then disconnect the connector.

3.

Remove the high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

1.

High-mounted stop lamp

2.

Rear parcel shelf finisher

JPLIA1099ZZ
