FRONT DOOR LOCK

DLK-223

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

• When installing each rod, rotate rod holder until a click is felt.
• Check door open/close, lock/unlock operation after installation.

INSIDE HANDLE

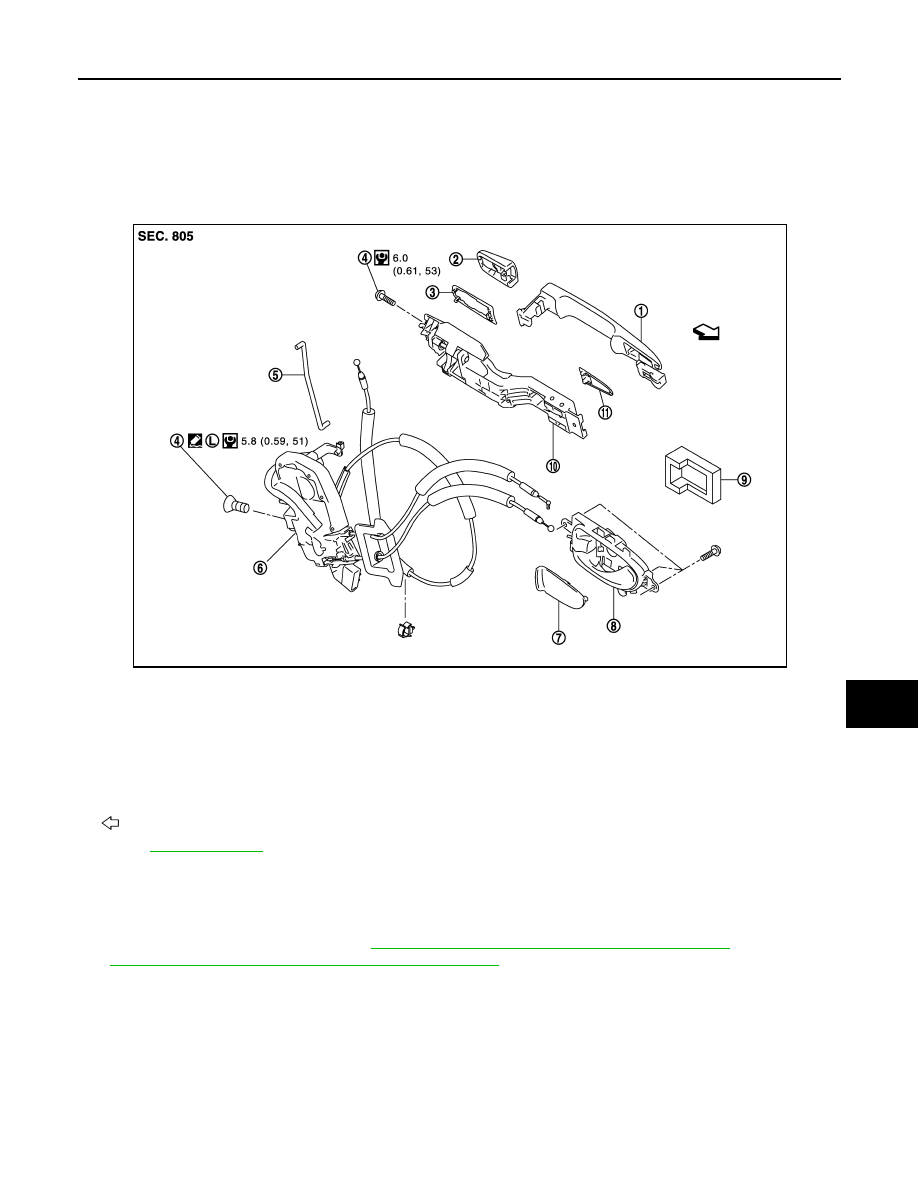

INSIDE HANDLE : Exploded View

INFOID:0000000003817716

INSIDE HANDLE : Removal and Installation

INFOID:0000000003813429

REMOVAL

1.

Remove front door finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-33, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Disconnect inside handle cable.

3.

Remove inside handle mounting screws, and then remove the inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

1.

Outside handle

2.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

3.

Rear gasket

4.

TORX bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle escutcheon

8.

Inside handle

9.

Seal

10. Outside handle bracket

11.

Front gasket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2386GB

DLK-224

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

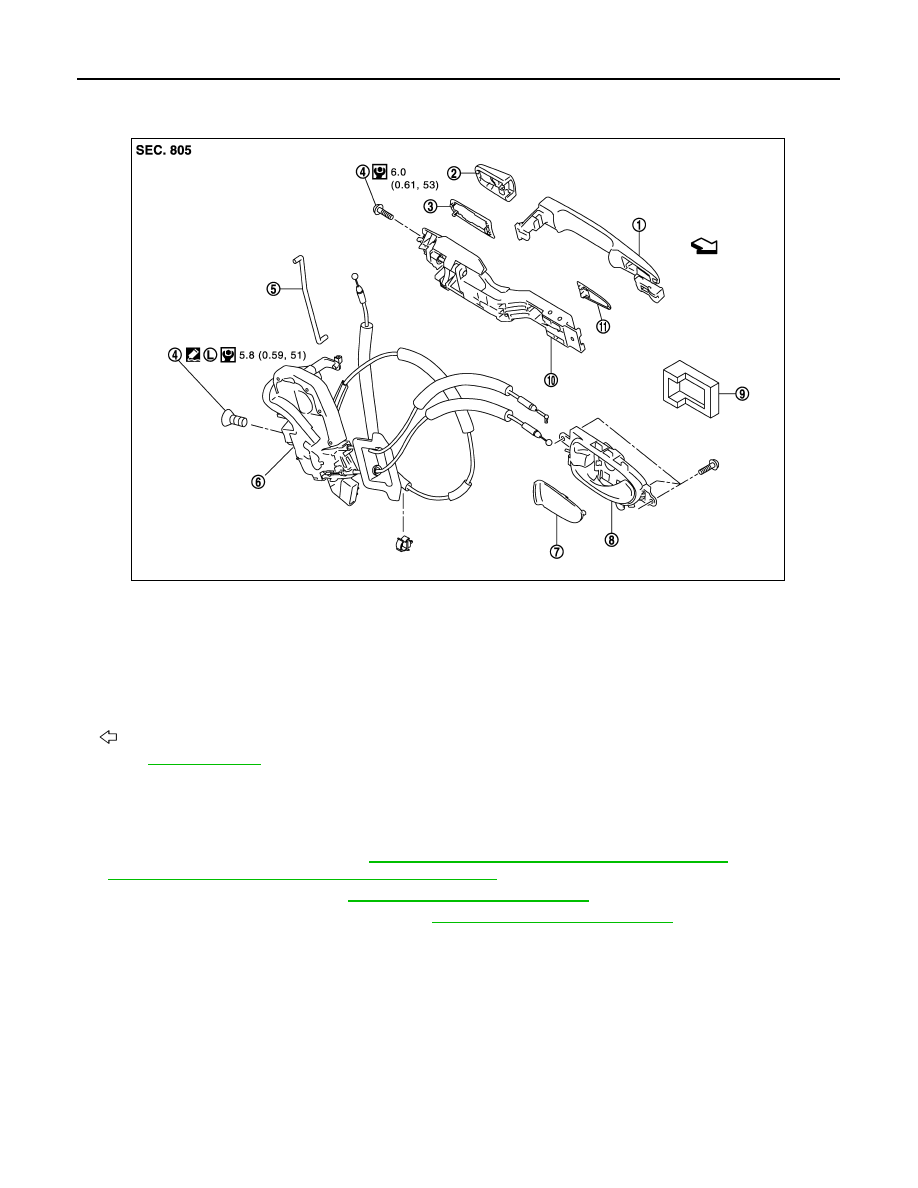

OUTSIDE HANDLE : Exploded View

INFOID:0000000003817718

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000003813431

REMOVAL

1.

Remove front door finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-33, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove front door glass. Refer to

GW-17, "Removal and Installation"

.

3.

Remove front door module assembly. Refer to

GW-20, "Removal and Installation"

.

4.

Disconnect door antenna and door request switch connector and remove harness clamp (models with
Intelligent Key system) on outside handle bracket.

1.

Outside handle

2.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

3.

Rear gasket

4.

TORX bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle escutcheon

8.

Inside handle

9.

Seal

10. Outside handle bracket

11.

Front gasket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2386GB

FRONT DOOR LOCK

DLK-225

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

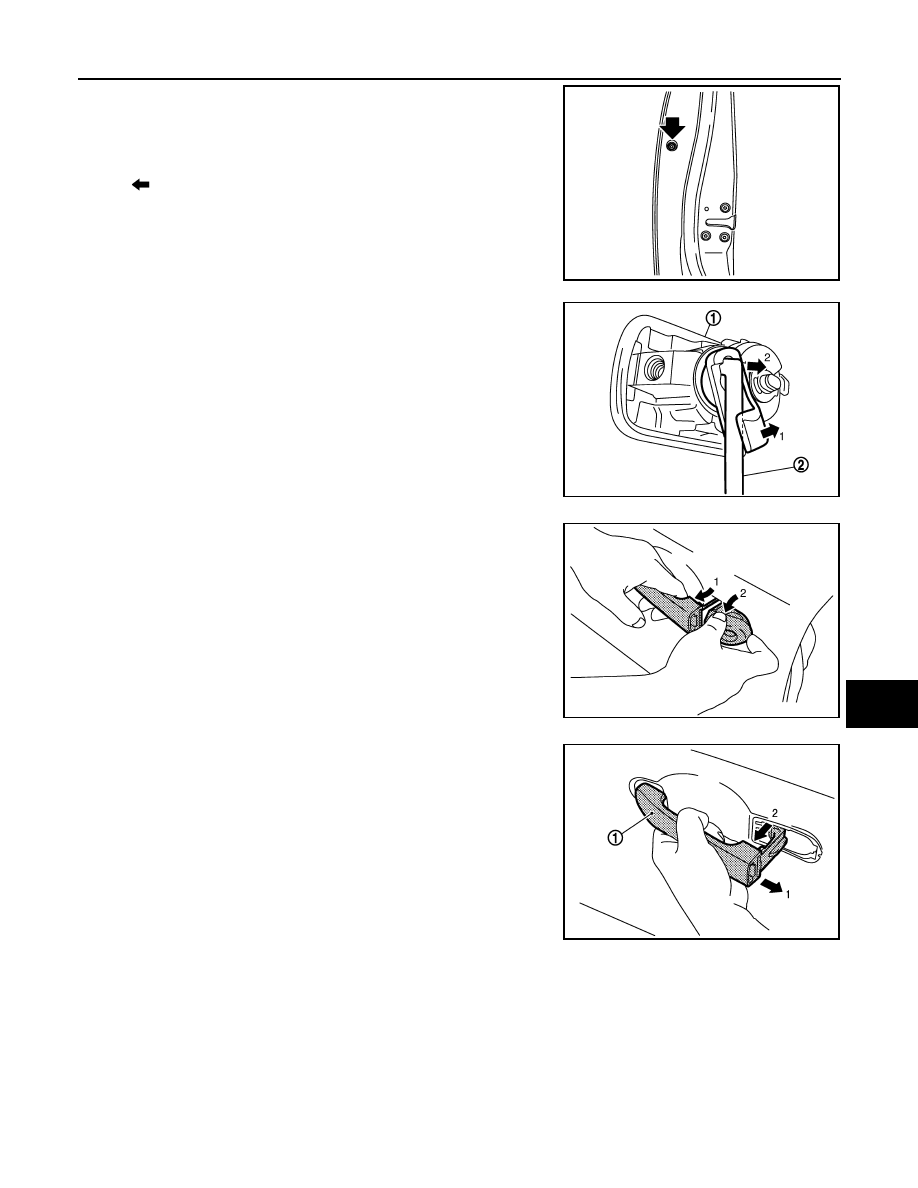

5.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never remove TORX bolt forcibly.

6.

Reach in to separate key rod (2) connection [on the door key
cylinder assembly (1)] (driver side).

7.

While pulling outside handle, remove door key cylinder assem-
bly (driver side) or outside handle escutcheon (passenger side).

8.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

9.

Remove front gasket and rear gasket.

: TORX bolt

JMKIA2094ZZ

JMKIA0553ZZ

JMKIA0560ZZ

JMKIA0524ZZ

DLK-226

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

10. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket.

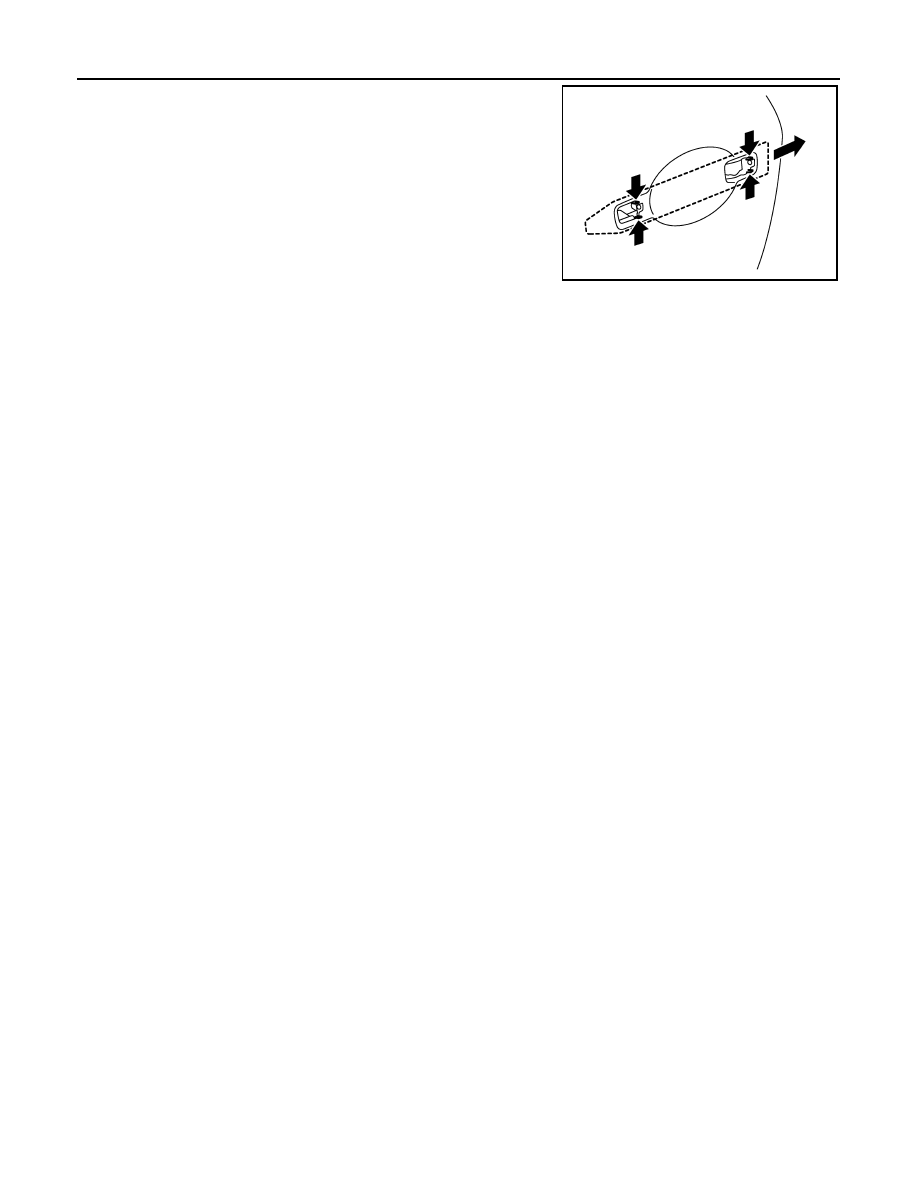

11. Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing each rod, rotate rod holder until a click is felt.
• Check door open/close, lock/unlock operation after installation.

JMKIA2303ZZ
