REAR DOOR LOCK

DLK-227

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

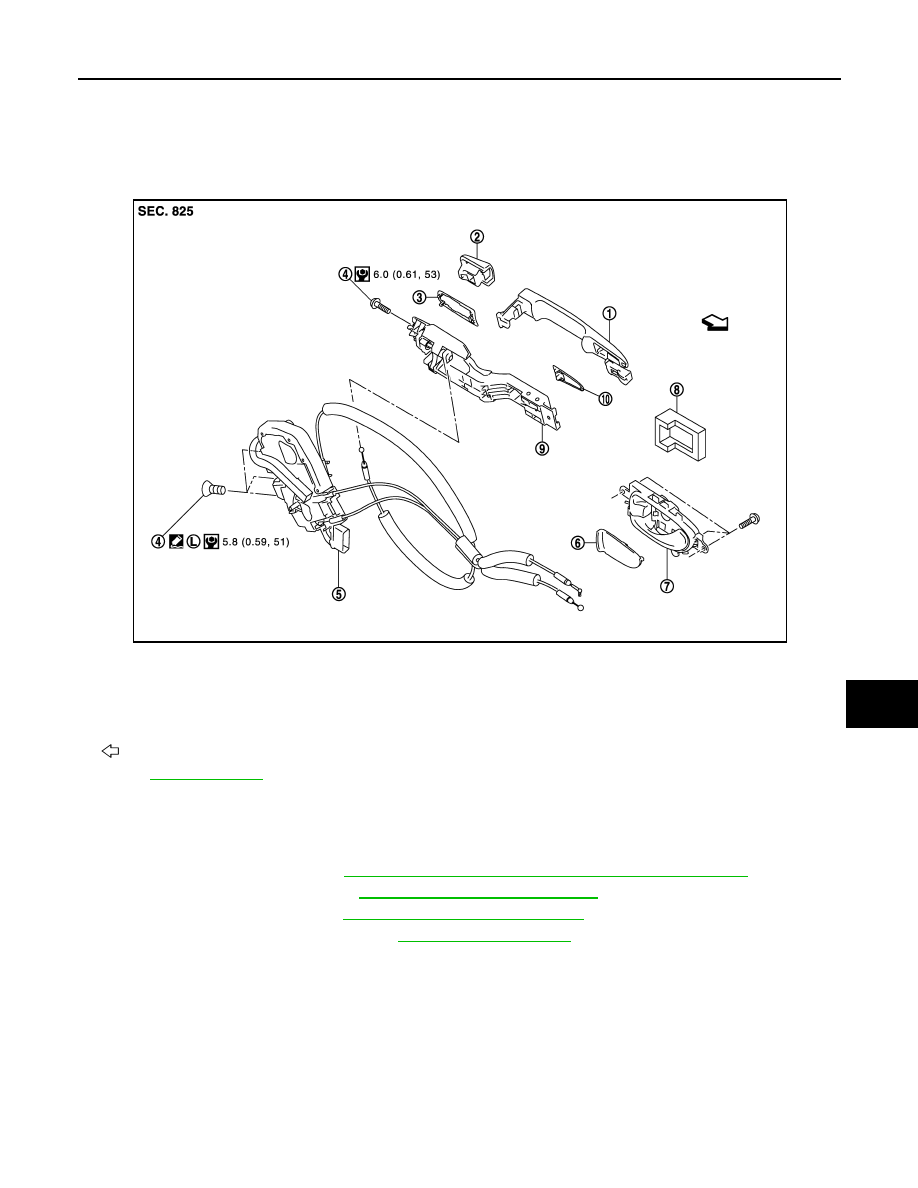

REAR DOOR LOCK

DOOR LOCK

DOOR LOCK : Exploded View

INFOID:0000000003813432

DOOR LOCK : Removal and Installation

INFOID:0000000003813433

REMOVAL

1.

Remove outside handle. Refer to

DLK-229, "OUTSIDE HANDLE : Removal and Installation"

.

2.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

3.

Remove sealing screen. Refer to

GW-23, "Removal and Installation"

.

4.

Remove corner piece assembly. Refer to

GW-23, "Exploded View"

.

5.

Fully close the rear door glass.

6.

Reach in to separate outside handle cable connection on outside handle bracket.

7.

Remove door lock TORX bolts.

8.

Remove door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

INSIDE HANDLE

1.

Outside handle

2.

Outside handle escutcheon

3.

Rear gasket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle escutcheon

7.

Inside handle

8.

Seal

9.

Outside handle bracket

10. Front gasket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2387GB

DLK-228

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

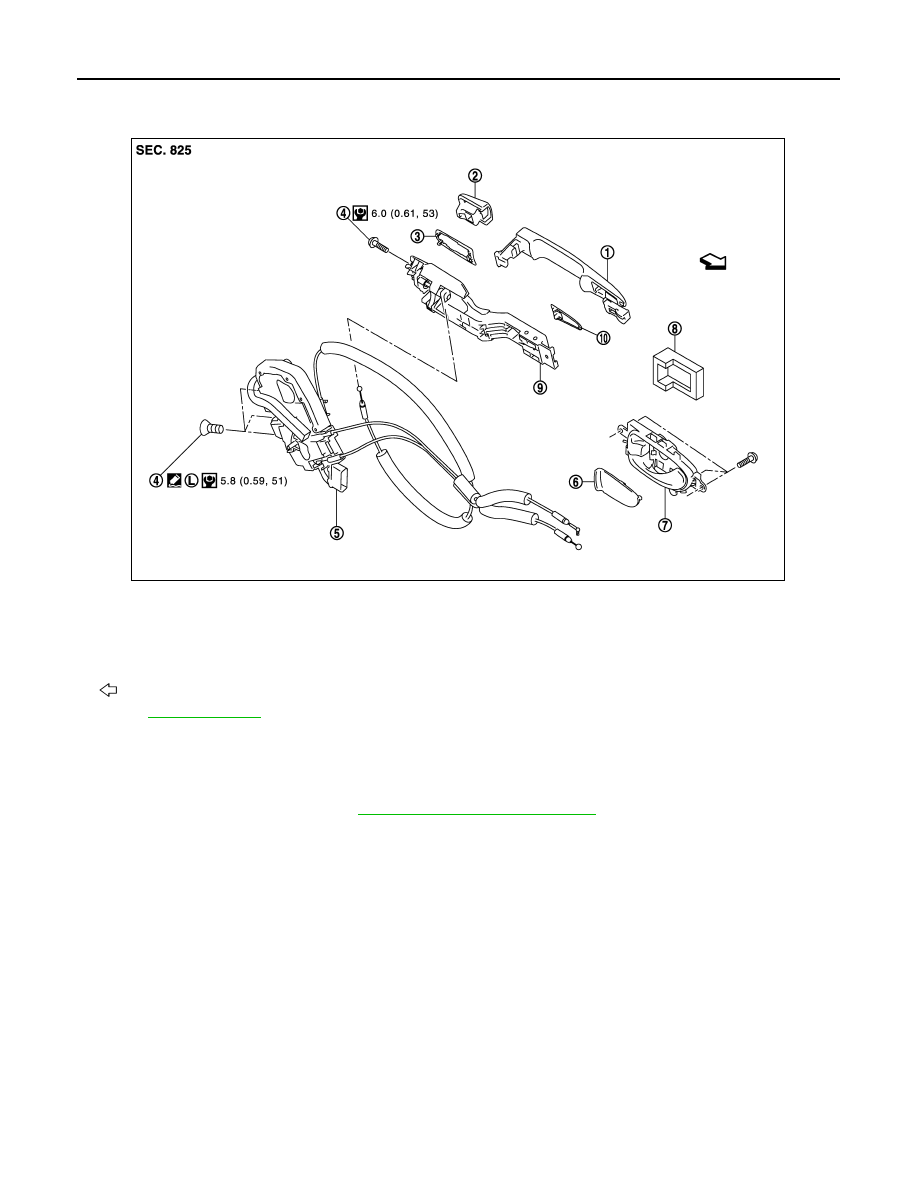

INSIDE HANDLE : Exploded View

INFOID:0000000003817719

INSIDE HANDLE : Removal and Installation

INFOID:0000000003813435

REMOVAL

1.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

2.

Disconnect inside handle cable.

3.

Remove inside handle mounting screws, and then remove inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

1.

Outside handle

2.

Outside handle escutcheon

3.

Rear gasket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle escutcheon

7.

Inside handle

8.

Seal

9.

Outside handle bracket

10. Front gasket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2387GB

REAR DOOR LOCK

DLK-229

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

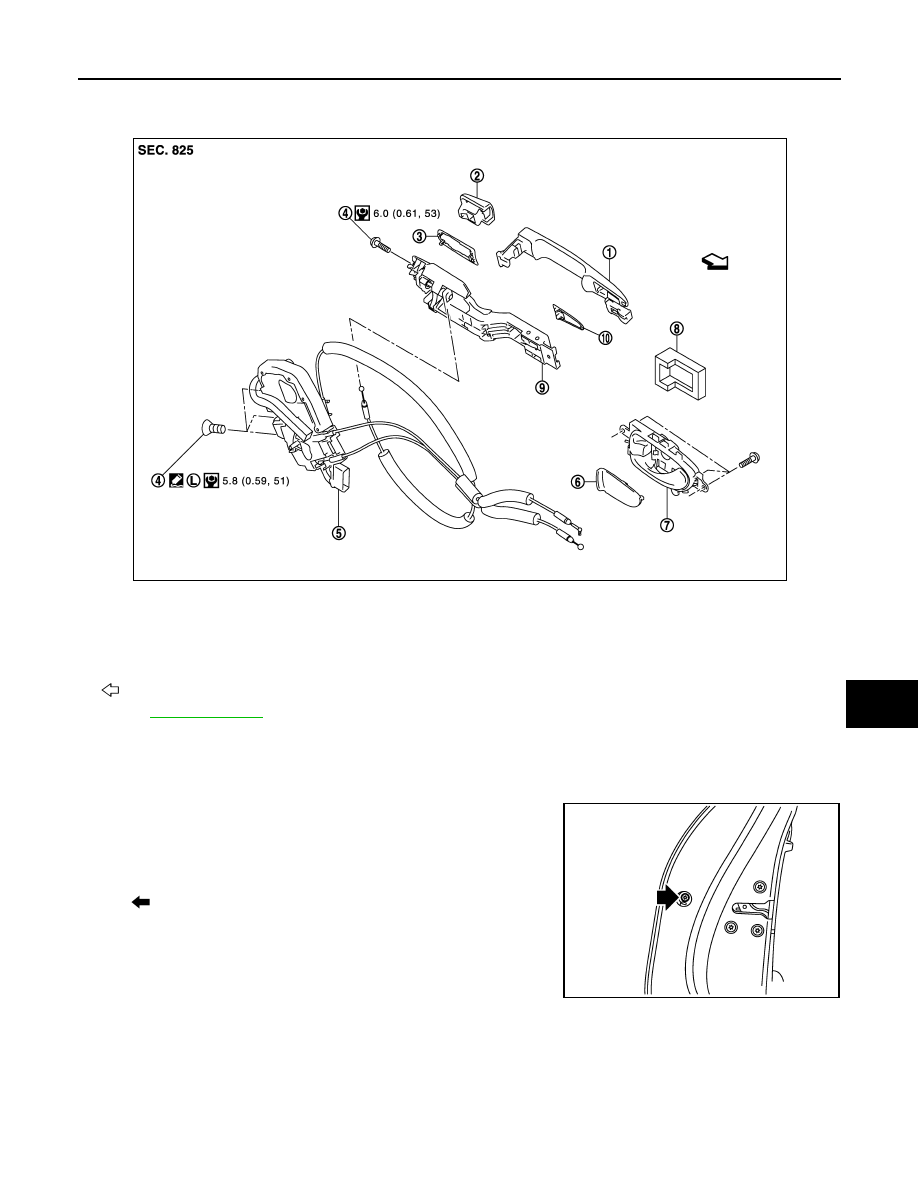

OUTSIDE HANDLE : Exploded View

INFOID:0000000003817720

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000003813437

REMOVAL

1.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never remove TORX bolt forcibly.

1.

Outside handle

2.

Outside handle escutcheon

3.

Rear gasket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle escutcheon

7.

Inside handle

8.

Seal

9.

Outside handle bracket

10. Front gasket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2387GB

: TORX bolt

JMKIA1467ZZ

DLK-230

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

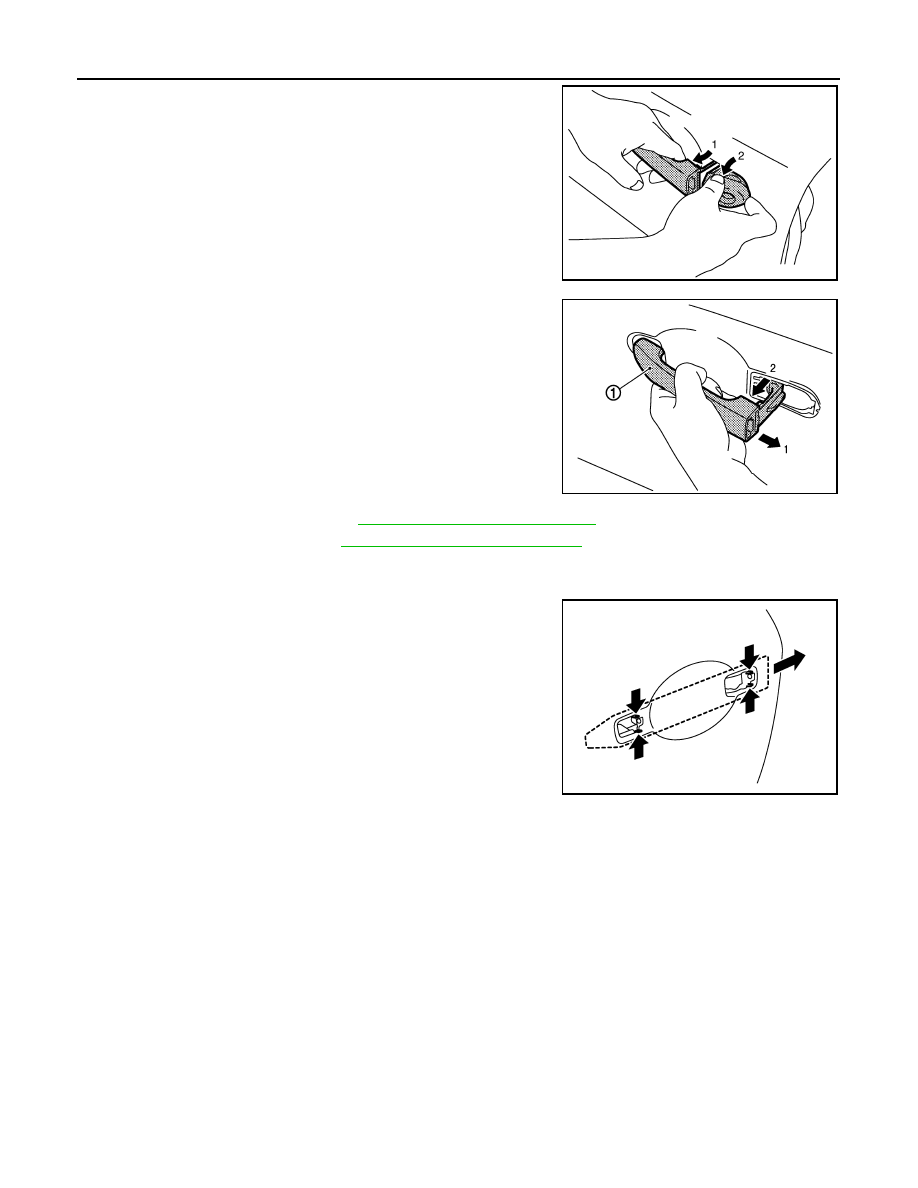

2.

While pulling outside handle, remove outside handle escutch-
eon.

3.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

4.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

5.

Remove sealing screen. Refer to

GW-23, "Removal and Installation"

.

6.

Fully close rear door glass.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

JMKIA0560ZZ

JMKIA0524ZZ
