TRUNK LID

DLK-219

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

Check trunk lid open/close operation after installation.

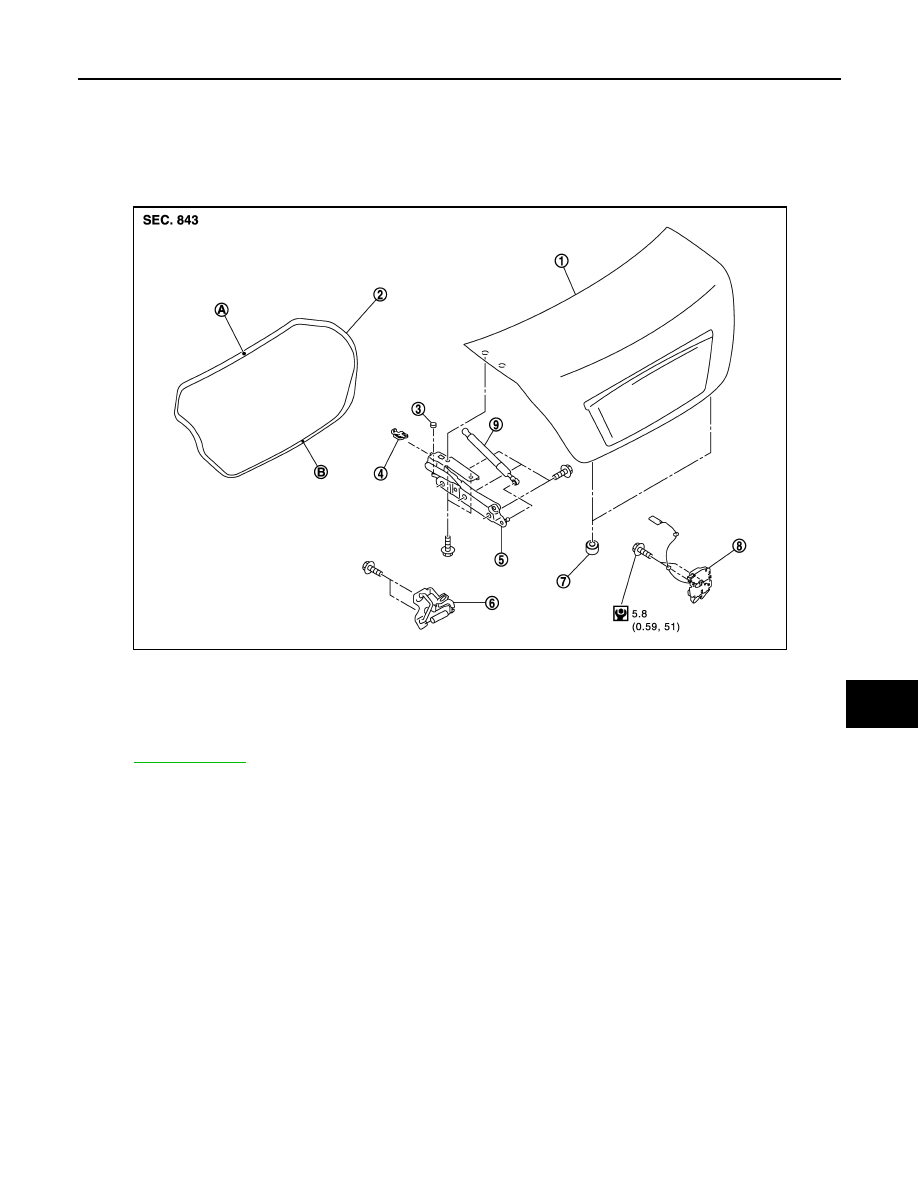

TRUNK LID WEATHER-STRIP

TRUNK LID WEATHER-STRIP : Exploded View

INFOID:0000000003819767

TRUNK LID WEATHER-STRIP : Removal and Installation

INFOID:0000000003813422

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on weather-strip.

INSTALLATION

1.

Working from the upper section, align weather-strip center mark (upper) with vehicle center position mark
and install weather-strip onto the vehicle.

2.

For the lower section, align weather-strip center mark (lower) with center of trunk lid striker.

3.

Pull weather-strip gently to ensure that there is no loose section.
NOTE:
Check that weather-strip fits tightly in each corner.

1.

Trunk lid

2.

Trunk lid weather-strip

3.

Cap

4.

Stopper

5.

Trunk lid hinge

6.

Trunk lid striker

7.

Bumper rubber

8.

Trunk lid lock assembly

9.

Trunk lid stay

A

: Center mark (upper)

B.

: Center mark (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2389GB

DLK-220

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

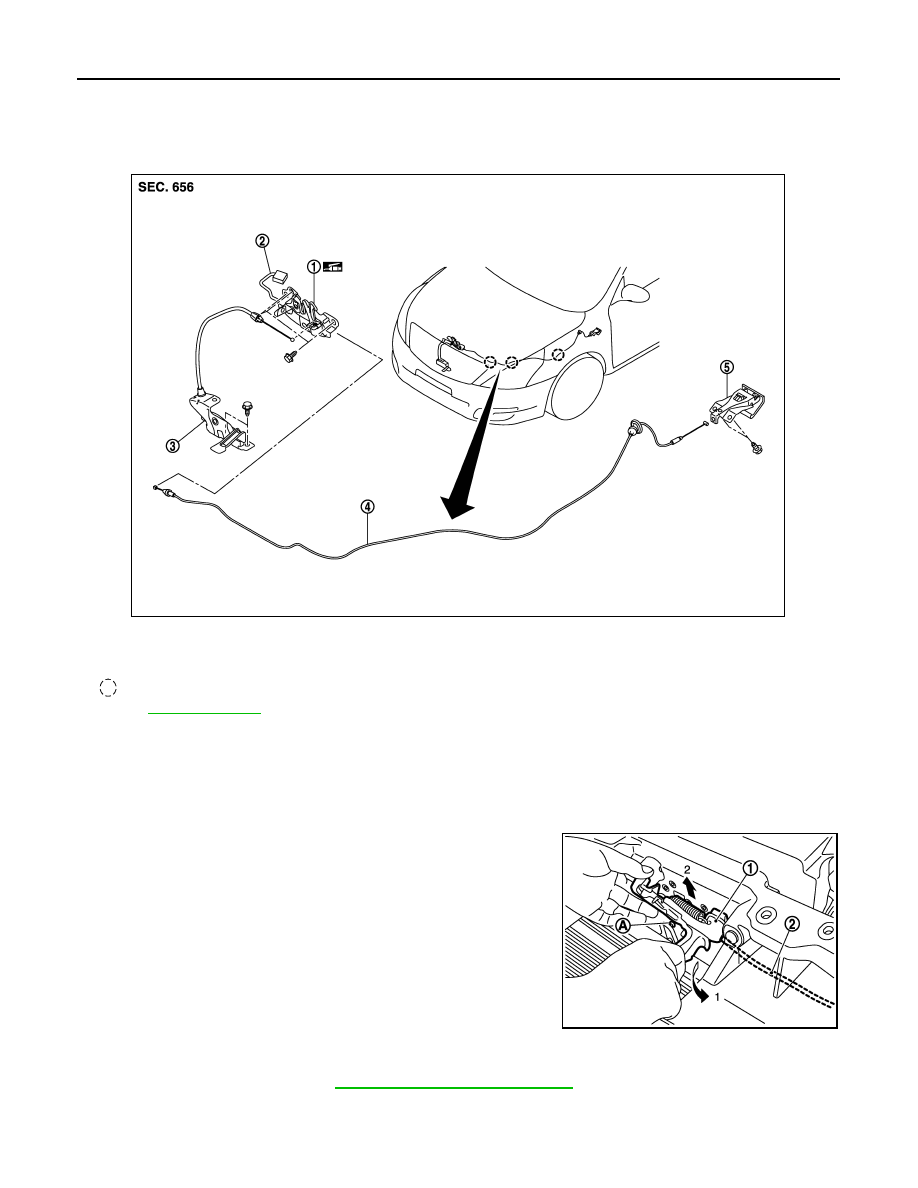

HOOD LOCK

HOOD LOCK

Exploded View

INFOID:0000000003813423

Removal and Installation

INFOID:0000000003813424

REMOVAL

CAUTION:

Check wiring of hood lock control cable before removal.

1.

Remove mounting bolts, and then remove hood lock assembly
(1).
NOTE:
Press the lever downward to avoid pin (A), then pull out hood
lock assembly upward.

2.

Disconnect hood lock control cable (2) from hood lock assembly.

3.

Disconnect bell crank assembly cable from hood lock assembly.

4.

Remove air duct (inlet). Refer to

EM-26, "Removal and Installation"

.

5.

Disconnect hood switch connector and remove hood lock assembly.

6.

Remove bolts and remove bell crank assembly.

1.

Hood lock

2.

Hood switch

3.

Bell crank assembly

4.

Hood lock control cable

5.

Hood lock opener

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2381ZZ

JMKIA1914ZZ

HOOD LOCK

DLK-221

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

Disconnect hood lock control cable from instrument lower panel (LH).

8.

Remove fender protector (LH). Refer to

EXT-22, "FENDER PROTECTOR : Removal and Installation"

.

9.

Remove hood lock control cable clamp.

10. Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-

ment.

CAUTION:

While pulling, never damage (peeling) the outside of hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

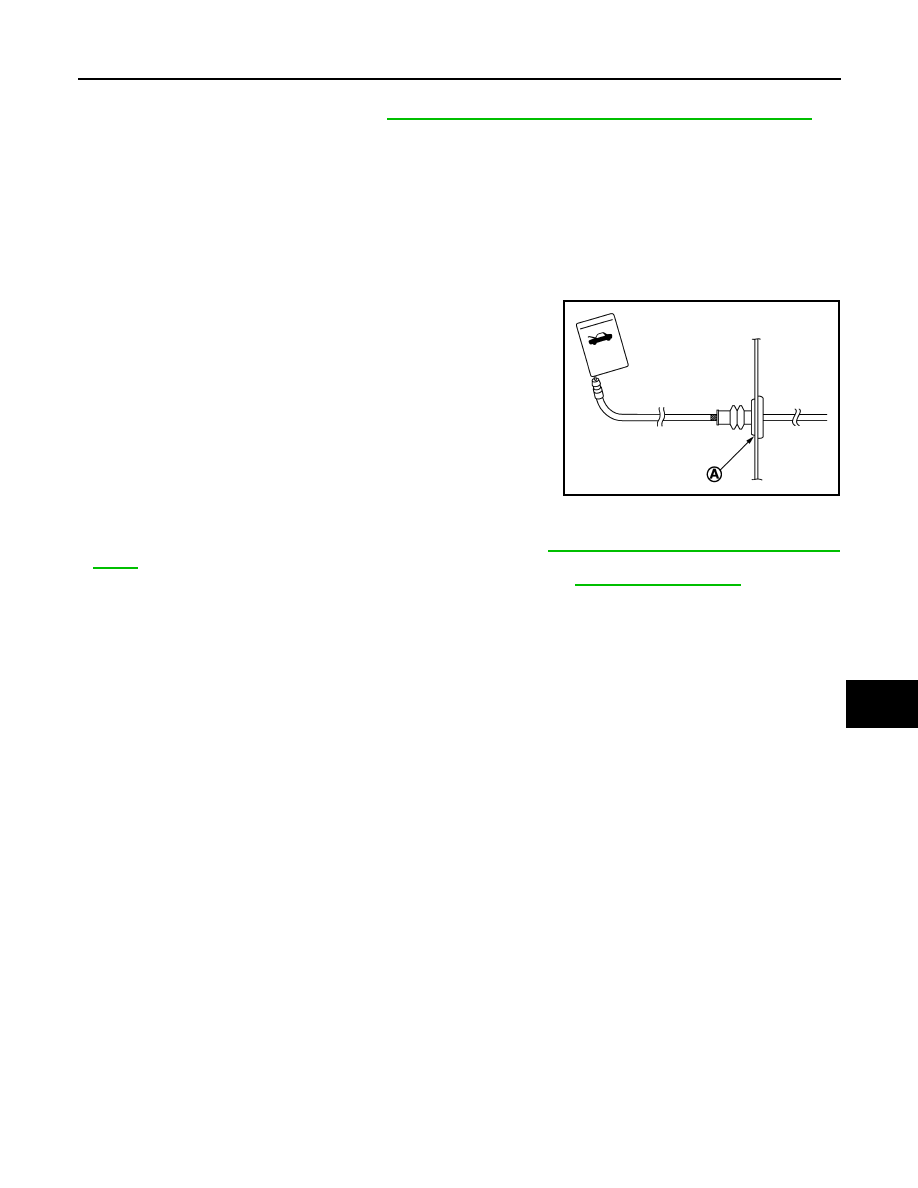

CAUTION:

• Never bend cable too much. Keeping the radius 100 mm (3.937 in) or more.
• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (A) properly.

• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-193, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-221, "Inspection"

.

Inspection

INFOID:0000000003813425

NOTE:
If the hood lock cable is bent or deformed, replace it.
1.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] by hood
weight.

2.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

3.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

4.

Install so that static closing force of hood is 94 – 490 N (9.6 – 50.0 kg, 21.1 – 110 lb).
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Do not simultaneously press both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.

JMKIA2398ZZ

DLK-222

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

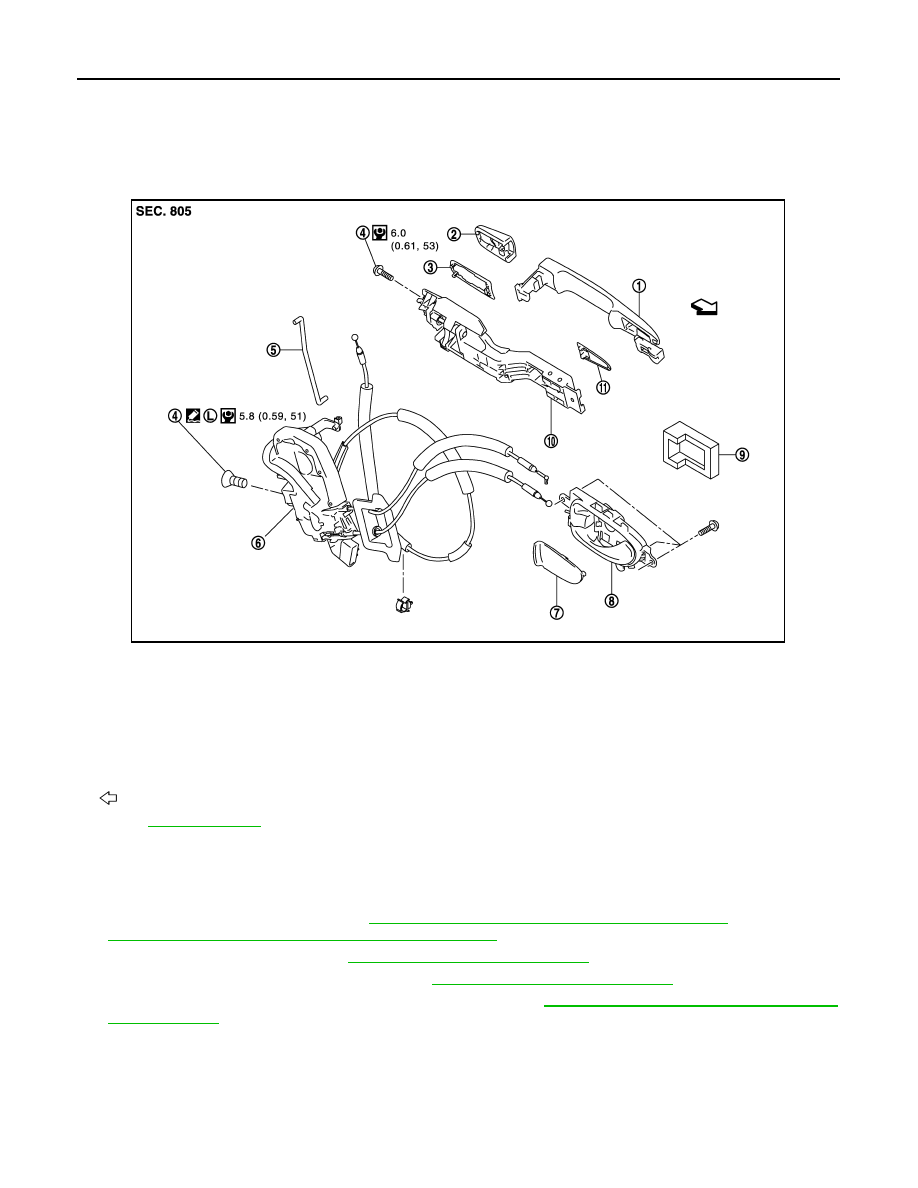

FRONT DOOR LOCK

FRONT DOOR LOCK

DOOR LOCK

DOOR LOCK : Exploded View

INFOID:0000000003813426

DOOR LOCK : Removal and Installation

INFOID:0000000003813427

REMOVAL

1.

Remove front door finisher. Refer to

INT-30, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-33, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove front door glass. Refer to

GW-17, "Removal and Installation"

.

3.

Remove front door module assembly. Refer to

GW-20, "Removal and Installation"

.

4.

Remove outside handle and outside handle bracket. Refer to

DLK-224, "OUTSIDE HANDLE : Removal

and Installation"

.

5.

Remove door lock assembly TORX bolts.

6.

Disconnect door lock actuator connector, and then remove door lock assembly.

7.

Remove key rod from door lock assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Outside handle

2.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

3.

Rear gasket

4.

TORX bolt

5.

Key rod (driver side)

6.

Door lock assembly

7.

Inside handle escutcheon

8.

Inside handle

9.

Seal

10. Outside handle bracket

11.

Front gasket

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2386GB
