REAR DOOR

DLK-211

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, rear door assembly, perform the fitting adjustment. Refer to

DLK-209, "DOOR

ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000003819609

DOOR CHECK LINK : Removal and Installation

INFOID:0000000003813411

REMOVAL

1.

Remove rear door finisher. Refer to

INT-36, "Removal and Installation"

.

2.

Fully close the rear door window.

3.

Remove rear door speaker.

4.

Remove mounting bolts of the door link on the vehicle.

5.

Remove mounting bolts of the door link on door panel.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

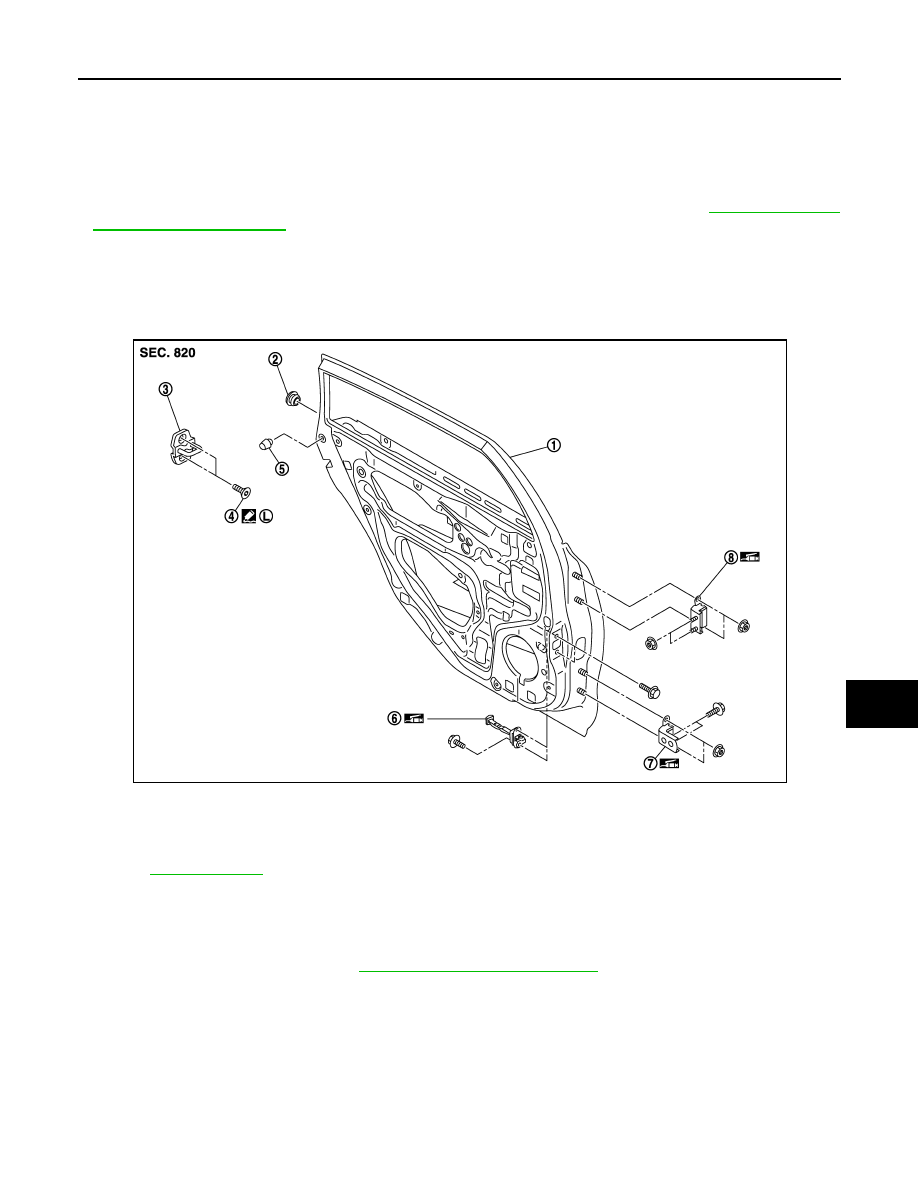

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2385ZZ

DLK-212

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

Check rear door open/close operation after installation.

TRUNK LID

DLK-213

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID

TRUNK LID ASSEMBLY

TRUNK LID ASSEMBLY : Exploded View

INFOID:0000000003813412

REMOVAL

ADJUSTMENT

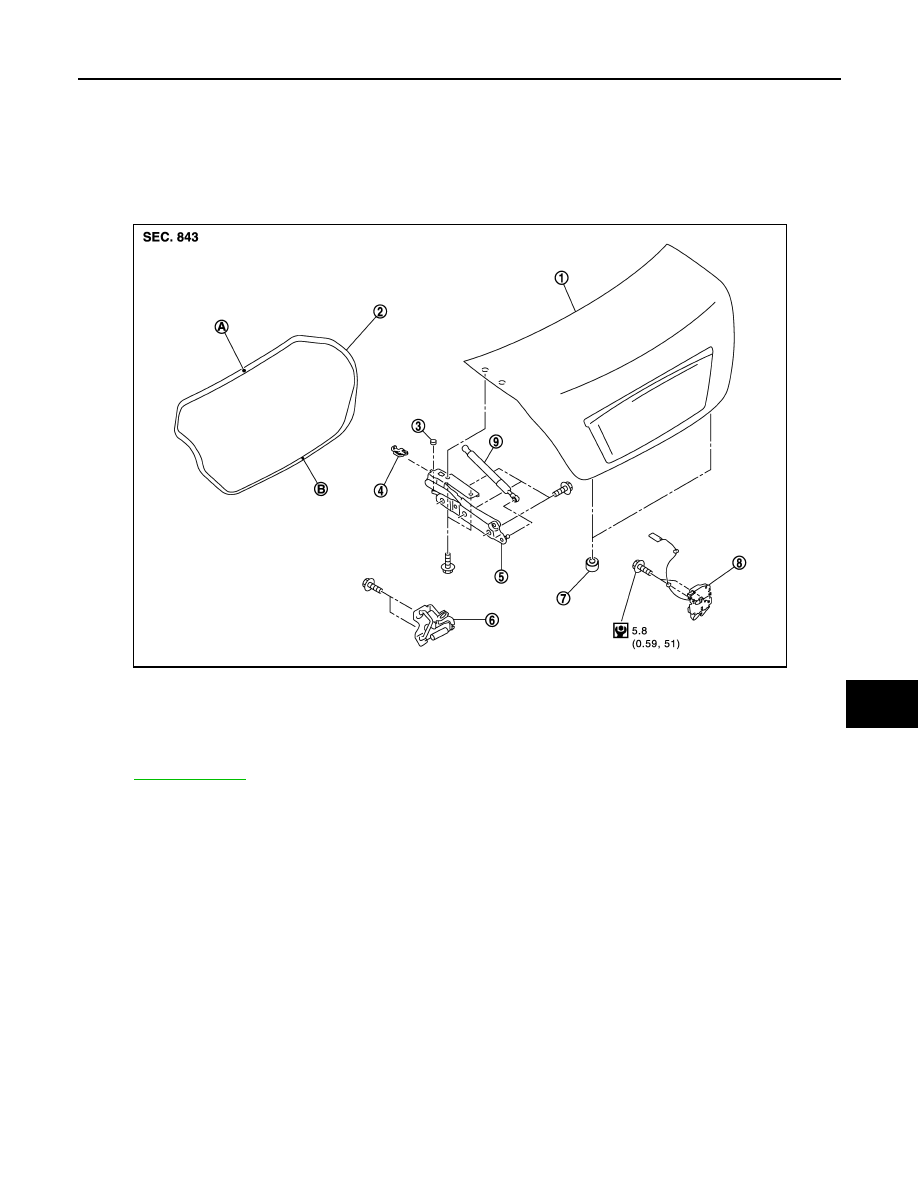

1.

Trunk lid

2.

Trunk lid weather-strip

3.

Cap

4.

Stopper

5.

Trunk lid hinge

6.

Trunk lid striker

7.

Bumper rubber

8.

Trunk lid lock assembly

9.

Trunk lid stay

A

: Center mark (upper)

B.

: Center mark (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2389GB

DLK-214

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

TRUNK LID

TRUNK LID ASSEMBLY : Removal and Installation

INFOID:0000000003813413

CAUTION:

Operate with two workers, because of its heavy weight.

REMOVAL

1.

Remove the trunk lid finisher inner. Refer to

INT-59, "Removal and Installation"

2.

Disconnect the connectors in the trunk lid, and remove the harness clamps to pull the harness out of the
trunk lid.

3.

Remove trunk lid stay at trunk lid side. Refer to

DLK-218, "TRUNK LID STAY : Removal and Installation"

.

4.

Remove the trunk lid hinge mounting bolts on trunk lid side and remove the trunk lid assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.
• Check trunk lid open/close, lock/unlock operation after installation.
• After installation, perform fitting adjustment. Refer to

DLK-215, "TRUNK LID ASSEMBLY : Adjust-

ment"

.

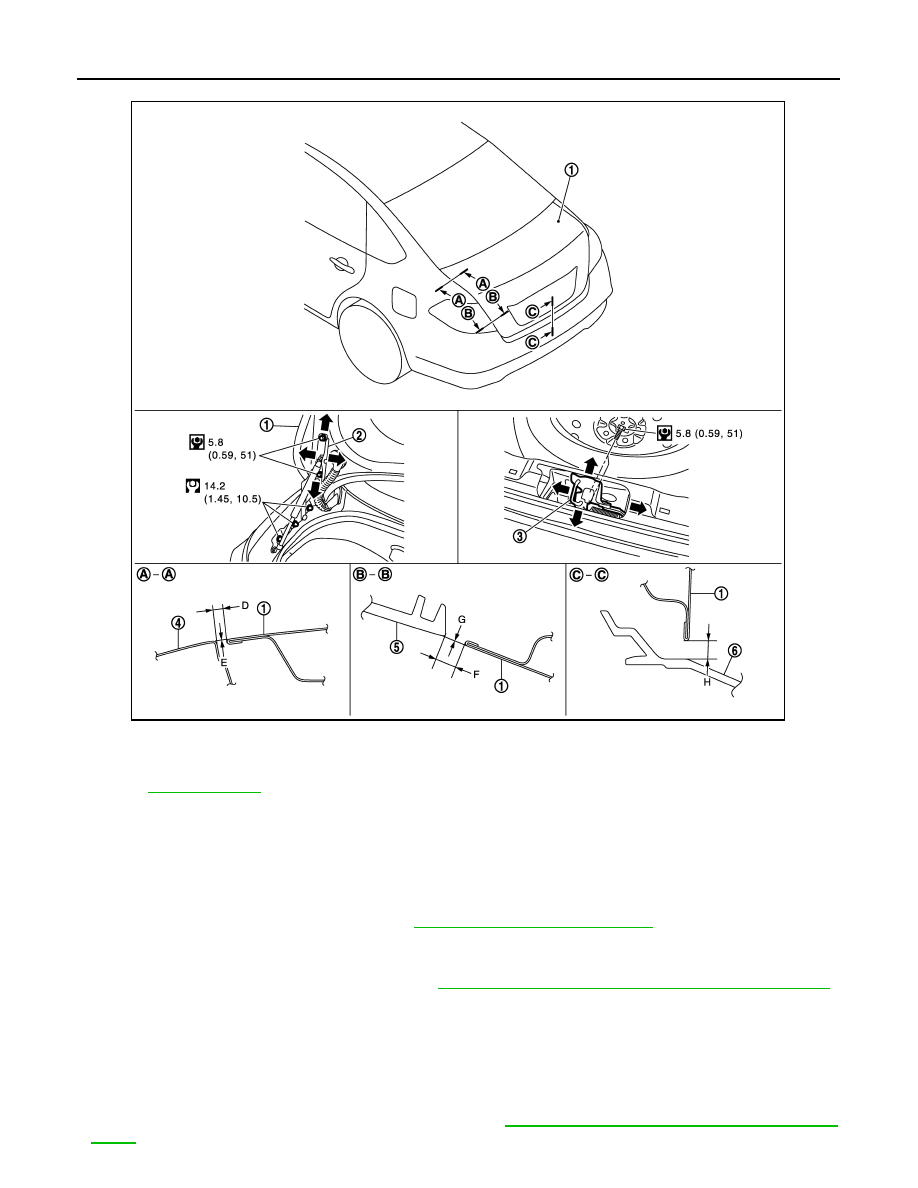

1.

Trunk lid assembly

2.

Trunk lid hinge

3.

Trunk lid striker

4.

Body side outer

5.

Rear combination lamp

6.

Rear bumper fascia

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2393GB
