Nissan Teana J32. Manual - part 356





REAR DOOR

DLK-207

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

DOOR ASSEMBLY

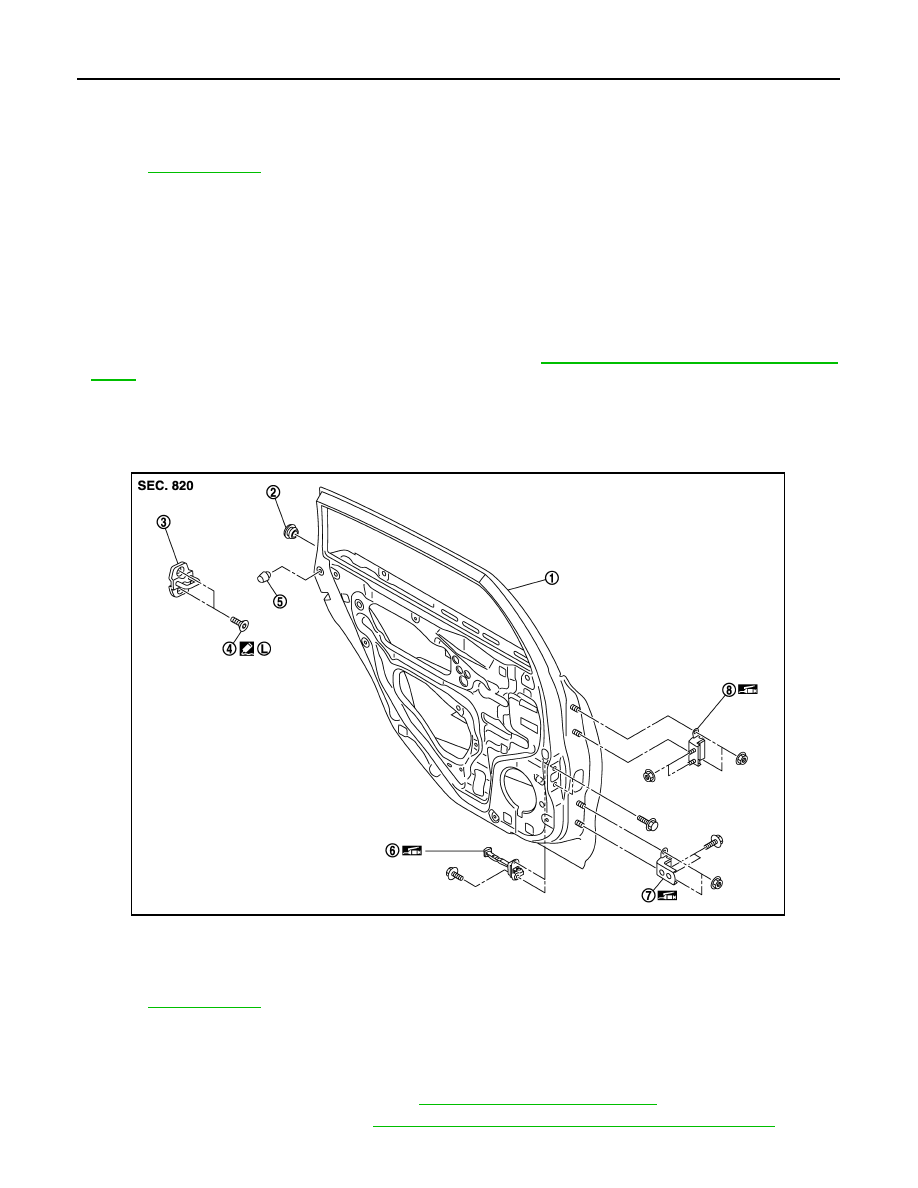

DOOR ASSEMBLY : Exploded View

INFOID:0000000003813403

REMOVAL

ADJUSTMENT

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2385ZZ

DLK-208

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000003813404

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and cloth to protect door

and body.

REMOVAL

1.

Remove mounting bolts of door check link on the vehicle.

2.

Remove rear door harness grommet, and then pull out door harness from the vehicle.

3.

Disconnect rear door harness connector.

4.

Remove door hinge mounting nuts (door side), and then remove rear door assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.

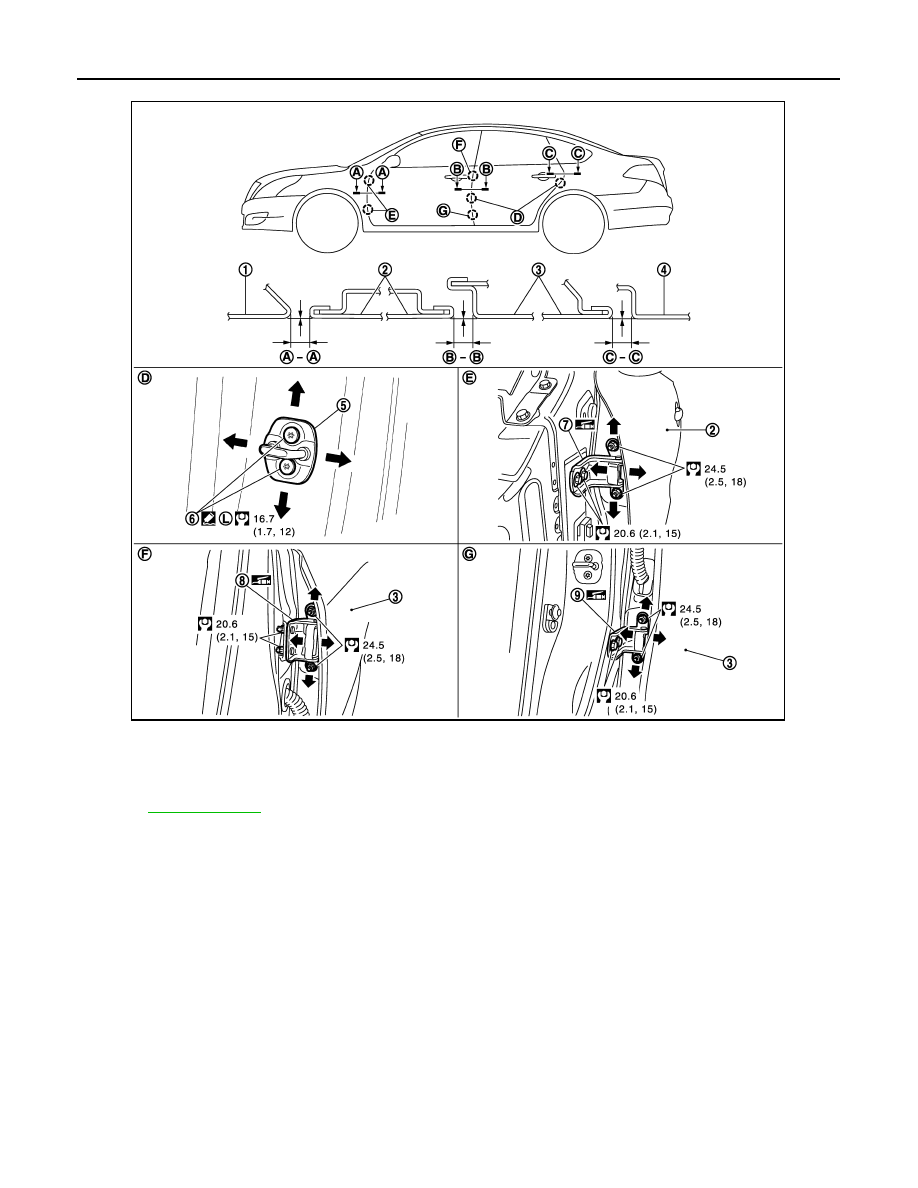

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2392GB

REAR DOOR

DLK-209

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-209, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR ASSEMBLY : Adjustment

INFOID:0000000003813405

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and surface height are out of specification, adjust them according to the procedures shown
below.

Unit: mm (in)

1.

Remove center pillar lower garnish. Refer to

INT-39, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of the rear door according to the fitting standard dimen-
sion.

7.

After adjustment, tighten bolts and nuts to the specified torque.

8.

Install center pillar lower garnish. Refer to

INT-39, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

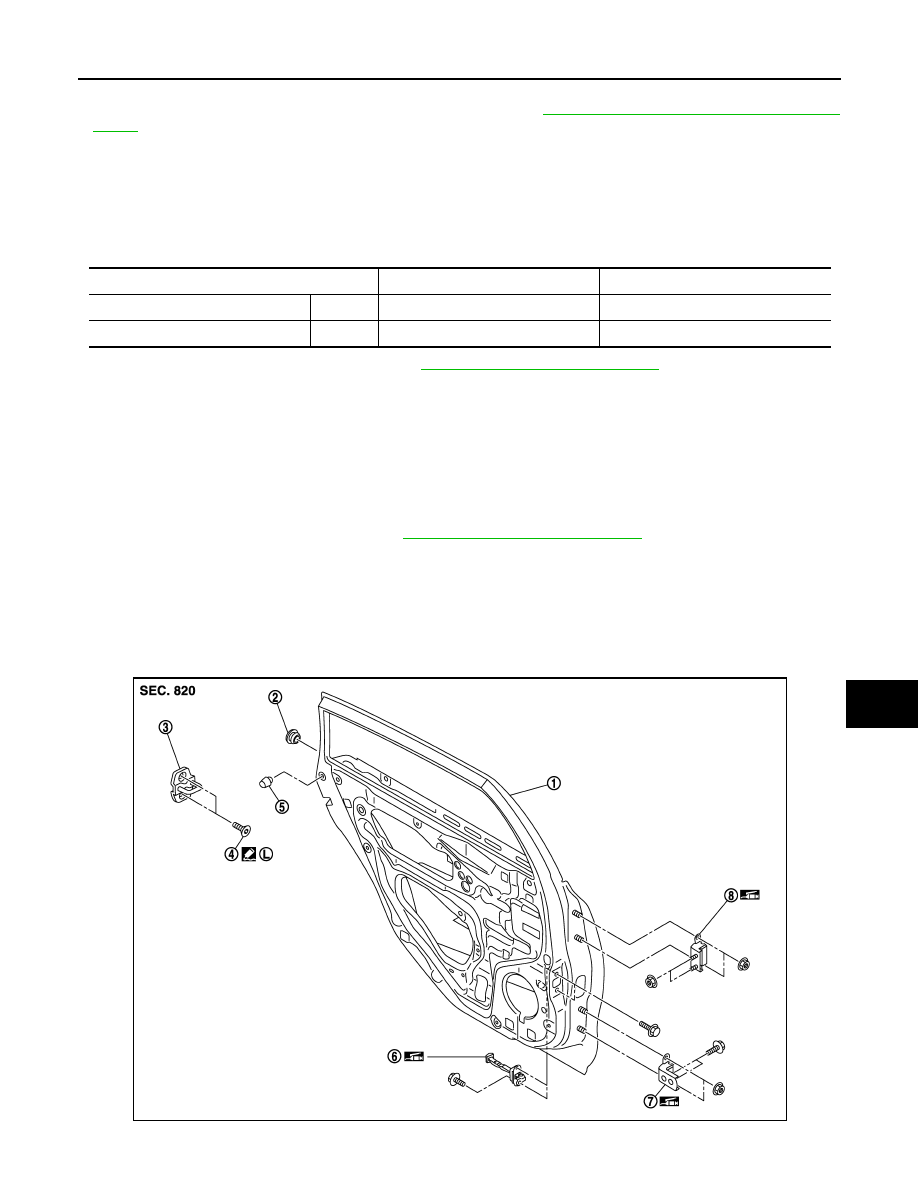

DOOR STRIKER : Exploded View

INFOID:0000000003819605

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.6 – 5.6 (0.142 – 0.220)

-1.0 – 1.0 (-0.039 – 0.039)

Rear door – Body side outer

C – C

2.6 – 4.6 (0.102 – 0.181)

-1.0 – 1.0 (-0.039 – 0.039)

JMKIA2385ZZ

DLK-210

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

DOOR STRIKER : Removal and Installation

INFOID:0000000003813407

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-209, "DOOR ASSEMBLY : Adjust-

ment"

.

DOOR HINGE

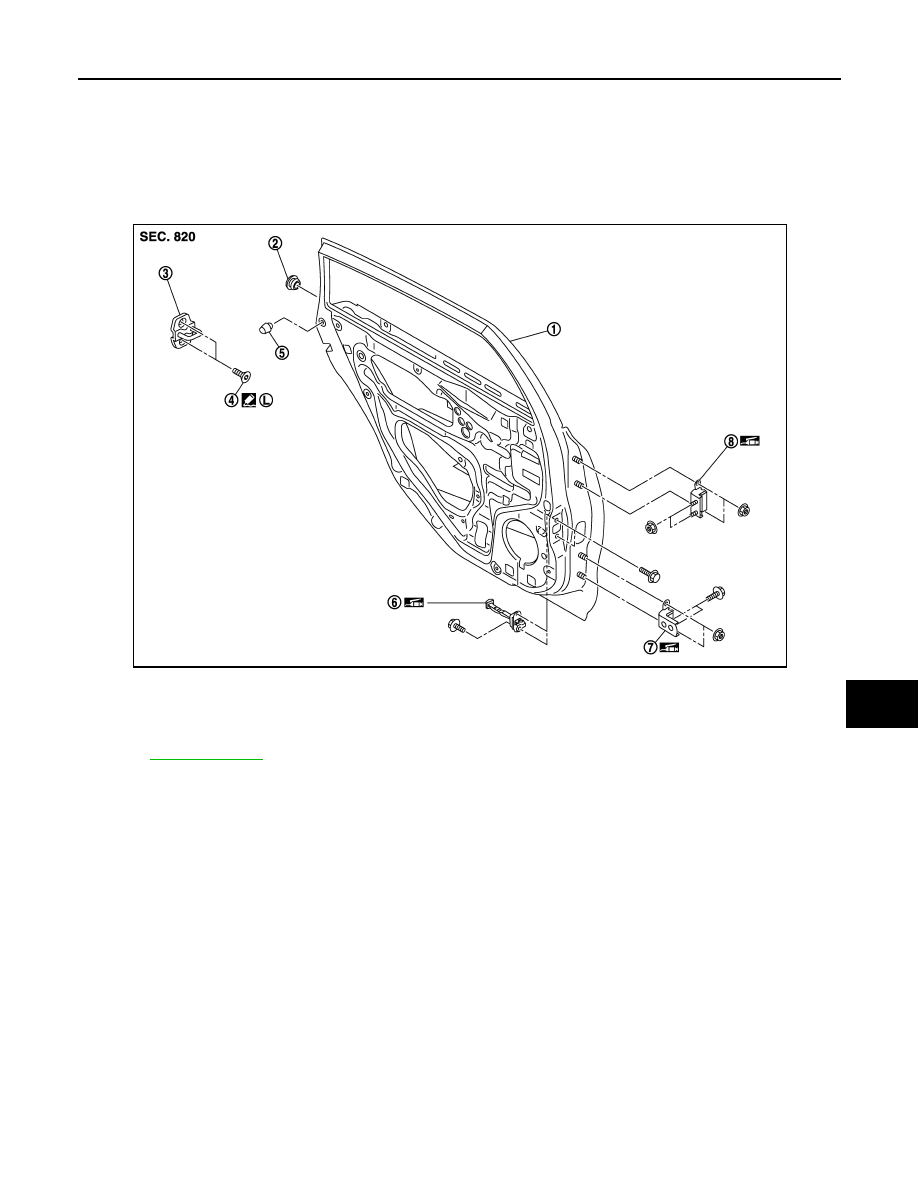

DOOR HINGE : Exploded View

INFOID:0000000003819608

DOOR HINGE : Removal and Installation

INFOID:0000000003813409

REMOVAL

1.

Remove center pillar lower garnish. Refer to

INT-39, "Removal and Installation"

.

2.

Remove rear door assembly. Refer to

DLK-208, "DOOR ASSEMBLY : Removal and Installation"

.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2385ZZ
