TRUNK LID

DLK-215

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID ASSEMBLY : Adjustment

INFOID:0000000003813414

Check the clearance and surface height between trunk lid and each part by visually and touching.
If the clearance and surface height are out of specification, adjust them according to the procedures shown
below.

Unit: mm (in)

1.

Loosen trunk lid hinge mounting bolts (trunk lid side).

2.

Remove trunk rear finisher. Refer to

INT-57, "Removal and Installation"

.

3.

Loosen trunk lid striker mounting bolts.

4.

Lift up trunk lid approximately 100 – 150 mm (3.937 – 5.906 in) height then close it lightly and check that it
is engaged firmly with trunk lid closed.

5.

Check the clearance and surface height.

6.

Finally tighten trunk lid hinge and trunk lid striker.

7.

Install trunk rear finisher. Refer to

INT-57, "Removal and Installation"

.

TRUNK LID STRIKER ADJUSTMENT

Adjust trunk lid striker so that it becomes parallel with trunk lid lock insertion direction.

TRUNK LID STRIKER

Portion

Standard

Difference

(RH/LH, MAX)

Trunk lid – Body side outer

A – A

D

Clearance

2.5 – 4.5

(0.098 – 0.177)

1.0 (0.039)

E

Surface

height

−

1.5 – 0.5

(

−

0.059 – 0.020)

1.4 (0.055)

Trunk lid – Rear combina-
tion lamp

B – B

F

Clearance

2.9 – 6.5

(0.114 – 0.256)

2.0 (0.079)

G

Surface

height

−

2.3 – 1.3

(

−

0.091 – 0.051)

2.0 (0.079)

Trunk lid – Rear bumper fas-
cia

C – C H

Clearance

5.0 – 9.0

(0.197 – 0.354)

—

DLK-216

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

TRUNK LID

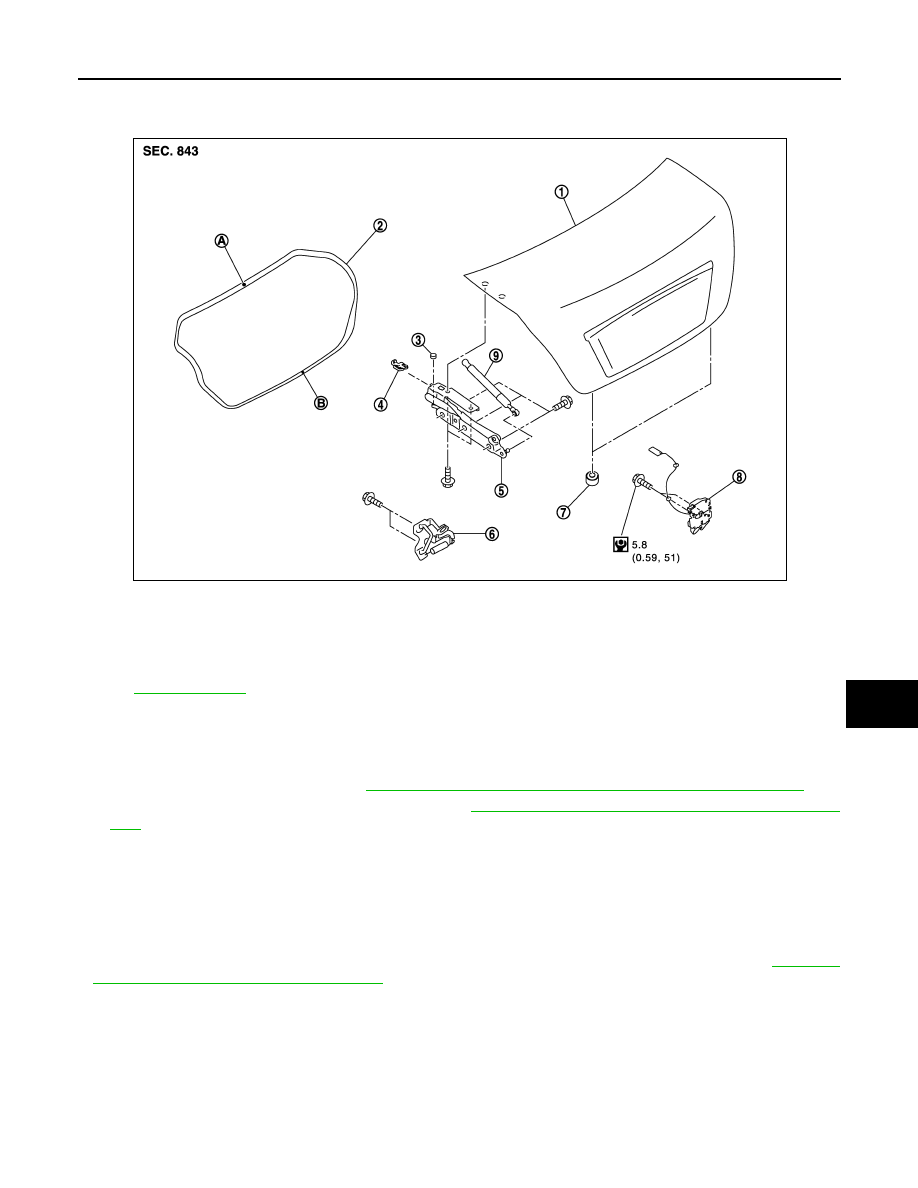

TRUNK LID STRIKER : Exploded View

INFOID:0000000003819763

TRUNK LID STRIKER : Removal and Installation

INFOID:0000000003813416

REMOVAL

1.

Remove trunk rear finisher. Refer to

INT-57, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove trunk lid striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check trunk lid open/close, lock/unlock operation after installation.
• When removing and installing trunk lid striker, perform the fitting adjustment. Refer to

DLK-215,

"TRUNK LID ASSEMBLY : Adjustment"

.

TRUNK LID HINGE

1.

Trunk lid

2.

Trunk lid weather-strip

3.

Cap

4.

Stopper

5.

Trunk lid hinge

6.

Trunk lid striker

7.

Bumper rubber

8.

Trunk lid lock assembly

9.

Trunk lid stay

A

: Center mark (upper)

B.

: Center mark (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2389GB

TRUNK LID

DLK-217

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

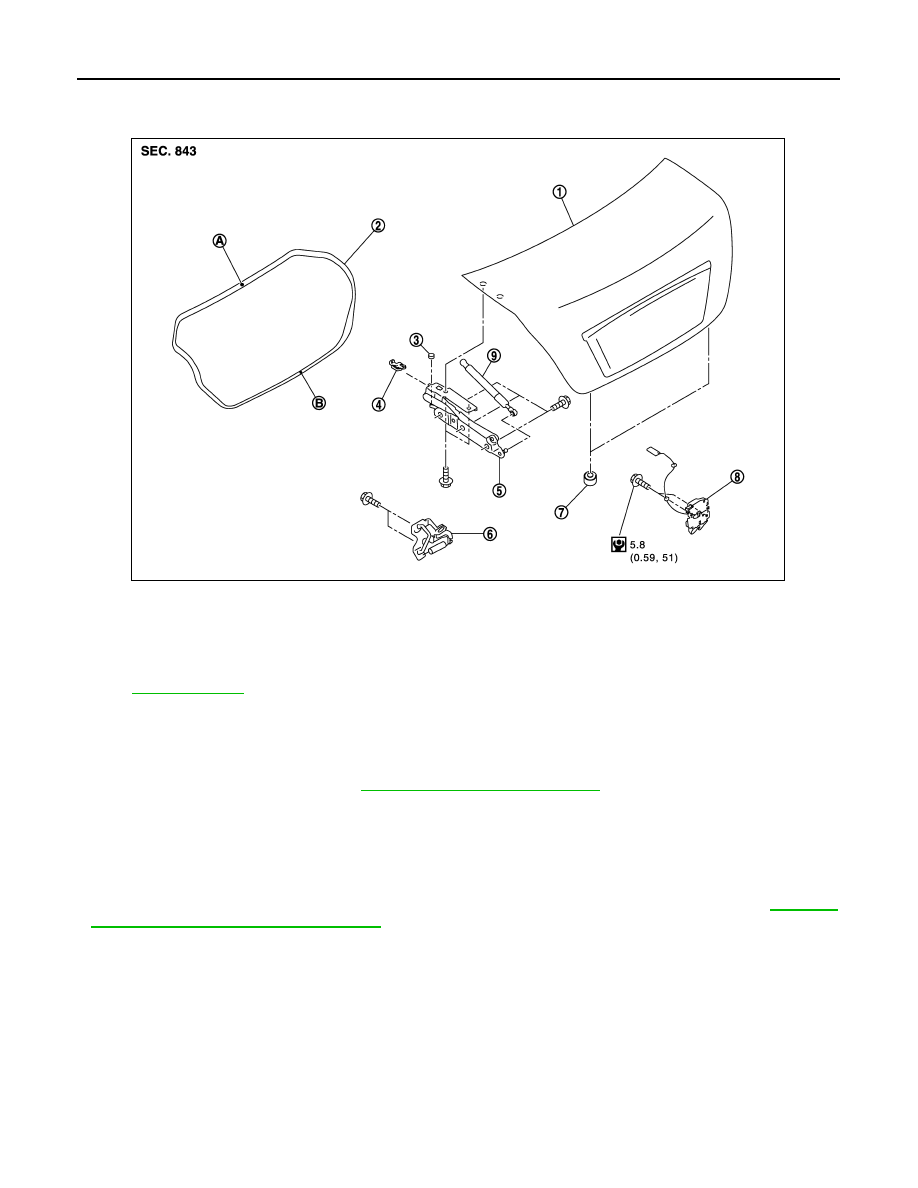

TRUNK LID HINGE : Exploded View

INFOID:0000000003819765

TRUNK LID HINGE : Removal and Installation

INFOID:0000000003813418

REMOVAL

1.

Remove trunk lid assembly. Refer to

DLK-214, "TRUNK LID ASSEMBLY : Removal and Installation"

.

2.

Remove trunk lid stay from trunk lid hinge. Refer to

DLK-218, "TRUNK LID STAY : Removal and Installa-

tion"

.

3.

Remove trunk lid hinge mounting nuts (body side), and then remove trunk lid hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check trunk lid open/close, lock/unlock operation after installation.
• Check trunk lid hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing trunk lid assembly, perform the fitting adjustment. Refer to

DLK-215,

"TRUNK LID ASSEMBLY : Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of trunk lid hinge mounting

bolts.

TRUNK LID STAY

1.

Trunk lid

2.

Trunk lid weather-strip

3.

Cap

4.

Stopper

5.

Trunk lid hinge

6.

Trunk lid striker

7.

Bumper rubber

8.

Trunk lid lock assembly

9.

Trunk lid stay

A

: Center mark (upper)

B.

: Center mark (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2389GB

DLK-218

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

TRUNK LID

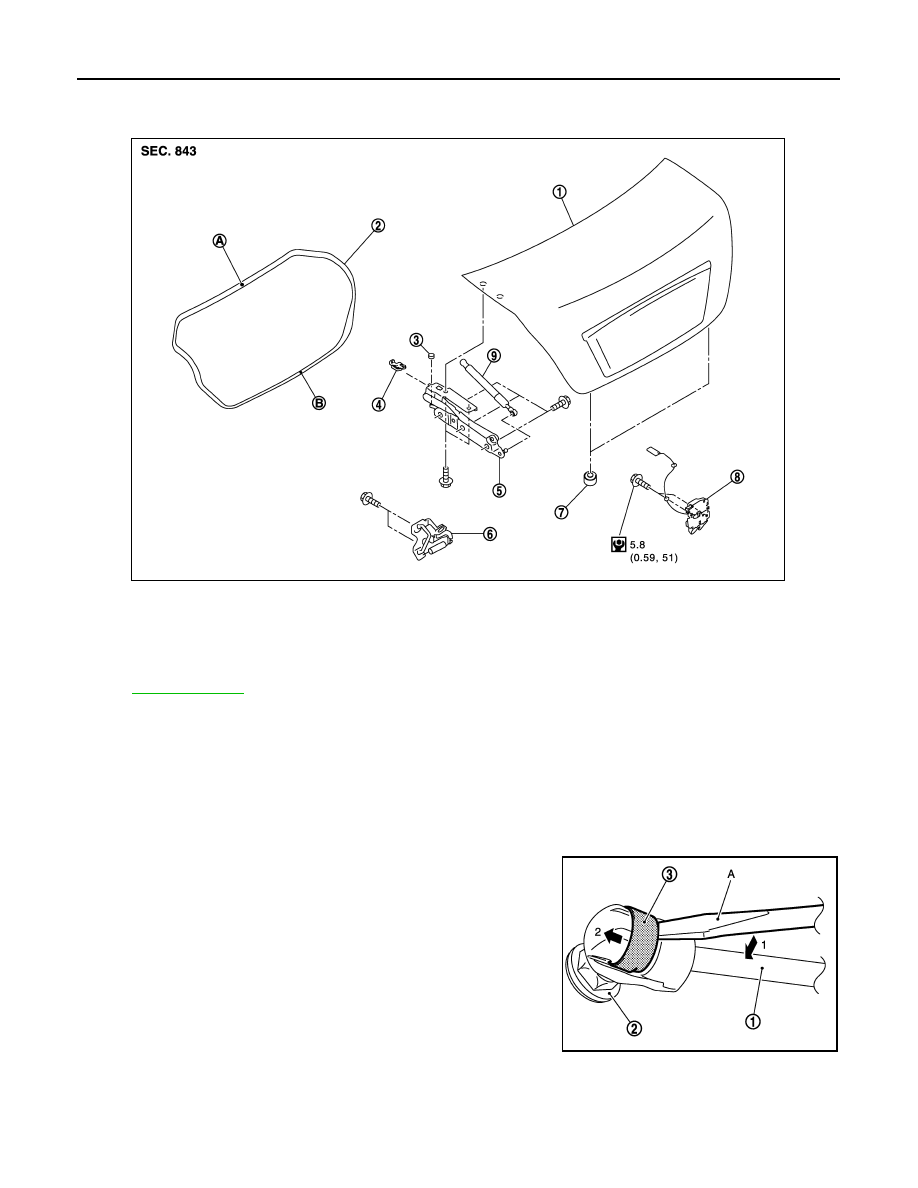

TRUNK LID STAY : Exploded View

INFOID:0000000003819766

TRUNK LID STAY : Removal and Installation

INFOID:0000000003813420

REMOVAL

1.

Support trunk lid with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the trunk lid open when removing the trunk
lid stay.

2.

Remove the metal clip (3) located on the connection between
the trunk lid stay (1) and the stud ball (2) (trunk lid side) by using
a flat-bladed screwdriver (A).

3.

Remove trunk lid stay (trunk lid side).

4.

In the same way, remove trunk lid stay (body side).

INSTALLATION

Install in the reverse order of removal.

1.

Trunk lid

2.

Trunk lid weather-strip

3.

Cap

4.

Stopper

5.

Trunk lid hinge

6.

Trunk lid striker

7.

Bumper rubber

8.

Trunk lid lock assembly

9.

Trunk lid stay

A

: Center mark (upper)

B.

: Center mark (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2389GB

JMKIA2255ZZ
