Nissan Teana J32. Manual - part 1230

VTL-106

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

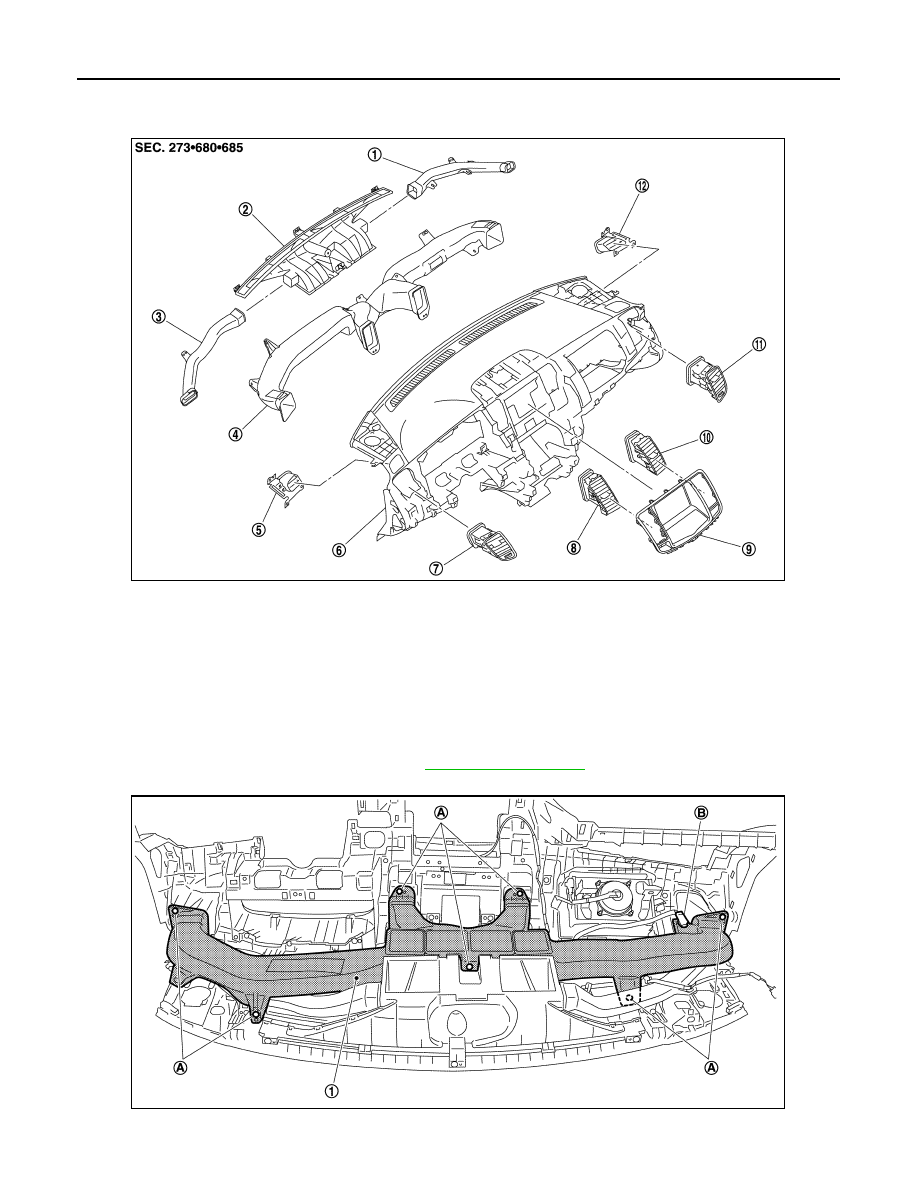

VENTILATOR DUCT : Exploded View

INFOID:0000000003894523

VENTILATOR DUCT : Removal and Installation

INFOID:0000000003894524

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-11, "Exploded View"

.

2.

Remove mounting screws (A).

3.

Remove ventilator duct (1).

1.

Side defroster nozzle (right)

2.

Defroster nozzle

3.

Side defroster nozzle (left)

4.

Ventilator duct

5.

Side defroster grille (left)

6.

Instrument panel assembly

7.

Side ventilator grille (left)

8.

Center ventilator grille (left)

9.

Cluster lid D

10. Center ventilator grille (right)

11. Side ventilator grille (right)

12. Side defroster grille (right)

JPIIA0928ZZ

JPIIA0932ZZ

DUCT AND GRILLE

VTL-107

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER NOZZLE

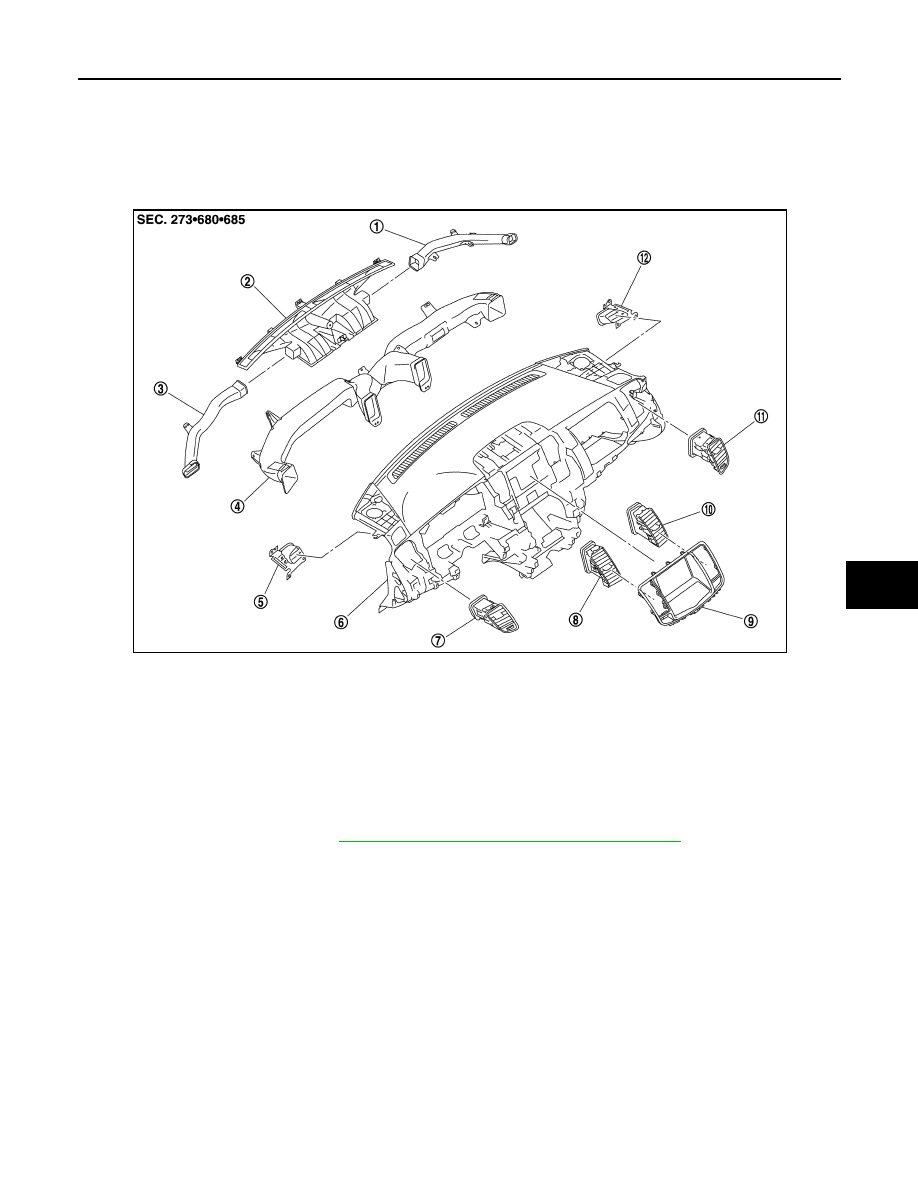

SIDE DEFROSTER NOZZLE : Exploded View

INFOID:0000000003894527

SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000003894528

REMOVAL

1.

Remove ventilator duct. Refer to

VTL-106, "VENTILATOR DUCT : Exploded View"

.

1.

Side defroster nozzle (right)

2.

Defroster nozzle

3.

Side defroster nozzle (left)

4.

Ventilator duct

5.

Side defroster grille (left)

6.

Instrument panel assembly

7.

Side ventilator grille (left)

8.

Center ventilator grille (left)

9.

Cluster lid D

10. Center ventilator grille (right)

11. Side ventilator grille (right)

12. Side defroster grille (right)

JPIIA0928ZZ

VTL-108

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

DUCT AND GRILLE

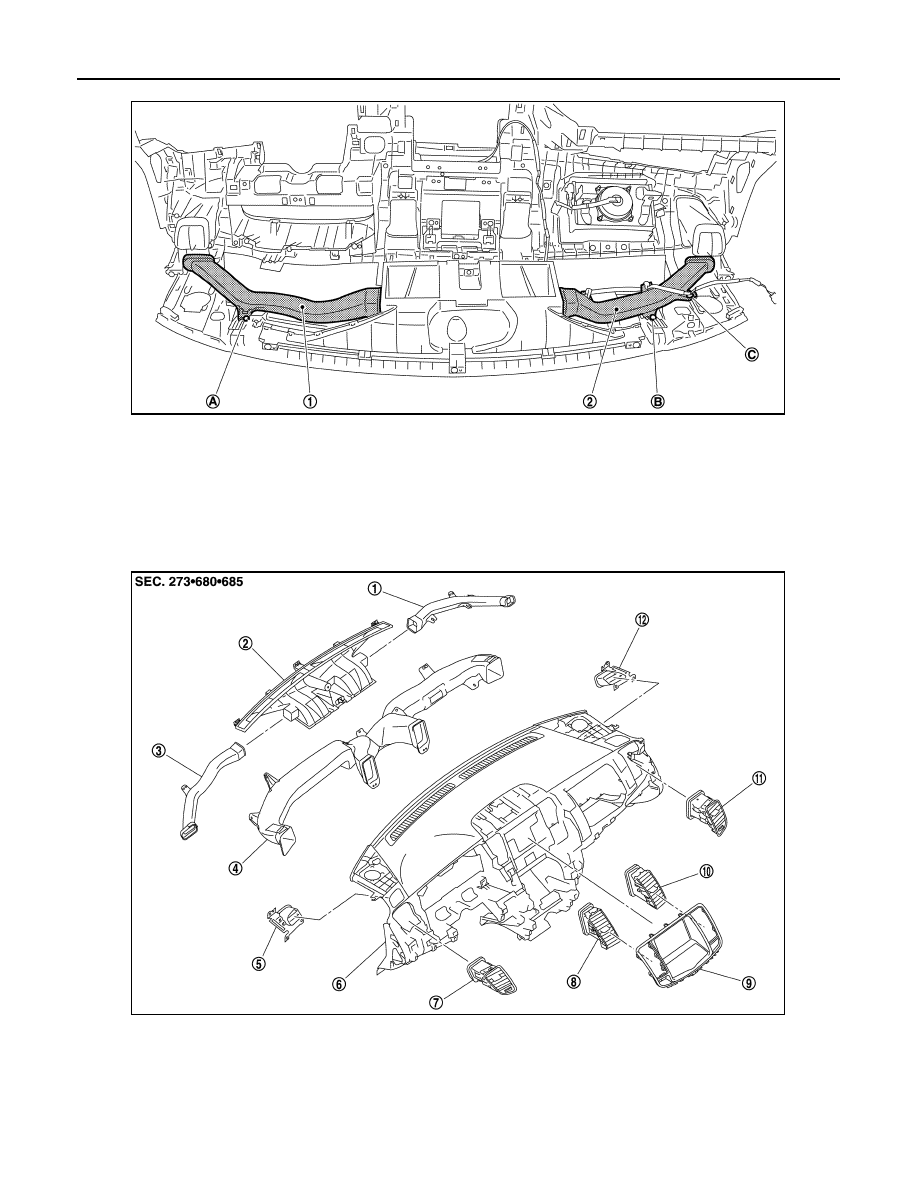

2.

Remove mounting screws (A), and then remove side defroster nozzle (left) (1).

3.

Remove mounting screw (B) and harness clip (C), and then remove side defroster nozzle (right) (2).

INSTALLATION

Installation is basically the reverse order of removal.

DEFROSTER NOZZLE

DEFROSTER NOZZLE : Exploded View

INFOID:0000000003894529

JPIIA0933ZZ

1.

Side defroster nozzle (right)

2.

Defroster nozzle

3.

Side defroster nozzle (left)

4.

Ventilator duct

5.

Side defroster grille (left)

6.

Instrument panel assembly

7.

Side ventilator grille (left)

8.

Center ventilator grille (left)

9.

Cluster lid D

10. Center ventilator grille (right)

11. Side ventilator grille (right)

12. Side defroster grille (right)

JPIIA0928ZZ

DUCT AND GRILLE

VTL-109

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

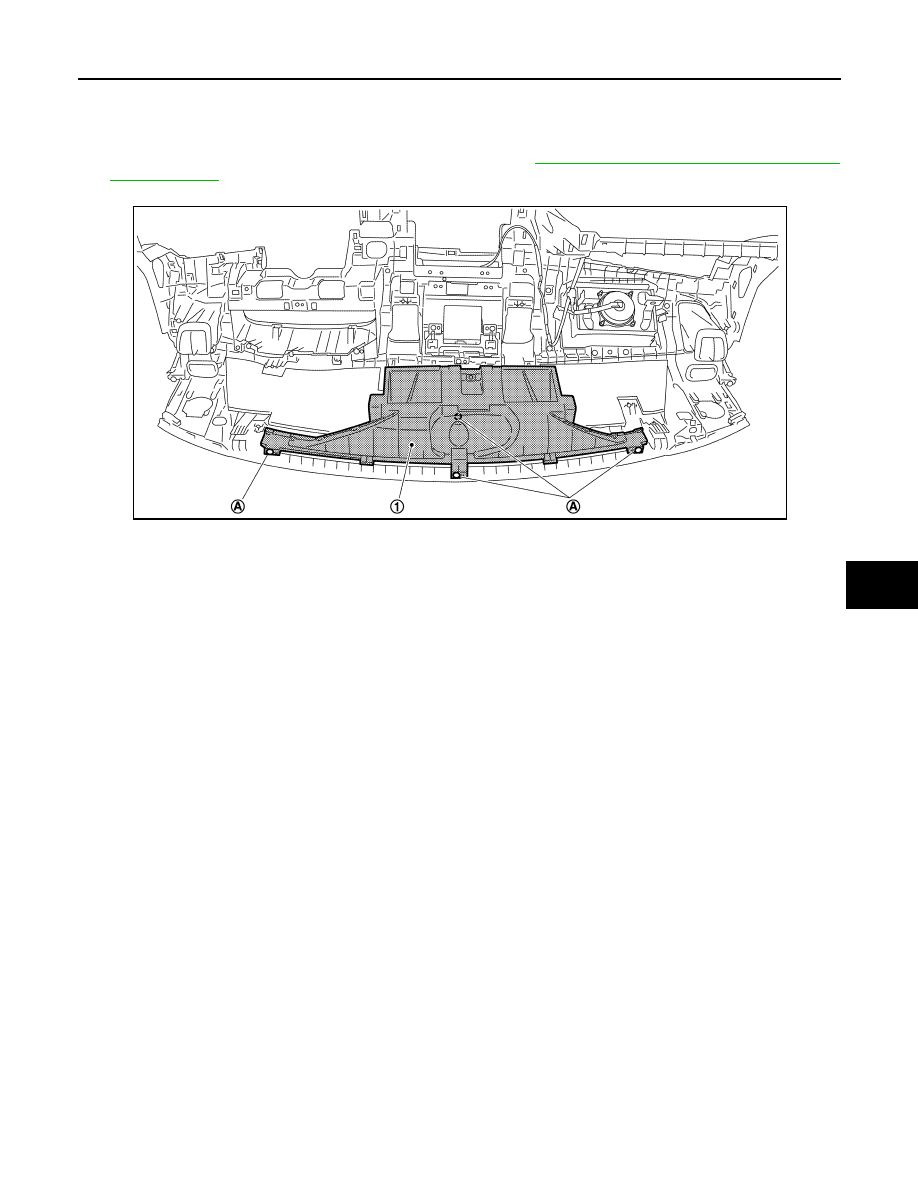

DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000003894531

REMOVAL

1.

Remove side defroster nozzles (left and right). Refer to

VTL-107, "SIDE DEFROSTER NOZZLE :

Exploded View"

.

2.

Remove mounting screws (A), and then remove defroster nozzle (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR VENTILATOR GRILLE

JPIIA0934ZZ
