< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

MODE DOOR MOTOR

MODE DOOR MOTOR

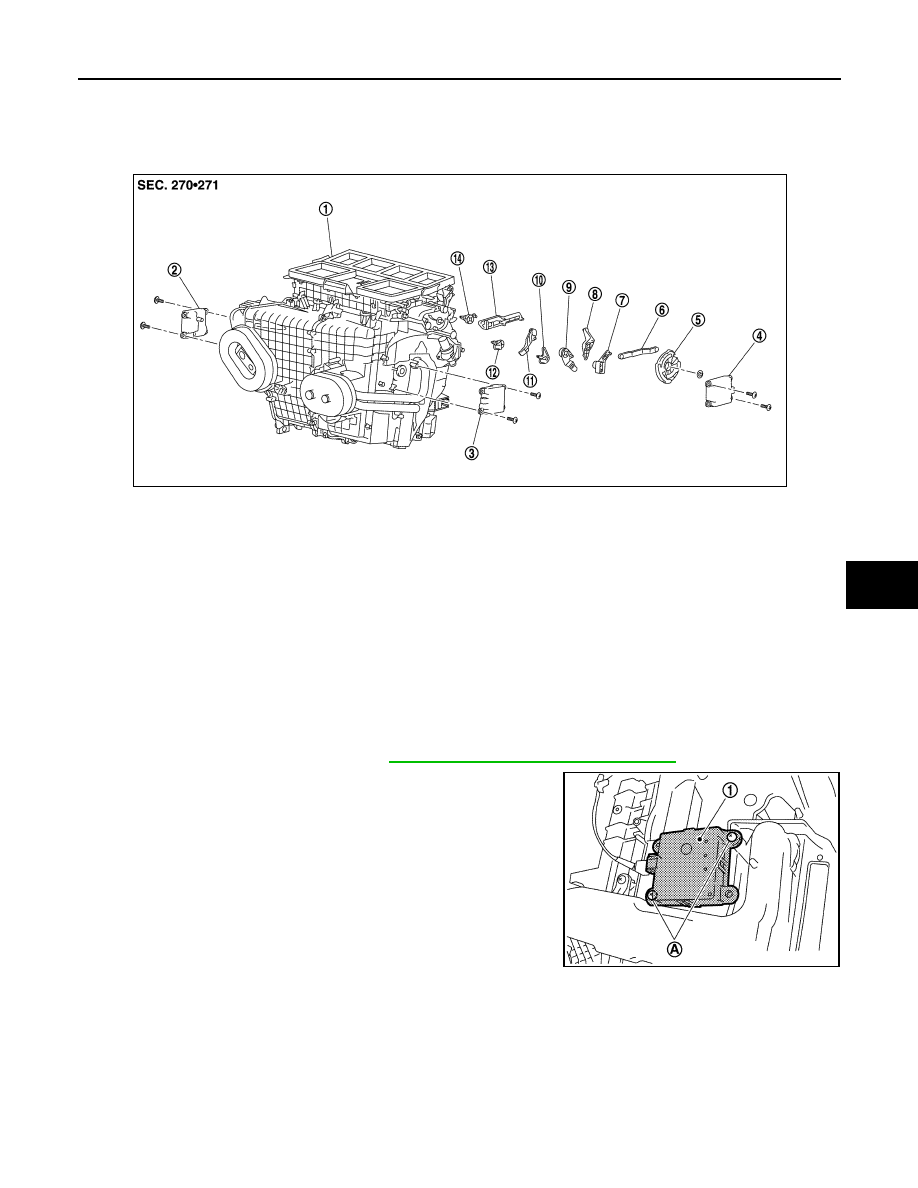

Exploded View

INFOID:0000000003894509

Removal and Installation

INFOID:0000000003894510

REMOVAL

1.

Remove BCM. Refer to

BCS-78, "Exploded View"

.

2.

Remove mounting screws (A), and then remove mode door
motor (1).

3.

Disconnect mode door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

1.

Heater & cooling unit assembly

2.

Air mix door motor (passenger side)

3.

Air mix door motor (driver side)

4.

Mode door motor

5.

Main link

6.

Rod link

7.

Mode door lever

8.

Ventilator door link

9.

Foot door link

10. Foot door lever

11.

Max. cool door link

12.

Max. cool door lever

13. Defroster door link

14.

Defroster door lever

JPIIA0922ZZ

JPIIA0923ZZ

AIR MIX DOOR MOTOR

VTL-99

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR MIX DOOR MOTOR

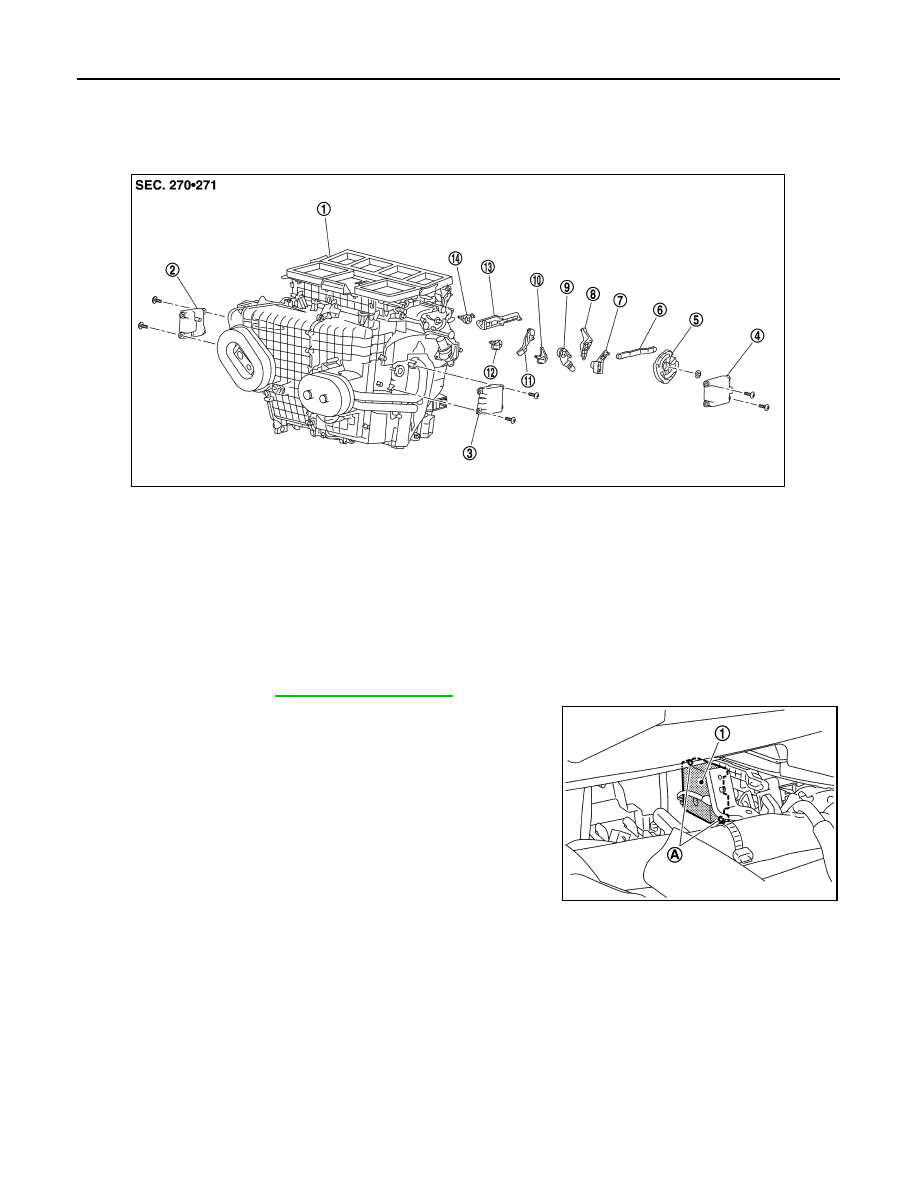

Exploded View

INFOID:0000000003894511

Removal and Installation

INFOID:0000000003940523

REMOVAL

Driver Side

1.

Disconnect the battery cable from the negative terminal after setting the temperature (driver side) to 18

°

C

(60

°

F).

2.

Remove foot duct (driver side). Refer to

VTL-117, "FOOT DUCT : Exploded View"

.

3.

Remove mounting screws (A), and then remove air mix door
motor (driver side) (1).

4.

Disconnect air mix door motor connector (driver side).

Passenger Side

1.

Disconnect the battery cable from the negative terminal after setting the temperature (passenger side) to
18

°

C (60

°

F).

1.

Heater & cooling unit assembly

2.

Air mix door motor (passenger side)

3.

Air mix door motor (driver side)

4.

Mode door motor

5.

Main link

6.

Rod link

7.

Mode door lever

8.

Ventilator door link

9.

Foot door link

10.

Foot door lever

11.

Max. cool door link

12. Max. cool door lever

13.

Defroster door link

14.

Defroster door lever

JPIIA0922ZZ

JPIIA0577ZZ

VTL-100

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

AIR MIX DOOR MOTOR

2.

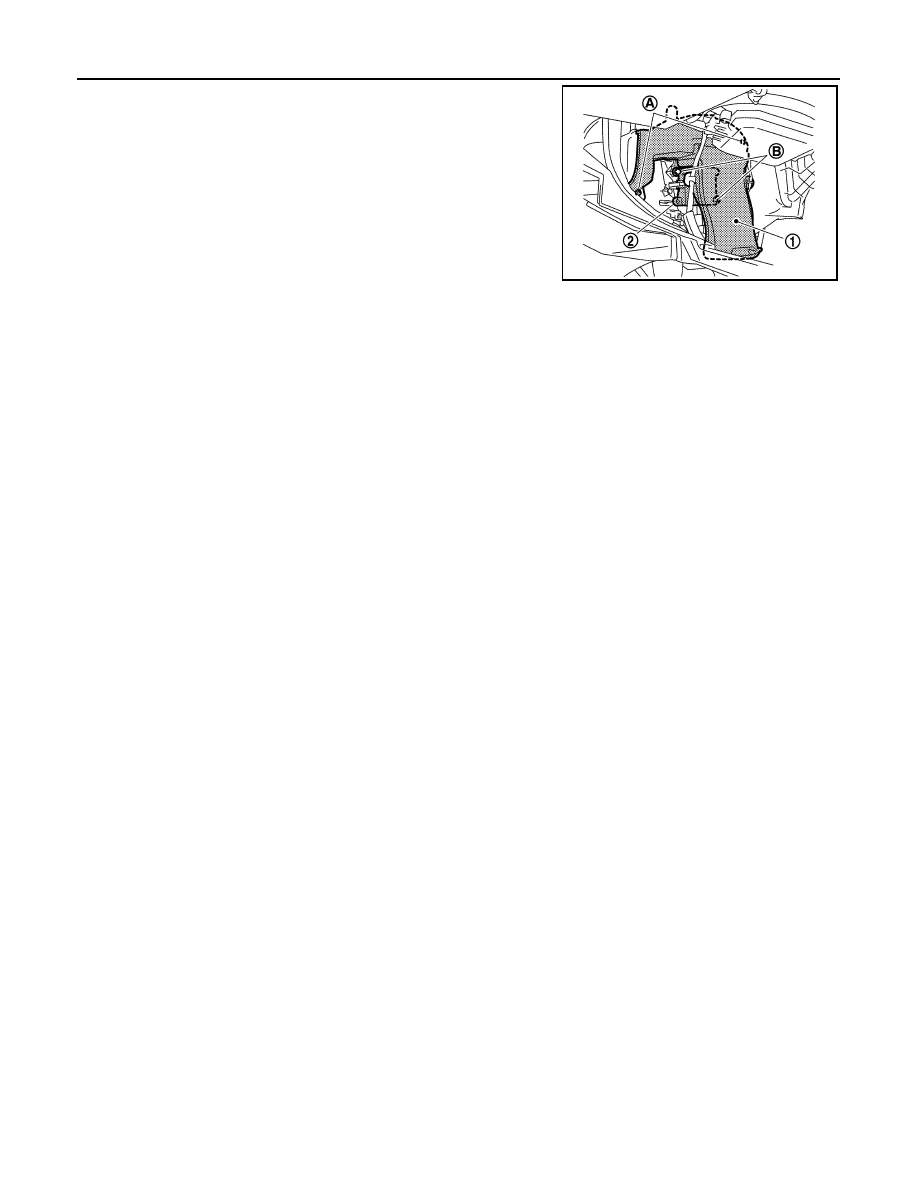

Remove mounting screws (A), and then move foot duct (passen-
ger side) (1) to a position where it does not inhibit work.

3.

Remove mounting screws (B), and then remove air mix door
motor (passenger side) (2).

4.

Disconnect air mix door motor connector (passenger side).

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA0924ZZ

HEATER CORE

VTL-101

< ON-VEHICLE REPAIR >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

HEATER CORE

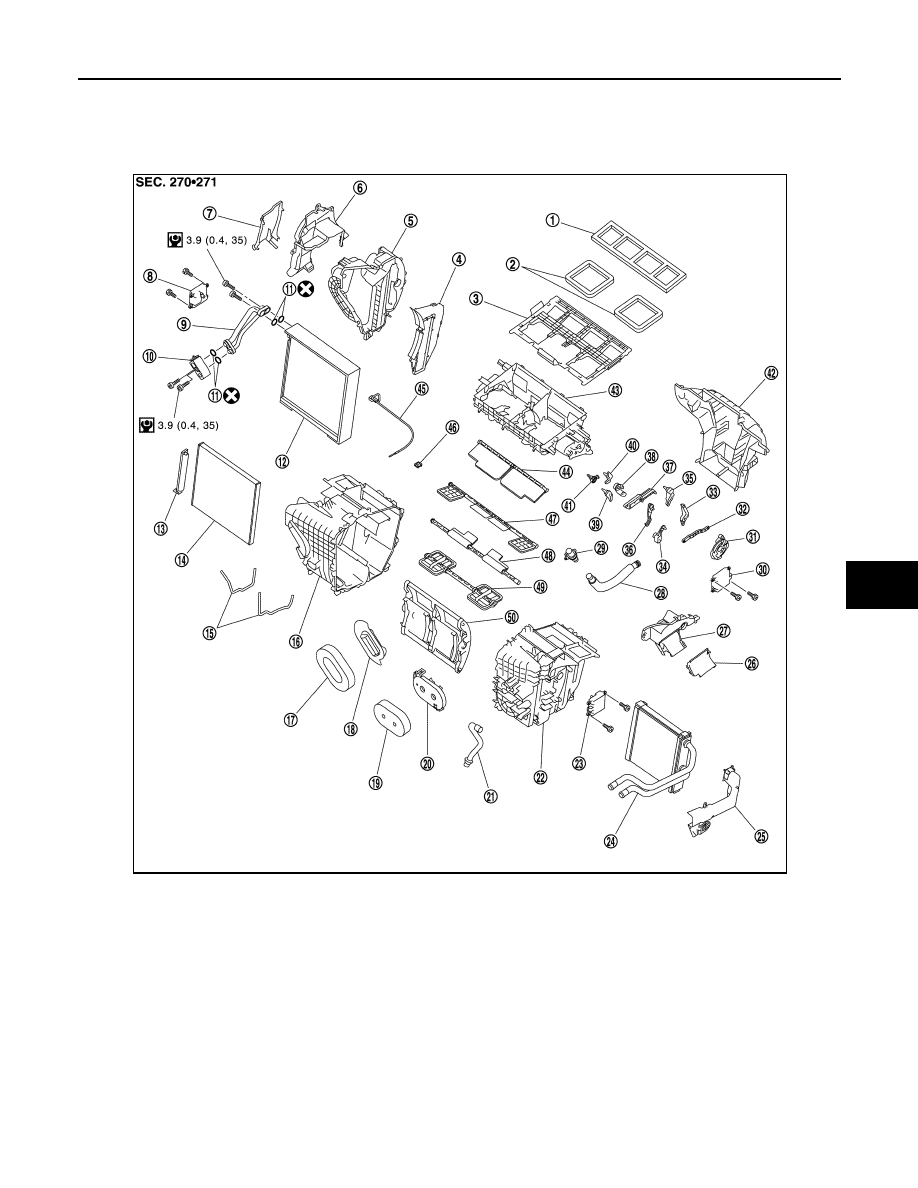

Exploded View

INFOID:0000000003894514

1.

Ventilator seal

2.

Defroster seal

3.

Distributor upper case

4.

Center case

5.

Heater & cooling unit case cover

6.

Foot duct 1 (right)

7.

Foot duct 2 (right)

8.

Air mix door motor (passenger side)

9.

Evaporator pipe assembly

10.

Expansion valve

11.

O-ring

12. Evaporator

13.

Filter cover

14.

Air conditioner filter

15. Case packing

16.

Heater & cooling unit case (right)

17.

Cooler pipe grommet

18. Grommet

19.

Heater pipe grommet

20.

Heater pipe support

21. Drain hose

22.

Heater & cooling unit case (left)

23.

Air mix door motor (driver side)

24. Heater core

25.

Heater pipe cover

26.

Foot duct 2 (left)

27. Foot duct 1 (left)

28.

Aspirator hose

29.

Aspirator

30. Mode door motor

31.

Main link

32.

Rod link

33. Ventilator door link

34.

Mode door lever

35.

Ventilator door lever

36. Max. cool door link

JPIIA0906GB
