VTL-34

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

INTAKE DOOR MOTOR

3.

Remove mounting screw (A), and then remove intake door
motor (1).

4.

Disconnect intake door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA0913ZZ

HEATER & COOLING UNIT ASSEMBLY

VTL-35

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

HEATER & COOLING UNIT ASSEMBLY

Exploded View

INFOID:0000000003774677

DISASSEMBLY

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Steering member

4.

Instrument stay

5.

Instrument panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

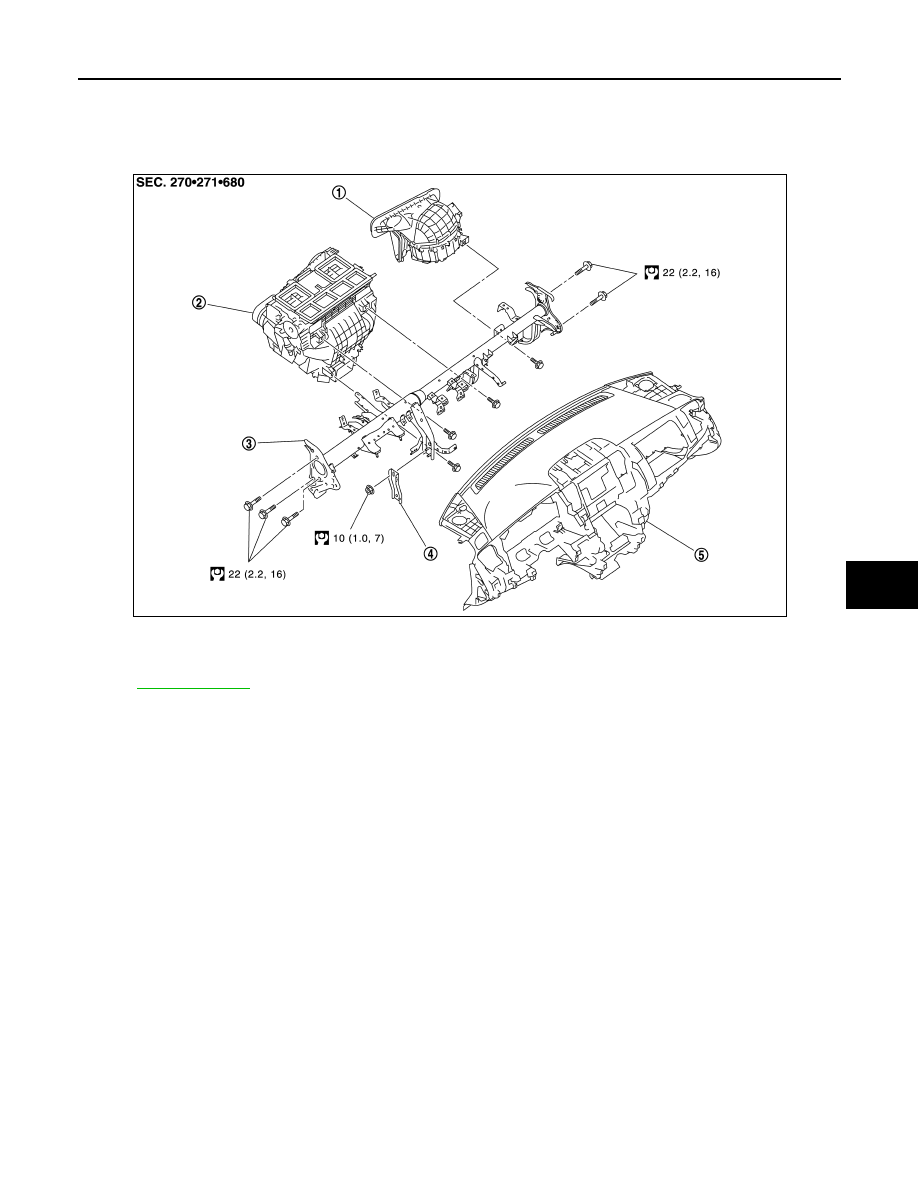

JPIIA0914GB

VTL-36

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

HEATER & COOLING UNIT ASSEMBLY

1.

Ventilator seal

2.

Defroster seal

3.

Distributor upper case

4.

Center case

5.

Heater & cooling unit case cover

6.

Foot duct 1 (right)

7.

Foot duct 2 (right)

8.

Air mix door motor (passenger side)

9.

Evaporator pipe assembly

10. Expansion valve

11.

O-ring

12.

Evaporator

13. Filter cover

14.

Air conditioner filter

15.

Case packing

16. Heater & cooling unit case (right)

17.

Cooler pipe grommet

18.

Grommet

19. Heater pipe grommet

20.

Heater pipe support

21.

Drain hose

22. Heater & cooling unit case (left)

23.

Air mix door motor (driver side)

24.

Heater core

25. Heater pipe cover

26.

Foot duct 2 (left)

27.

Foot duct 1 (left)

28. Aspirator hose

29.

Aspirator

30.

Mode door motor

31. Main link

32.

Rod link

33.

Ventilator door link

34. Mode door lever

35.

Ventilator door lever

36.

Max. cool door link

37. Defroster door link

38.

Foot door link

39.

Max. cool door lever

40. Foot door lever

41.

Defroster door lever

42.

Adapter case

43. Distributor lower case

44.

Ventilator door

45.

Intake sensor

46. Intake sensor bracket

47.

Foot door

48.

Max. cool door

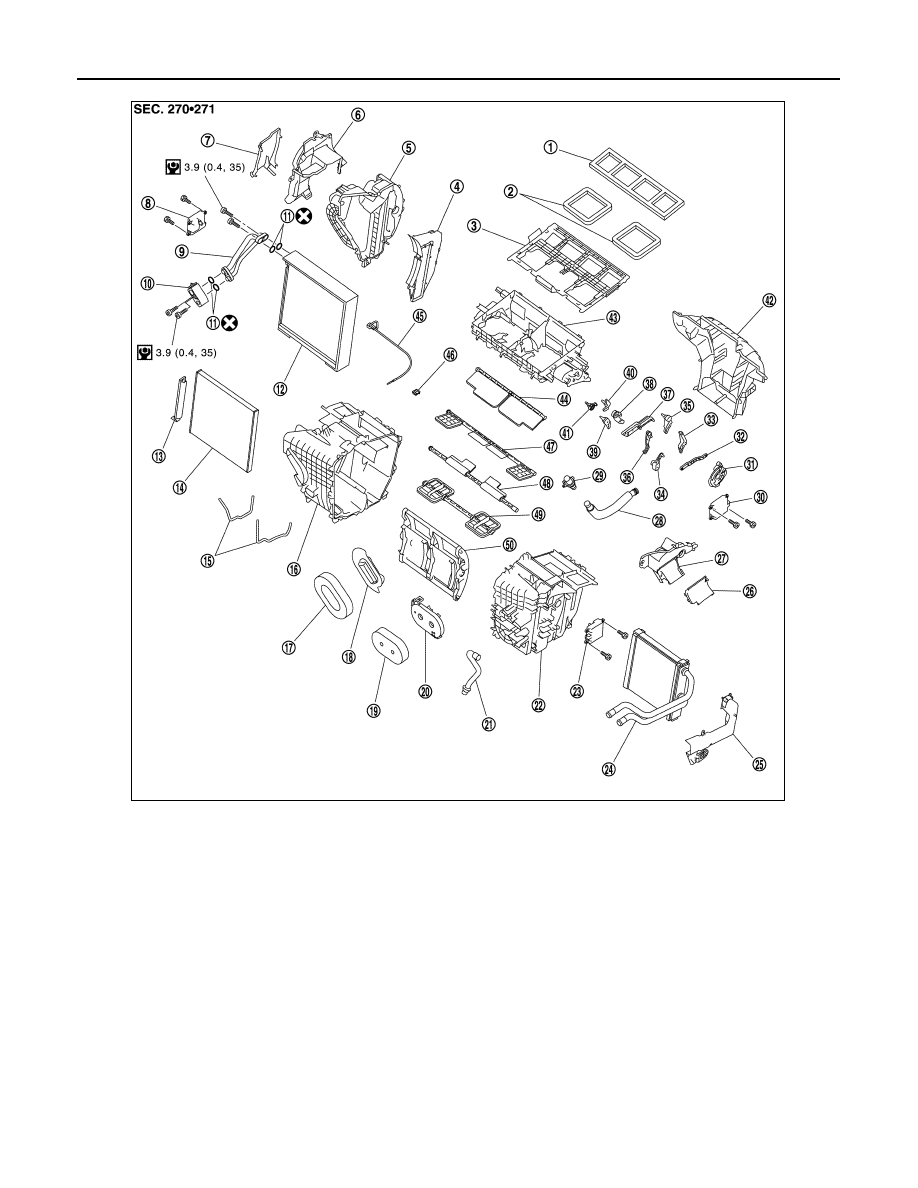

JPIIA0906GB

HEATER & COOLING UNIT ASSEMBLY

VTL-37

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Removal and Installation

INFOID:0000000003774678

REMOVAL

1.

Collect the refrigerant with refrigerant collecting equipment (for HFC134a).

2.

Drain engine coolant from cooling system. Refer to

CO-8, "Draining"

3.

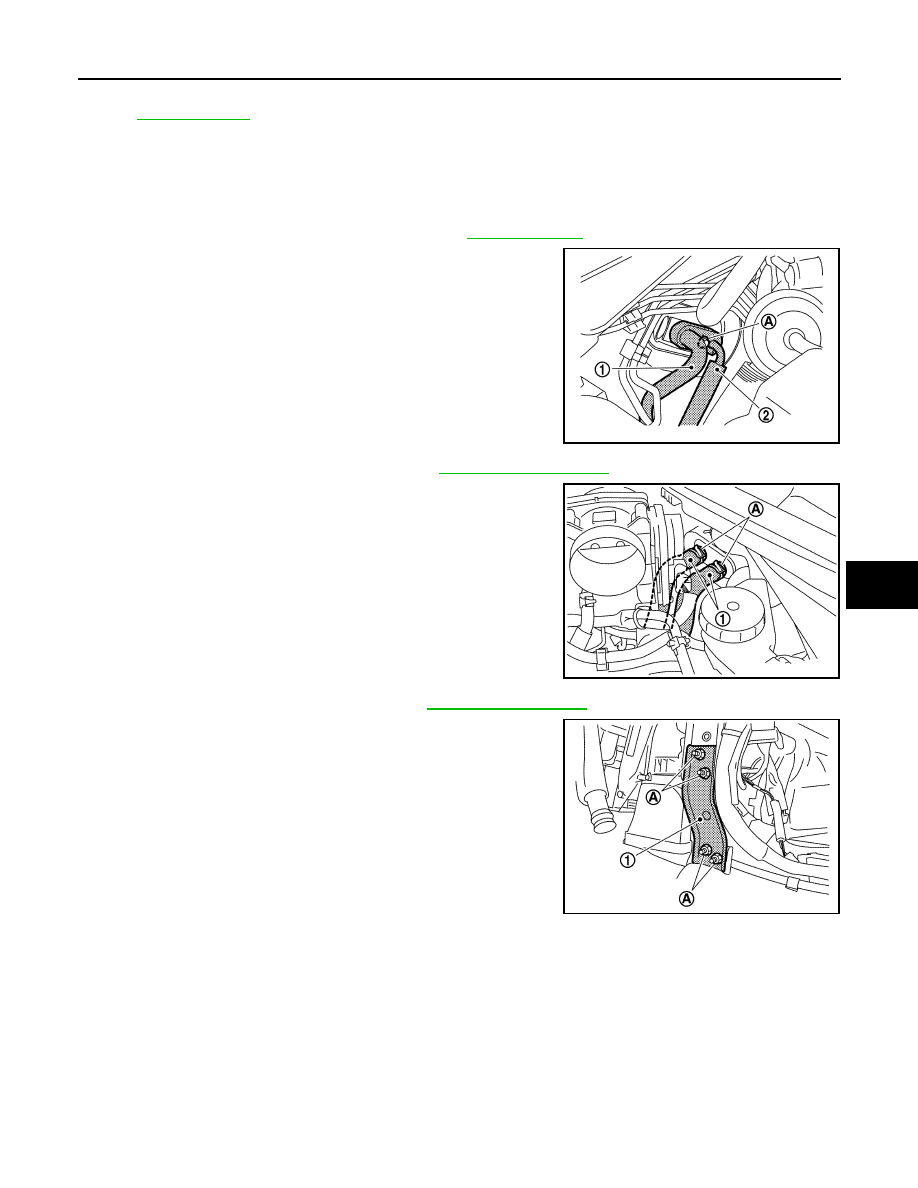

Remove mounting bolt (A), and then disconnect low-pressure
pipe (1) and high-pressure pipe (2) from the expansion valve.

CAUTION:

Cap or wrap the joint of the A/C piping and expansion valve
with suitable material such as vinyl tape to avoid the entry
of air.

4.

Remove air cleaner case and air duct. Refer to

EM-26, "Exploded View"

5.

Remove clamps (A), and then disconnect heater hoses (1).

CAUTION:

• Some coolant may spill when heater hoses are discon-

nected. Wipe them off with wastes.

• Close the coolant inlet/outlet on the heater core and

heater hoses with wastes.

6.

Remove instrument panel assembly. Refer to

IP-11, "Exploded View"

7.

Remove mounting nuts (A), and then remove instrument stay
(1).

49.

Defroster door

50.

Air mix door (Slide door)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0915ZZ

JPIIA0916ZZ

JPIIA0909ZZ
