VTL-26

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

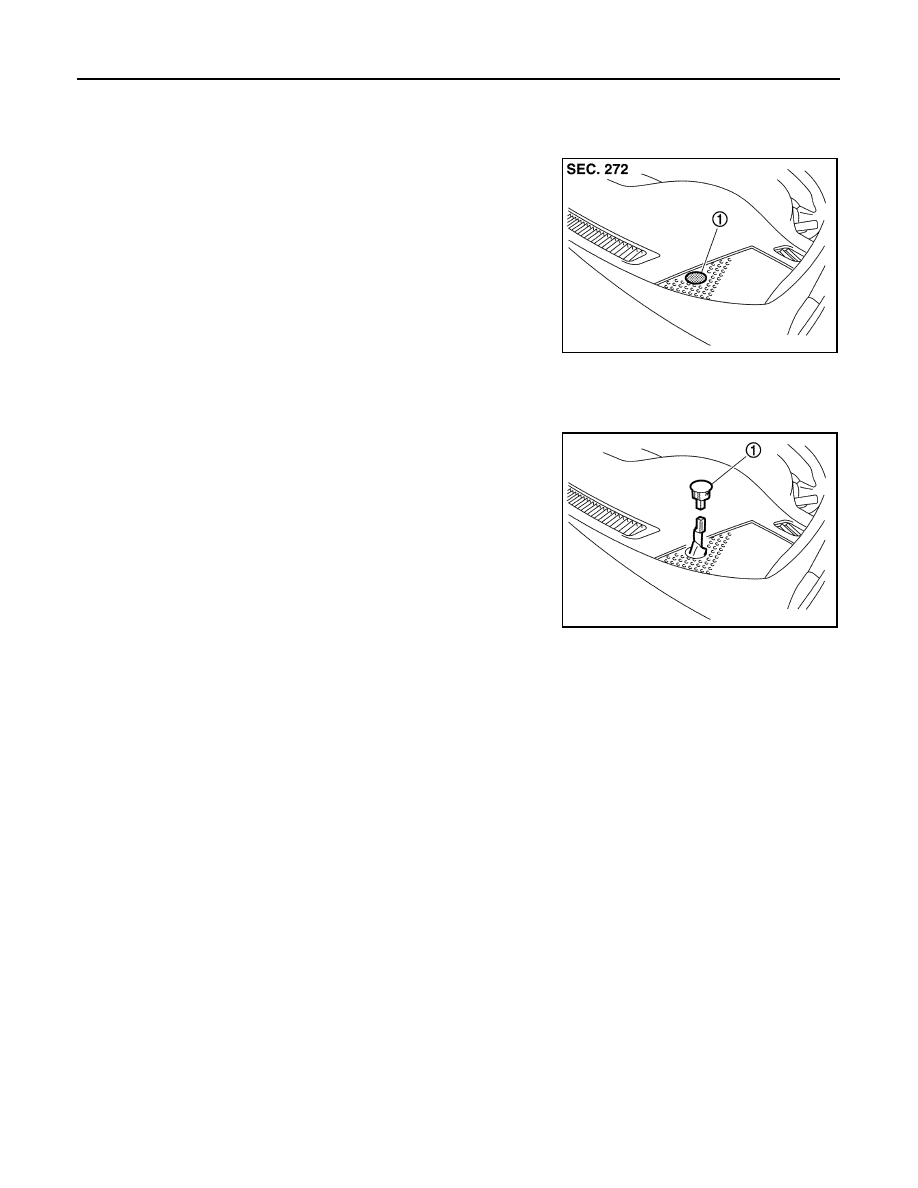

SUNLOAD SENSOR

SUNLOAD SENSOR

Exploded View

INFOID:0000000003774667

Removal and Installation

INFOID:0000000003774668

REMOVAL

1.

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Sunload sensor

JPIIA0904ZZ

JPIIA0905ZZ

INTAKE SENSOR

VTL-27

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

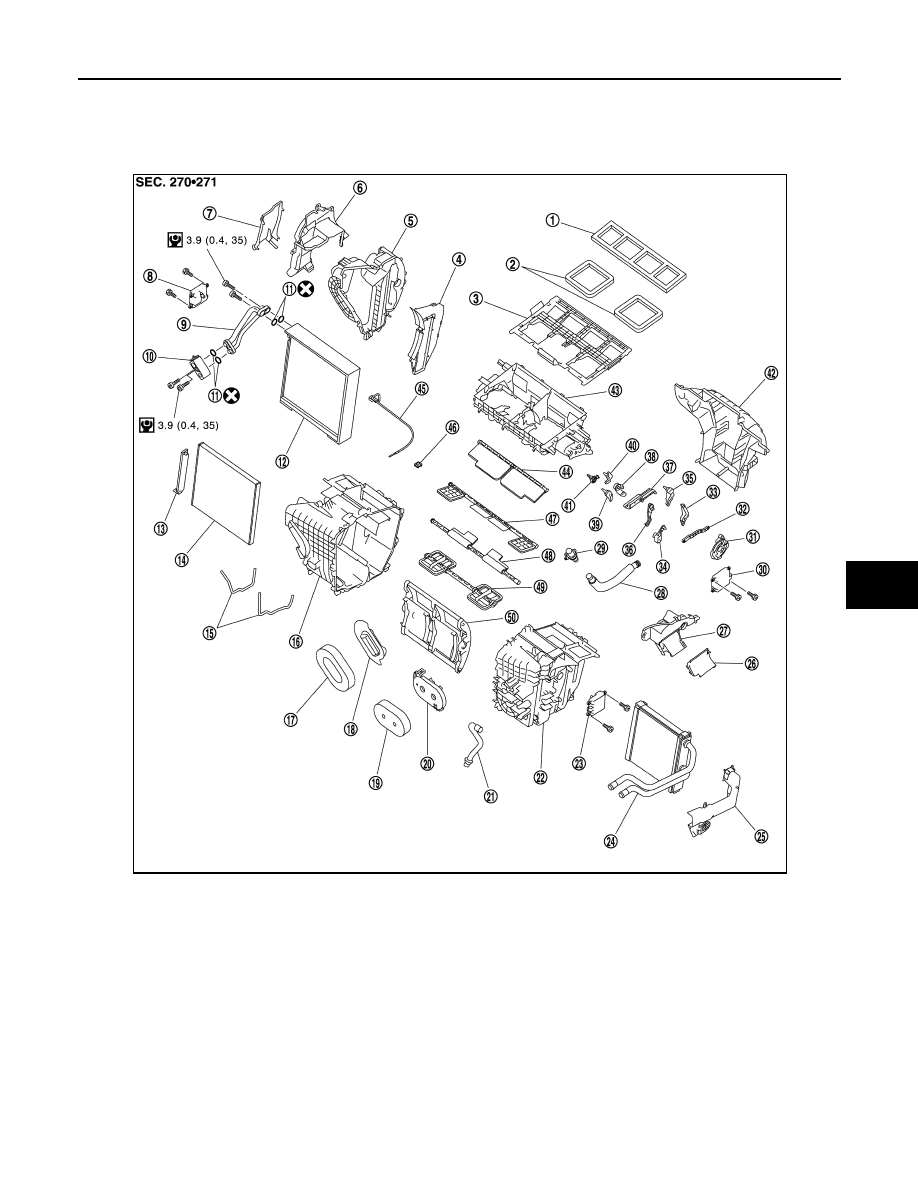

INTAKE SENSOR

Exploded View

INFOID:0000000003821339

1.

Ventilator seal

2.

Defroster seal

3.

Distributor upper case

4.

Center case

5.

Heater & cooling unit case cover

6.

Foot duct 1 (right)

7.

Foot duct 2 (right)

8.

Air mix door motor (passenger side)

9.

Evaporator pipe assembly

10.

Expansion valve

11.

O-ring

12. Evaporator

13.

Filter cover

14.

Air conditioner filter

15. Case packing

16.

Heater & cooling unit case (right)

17.

Cooler pipe grommet

18. Grommet

19.

Heater pipe grommet

20.

Heater pipe support

21. Drain hose

22.

Heater & cooling unit case (left)

23.

Air mix door motor (driver side)

24. Heater core

25.

Heater pipe cover

26.

Foot duct 2 (left)

27. Foot duct 1 (left)

28.

Aspirator hose

29.

Aspirator

30. Mode door motor

31.

Main link

32.

Rod link

33. Ventilator door link

34.

Mode door lever

35.

Ventilator door lever

36. Max. cool door link

JPIIA0906GB

VTL-28

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

INTAKE SENSOR

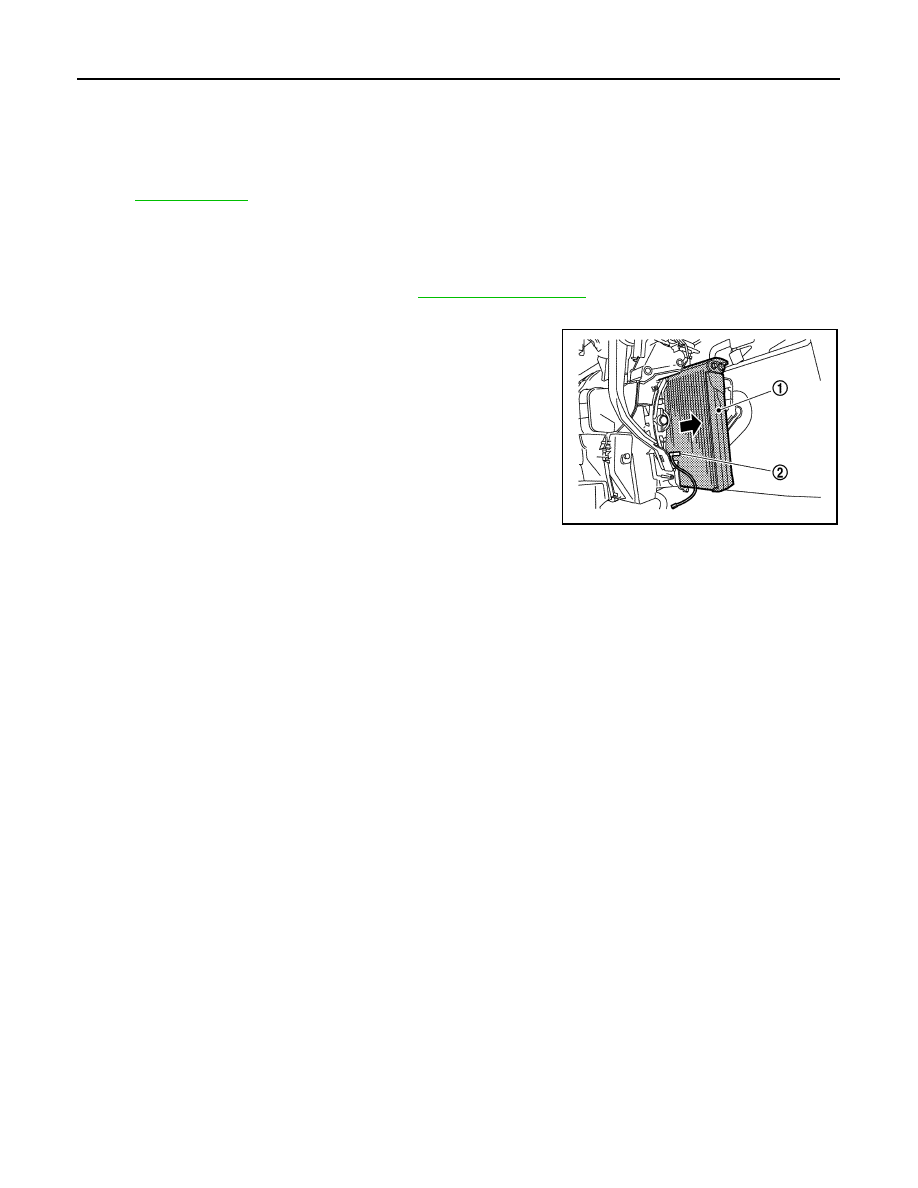

Removal and Installation

INFOID:0000000003774670

REMOVAL

1.

Remove evaporator pipe assembly. Refer to

HA-54, "Exploded View"

.

2.

Disconnect intake sensor connector.

3.

Slide evaporator (1) toward the right side of the vehicle (as
shown in the figure), and then remove intake sensor (2).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Do not rotate the bracket insertion part when removing and installing the intake sensor.
• Check for refrigerant leakage when charging refrigerant.

37. Defroster door link

38.

Foot door link

39.

Max. cool door lever

40. Foot door lever

41.

Defroster door lever

42.

Adapter case

43. Distributor lower case

44.

Ventilator door

45.

Intake sensor

46. Intake sensor bracket

47.

Foot door

48.

Max. cool door

49. Defroster door

50.

Air mix door (Slide door)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0907ZZ

BLOWER UNIT

VTL-29

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

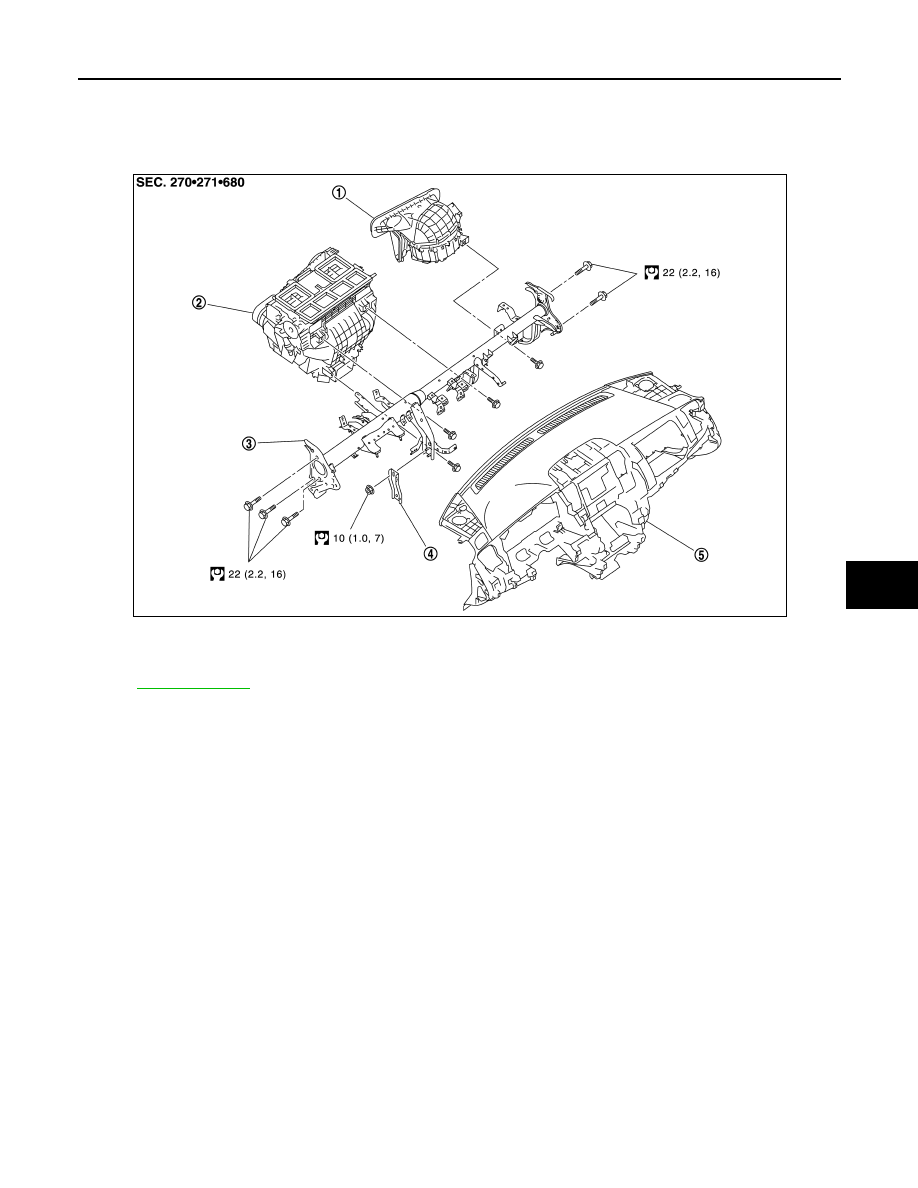

BLOWER UNIT

Exploded View

INFOID:0000000003774671

DISASSEMBLY

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Steering member

4.

Instrument stay

5.

Instrument panel assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPIIA0914GB
