VTL-30

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

BLOWER UNIT

Removal and Installation

INFOID:0000000003774672

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-11, "Exploded View"

2.

Remove mounting nuts (A), and then remove instrument stay
(1).

3.

Disconnect intake door motor and blower motor connectors.

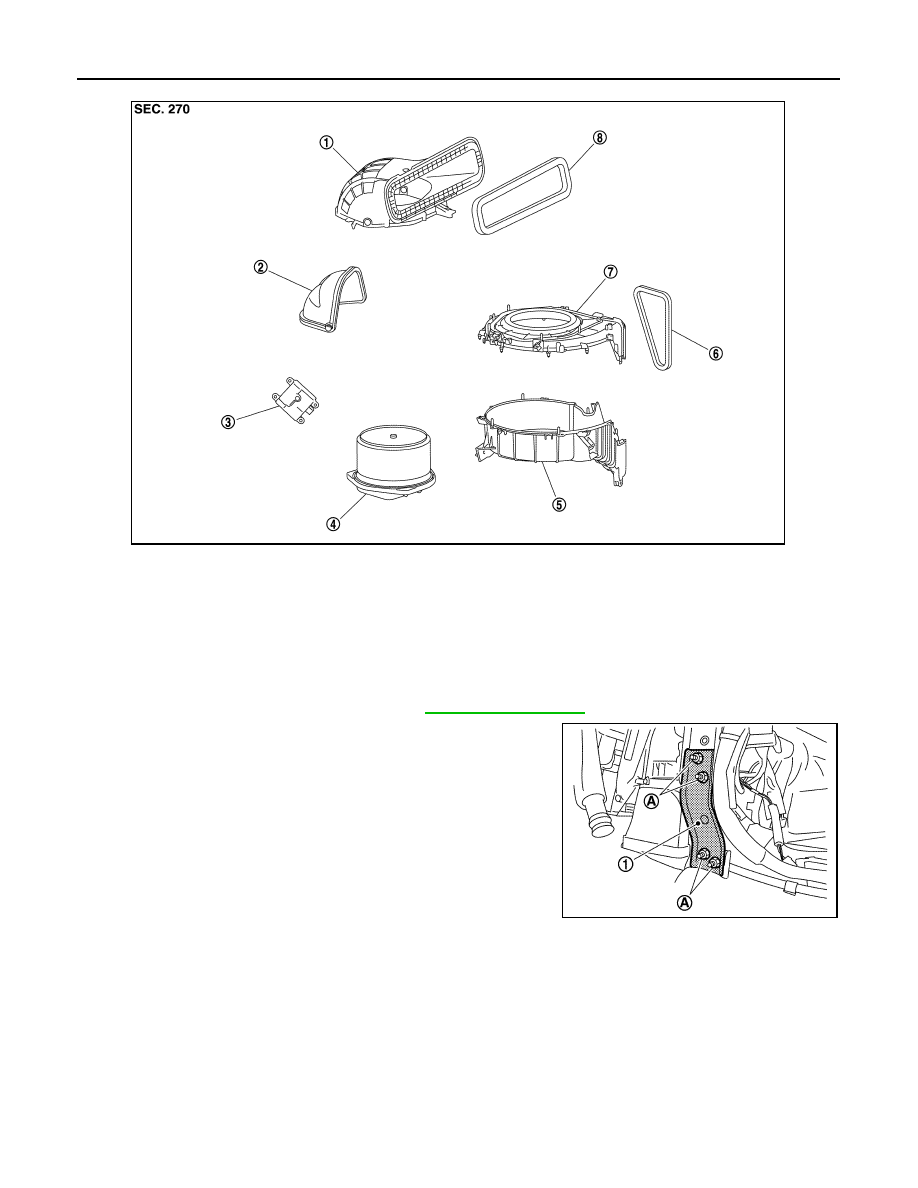

1.

Shutter box case

2.

Intake door

3.

Intake door motor

4.

Blower motor

5.

Intake lower case

6.

Outlet seal

7.

Intake upper case

8.

Intake seal

JPIIA0908ZZ

JPIIA0909ZZ

BLOWER UNIT

VTL-31

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

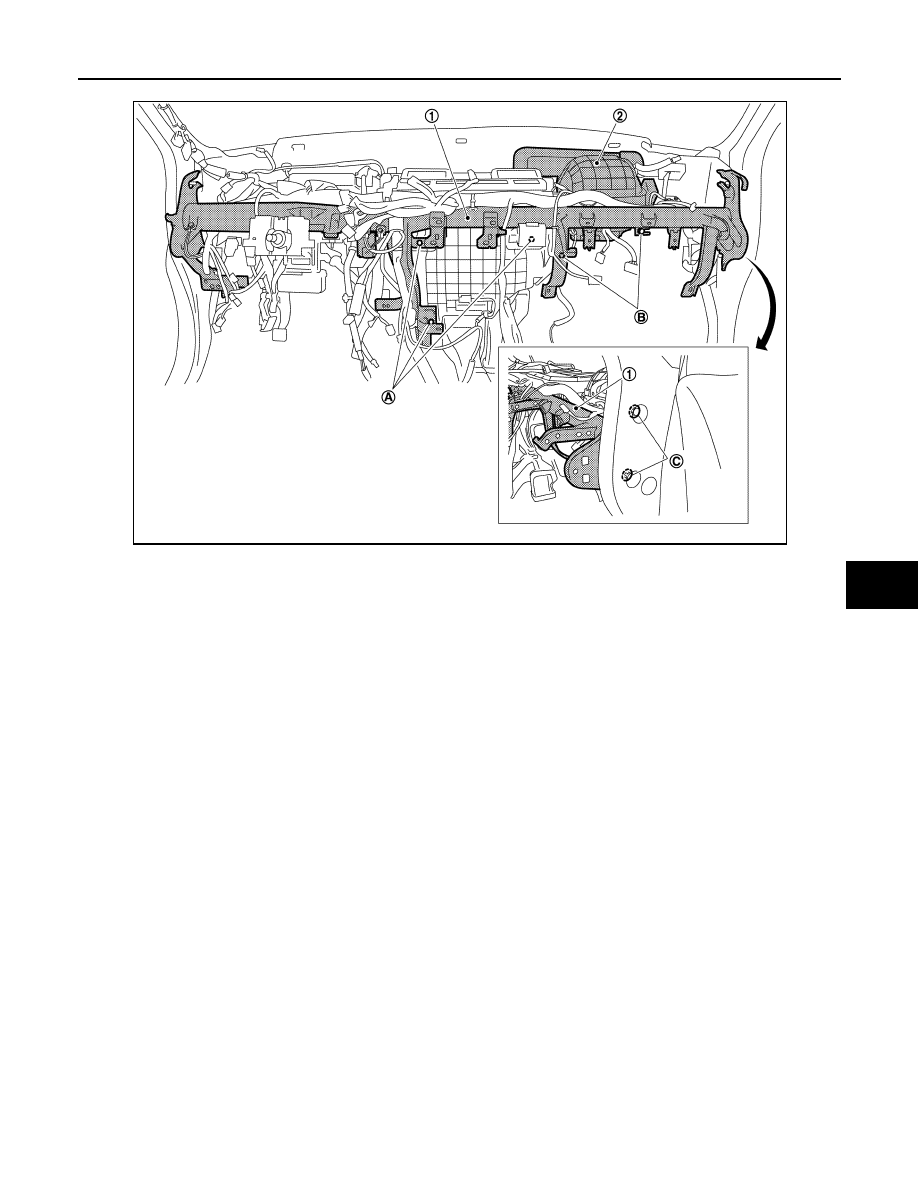

4.

Remove heater & cooling unit assembly mounting bolts (A) and blower unit mounting bolts (B).

5.

Remove steering member mounting bolts (C) (right).

6.

Remove blower unit (2) while pulling steering member (1).

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA0910ZZ

VTL-32

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

BLOWER MOTOR

BLOWER MOTOR

Exploded View

INFOID:0000000003774673

Removal and Installation

INFOID:0000000003774674

REMOVAL

1.

Remove globe box assembly. Refer to

IP-11, "Exploded View"

2.

Disconnect blower motor connector.

3.

Remove mounting screws (A), and then remove blower motor
(1).

INSTALLATION

Installation is basically the reverse order of removal.

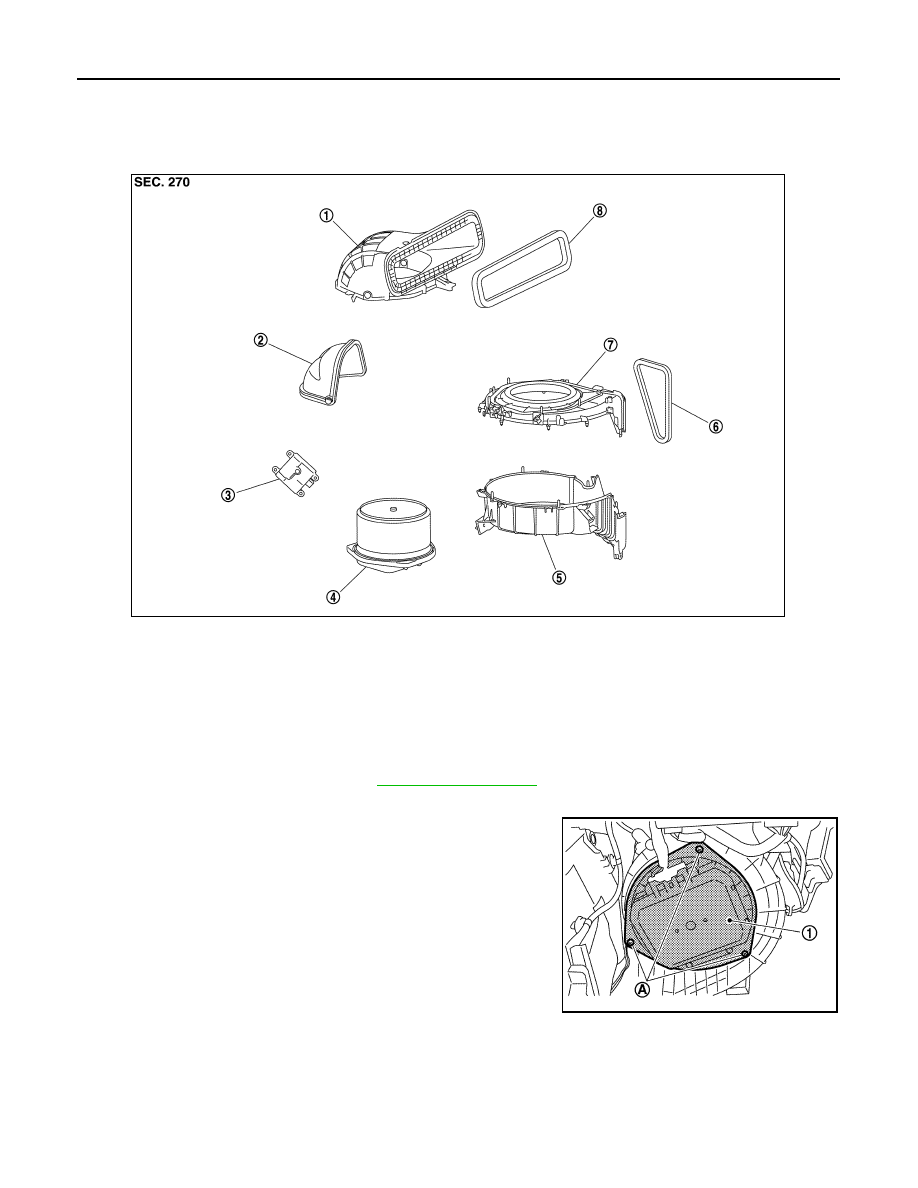

1.

Shutter box case

2.

Intake door

3.

Intake door motor

4.

Blower motor

5.

Intake lower case

6.

Outlet seal

7.

Intake upper case

8.

Intake seal

JPIIA0908ZZ

JPIIA0911ZZ

INTAKE DOOR MOTOR

VTL-33

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE DOOR MOTOR

Exploded View

INFOID:0000000003774675

Removal and Installation

INFOID:0000000003774676

REMOVAL

1.

Remove globe box assembly. Refer to

IP-11, "Exploded View"

2.

Remove mounting screw (A), and then move remote keyless
entry receiver (1) to a position where it does not inhibit work.

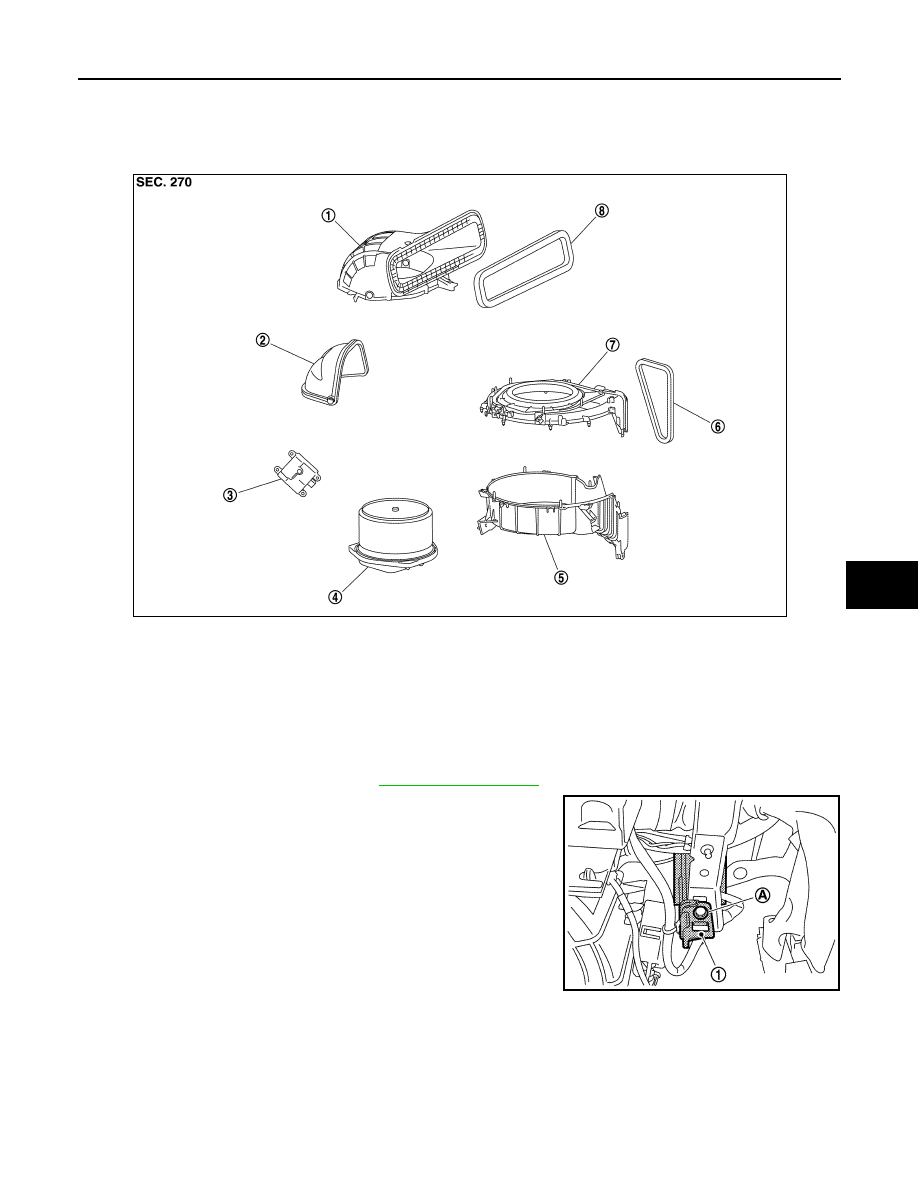

1.

Shutter box case

2.

Intake door

3.

Intake door motor

4.

Blower motor

5.

Intake lower case

6.

Outlet seal

7.

Intake upper case

8.

Intake seal

JPIIA0908ZZ

JPIIA0912ZZ
