VTL-18

< PREPARATION >

[WITHOUT 7 INCH DISPLAY]

PREPARATION

Commercial Service Tool

INFOID:0000000003774652

Sealant or/and Lubricant

INFOID:0000000003802543

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/

or its lubricant.

• Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/

lubricant.

• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.

• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and

compressor malfunction may result.

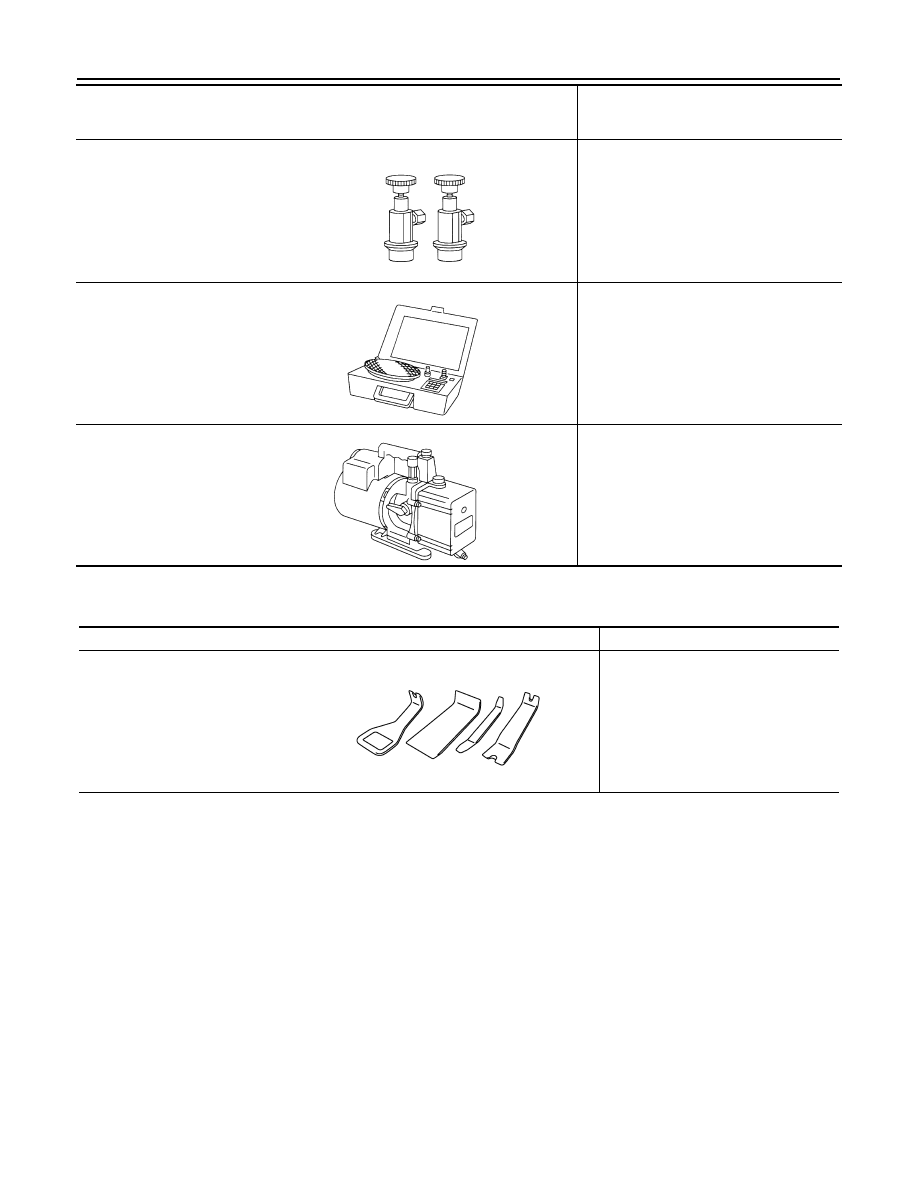

Service couplers
• High-pressure side coupler
• Low-pressure side coupler

Hose fitting to service hose:
M14 x 1.5 fitting is optional or permanently
attached.

Refrigerant weight scale

For measuring of refrigerant
Fitting size: Thread size

1/2

-16 ACME

Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz.)
Fitting size: Thread size

• 1/2

-16 ACME

Tool number

(SPX-North America No.)

Tool name

Description

S-NT202

S-NT200

S-NT203

Tool name

Description

Remover tools

Remove clips, pawls, metal clips

PIIB7923J

PREPARATION

VTL-19

< PREPARATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

Tool name

Description

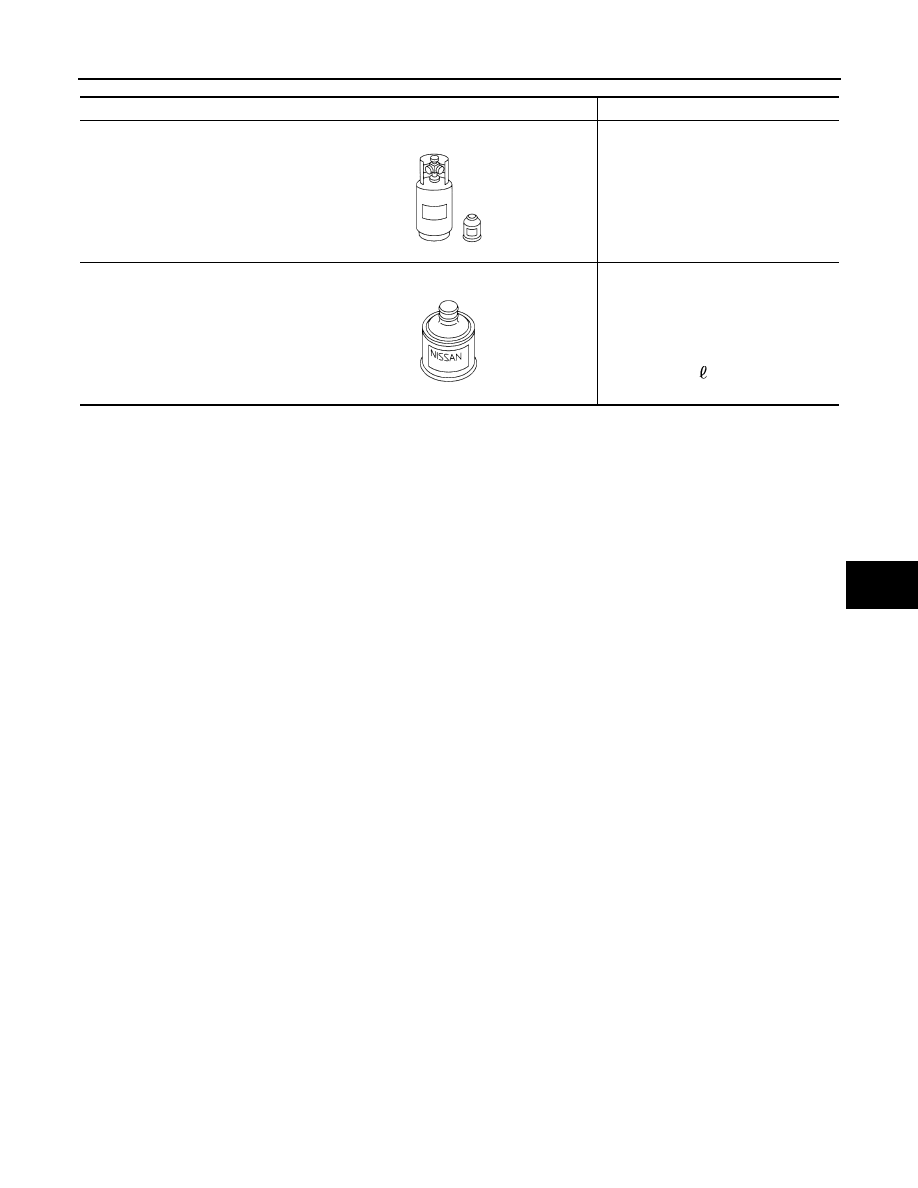

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

-16 ACME

NISSAN A/C System Oil Type S
(DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) swash plate com-
pressors (Nissan only)

Capacity: 40 m

 (1.4 Imp fl oz.)

S-NT196

S-NT197

VTL-20

< ON-VEHICLE MAINTENANCE >

[WITHOUT 7 INCH DISPLAY]

AIR CONDITIONER FILTER

ON-VEHICLE MAINTENANCE

AIR CONDITIONER FILTER

Exploded View

INFOID:0000000003774654

Removal and Installation

INFOID:0000000003774655

REMOVAL

1.

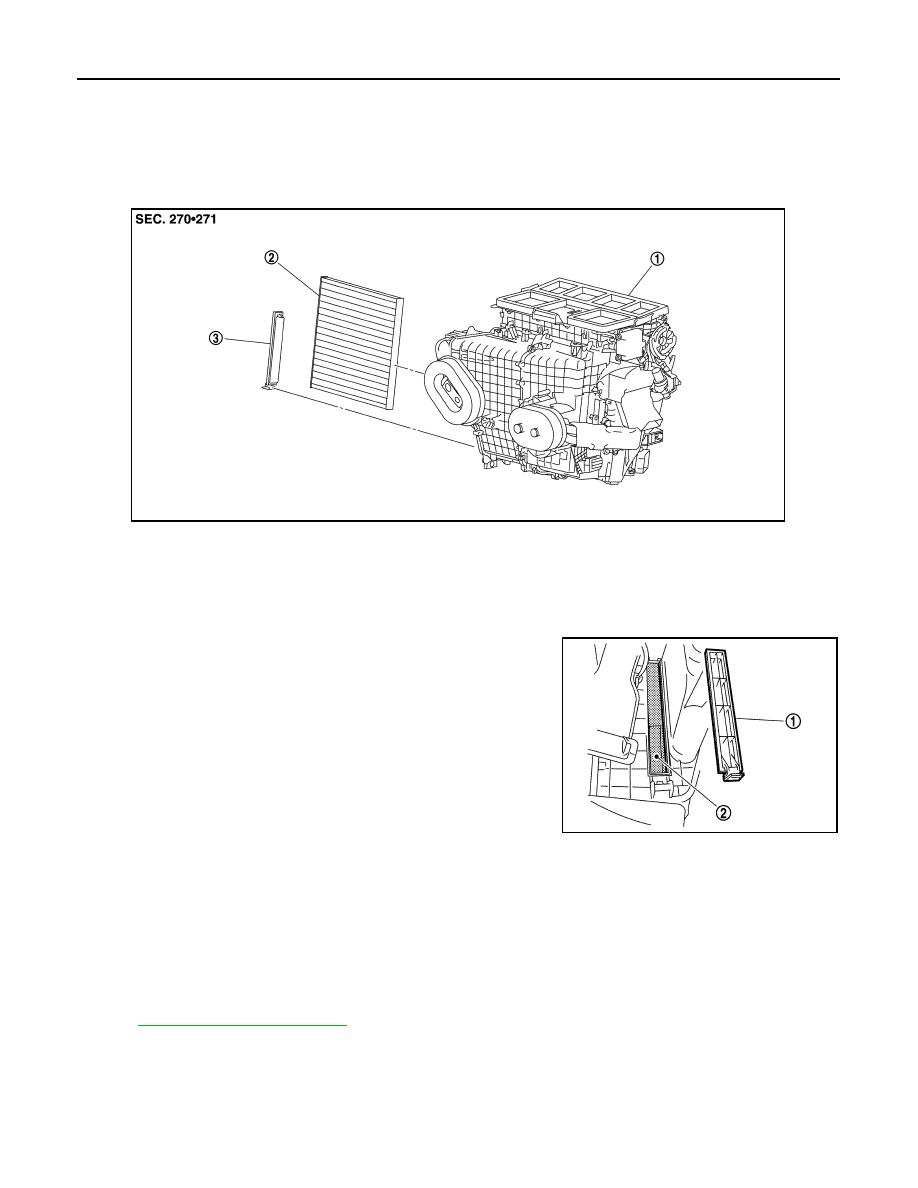

Remove filter cover (1), and then remove air conditioner filter
(2).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• If the filter is deformed/damaged when removing, replace it with a new one. Deformed/damaged filter

may deteriorate the duct collecting performance.

• When installing, handle the filter with extreme care to avoid deforming/damaging.

Replacement

INFOID:0000000003774656

Replace air conditioner filter.
Refer to

MA-6, "Periodic Maintenance"

.

Affix a caution label inside the glove box when replacing filter.

1.

Heater & cooling unit assembly

2.

Air conditioner filter

3.

Filter cover

JPIIA0895ZZ

JPIIA0896ZZ

A/C CONTROL

VTL-21

< ON-VEHICLE REPAIR >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

ON-VEHICLE REPAIR

A/C CONTROL

Exploded View

INFOID:0000000003774657

Removal and Installation

INFOID:0000000003774658

REMOVAL

1.

Remove cluster lid D. Refer to

IP-11, "Exploded View"

2.

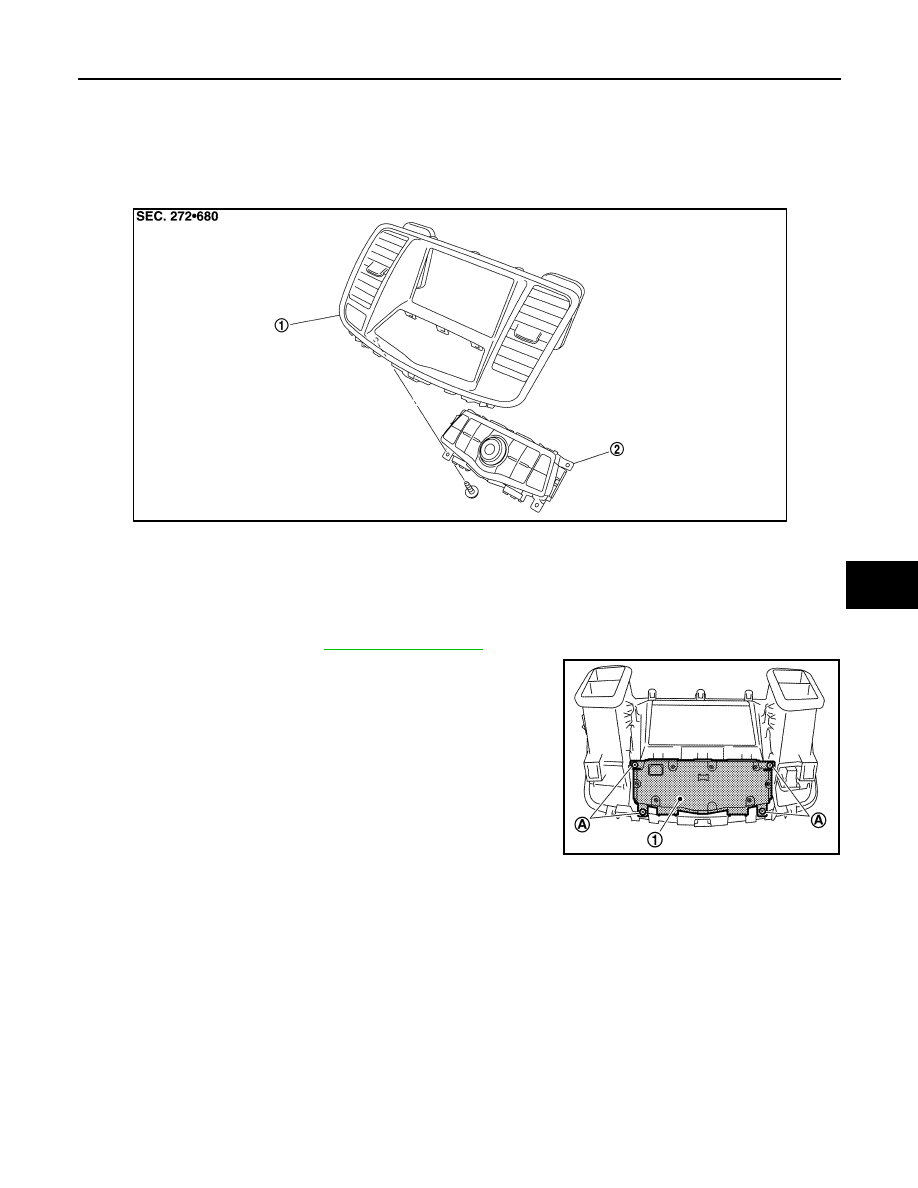

Remove mounting screws (A), and then remove A/C control (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Cluster lid D

2.

A/C control

JPIIA0948ZZ

JPIIA0949ZZ
