DIAGNOSIS SENSOR UNIT

SR-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

4.

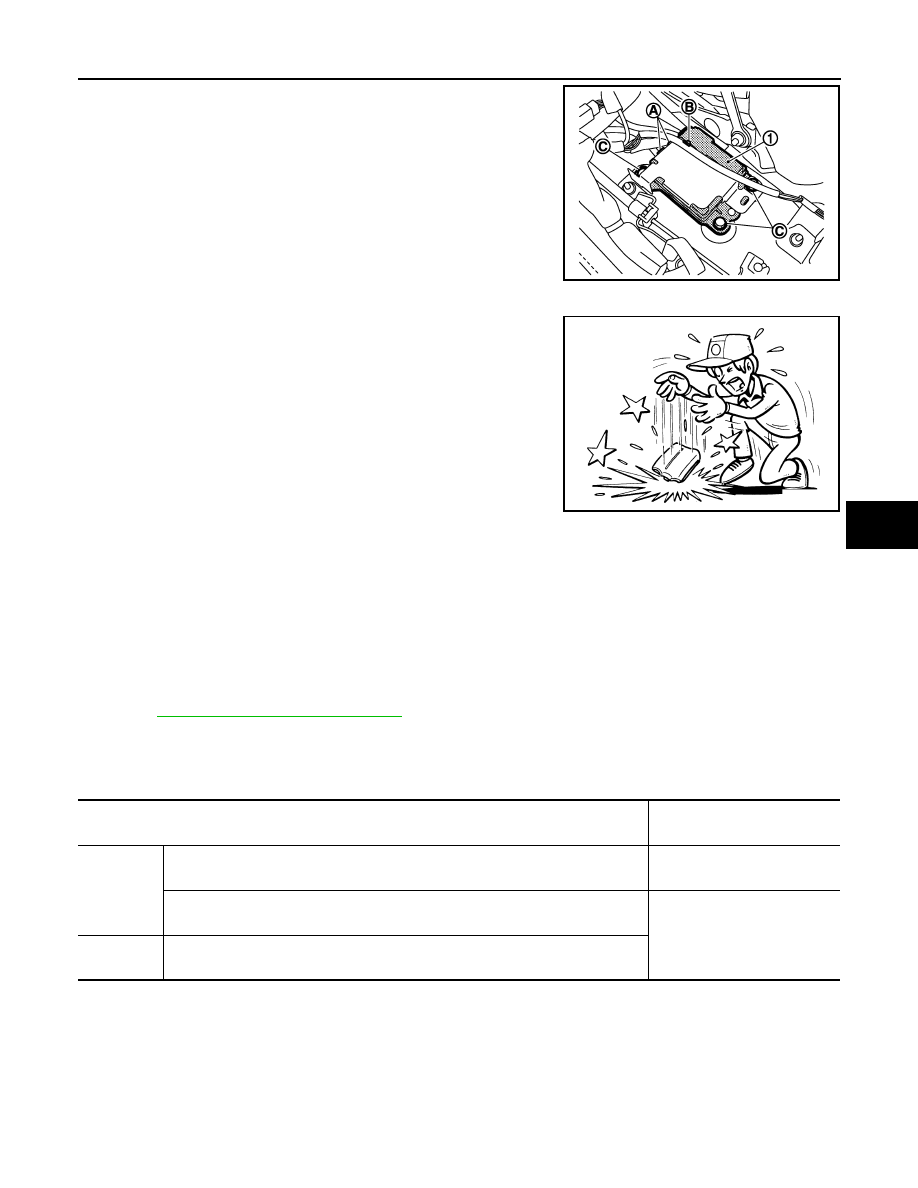

Disconnect diagnosis sensor unit (1) harness connectors (A).

5.

Remove harness clip (B).

6.

Remove fixing bolts (C), and then remove diagnosis sensor unit.

CAUTION:

• Never impact the diagnosis sensor unit.
• Replace the diagnosis sensor unit if it has been dropped or

sustained an impact.

• Replace the diagnosis sensor unit of deployed SRS air bag and deployed SRS front seat belt pre-ten-

sioner.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use old fixing bolts after removal; replace with new fixing bolts.
• In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of

the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-10, "Diagnosis Description"

.

ECU DISCRIMINATED NO.

After replacing the diagnosis sensor unit, confirm that the diagnosis sensor unit identification is correct for the
vehicle as equipped.

JMHIA0629ZZ

JMHIA0009ZZ

Specification

ECU DISCRIMINATED

No.

VQ25DE

Driver and passenger air bag, front seat belt pre-tensioner and
front side air bag

AE07

Driver and passenger air bag, front seat belt pre-tensioner, front
side air bag and side curtain air bag

AE09

VQ35DE

Driver and passenger air bag, front seat belt pre-tensioner, front
side air bag and side curtain air bag

SR-24

< ON-VEHICLE REPAIR >

FRONT SEAT BELT PRE-TENSIONER

FRONT SEAT BELT PRE-TENSIONER

Removal and Installation

INFOID:0000000003838679

For removal and installation procedures, refer to

SB-5, "SEAT BELT RETRACTOR : Removal and Installa-

tion"

.

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

SR-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Caution for Air Bag Module and Seat Belt Pre-tensioner

INFOID:0000000003839142

Precaution for Work

• Before disposing of air bag module and seat belt pre-tensioner, or vehicles equipped with such systems,

deploy the systems. If such systems have already been deployed due to an accident, dispose of them as
indicated in Disposing of Air Bag Module and Seat Belt Pre-tensioner. Refer to

SR-25, "Caution for Air Bag

Module and Seat Belt Pre-tensioner"

.

• When deploying the air bag module and seat belt pre-tensioner, always use the Special Service Tool;

Deployment tool (SST: KV99106400).

• When deploying the air bag module and seat belt pre-tensioner, stand at least 5.0 m (16.4 ft.) away from the

deployment component.

• When deploying air bag module and seat belt pre-tensioner, a fairly loud noise is made, followed by smoke

being released. The smoke is not poisonous, however, be careful not to inhale smoke since it irritates the
throat and can cause choking.

• Always activate one air bag module at a time.
• Due to heat, leave air bag module unattended for more than 30 minutes after deployment. Also leave seat

belt pre-tensioner unattended for more than 10 minutes after deployment.

• Wear gloves when handling a deployed air bag module and seat belt pre-tensioner.
• Never apply water to the deployed air bag module and seat belt pre-tensioner.
• Wash your hands after work is completed.
• Place the vehicle outdoors with an open space of at least 6.0 m (19.7 ft) on all sides when deploying air bag

module and seat belt pre-tensioner while mounted in vehicle.

• Use a volt meter to make sure the vehicle battery is fully charged.
• Never dispose of the air bag module and seat belt pre-tensioner that does not deploy.

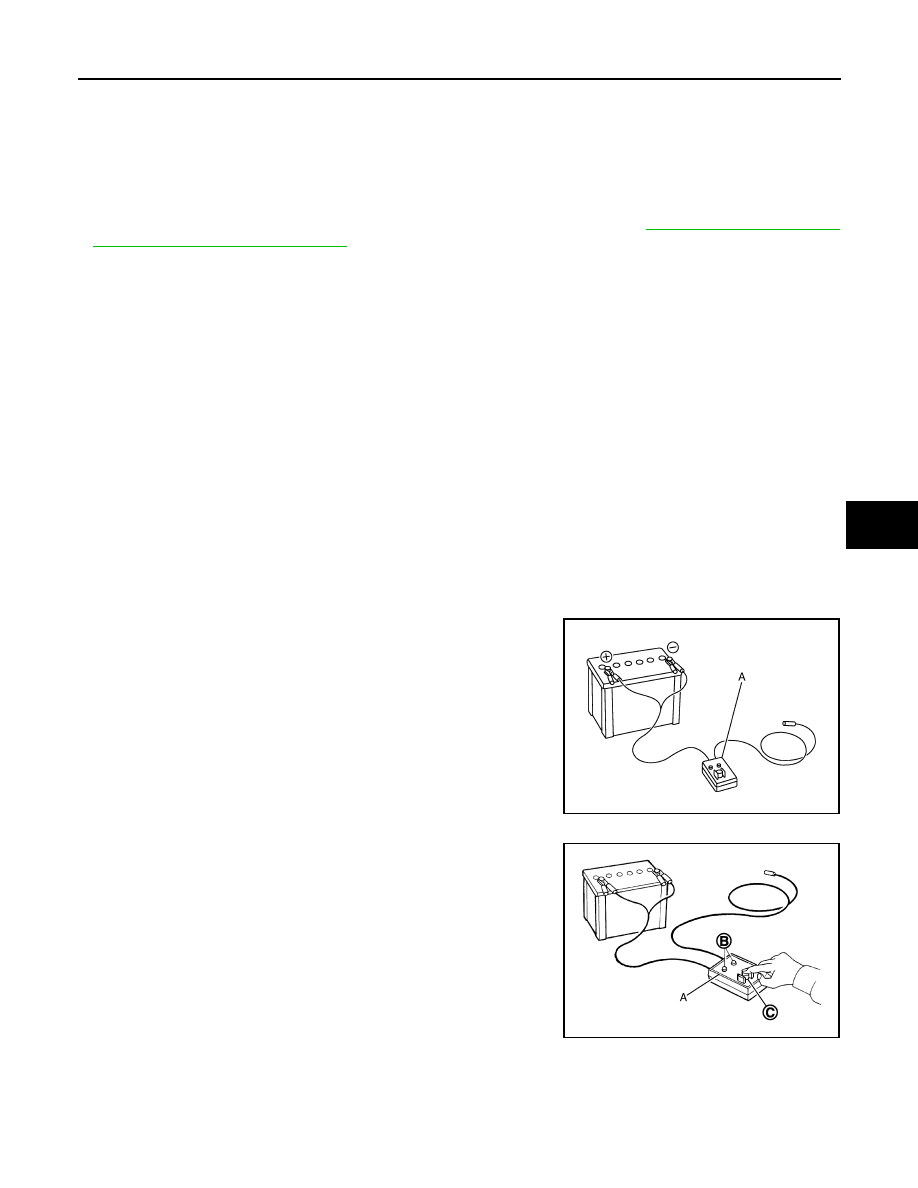

CHECKING DEPLOYMENT TOOL

Connecting to Battery

CAUTION:

The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
• Wait 3 minutes after the vehicle battery is disconnected before pro-

ceeding.

• Connect red clip of deployment tool (A) to battery positive terminal

and black clip to negative terminal.

Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.

Deployment Tool Check

Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).

Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)

JMHIA0204ZZ

JMHIA0205ZZ

SR-26

< ON-VEHICLE REPAIR >

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

*: If this lamp glows red, the tool is connected to the battery incorrectly. Reverse the connections and check the lamp glows green.

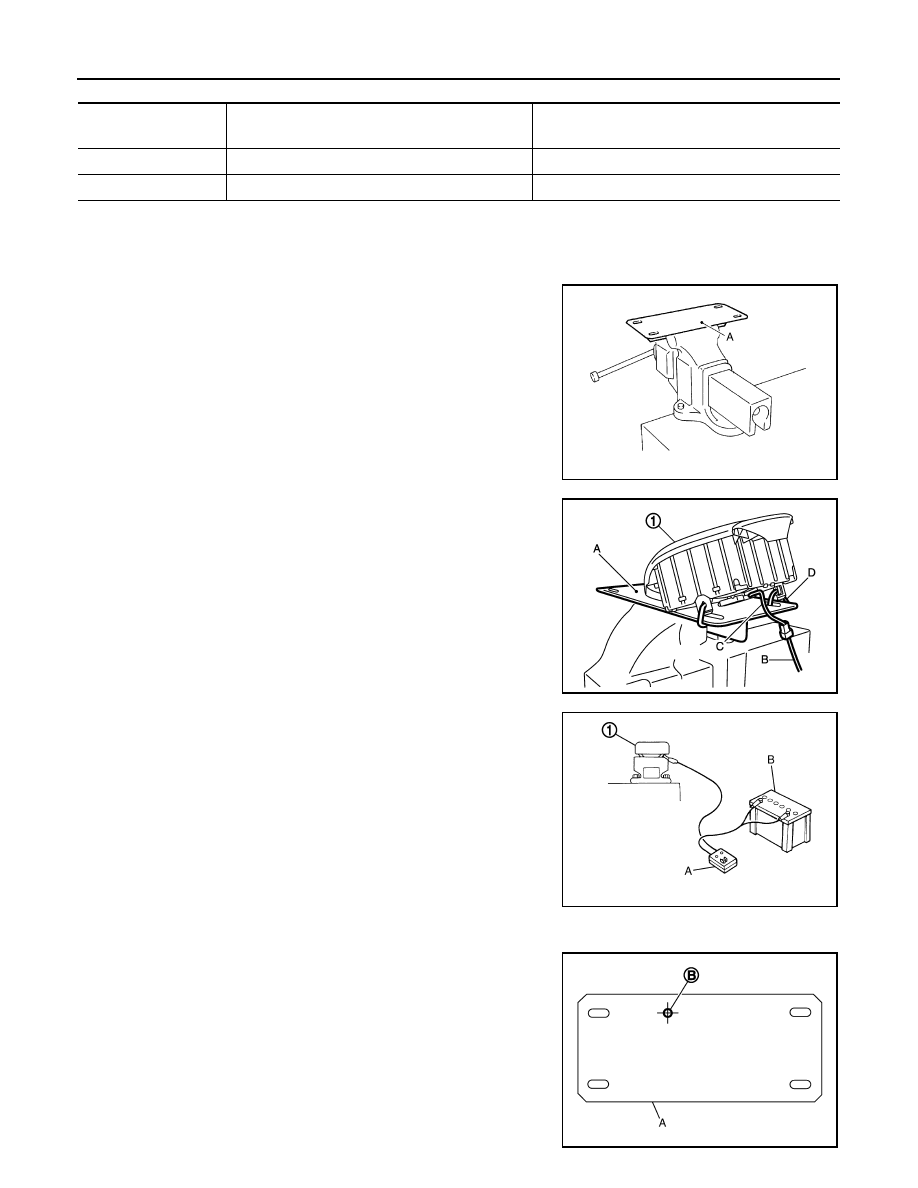

DEPLOYMENT OF AIR BAG MODULE (OUTSIDE OF VEHICLE)

Driver Air Bag Module

1.

Unless the vehicle is being scrapped, deploying the air bag in
the vehicle is not recommended. This may cause damage to the
vehicle interior.
Anchor air bag module bracket (SST: KV99105300) (A) in a vice
secured to a firm foundation deployment.

2.

Using wire (D), secure air bag module (1) to air bag module
bracket (SST: KV99105300) (A) at two places.

CAUTION:

Use wire of at least 1.0 mm (0.039 in) diameter.

3.

Firmly secure air bag module bracket (SST: KV99105300) with
air bag module attached, in a vise.

4.

Connect deployment tool adapter (SST: KV99110500) (C) to
driver air bag module and deployment tool connector (SST:
KV99106400) (B).

5.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal (B).

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.

7.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module (1) will deploy.

CAUTION:

When deploying the driver air bag module, stand at least 5.0
m (16.4 ft) away from the air bag module.

Front Passenger Air Bag Module

1.

Make 6.5 mm (0.256 in) diameter hole (B) in air bag module
bracket (SST: KV99105300) (A) at the position shown in figure.

Switch operation

Left side lamp, green*

“AIR BAG CONNECTOR VOLTAGE”

Right side lamp, green*

“DEPLOYMENT TOOL POWER”

OFF

OFF

ON

ON

ON

ON

JMHIA0208ZZ

JMHIA0630ZZ

JMHIA0209ZZ
