CRASH ZONE SENSOR

SR-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

3.

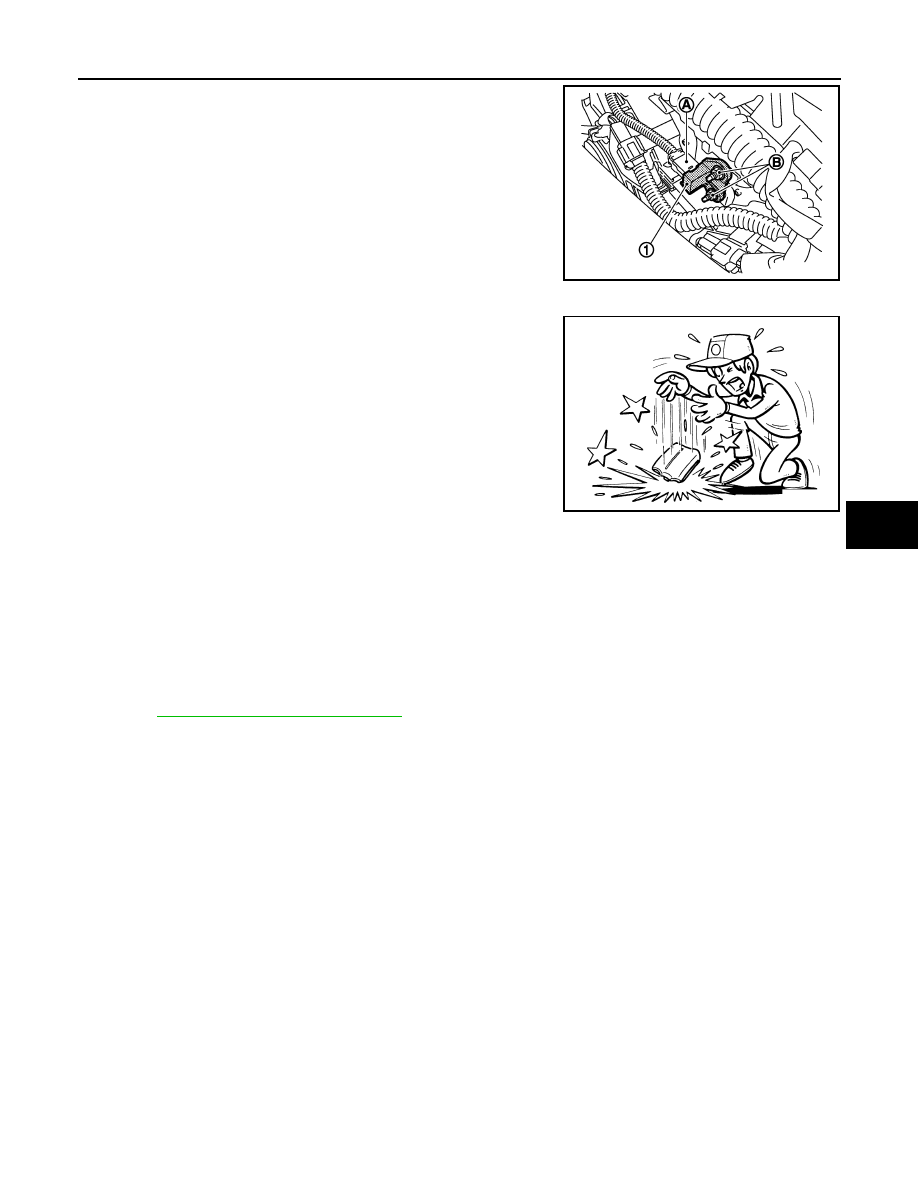

Disconnect crash zone sensor harness connector (A).

4.

Remove the crash zone sensor (1) fixing nuts (B), and then
remove crash zone sensor.

CAUTION:

• Never impact the crash zone sensor.
• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger air

bag.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use old fixing nuts after removal; replace with new nuts.
• In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of

the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-10, "Diagnosis Description"

.

JMHIA0625ZZ

JMHIA0009ZZ

SR-20

< ON-VEHICLE REPAIR >

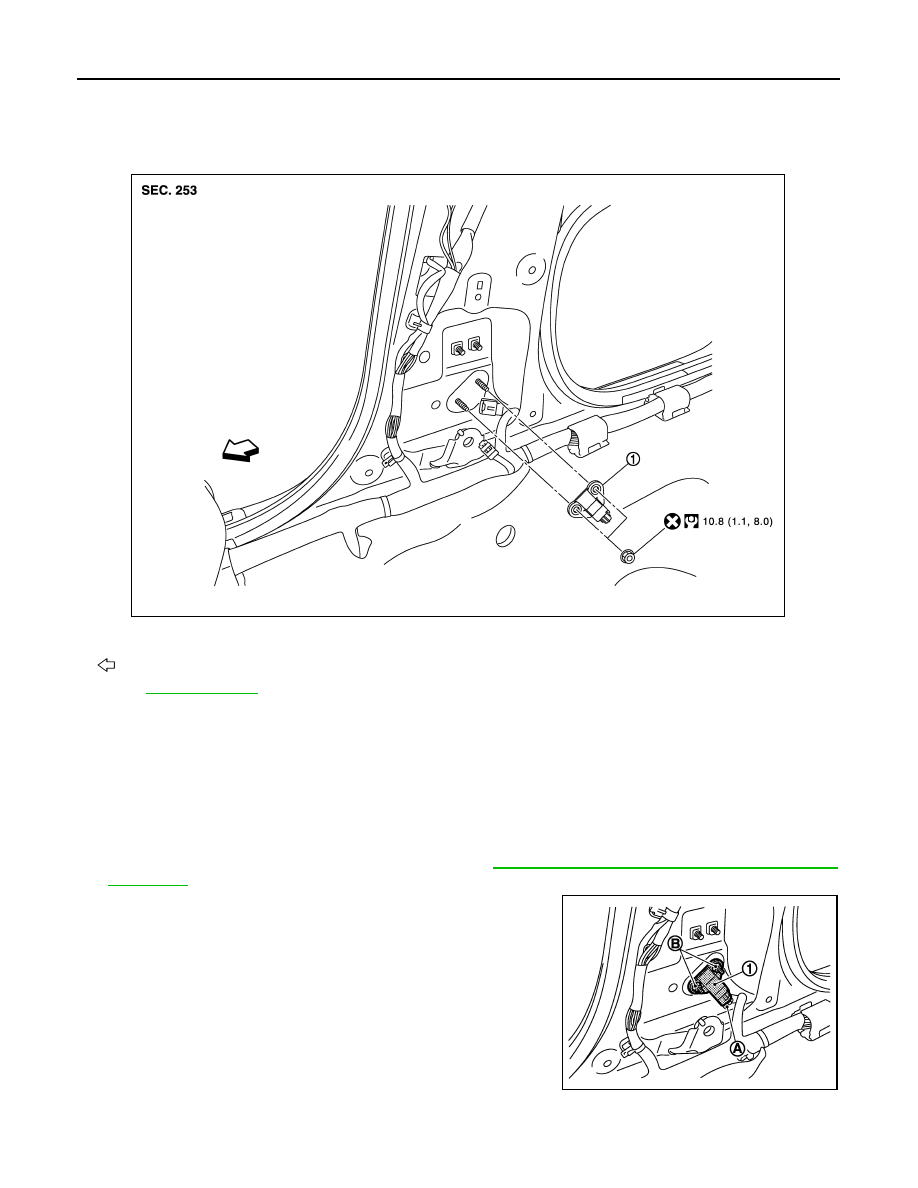

SIDE AIR BAG (SATELLITE) SENSOR

SIDE AIR BAG (SATELLITE) SENSOR

Exploded View

INFOID:0000000003838675

Removal and Installation

INFOID:0000000003838676

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the pre-tensioner seat belt retractor. Refer to

SB-5, "SEAT BELT RETRACTOR : Removal and

Installation"

.

2.

Remove the side air bag (satellite) sensor (1) fixing nuts (B).

3.

Disconnect side air bag (satellite) sensor harness connector (A),
and then remove side air bag (satellite) sensor.

CAUTION:

1.

Side air bag (satellite) sensor

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0626GB

JMHIA0627ZZ

SIDE AIR BAG (SATELLITE) SENSOR

SR-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

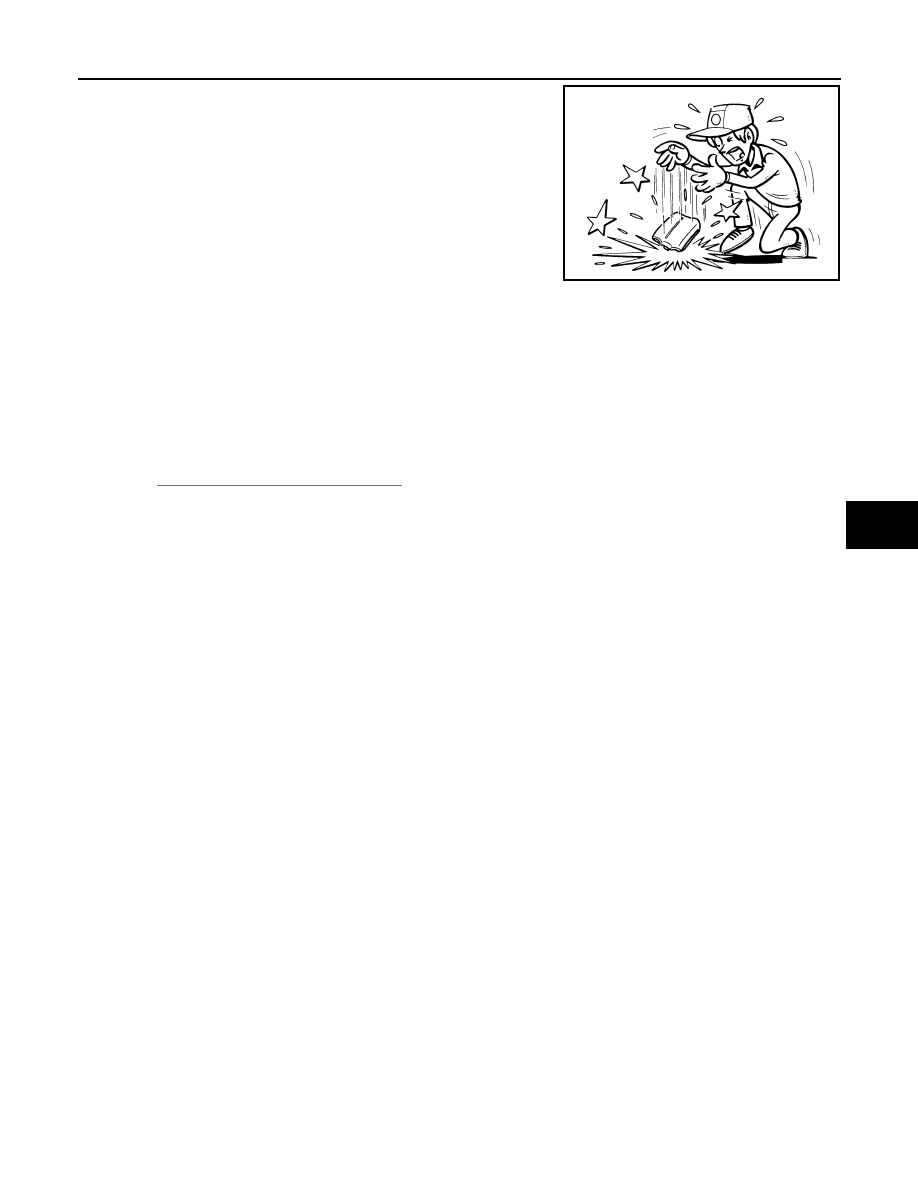

• Never impact he side air bag (satellite) sensor.
• Replace the side air bag (satellite) sensor if it has been

dropped or sustained an impact.

• Replace the side air bag (satellite) sensor of deployed SRS front side air bag and deployed SRS side

curtain air bag.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use old fixing nuts after removal; replace with new nuts.
• In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of

the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-10, "Diagnosis Description"

.

JMHIA0009ZZ

SR-22

< ON-VEHICLE REPAIR >

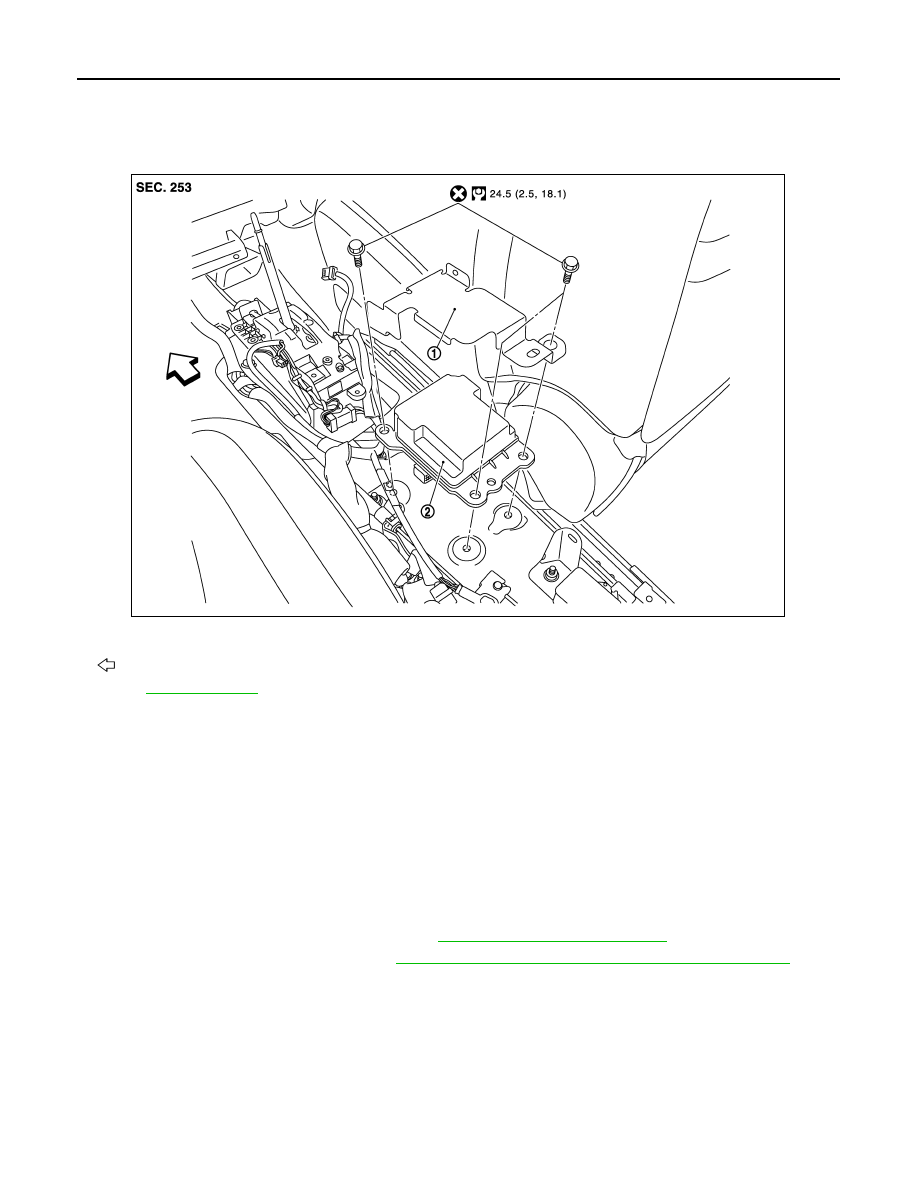

DIAGNOSIS SENSOR UNIT

DIAGNOSIS SENSOR UNIT

Exploded View

INFOID:0000000003838677

Removal and Installation

INFOID:0000000003838678

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Before disconnecting the diagnosis sensor unit harness connector, be sure to disconnect each har-

ness connector of the air bag module and pre-tensioner seat belt to prevent air bag deployment by
static electricity and pre-tensioner seat belt operation.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Disconnect each connector of all air bag modules and pre-tensioner seat belts.

2.

Remove the center console assembly. Refer to

IP-22, "Removal and Installation"

.

3.

Remove the rear ventilator duct. Refer to

VTL-53, "REAR VENTILATOR DUCT 1 : Exploded View"

.

1.

Bracket

2.

Diagnosis sensor unit

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0628GB
