SPIRAL CABLE

SR-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-10, "Diagnosis Description"

.

SR-12

< ON-VEHICLE REPAIR >

FRONT PASSENGER AIR BAG MODULE

FRONT PASSENGER AIR BAG MODULE

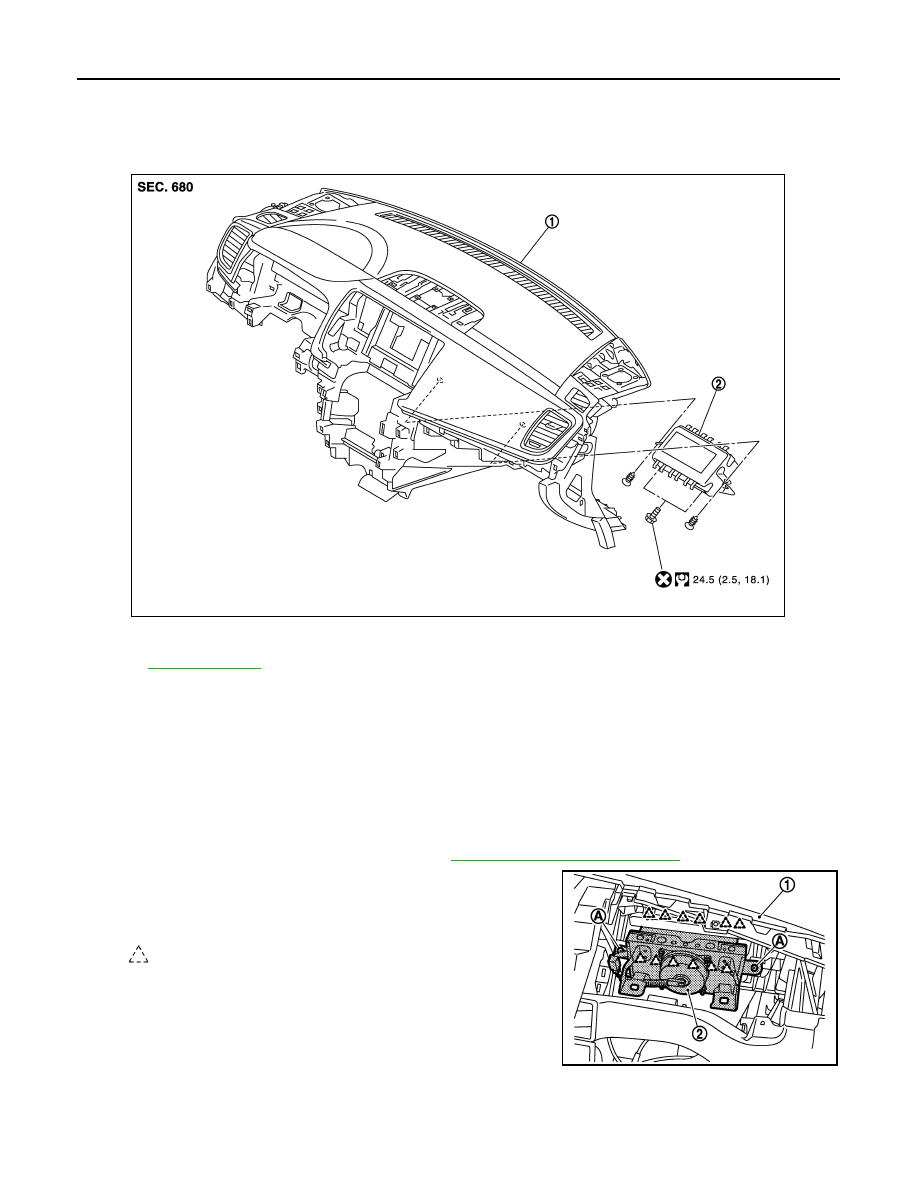

Exploded View

INFOID:0000000003838669

Removal and Installation

INFOID:0000000003838670

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Always work from the side of air bag module. Never work in front of it.
• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the instrument panel assembly. Refer to

IP-12, "Removal and Installation"

.

2.

Remove the front passenger air bag module fixing screws (A).

3.

Disconnect pawls by using remover tool, and then remove front
passenger air bag module (2) from instrument panel (1).

CAUTION:

1.

Instrument panel assembly

2.

Front passenger air bag module

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0619GB

: Pawl

JMHIA0621ZZ

FRONT PASSENGER AIR BAG MODULE

SR-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Always place front passenger air bag module (1) with pad side

facing upward.

• Never impact the front passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into front passenger air bag module.
• Never disassembly front passenger air bag module.
• Never expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never use old fixing bolts after removal; replace with new bolts.
• In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of

the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

Refer to

SRC-10, "Diagnosis Description"

.

: Upward

JMHIA0622ZZ

JMHIA0009ZZ

SR-14

< ON-VEHICLE REPAIR >

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

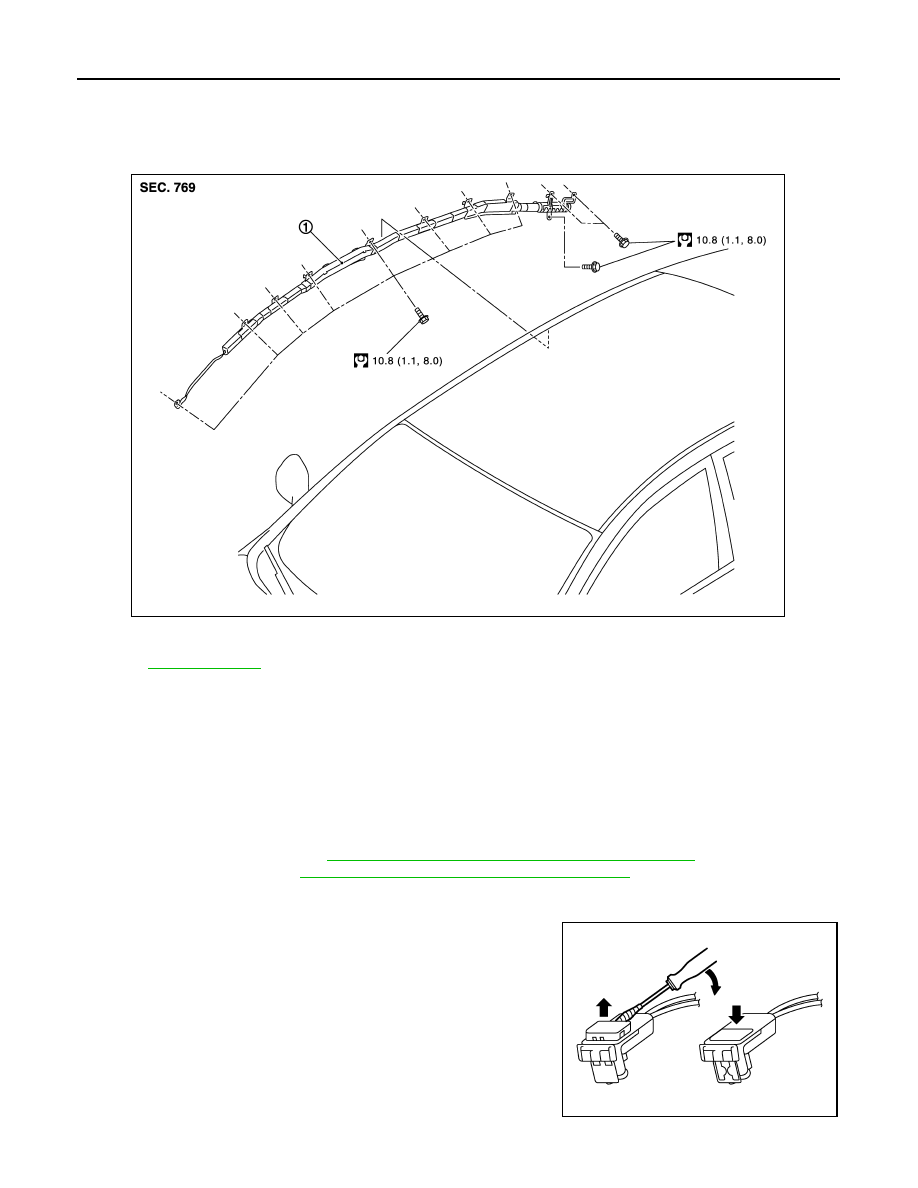

Exploded View

INFOID:0000000003838671

Removal and Installation

INFOID:0000000003838672

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3

minutes.

• Never use air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining assembly.
• Normal roof models: Refer to

INT-50, "NORMAL ROOF : Removal and Installation"

.

• Sunroof models: Refer to

INT-54, "SUNROOF : Removal and Installation"

.

2.

Remove the side curtain air bag harness connector.
NOTE:
• For installing/removing side curtain air bag harness connector,

insert thin screwdriver wrapped in tape into notch, lift lock and
remove connector.

• Install connector with lock raised, and push lock into connec-

tor.

• After installing the connector, check that the lock is pushed

securely into it.

1.

Side curtain air bag module

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0623GB

PHIA0953J
