INT-22

< REMOVAL AND INSTALLATION >

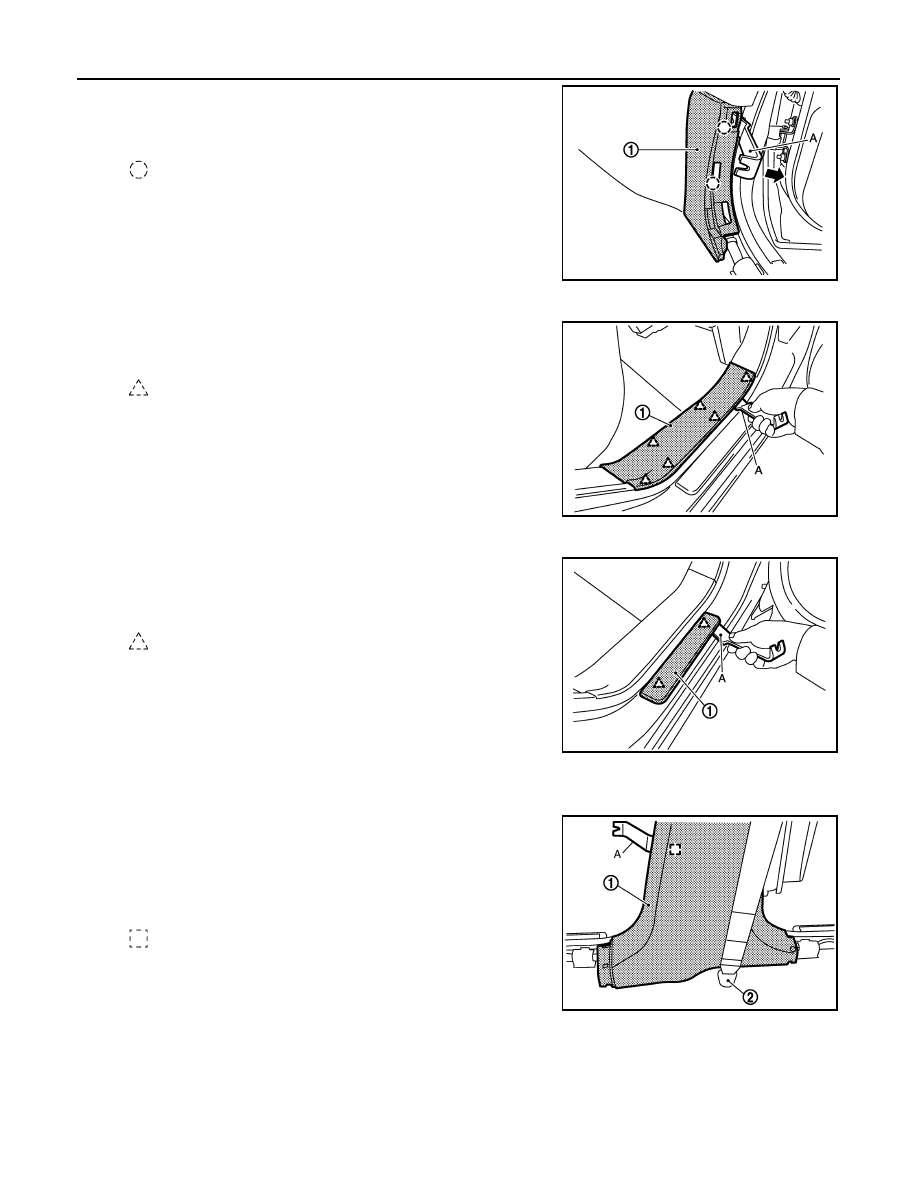

BODY SIDE TRIM

2.

Disengage dash side finisher (1) mounting clip with remover tool
(A).

3.

Remove dash side finisher (1).

REAR KICKING PLATE INNER

1.

Disengage the pawls from the body with remover tool (A).

2.

Remove rear kicking plate inner (1).

REAR KICKING PLATE OUTER

1.

Disengage the pawls from the body side panel with remover tool
(A).

2.

Remove rear kicking plate outer (1).

CENTER PILLAR LOWER GARNISH

1.

Remove front kicking plate inner and rear kicking plate inner.

2.

Insert remover tool (A) between center pillar lower garnish (1)
and body side panel to disengage the metal clips.

3.

Remove anchor bolt cover (2), then remove the anchor bolt
behind the cover.

4.

Remove center pillar lower garnish (1).

CENTER PILLAR UPPER GARNISH

1.

Remove partially front and rear body side welt.

2.

Remove front kicking plate inner and rear kicking plate inner.

3.

Remove center pillar lower garnish.

4.

Remove front seat belt shoulder anchor (2).

: Clip

JMJIA2448ZZ

: Pawl

JMJIA1368ZZ

: Pawl

JMJIA1369ZZ

: Metal clip

JMJIA1370ZZ

BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

5.

Remove the bolt located behind the cover (A).

6.

Pull back center pillar upper garnish to disengage clips and
remove center pillar upper garnish from the body side panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing body side trim, check that clips are securely fitted in panel holes on body, and then
press them in.

JMJIA1371ZZ

INT-24

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

Exploded View

INFOID:0000000005513293

Removal and Installation

INFOID:0000000005513294

REMOVAL

1.

Remove front seat assembly (LH/RH). Refer to

SE-112, "Removal and Installation"

.

2.

Remove rear seat cushion frame and reclining device assembly mounting bolts. Refer to

SE-122,

"Removal and Installation"

.

3.

Remove dash side finisher (LH/RH), front kicking plate inner (LH/RH), center pillar lower garnish (LH/RH),
and rear kicking plate inner (LH/RH). Refer to

INT-20, "Removal and Installation"

.

4.

Remove center console assembly. Refer to

IP-21, "Removal and Installation"

.

5.

Remove console bracket mounting nuts (A), and then remove console bracket LH (1).

6.

Remove rear foot duct (2), rear foot duct (3) and rear ventilator duct (4).

1.

Floor carpet assembly

2.

Floor hook

JMJIA2449ZZ

JMJIA1373ZZ

FLOOR TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

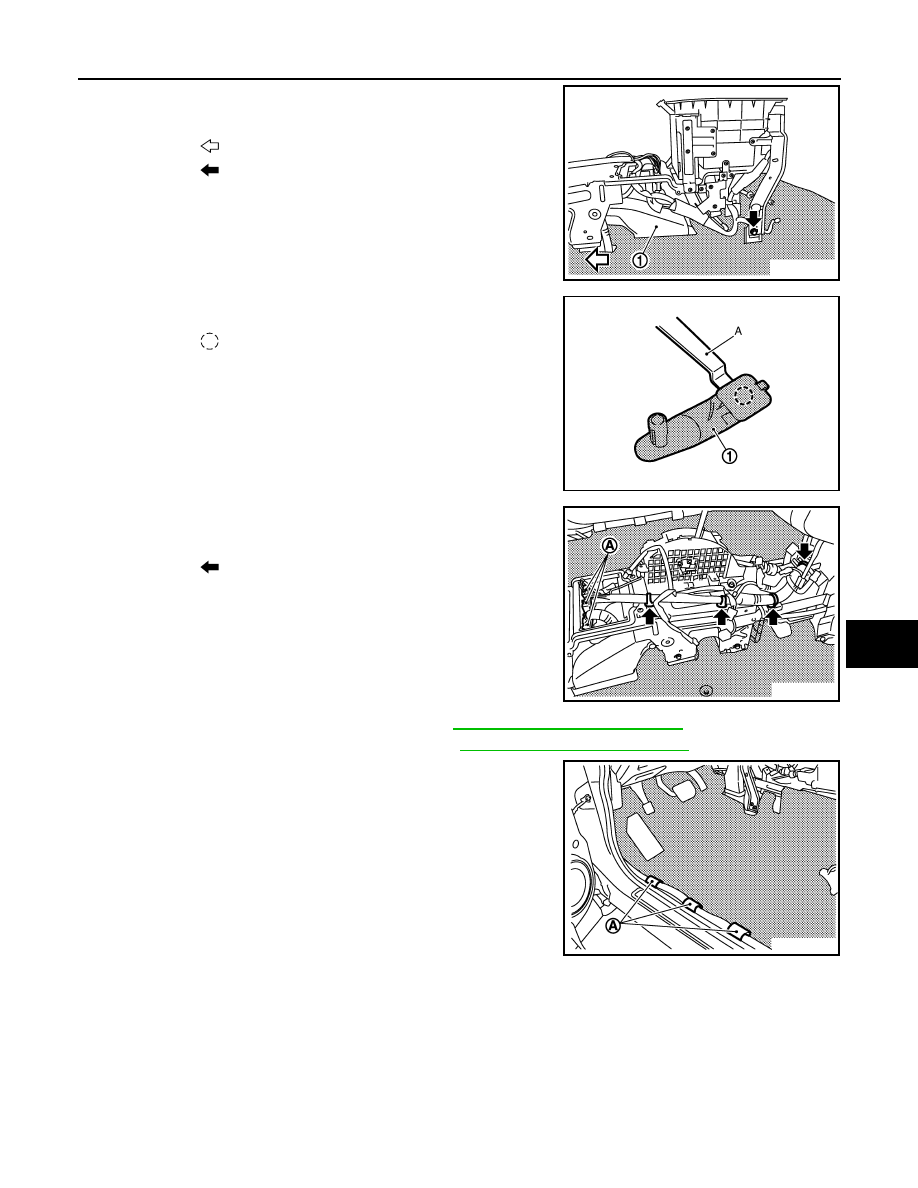

7.

Remove screw shown by the arrow in the figure, and then
remove rear ventilator duct (1).

8.

Disengage the clip of floor hook (1) with a remover tool (A).

9.

Disconnect harness connectors (A) and remove floor harness
mounting clips as shown by the arrows in the figure.

10. Remove rear console bracket assembly. Refer to

IP-21, "Removal and Installation"

.

11. Remove the center console sub harness. Refer to

IP-21, "Removal and Installation"

.

12. Remove floor carpet fixing clips (A) and then remove floor car-

pet.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

: Bolt

JMJIA1375ZZ

: Clip

JMJIA0092GB

: Clip

JMJIA1374ZZ

JMJIA1376ZZ
