DOOR FINISHER

7.

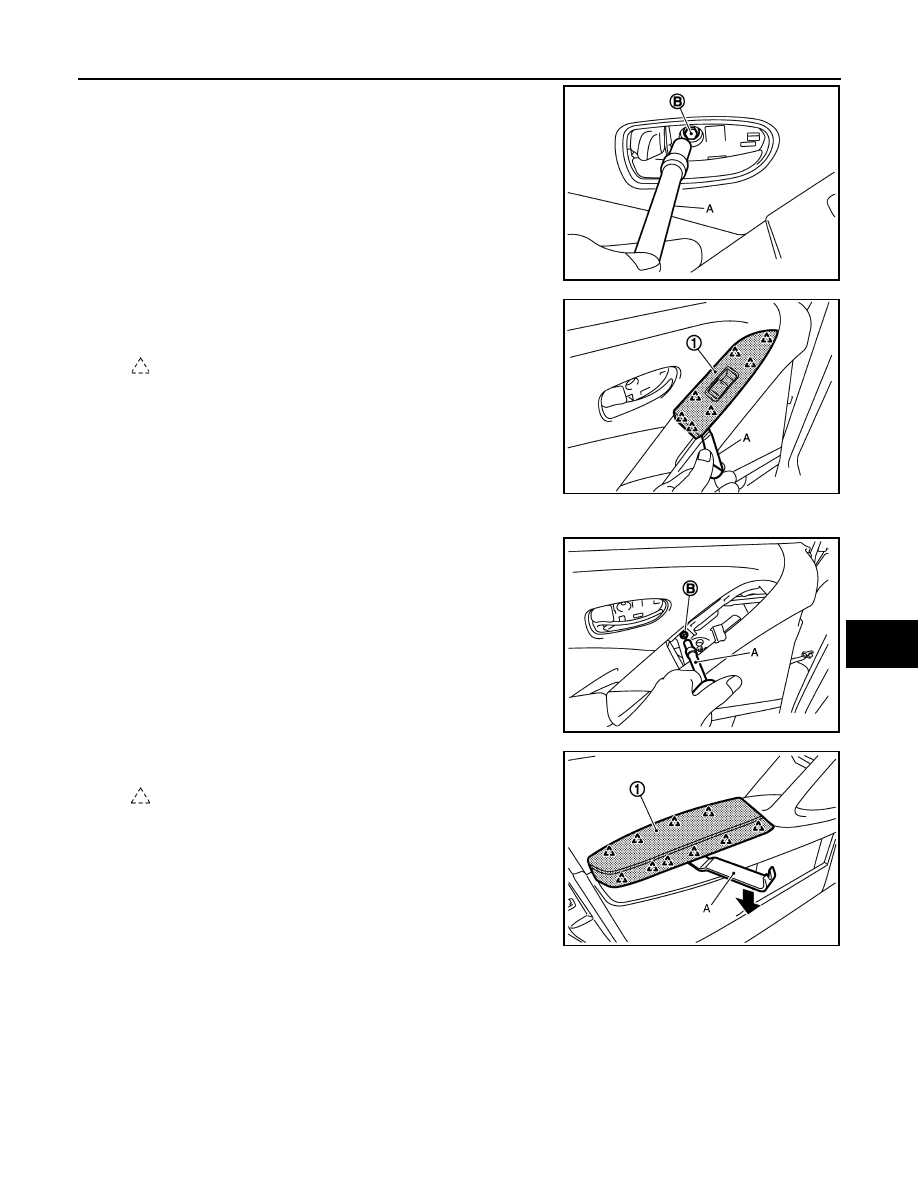

Remove armrest finisher (1) with remover tool (A).

8.

Remove the bolt (B) located behind the armrest finisher with tool
(A).

9.

Remove step lamp (1) with remover tool (A) and then disconnect
the harness connector. Refer to

INL-127, "Removal and Installa-

tion"

.

10. Remove seat memory switch finisher (1) and rear heated seat (LH/RH) switch finisher (2) with remover

tool (A) and then disconnect the harness connectors. (With sunroof)

: Pawl

JMJIA1355ZZ

JMJIA1356ZZ

: Pawl

JMJIA1357ZZ

: Pawl

JMJIA1358ZZ

DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

11. Insert remover tool (A) between door finisher and door panel to

disengage door finisher mounting clips, starting from the bottom
and working to the top.

12. Pull up front door finisher and pull out.
13. Disconnect lock knob cable (1) and inside handle cable (2) from

front door inside handle (3).

14. Remove front door finisher.

15. Remove the inside handle after removing front door finisher. Refer to

DLK-345, "INSIDE HANDLE :

Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

REAR DOOR FINISHER

: Clip

JMJIA1362ZZ

JMJIA1359ZZ

INT-16

< REMOVAL AND INSTALLATION >

DOOR FINISHER

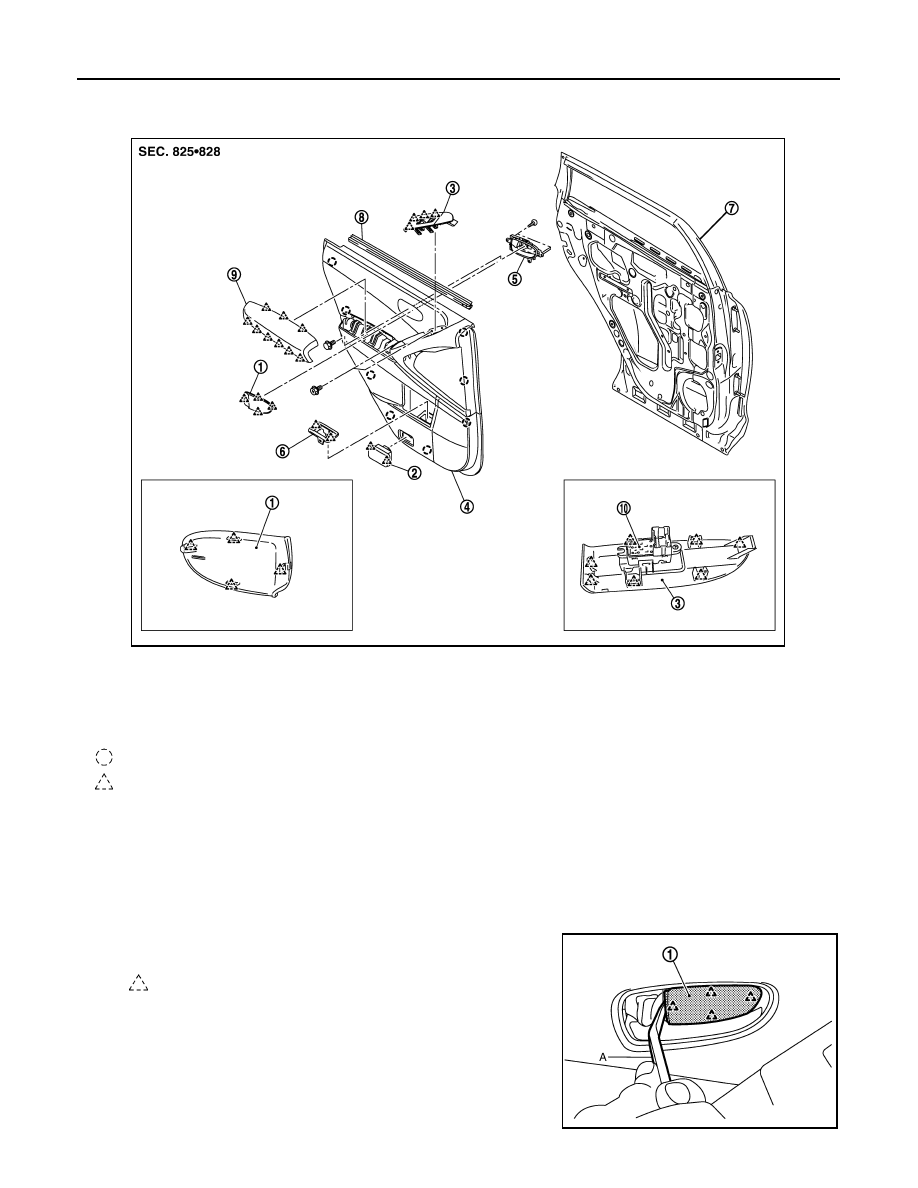

REAR DOOR FINISHER : Exploded View

INFOID:0000000005513289

REAR DOOR FINISHER : Removal and Installation

INFOID:0000000005513290

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth before remove.

REMOVAL

1.

Fully open rear door window.

2.

Remove inside handle escutcheon (1) with remover tool (A).

1.

Inside handle escutcheon

2.

Step lamp

3.

Power window switch finisher

4.

Rear door finisher

5.

Rear door inside handle

6.

Rear heated seat switch finisher

7.

Rear door panel

8.

Rear door inside seal

9.

Armrest finisher

10. Power window switch

: Clip

: Pawl

JMJIA1349ZZ

: Pawl

JMJIA1350ZZ

DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

3.

Remove bolt (B) located behind the inside handle escutcheon
with tool (A).

4.

Pull up power window switch finisher (1) with remover tool (A) to
disengage the pawls.

5.

Disconnect power window switch connector, and then remove power window switch finisher.

6.

Remove bolt (B) located behind power window switch finisher
with tool (A).

7.

Remove armrest finisher (1) with remover tool (A).

JMJIA1351ZZ

: Pawl

JMJIA1361ZZ

JMJIA1354ZZ

: Pawl

JMJIA1355ZZ
