Nissan Murano Z51. Manual - part 773

EXT-26

< REMOVAL AND INSTALLATION >

MUDGUARD

MUDGUARD

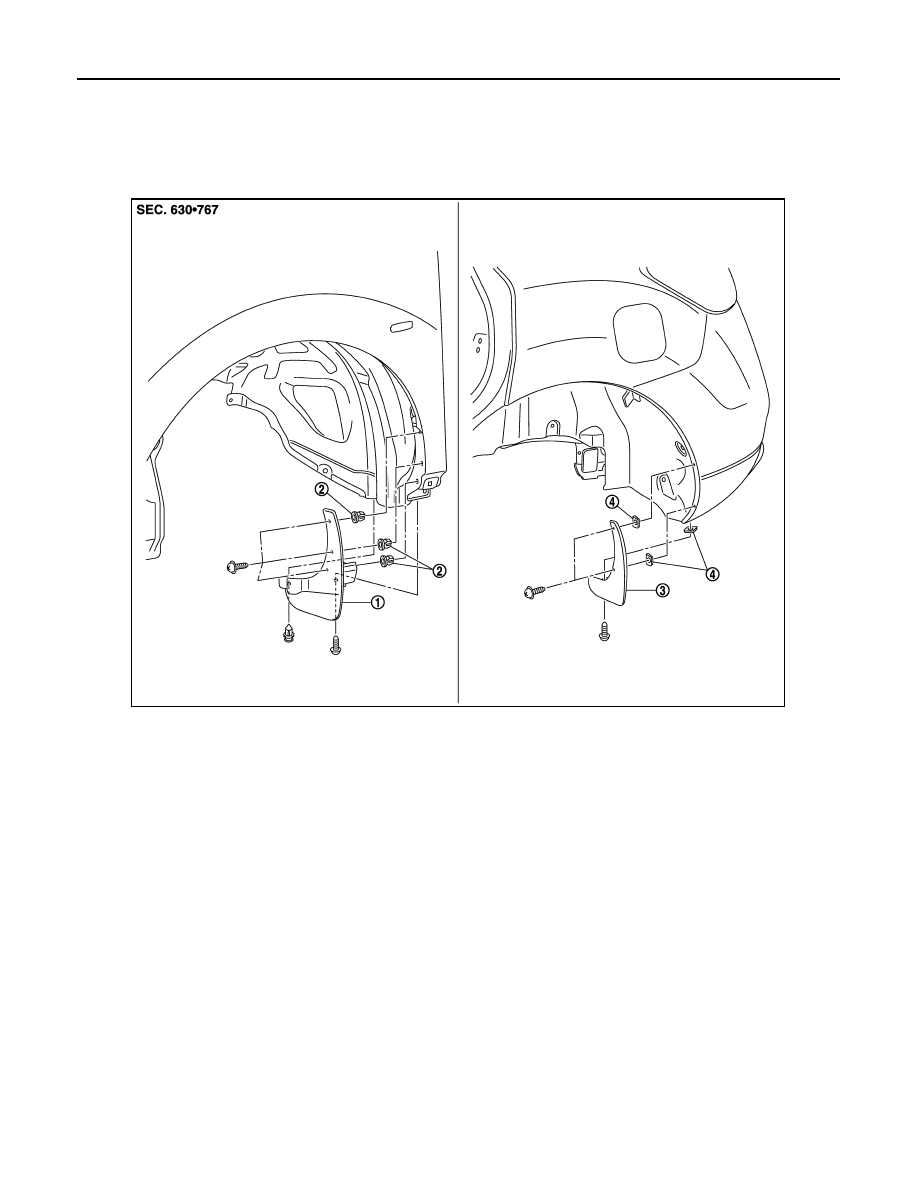

Exploded View

INFOID:0000000005516280

MUDGUARD

Removal and Installation

INFOID:0000000005516281

REMOVAL

FRONT MUDGUARD

1.

Remove front mudguard fixing screws.

2.

Remove front mudguard fixing clip.

3.

Remove front mudguard.

REAR MUDGUARD

1.

Remove rear mudguard fixing screws.

2.

Remove rear mudguard.

INSTALLATION

Install in the reverse order of removal.

1.

Front mudguard

2.

Grommet

3.

Rear mudguard

4.

J-nut

JMKIA1989ZZ

FLOOR SIDE FAIRING

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

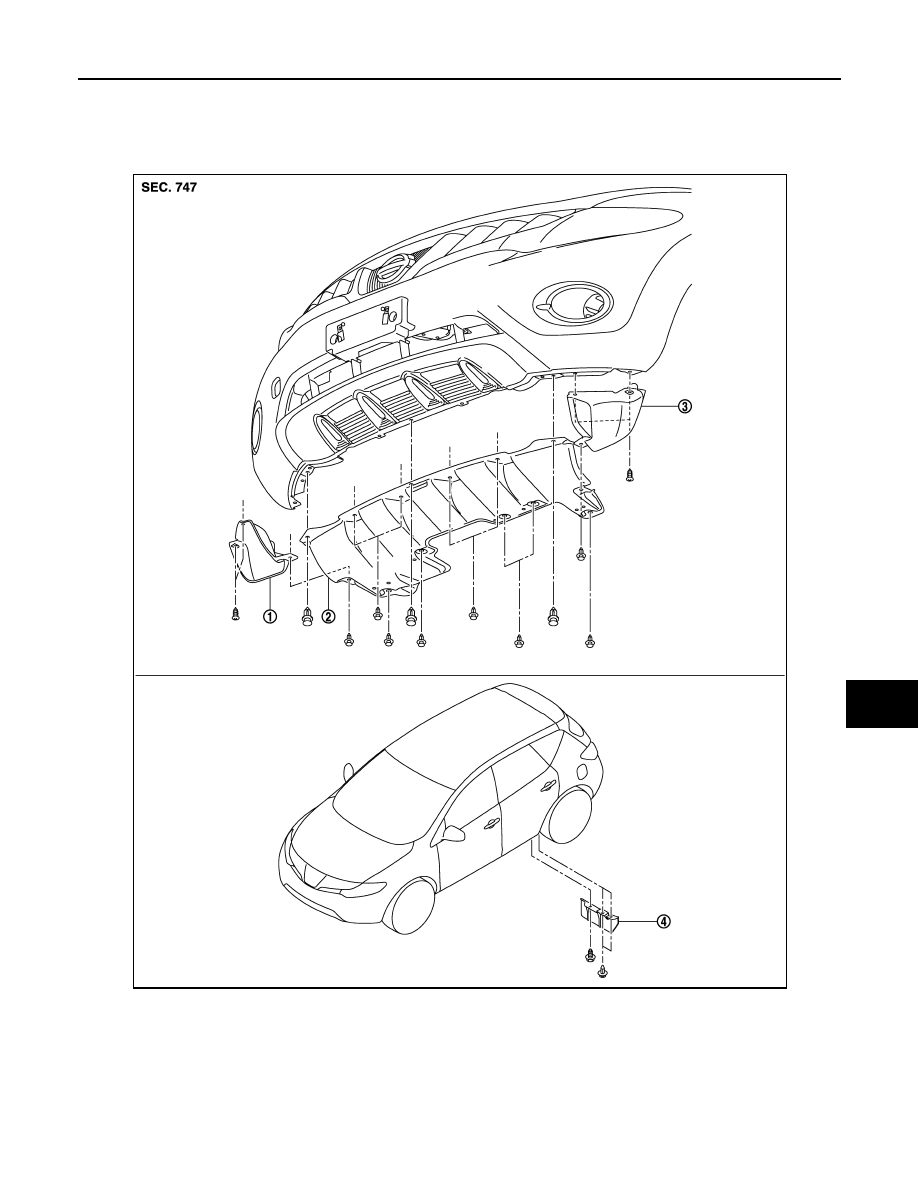

FLOOR SIDE FAIRING

Exploded View

INFOID:0000000005516282

Removal and Installation

INFOID:0000000005516283

REMOVAL

FRONT UNDER COVER

1.

Bumper lower finisher RH

2.

Front under cover

3.

Bumper lower finisher LH

4.

Wind deflector

JMKIA1990ZZ

EXT-28

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

1.

Remove front under cover mounting clips.

2.

Remove front under cover.

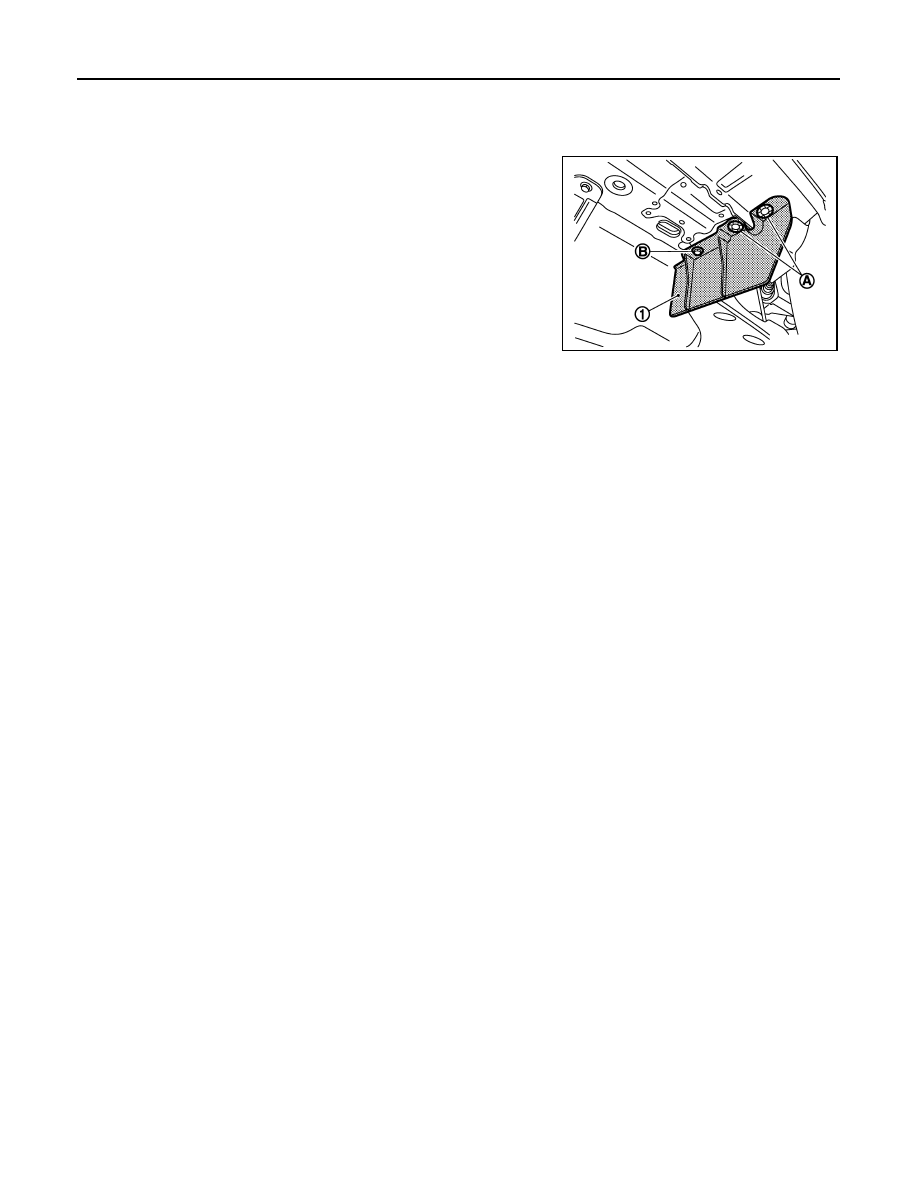

WIND DEFLECTOR

1.

Remove wind deflector (1) fixing clips (A) and bolt (B).

2.

Remove wind deflector.

INSTALLATION

Install in the reverse order of removal.

JMKIA2012ZZ

ROOF RAIL

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ROOF RAIL

Exploded View

INFOID:0000000005516284

Removal and Installation

INFOID:0000000005516285

REMOVAL

1.

Remove front roof rail cover (1) with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

1.

Front roof rail cover

2.

Roof rail assembly

3.

Center roof rail cover

4.

Rear roof rail cover

5.

Center leg assembly

6.

Center leg cover

JMKIA2013ZZ

: Pawl

JMKIA2014ZZ
