ROOF RAIL

2.

Remove center roof rail cover (1) with remover tool (A).

3.

Remove rear roof rail cover (1) with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

4.

Remove roof rail mounting bolts, and then remove roof rail assembly.

5.

Pull to the side, disengage pawls and remove center leg cover
(1).

6.

Remove roof rail center leg assembly mounting bolt, and then remove roof rail center leg assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA2015ZZ

: Pawl

JMKIA2016ZZ

: Pawl

JMKIA2017ZZ

ROOF SIDE MOLDING

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ROOF SIDE MOLDING

NORMAL ROOF

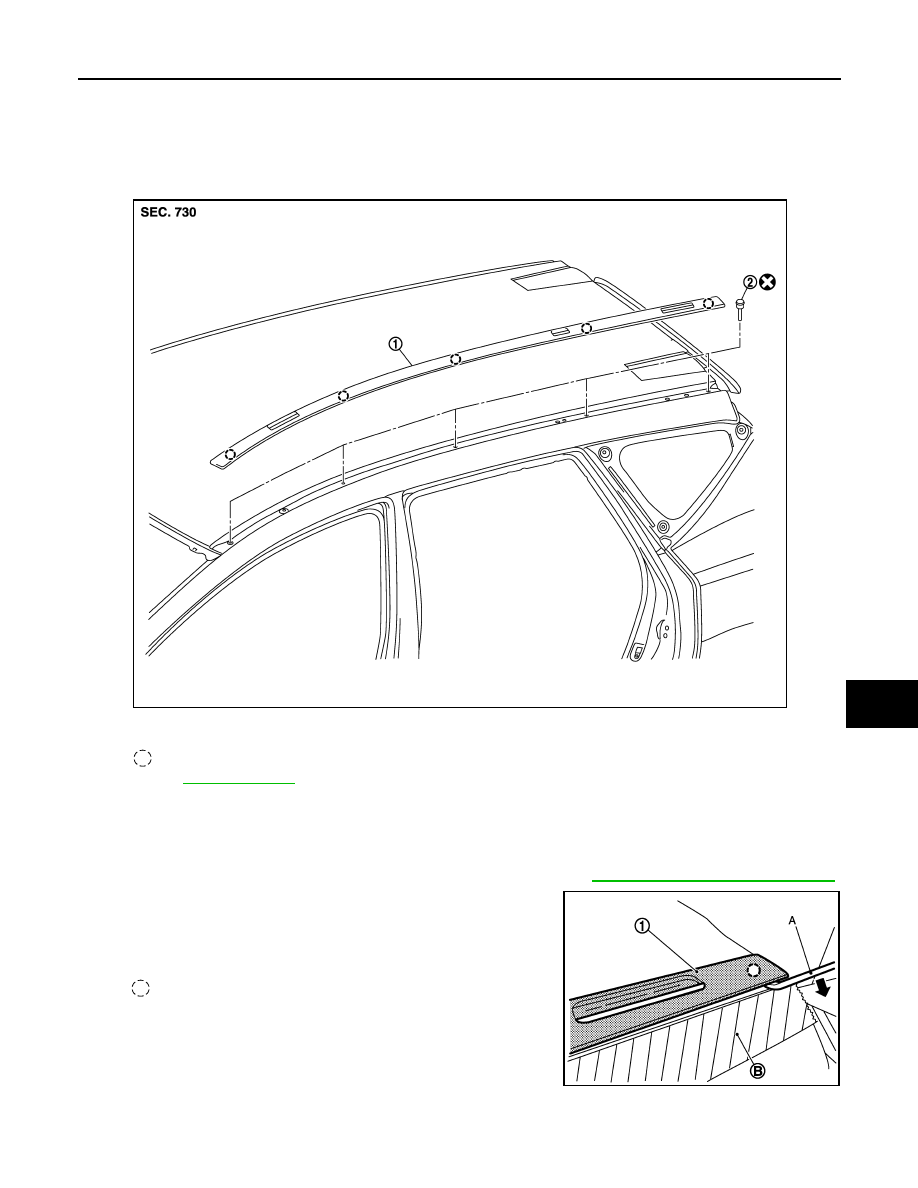

NORMAL ROOF : Exploded View

INFOID:0000000005516286

NORMAL ROOF : Removal and Installation

INFOID:0000000005516287

REMOVAL

1.

Remove roof rail assembly and roof rail center leg assembly. Refer to

EXT-29, "Removal and Installation"

.

2.

Disengage roof side molding (1) fixing clips with remover tool
(A).

CAUTION:

Apply protective tape (B) around the roof side molding.

INSTALLATION

Install in the reverse order of removal.

1.

Roof side molding

2.

Roof side molding clip

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2018ZZ

: Clip

JMKIA2019ZZ

EXT-32

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

CAUTION:

To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push it.

SUNROOF

SUNROOF : Exploded View

INFOID:0000000005516288

SUNROOF : Removal and Installation

INFOID:0000000005516289

REMOVAL

1.

Remove roof rail assembly and roof rail center leg assembly. (with ROOF RAIL)
Refer to

EXT-29, "Removal and Installation"

.

2.

Disengage roof side molding (1) fixing clips with remover tool
(A).

CAUTION:

Apply protective tape (B) around the roof side molding.

INSTALLATION

1.

Roof side molding

2.

Roof side molding clip

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2020ZZ

: Clip

JMKIA2019ZZ

ROOF SIDE MOLDING

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Install in the reverse order of removal.

CAUTION:

• Insert front end of roof side molding (1) into roof side finisher.

• To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push

it.

JMKIA2021ZZ
