Nissan Murano Z51. Manual - part 772

EXT-22

< REMOVAL AND INSTALLATION >

COWL TOP

2.

Remove front wiper arm blade (LH/RH). Refer to

WW-130, "Removal and Installation"

.

3.

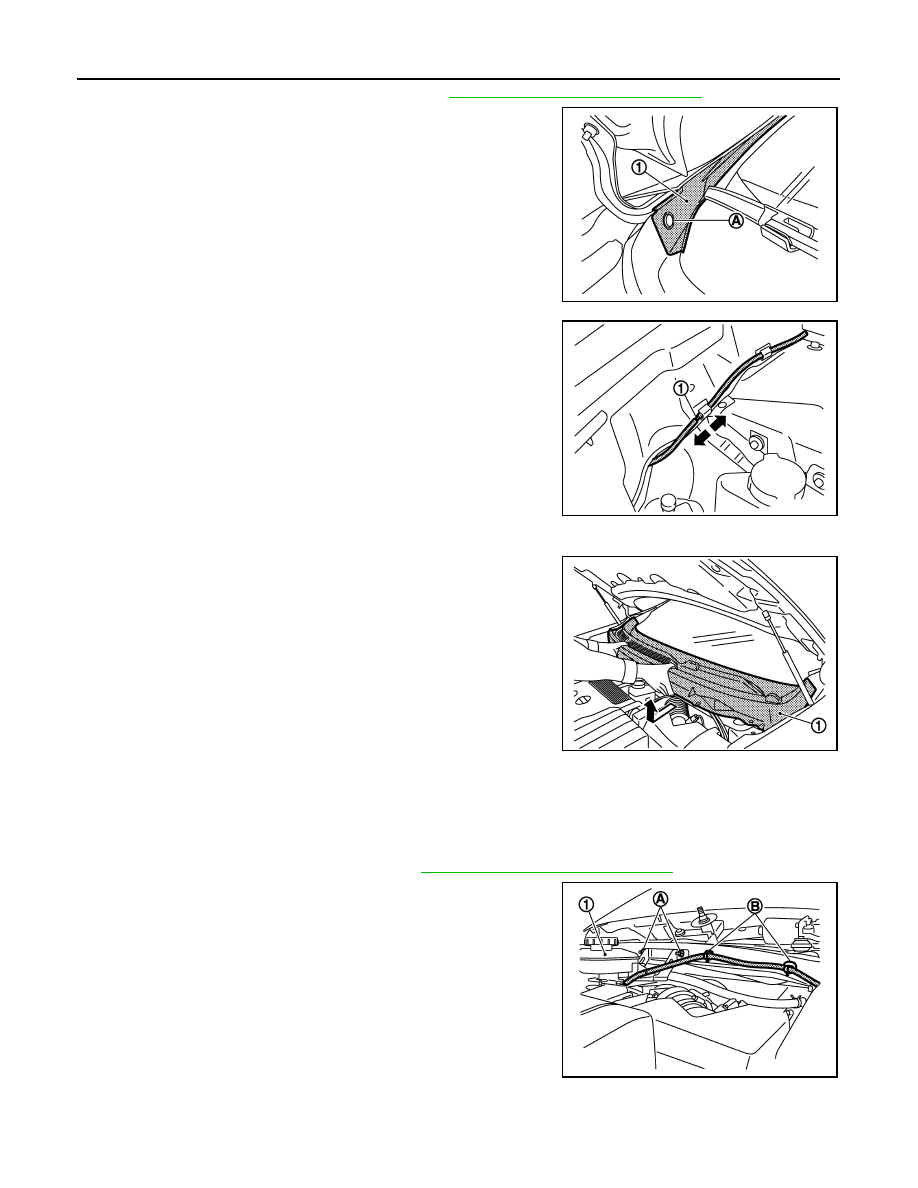

Remove windshield side molding (1) fixing clips (A) (LH/RH).

4.

Disconnect front washer tube connector (1).

5.

Remove cowl top cover fixing clips.

6.

Pull forward to release cowl top cover (1) from windshield glass.

CAUTION:

When performing the procedure after removing cowl top
cover, cover the lower end of windshield glass with ure-
thane etc.

7.

Remove the following parts after removing cowl top cover.
• Cowl top seal
• Washer nozzle (LH/RH)
• Washer tube
• EPT sealer

8.

Remove front wiper drive assembly. Refer to

WW-134, "Removal and Installation"

.

9.

Remove brake reservoir tank (1) fixing nuts (A).

10. Remove brake fluid level switch harness clips (B).

11. Remove extension cowl top mounting bolts, and then remove extension cowl top.

12. Remove dash lower insulator upper mounting nuts, and then remove dash lower insulator upper.

JMKIA1982ZZ

JMKIA1983ZZ

JMKIA1984ZZ

JMKIA1985ZZ

COWL TOP

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing cowl top cover, check that blind clips are securely fitted in panel holes on body, and

then press them in.

• Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl

top cover.

• After installing, perform adjustment of wiper arms. Refer to

WW-130, "Adjustment"

.

EXT-24

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR : Exploded View

INFOID:0000000005516276

FENDER PROTECTOR

FENDER PROTECTOR : Removal and Installation

INFOID:0000000005516277

REMOVAL

1.

Remove front mudguard (LH/RH). Refer to

EXT-26, "Removal and Installation"

.

2.

Remove splash guard fixing clips and then remove splash guard.

3.

Remove front fender protector fixing clips.

4.

Release front fender protector upper fixing clip downward, and then remove front fender protector.

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

1.

Fender protector

2.

Fender clip

3.

Splash guard

4.

Front fender

JMKIA1986ZZ

FENDER PROTECTOR

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

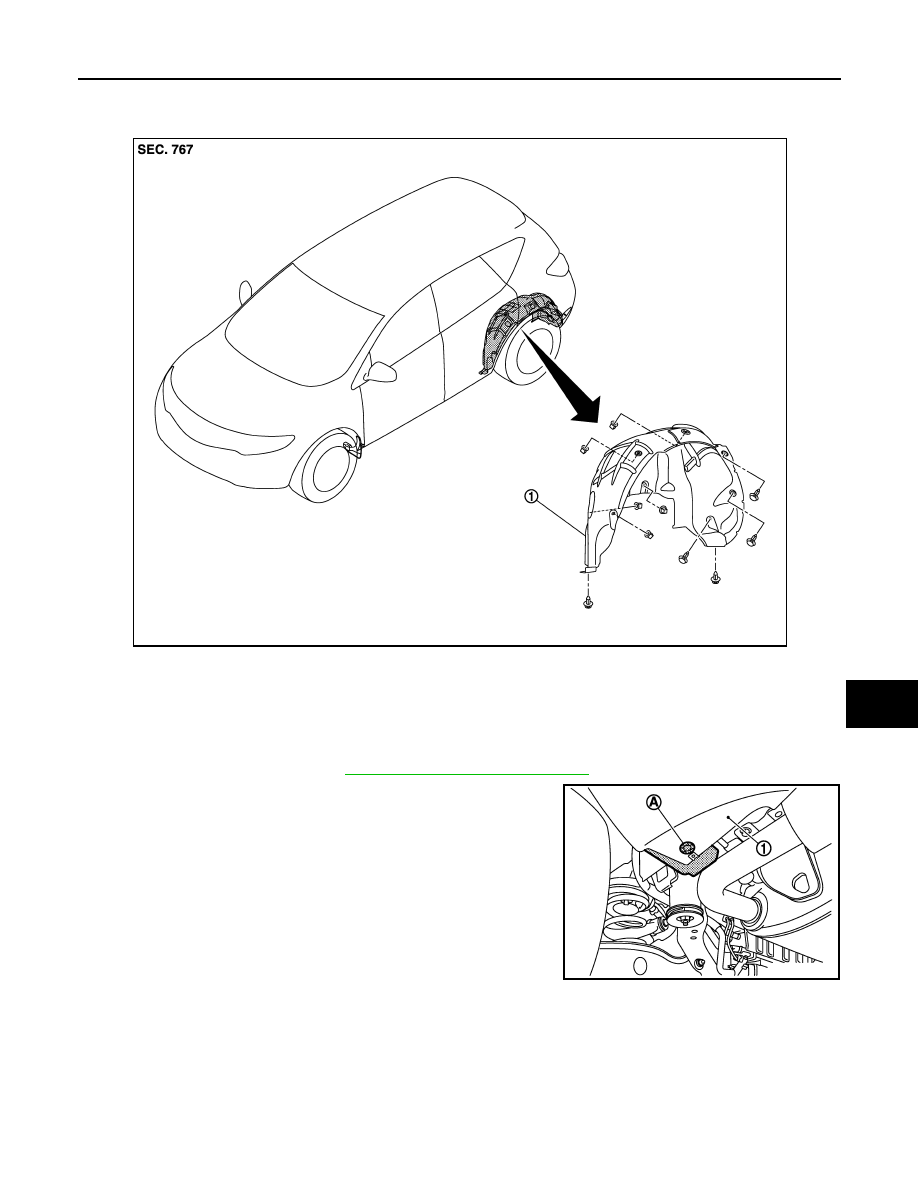

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000005516278

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000005516279

REMOVAL

1.

Remove rear mudguard. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove clip (A) of rear bumper fascia (1).

3.

Remove rear wheel house protector fixing clips.

4.

Remove rear wheel house protector fixing plastic nuts and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wheel house protector

JMKIA1987ZZ

JMKIA1988ZZ
