Nissan Murano Z51. Manual - part 770

EXT-14

< REMOVAL AND INSTALLATION >

FRONT BUMPER

Removal and Installation

INFOID:0000000005516269

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open hood assembly.

2.

Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

3.

Remove headlamp extension panel. Refer to

EXL-180, "Removal and Installation"

.

4.

Remove clips (A) of bumper fascia assembly (1) upper side.

5.

Remove fender protector fixing clips (A) (LH/RH).

6.

Remove front under cover and bumper lower finisher (LH/RH). Refer to

EXT-27, "Exploded View"

.

7.

Remove bumper fascia assembly fixing bolts (A).

1.

Radiator core support

2.

Grommet

3.

Bumper fascia assembly

4.

Front fog lamp RH

5.

Bumper finisher RH

6.

Head lamp extension panel RH

7.

License plate bracket

8.

Head lamp extension panel LH

9.

Front fog lamp LH

10. Bumper finisher LH

11.

Bumper lower finisher LH

12. Bumper side bracket LH

13. Bumper stay RH

14.

Bumper side bracket RH

15. J nut

16. Bumper lower molding

17.

Bumper lower finisher RH

18. Bumper stay LH

19. Bumper reinforcement

20.

Energy absorber

21. Bumper retainer assembly

JMKIA1962ZZ

JMKIA1963ZZ

JMKIA1964ZZ

FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

8.

Remove bumper fascia assembly fixing screws (A) (LH/RH).

9.

Disconnect front fog lamp harness connector (LH/RH).

10. Pull the bumper fascia side toward the vehicle side to disengage

the fitting of bumper side bracket and bumper fascia side.

11. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia assembly, 2 workers are required so as to prevent it from dropping.

12. Remove the following parts after removing bumper fascia assembly.

• Front fog lamp assembly (LH/RH). Refer to

EXL-182, "Removal and Installation"

.

• Bumper side bracket (LH/RH)
• License plate bracket

13. Remove energy absorber.

14. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement.

15. Remove bumper stay (LH/RH) mounting bolts, and then remove bumper stay (LH/RH).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

JMKIA1965ZZ

: Pawl

JMKIA1966ZZ

Portion

Clearance

Front bumper – Front grille

A – A

0.2 – 2.8 mm (0.008 – 0.110 in)

Front bumper – Headlamp extension panel

B – B

0.2 – 2.8 mm (0.008 – 0.110 in)

Front bumper – Headlamp

C – C

0.3 – 2.7 mm (0.012 – 0.106 in)

Front bumper – Front fender

D – D

0.0 – 0.8 mm (0.000 – 0.031 in)

EXT-16

< REMOVAL AND INSTALLATION >

REAR BUMPER

REAR BUMPER

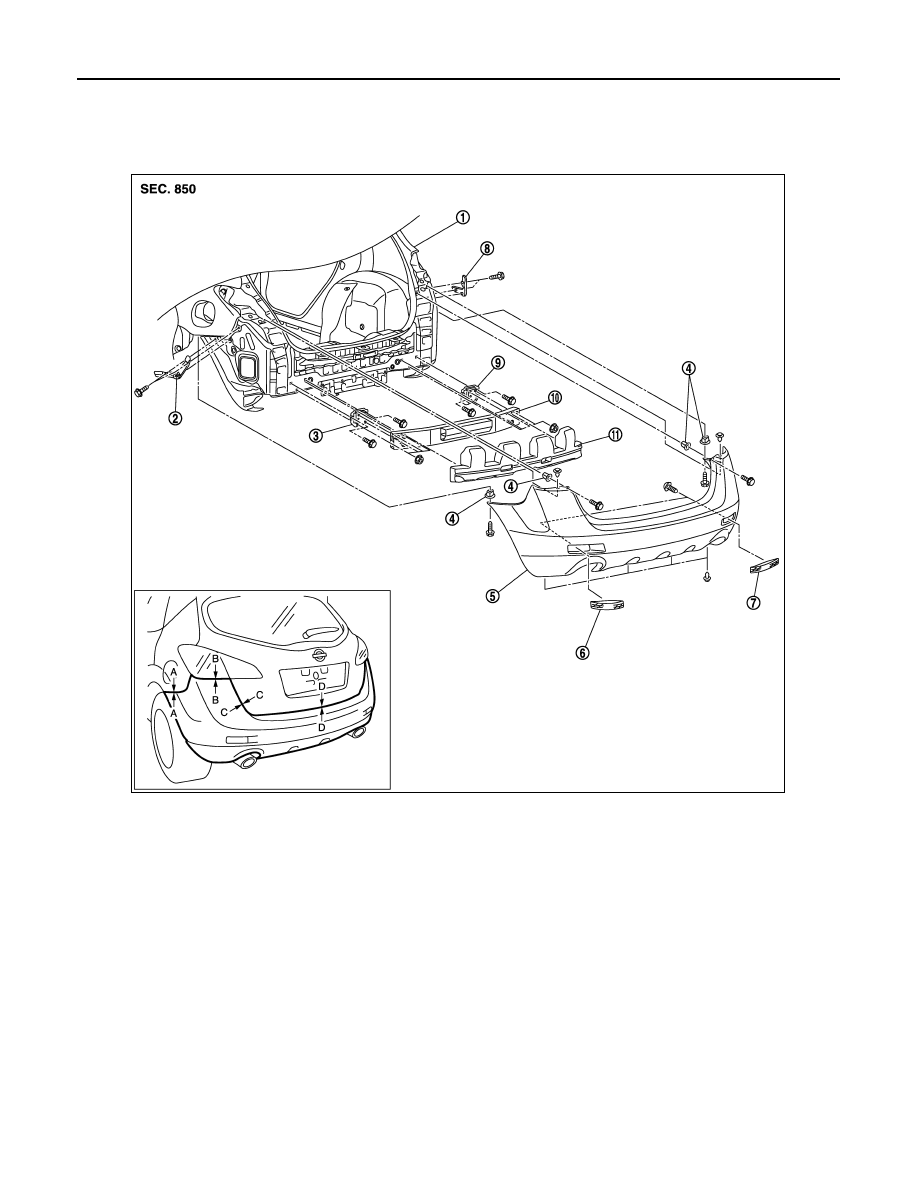

Exploded View

INFOID:0000000005516270

Removal and Installation

INFOID:0000000005516271

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open back door assembly.

2.

Remove rear combination lamp (LH/RH).

1.

Rear body complete

2.

Bumper side bracket LH

3.

Bumper stay LH

4.

Grommet

5.

Bumper fascia assembly

6.

Reflex reflector LH

7.

Reflex reflector RH

8.

Bumper side bracket RH

9.

Bumper stay RH

10. Bumper reinforcement

11.

Energy absorber

JMKIA1967ZZ

REAR BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

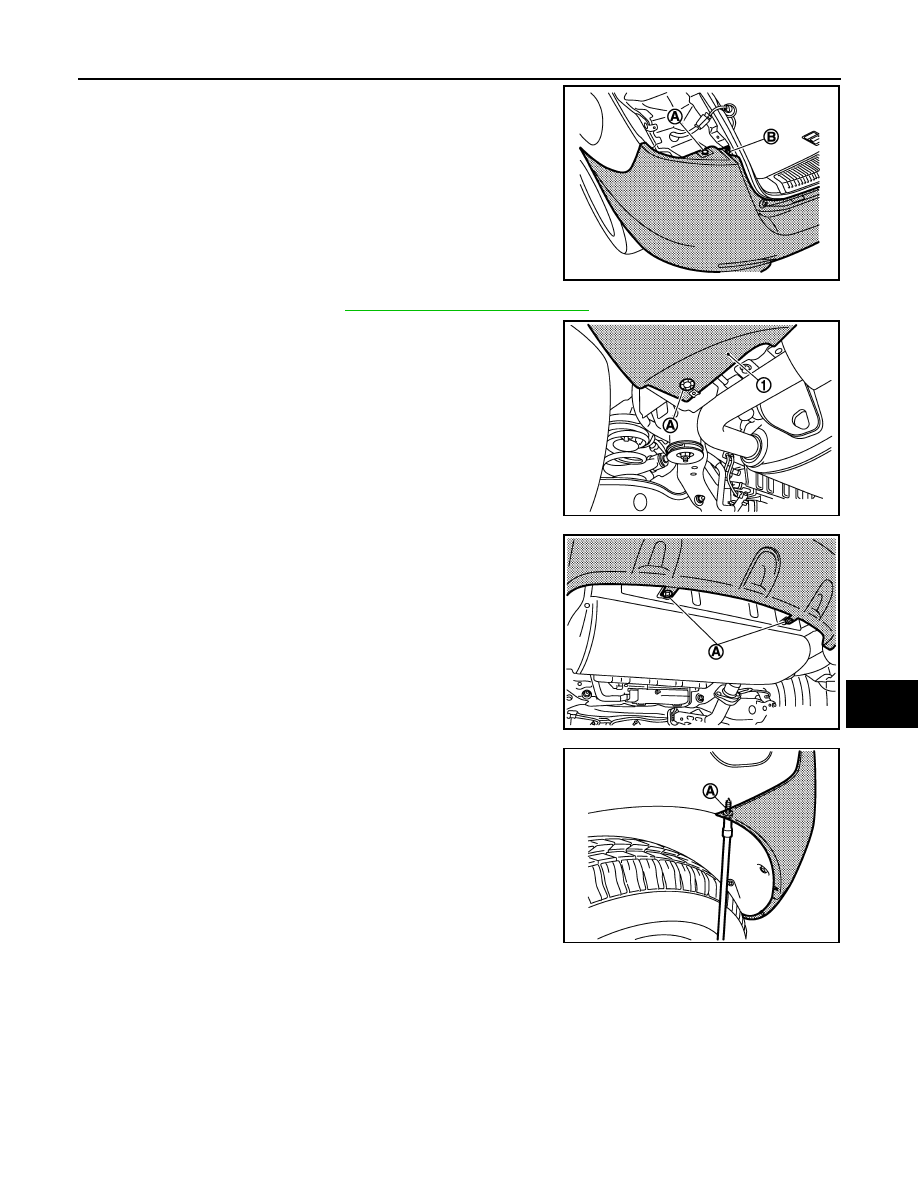

3.

Remove clips (A) located under rear combination lamp (LH/RH).

4.

Remove screws (B) (LH/RH).

5.

Remove rear mudguard. Refer to

EXT-26, "Removal and Installation"

.

6.

Remove clips (A) of bumper fascia (1) underside (LH/RH).

7.

Remove clips (A) of bumper fascia underside.

8.

Remove screws (A) of bumper fascia front end upper (LH/RH).

JMKIA1968ZZ

JMKIA2035ZZ

JMKIA1970ZZ

JMKIA1971ZZ
