EXT-18

< REMOVAL AND INSTALLATION >

REAR BUMPER

9.

Pull to release bumper fascia assembly (1) from bumper side
bracket.

10. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia assembly, 2 workers are required so as to prevent it from dropping.

11. Remove the following parts after removing rear bumper fascia.

• Bumper side bracket (LH/RH)

Remove bumper side bracket (1) fixing screws (A) (LH/RH),
and then remove bumper side bracket (LH/RH).

• Reflex reflector (LH/RH)

Remove reflex reflector (1) fixing screws (A) (LH/RH), and
then remove reflex reflector (LH/RH).

12. Remove energy absorber.
13. Remove bumper reinforcement mounting nuts (LH/RH), and then remove bumper reinforcement.

14. Remove bumper stay mounting bolts, and then remove bumper stay.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

: Pawl

JMKIA1972ZZ

JMKIA1973ZZ

JMKIA1974ZZ

Portion

Clearance

Rear bumper – Rear fender

A – A

0.0 – 1.0 mm (0.000 – 0.039 in)

Rear bumper – Rear combination lamp

B – B

0.5 – 3.5 mm (0.020 – 0.138 in)

Rear bumper – Back door

C – C

4.0 – 8.0 mm (0.157 – 0.315 in)

Rear bumper – Back door

D – D

5.0 – 9.0 mm (0.197 – 0.354 in)

FRONT GRILLE

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

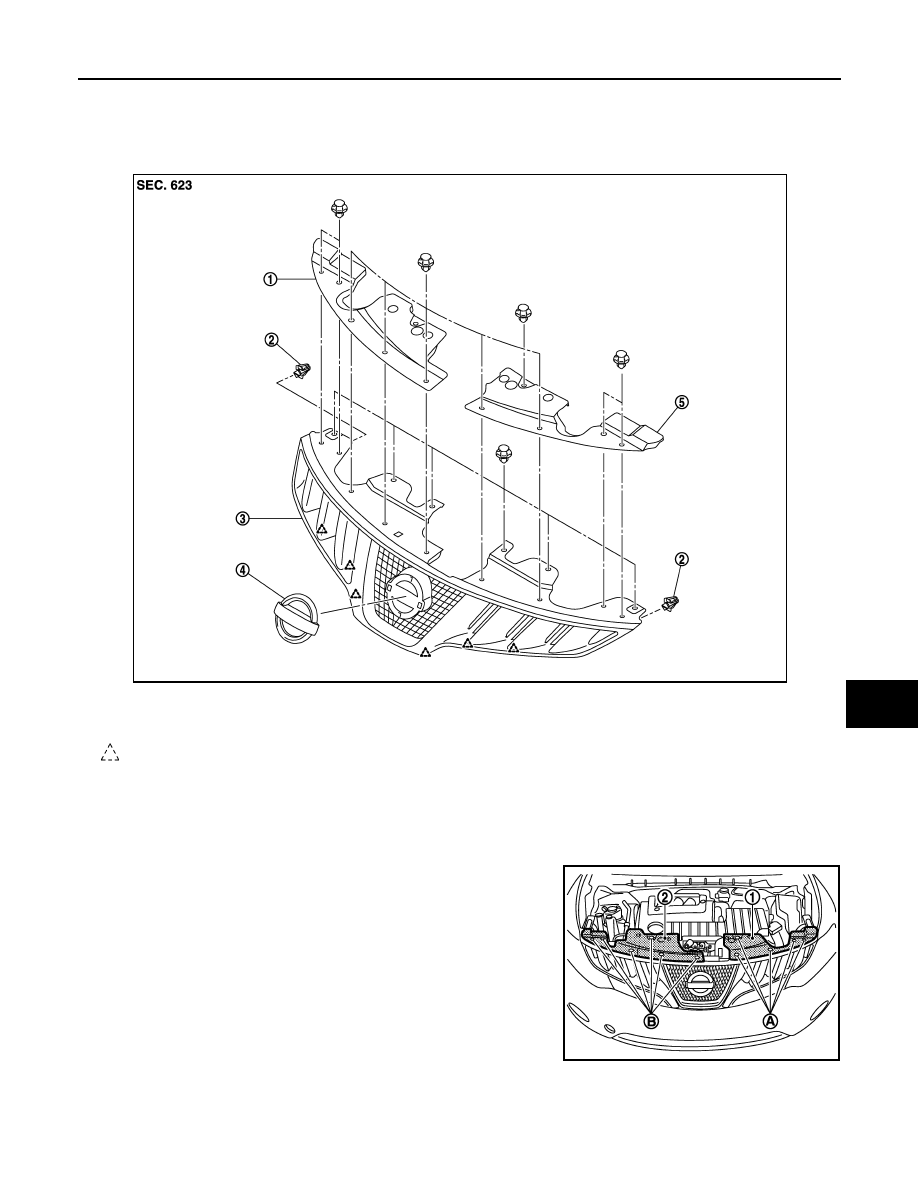

FRONT GRILLE

Exploded View

INFOID:0000000005516272

Removal and Installation

INFOID:0000000005516273

REMOVAL

1.

Fully open hood assembly.

2.

Remove radiator core support cover LH (1) fixing clips (A), and
then remove radiator core support cover LH.

3.

Remove radiator core support cover RH (2) fixing clips (B), and
then remove radiator core support cover RH.

1.

Radiator core support cover RH

2.

Fastener

3.

Front grille assembly

4.

Front emblem

5.

Radiator core support cover LH

: Pawl

JMKIA1975ZZ

JMKIA1976ZZ

EXT-20

< REMOVAL AND INSTALLATION >

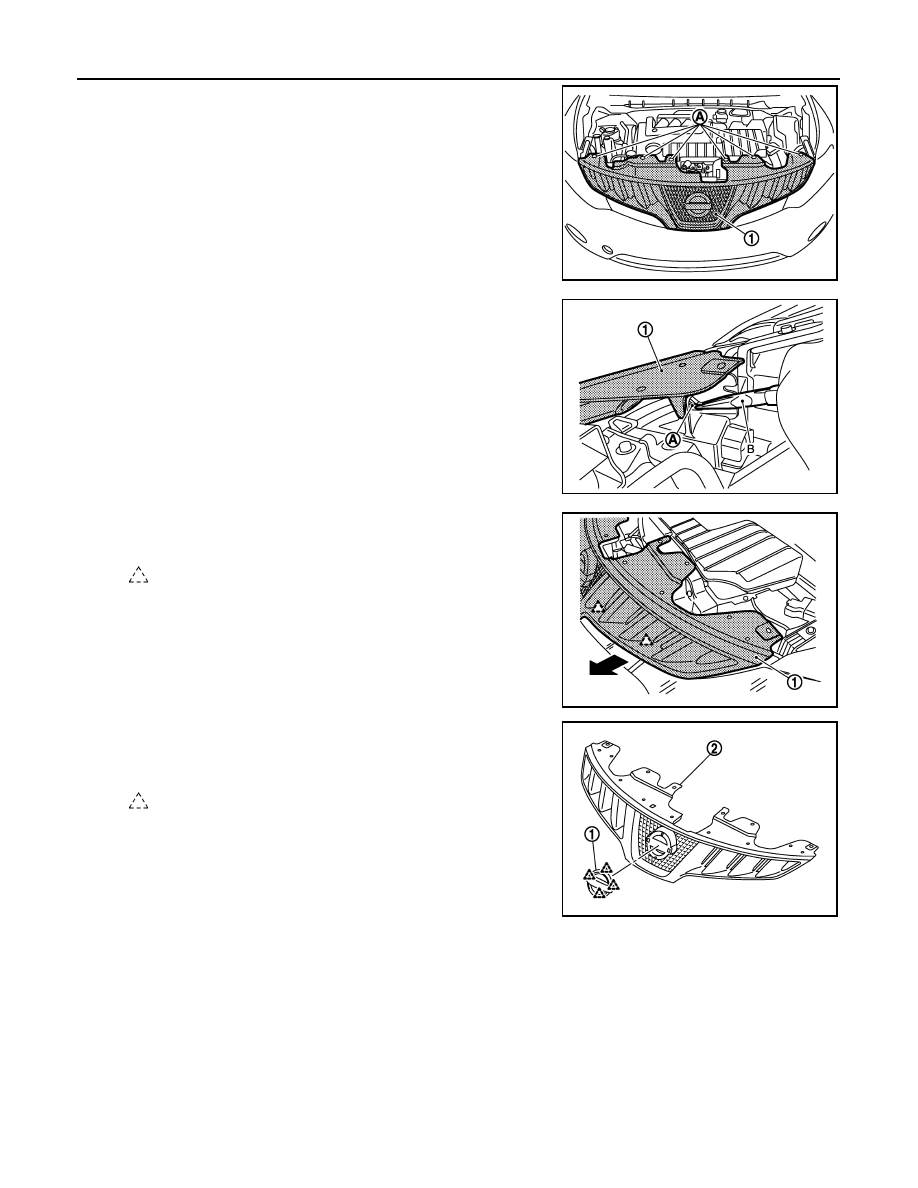

FRONT GRILLE

4.

Remove front grille (1) fixing clips (A).

5.

Disengage fastener (A) of fixing front grille (1) with plier (B).

6.

Pull front grille (1) horizontally toward vehicle front, and then
remove front grille.

7.

Remove the front emblem after removing front grille.
• Remove emblem (1) fixing pawls.
• Remove emblem from front grille (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA1977ZZ

JMKIA1978ZZ

: Pawl

JMKIA1979ZZ

: Pawl

JMKIA1980ZZ

COWL TOP

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

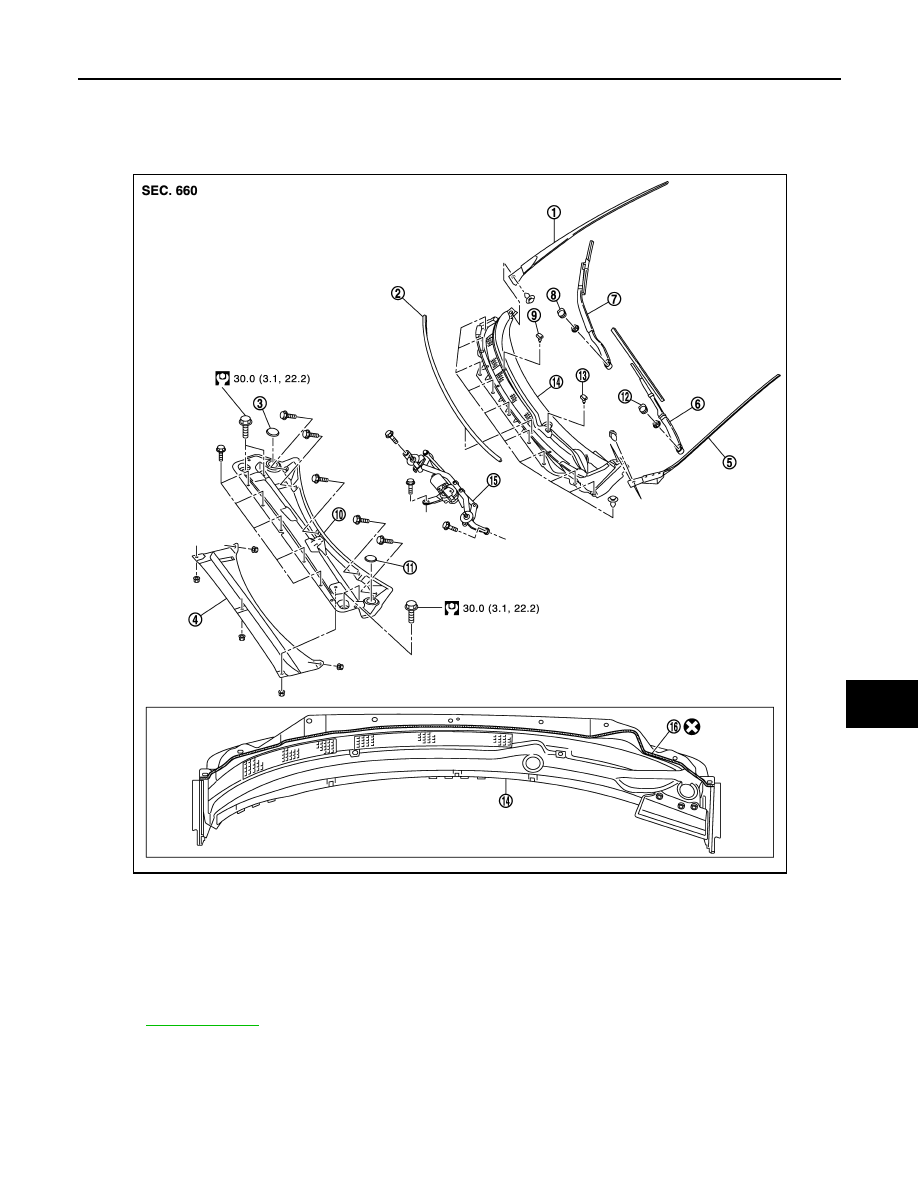

COWL TOP

Exploded View

INFOID:0000000005516274

Removal and Installation

INFOID:0000000005516275

REMOVAL

1.

Fully open hood assembly.

1.

Windshield side molding RH

2.

Cowl top seal

3.

Rubber plug RH

4.

Extension cowl top

5.

Windshield side molding LH

6.

Front wiper arm and blade LH

7.

Front wiper arm and blade RH

8.

Front wiper arm cover RH

9.

Washer nozzle RH

10. Extension cowl top

11. Rubber plug LH

12. Front wiper arm cover LH

13. Washer nozzle LH

14. Cowl top cover

15. Front wiper drive assembly

16. EPT sealer

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1981GB
