FRONT DOOR LOCK

10. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket.

11. Reach in to separate outside handle cable connection on outside handle bracket.
12. Remove door lock assembly TORX bolts.

13. Disconnect door lock actuator connector, and then remove door lock assembly.

14. Remove key rod from door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• To install each rod, rotate rod holder until a click is felt.
• Check door open/close, lock/unlock operation after installation.

INSIDE HANDLE

INSIDE HANDLE : Exploded View

INFOID:0000000005517813

PIIB5814E

1.

TORX bolt

2.

Key rod

3.

Door lock assembly

4.

Inside handle

5.

Front gasket

6.

Outside handle

7.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

8.

Rear gasket

9.

Outside handle bracket

JMKIA1802GB

FRONT DOOR LOCK

DLK-345

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE HANDLE : Removal and Installation

INFOID:0000000005517814

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove inside handle mounting screws.

3.

Disconnect inside handle cable, and then remove the inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

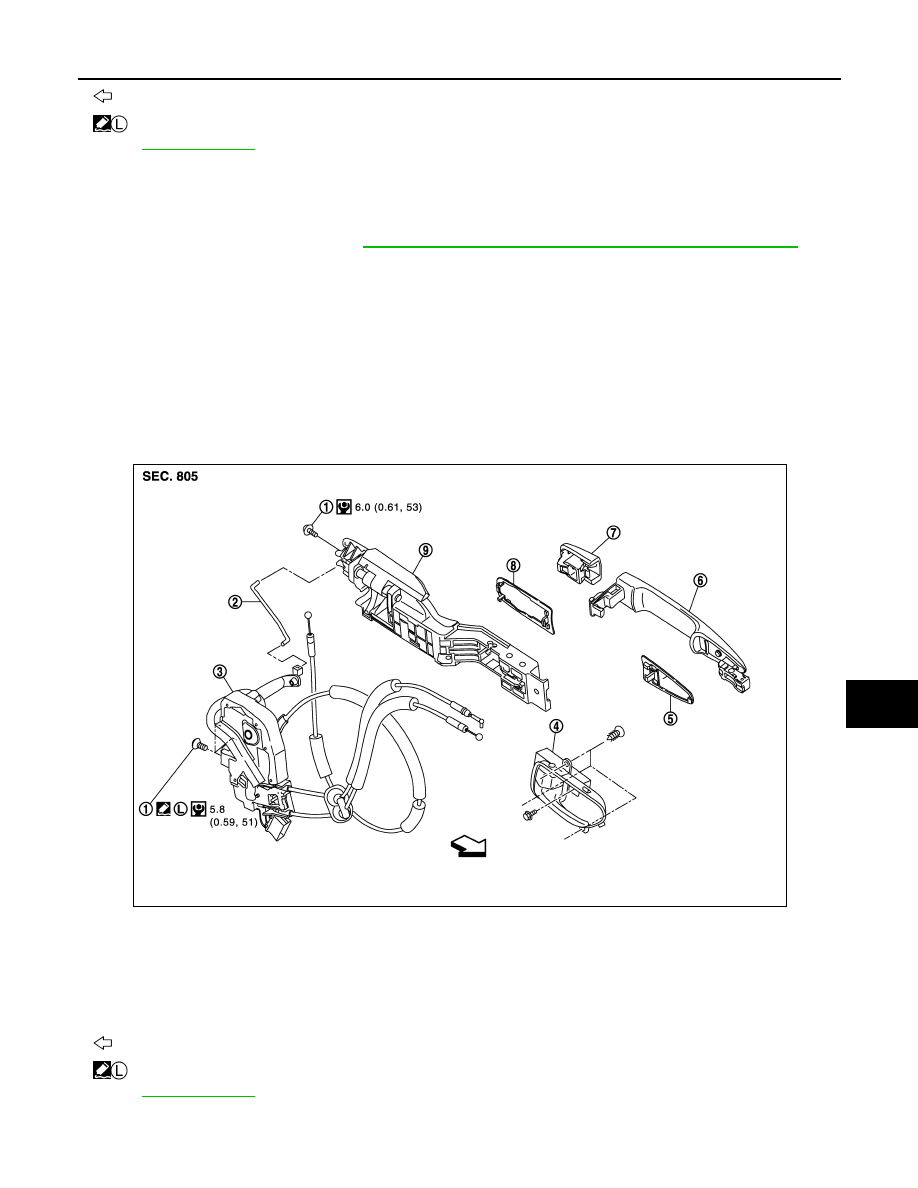

OUTSIDE HANDLE : Exploded View

INFOID:0000000005517815

:Vehicle front

  : Apply genuine high strength thread locking sealant or equivalent.

Refer to

GI-4, "Components"

 for symbols in the figure.

1.

TORX bolt

2.

Key rod

3.

Door lock assembly

4.

Inside handle

5.

Front gasket

6.

Outside handle

7.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

8.

Rear gasket

9.

Outside handle bracket

:Vehicle front

  : Apply genuine high strength thread locking sealant or equivalent.

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1802GB

DLK-346

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000005517816

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove front door glass. Refer to

GW-19, "Removal and Installation"

.

3.

Remove front door module assembly. Refer to

GW-19, "Removal and Installation"

.

4.

Disconnect door antenna and door request switch connector and remove harness clamp (models with
Intelligent Key system) on outside handle bracket.

5.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never forcibly remove TORX bolt.

6.

Reach in to separate door key rod connection (on the handle)
(driver side).

7.

While pulling outside handle, remove door key cylinder assem-
bly (diver side) or outside handle escutcheon (passenger side).

8.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

9.

Remove front gasket and rear gasket.

JMKIA0020ZZ

1.

Door key cylinder assembly

2.

Key rod

JMKIA0553ZZ

JMKIA0560ZZ

JMKIA0524ZZ

FRONT DOOR LOCK

DLK-347

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

10. While pulling outside handle bracket, slide toward rear of vehicle

to remove outside handle bracket.

11. Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• To install each rod, rotate rod holder until a click is felt.
• Check door open/close, lock/unlock operation after installation.

PIIB5814E
