HOOD LOCK

HOOD LOCK

Exploded View

INFOID:0000000005517808

Removal and Installation

INFOID:0000000005517809

REMOVAL

CAUTION:

Check wiring of hood lock control before removal.
1.

Remove front grille. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove mounting bolts, and then remove hood lock assembly
(1).
NOTE:
Press the lever downward to avoid pin (A), then pull out hood
lock assembly upward.

3.

Disconnect hood lock cable (2) from hood lock assembly.

4.

Remove instrument lower panel (LH). Refer to

IP-13, "Removal and Installation"

.

5.

Disconnect hood lock cable from instrument lower panel (LH).

6.

Remove fender protector (LH). Refer to

EXT-24, "FENDER PROTECTOR : Removal and Installation"

.

7.

Remove hood lock cable clamp.

1.

Hood lock assembly

2.

Hood lock control cable

3.

Hood lock opener

: Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1798ZZ

JMKIA1914ZZ

HOOD LOCK

DLK-341

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

8.

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never to damage (peeling) the outside of hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-312, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-341, "Inspection"

.

Inspection

INFOID:0000000005517810

NOTE:
If the hood lock cable is bent or deformed, replace it.
1.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] by hood
weight.

2.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

3.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

4.

Install so that static closing face of hood is 94 – 490 N·m (9.6 – 50.0 kg-m, 69 – 361 ft – lb).
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Never press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.

PIIB5801E

DLK-342

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

FRONT DOOR LOCK

DOOR LOCK

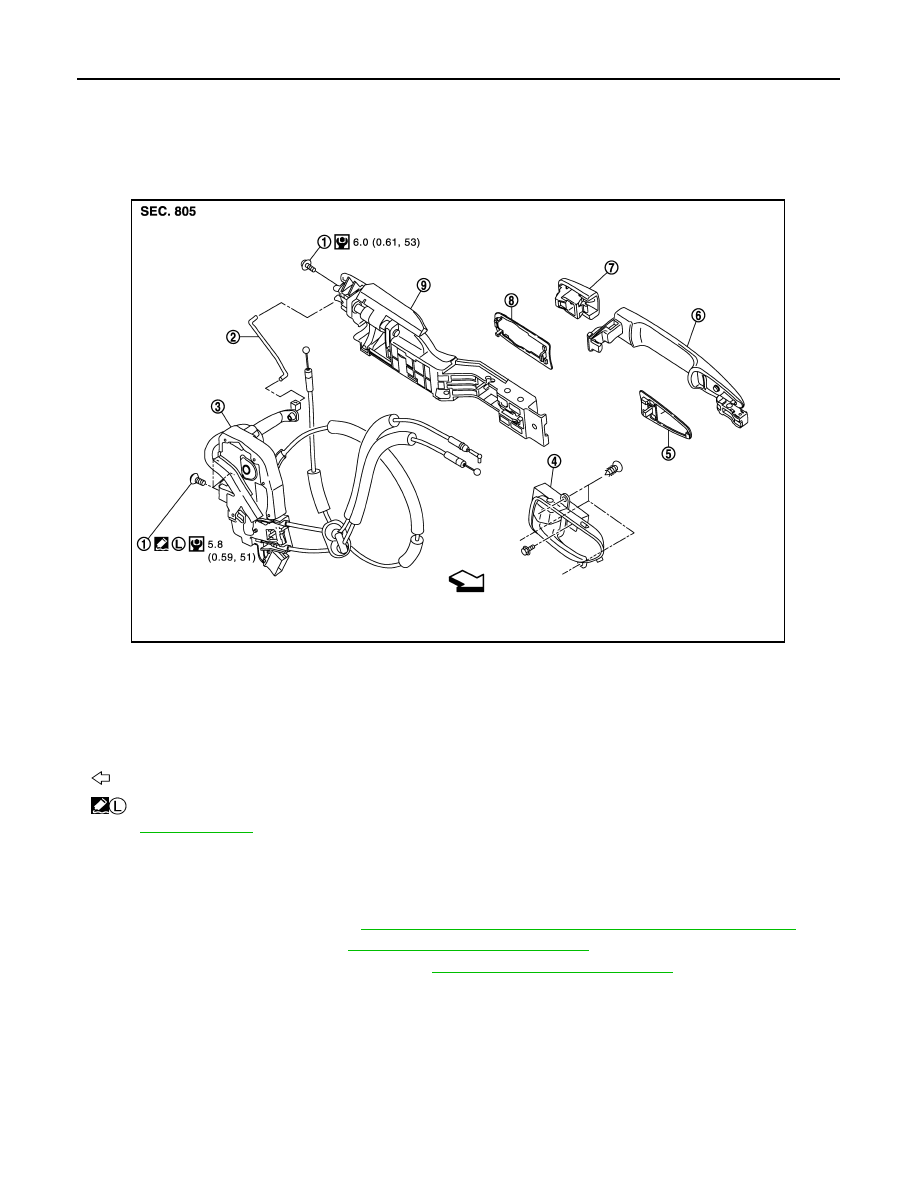

DOOR LOCK : Exploded View

INFOID:0000000005517811

DOOR LOCK : Removal and Installation

INFOID:0000000005517812

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove front door glass. Refer to

GW-19, "Removal and Installation"

.

3.

Remove front door module assembly. Refer to

GW-22, "Removal and Installation"

.

4.

Disconnect door antenna and door request switch connector and remove harness clamp (models with
Intelligent Key system) on outside handle bracket.

1.

TORX bolt

2.

Key rod

3.

Door lock assembly

4.

Inside handle

5.

Front gasket

6.

Outside handle

7.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

8.

Rear gasket

9.

Outside handle bracket

:Vehicle front

  : Apply genuine high strength thread locking sealant or equivalent.

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1802GB

FRONT DOOR LOCK

DLK-343

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never forcibly remove TORX bolt.

6.

Reach in to separate door key rod connection (on the handle)
(driver side).

7.

While pulling outside handle, remove door key cylinder assem-
bly (driver side) or outside handle escutcheon (passenger side).

8.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

9.

Remove front gasket and rear gasket.

JMKIA0020ZZ

1.

Door key cylinder assembly

2.

Key rod

JMKIA0553ZZ

JMKIA0560ZZ

JMKIA0524ZZ
