Nissan Murano Z51. Manual - part 454

DLK-324

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

DOOR STRIKER : Removal and Installation

INFOID:0000000005517782

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-322, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

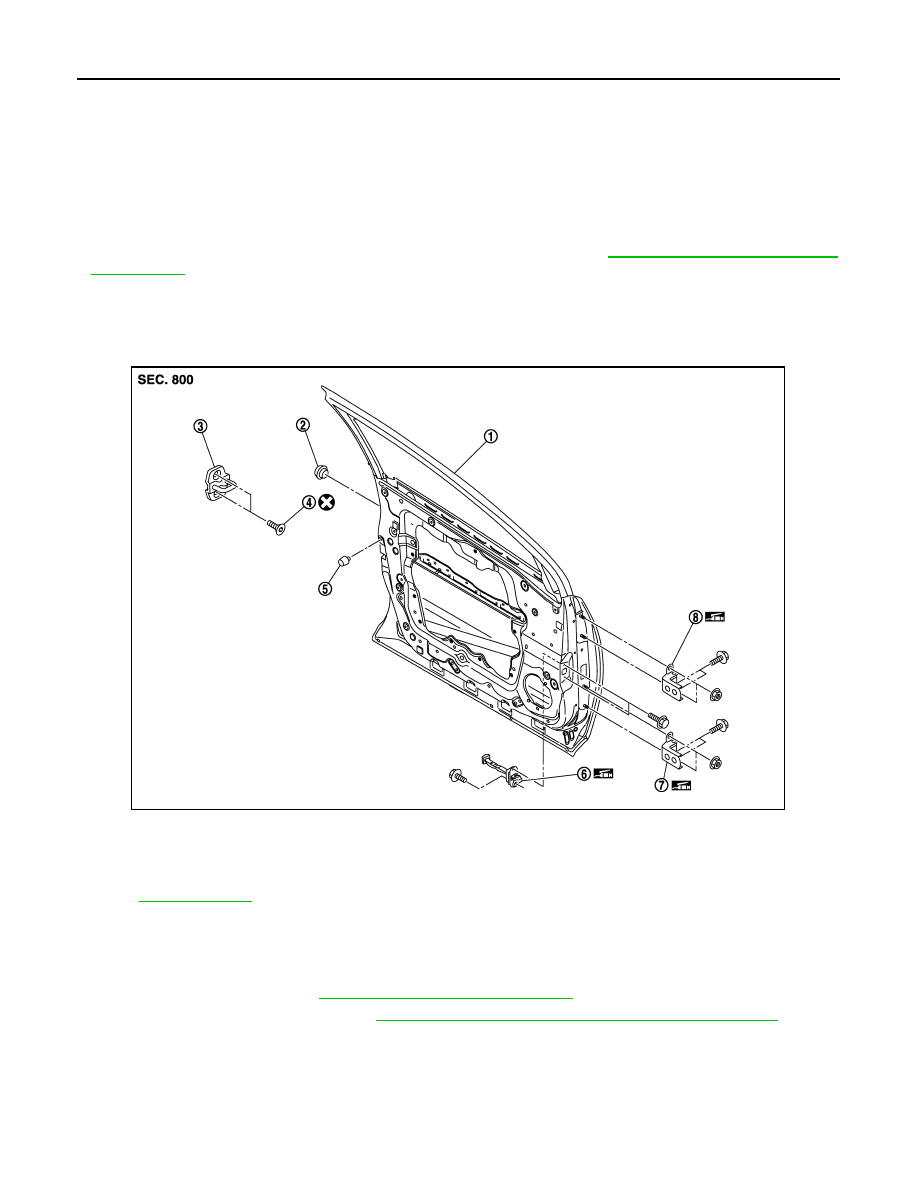

DOOR HINGE : Exploded View

INFOID:0000000005517783

DOOR HINGE : Removal and Installation

INFOID:0000000005517784

REMOVAL

1.

Remove front fender. Refer to

DLK-319, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-321, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts, and then remove front door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ

FRONT DOOR

DLK-325

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• After installation, perform the fitting adjustment. Refer to

DLK-322, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

DOOR CHECK LINK : Exploded View

INFOID:0000000005517785

DOOR CHECK LINK : Removal and Installation

INFOID:0000000005517786

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove front door speaker.

4.

Remove mounting bolts of door check link on the vehicle.

5.

Remove mounting bolts of door check link on door panel.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check front door open/close operation after installation.

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ

DLK-326

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR

REAR DOOR

DOOR ASSEMBLY

DOOR ASSEMBLY : Exploded View

INFOID:0000000005517787

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000005517788

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove mounting bolts of door check link on the vehicle.

2.

Remove rear door harness grommet, and then pull out door harness from the vehicle.

3.

Disconnect rear door harness connector.

4.

Remove door hinge mounting nuts (door side), and then remove rear door assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-327, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Rear door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Seal rubber

7.

Door check link

8.

Door hinge (lower)

9.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3686ZZ

REAR DOOR

DLK-327

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

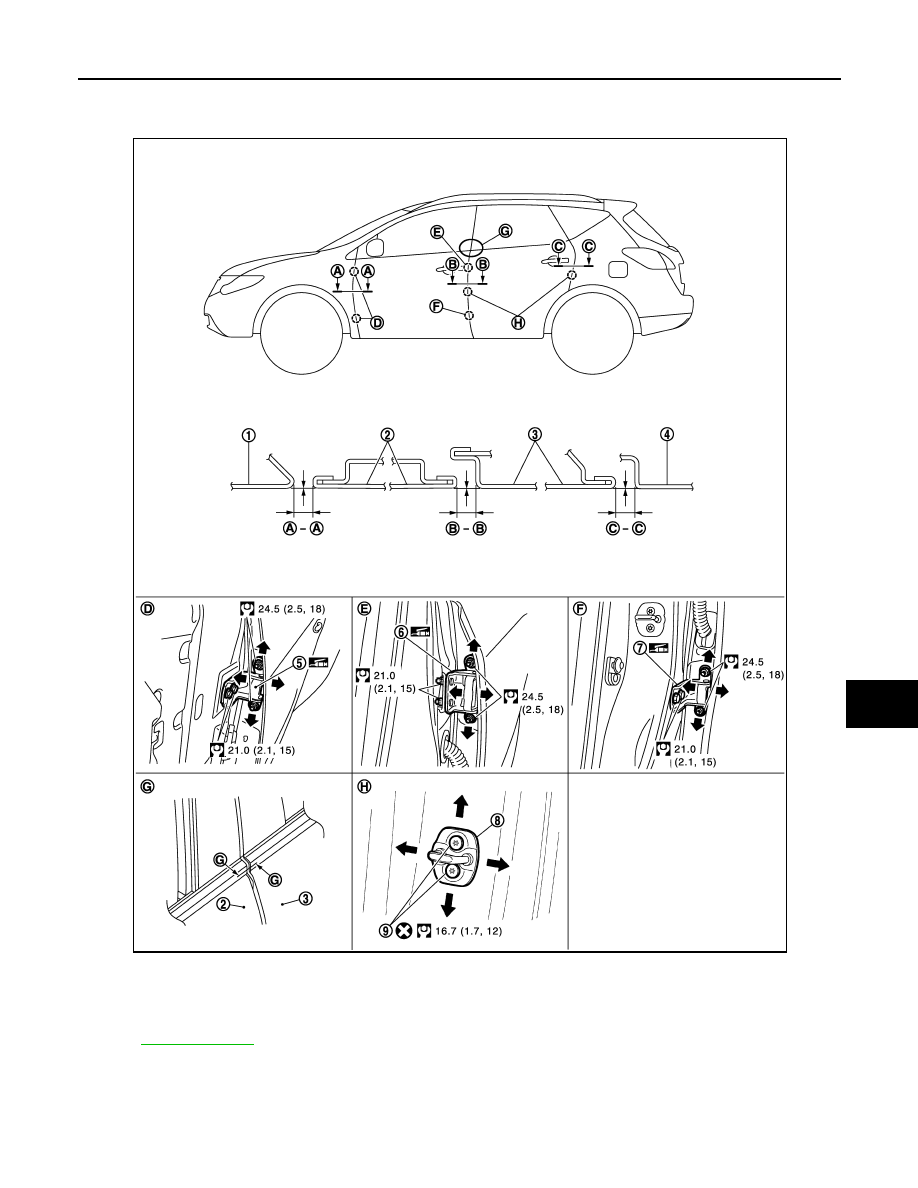

DOOR ASSEMBLY : Adjustment

INFOID:0000000005517789

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Front door hinge

6.

Rear door hinge (upper)

7.

Rear door hinge (lower)

8.

Door striker

9.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3687GB
