DLK-320

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT FENDER

6.

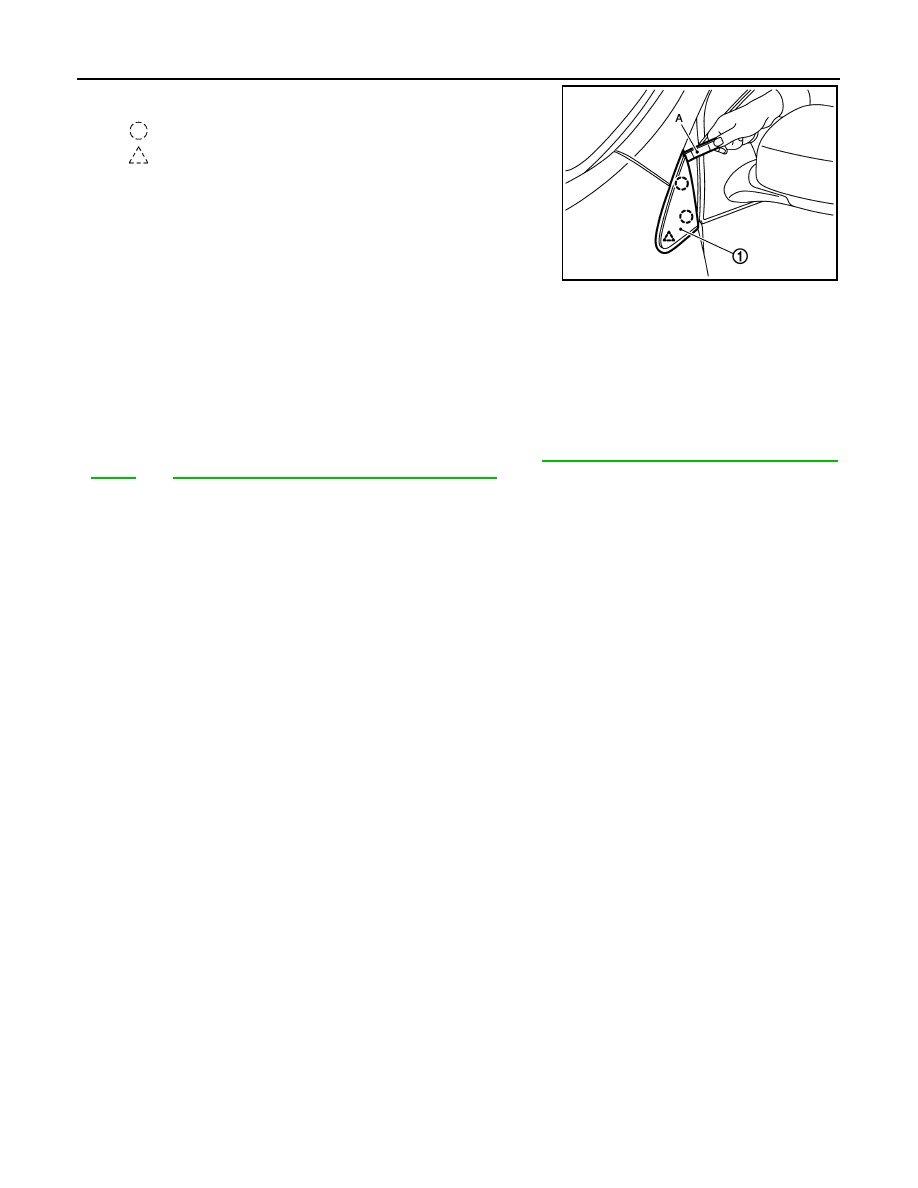

Using remover tool (A), remove front fender finisher (1).

7.

Disengage front part of windshield glass molding from front fender.

8.

Remove mounting bolts and remove front fender.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, peel of the urethane foam bit at a time, and carefully to remove it.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installation, check front fender adjustment. Refer to

DLK-312, "HOOD ASSEMBLY : Adjust-

ment"

 and

DLK-322, "DOOR ASSEMBLY : Adjustment"

.

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

: Clip

: Pawl

JMKIA2261ZZ

FRONT DOOR

DLK-321

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR

DOOR ASSEMBLY

DOOR ASSEMBLY : Exploded View

INFOID:0000000005517778

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000005517779

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove mounting bolts of door check link on the vehicle.

2.

Remove front door harness grommet, and then pull out the harness from the vehicle.

3.

Disconnect front door harness connector.

4.

Remove door hinge mounting nuts (door side), and then remove door assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, perform the fitting adjustment. Refer to

DLK-322, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ

DLK-322

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

DOOR ASSEMBLY : Adjustment

INFOID:0000000005517780

Check the clearance and surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Front door hinge

6.

Rear door hinge (upper)

7.

Rear door hinge (lower)

8.

Door striker

9.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3687GB

FRONT DOOR

DLK-323

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit : mm (in)

1.

Remove front fender. Refer to

DLK-319, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of front door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting bolts on body side.

6.

Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.

7.

After adjustment tighten bolts and nuts to the specified torque.

8.

Install front fender. Refer to refer to

DLK-319, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

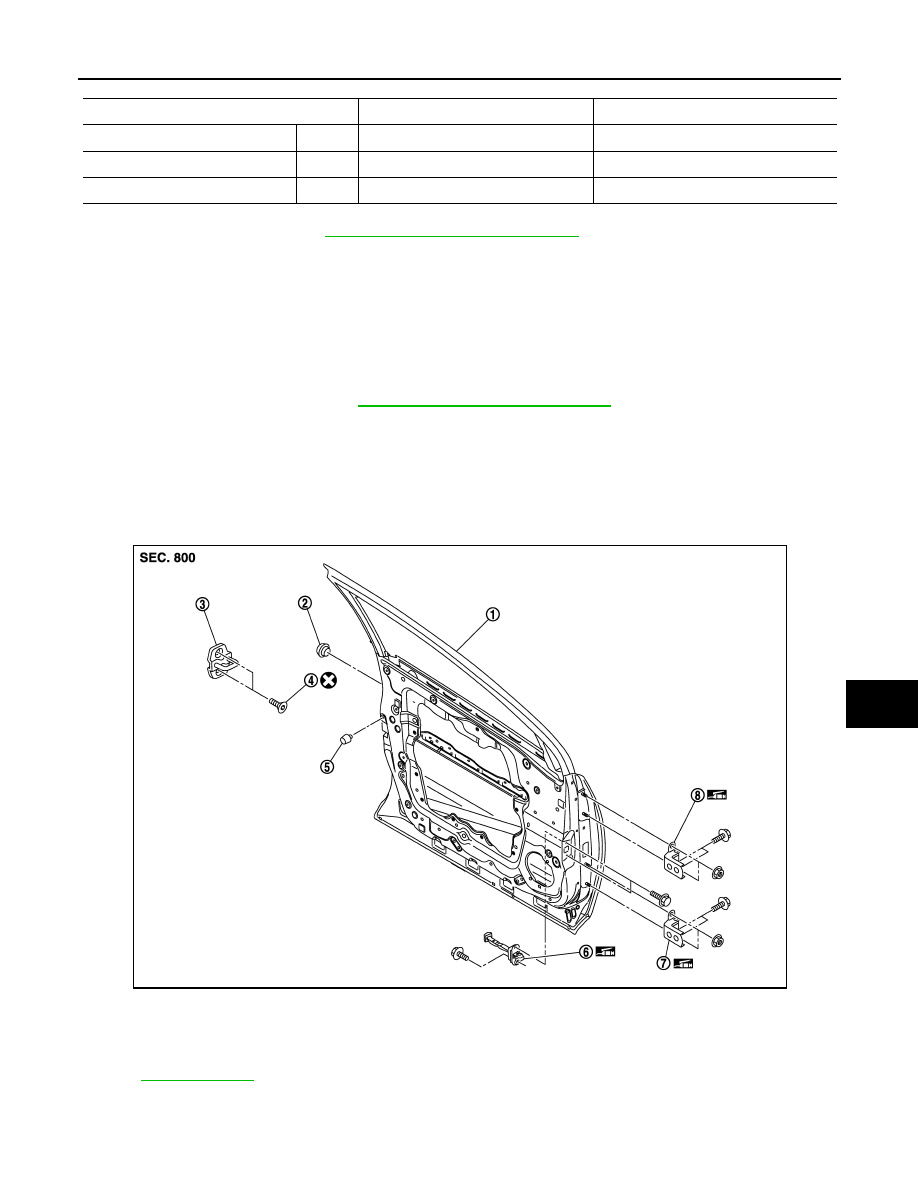

DOOR STRIKER : Exploded View

INFOID:0000000005517781

Portion

Clearance

Surface height

Front fender – Front door

A – A

3.4 – 5.4 (0.134 – 0.213)

- 1.0 – 1.0 (- 0.039 – 0.039)

Front door – Rear door

B – B

3.4 – 5.4 (0.134 – 0.213)

- 1.0 – 1.0 (- 0.039 – 0.039)

Front door – Rear door

G – G

2.9 – 5.9 (0.114 – 0.237)

- 1.5 – 1.5 (- 0.059 – 0.059)

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ
